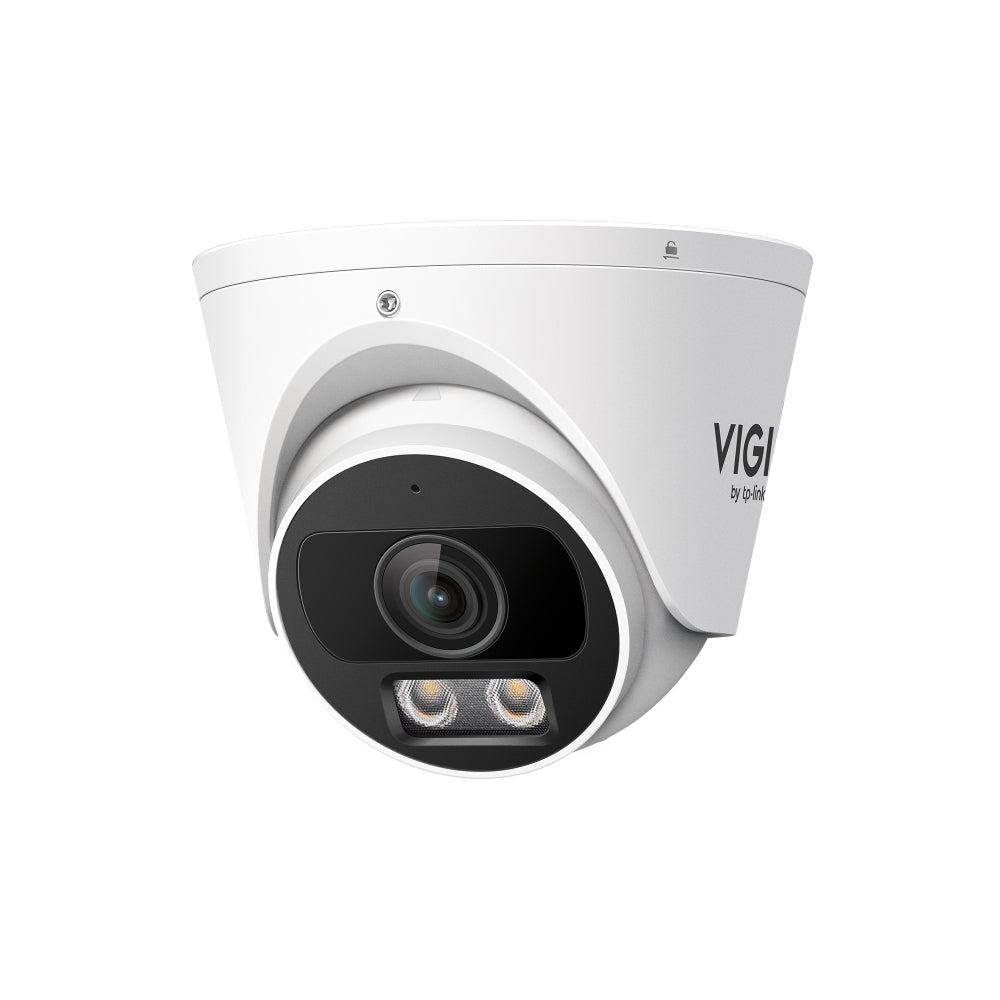

TP-Link InSight S425 2MP Full-Color Turret Network Camera, 2.8mm Lens
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link InSight S425 2MP Full-Color Turret Network Camera, 2.8mm Lens (InSight S425(2.8mm)) - 5 Years Local Warranty
The InSight S425 is TP-Link's 2MP full-colour turret camera from the VIGI InSight series: 1920 x 1080 video, VIGI LightPro night vision, human and vehicle classification and an IP67 / IK08 metal housing, powered over a single PoE cable. This listing is the 2.8 mm fixed-lens version; the 4 mm lens version is available separately.
1080p Video With LightPro Night Vision
A 1/3-inch progressive-scan CMOS sensor with F2.0 aperture records 1920 x 1080 at up to 25 fps (50 Hz) or 30 fps (60 Hz). Two integrated infrared-white LEDs reach 30 m in both IR (850 nm) and white light. TP-Link's LightPro Night Vision switches intelligently between IR night vision and full-colour night vision when it detects people or vehicles, keeping footage discreet until there is something worth seeing in colour.
2.8 mm Lens Coverage and DORI Distances
At 2.8 mm, TP-Link publishes a field of view of horizontal 98.8°, vertical 53.5°, diagonal 117°, with DORI distances of detect 47 m (153 ft), observe 19 m (64 ft), recognise 9 m (31 ft), identify 5 m (15 ft). The 2.8 mm lens favours wide coverage of rooms, entrances and corridors close to the camera.
Human & Vehicle Classification and Smart Detection
Motion detection is enhanced with human and vehicle classification for more accurate alerts, and smart events cover intrusion, line crossing, region entering and exiting, people and vehicle detection. Alarm linkage covers FTP upload, push notifications, email and an alarm server.
H.265+ Compression and Built-In Microphone
H.265+ on the main stream, at 256 Kbps to 4 Mbps, cuts bandwidth and storage; TP-Link quotes savings of 57.5% versus H.264 and 15% versus H.265 (laboratory testing using a 3MP VIGI camera; actual results vary). A built-in microphone records within a 4.6 m (15 ft) radius. There is no speaker and no on-board memory card slot on this model, so recording is to a VIGI NVR or VMS.
IP67 and IK08 Metal Housing
The metal turret is rated IP67 waterproof and IK08 vandal-proof and operates from -30 °C to 60 °C, so the same camera can be fitted under an eave outdoors or in an accessible indoor position.
Ideal For
Singapore offices, shops, clinics, classrooms and building common areas that need a cost-effective 2MP turret camera recording to a VIGI NVR. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
InSight S425(2.8mm) Datasheet — Technical Specifications
General
| Model | InSight S425(2.8mm) |
| Official Product Name | VIGI 2MP Full-Color Turret Network Camera |
| Brand | TP-Link VIGI |
| Series | InSight |
| Lens Variant | 2.8 mm fixed focal |
| Warranty | 5 Years Local Warranty (Singapore) |
Camera and Lens
| Image Sensor | 1/3" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s, slow shutter supported |
| Minimum Illumination | 0.005 lux; 0 lux with IR/white light |
| Day/Night | IR cut filter; unified / scheduled / auto switching |
| Lens | Fixed focal, 2.8 mm, F2.0, M12 mount |
| Field of View | Horizontal 98.8°, vertical 53.5°, diagonal 117° |
| DORI Distance | Detect 47 m (153 ft) / observe 19 m (64 ft) / recognise 9 m (31 ft) / identify 5 m (15 ft) |
| Manual Angle Adjustment | Pan 0° to 360°, tilt 0° to 85°, rotation 0° to 360° |
| Illuminator | 2x integrated infrared-white LED; IR range 30 m (98 ft), white LED range 30 m (98 ft); IR wavelength 850 nm |
| Illuminator Control | Auto / scheduled / always on / always off |
Video and Image
| Max Resolution | 1920 x 1080 |
| Main Stream | 1920x1080, 1280x960, 1280x720; 50 Hz up to 25 fps, 60 Hz up to 30 fps |
| Sub-Stream | 848x480, 704x576, 640x480, 640x360, 352x288, 320x240; 50 Hz up to 25 fps, 60 Hz up to 30 fps |
| Rotation Note | If image rotation is set to 90°, frame rate is limited to 20 fps |
| Video Compression | Main stream H.265+/H.265/H.264+/H.264; sub-stream H.265/H.264 |
| H.264 / H.265 Profile | H.264 High Profile; H.265 Main Profile |
| Video Bit Rate | Main stream 256 Kbps to 4 Mbps; sub-stream 64 Kbps to 512 Kbps |
| Bit Rate Control | CBR, VBR |
| Image Settings | Mirror, brightness, contrast, saturation, sharpness, exposure, WDR, white balance, prevent IR overexposure, HLC (adjustable by client software) |
| Image Enhancement | BLC / 3D DNR / HLC / Smart IR |
| Wide Dynamic Range | DWDR |
| SNR | 52 dB or better |
| Privacy Mask / ROI | Up to 4 masks; 1 ROI region |
Audio
| Audio Communication | N/A (one-way audio input only) |
| Built-in Microphone | Yes; records within a 4.6 m (15 ft) radius |
| Built-in Speaker | N/A |
| Audio Bit Rate / Sampling | 64 Kbps (G.711 a-law); 8 kHz |
| Noise Filtering | Environment noise filtering supported |
Network, Events and Interfaces
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Interoperability | ONVIF (Profile S/T) |
| Simultaneous Live View | 3 main streams and 3 sub-streams |
| Client | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool |
| Web Browser | Chrome 57+, Firefox 52+, Safari 11+, Edge 91+ |
| Cloud | Yes |
| Security | Password protection, HTTPS encryption, IP address filter, digest authentication |
| Smart Event | Intrusion, line-crossing, region entering, region exiting, people and vehicle detection |
| Basic Event | Motion detection (enhanced with human & vehicle classification), camera tampering, exception (illegal login) |
| Alarm Linkage | Upload to FTP server, push notifications, send to alarm server, email alarm |
| Network Interface | 1x RJ45 10/100 Mbps self-adaptive Ethernet port, PoE |
| On-board Storage | N/A |
| Other Interfaces | DC power port. Reset button: N/A. Alarm: N/A |
Physical, Power and Environment

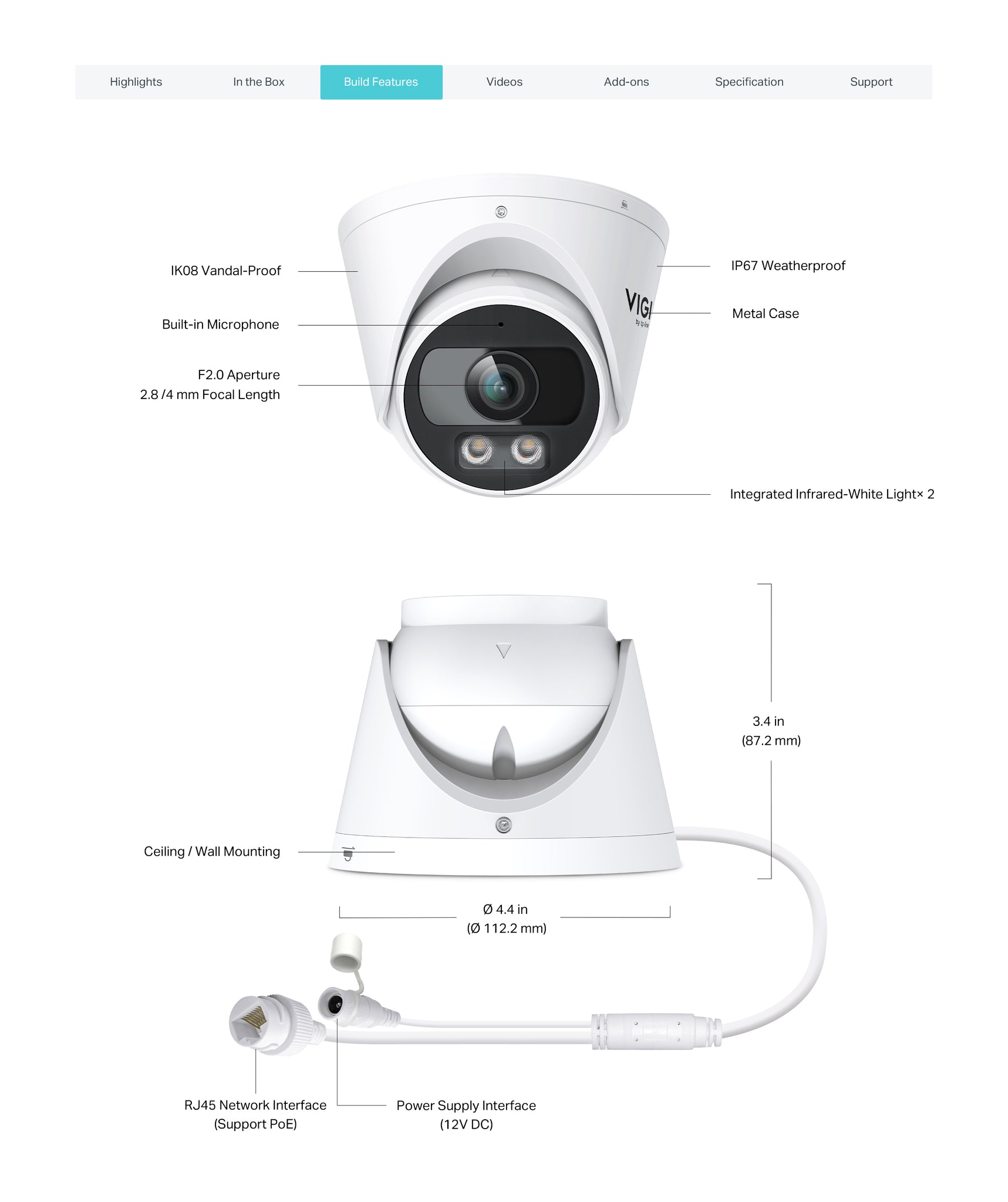

| Dimensions | Ø112.2 x 87.2 mm (Ø4.4 x 3.4 in) |
| Material | Metal |
| Net Weight | 0.43 kg |
| Power Supply (DC) | 12 V DC ±5%, max 7.4 W, 5.5 mm coaxial plug |
| Power Supply (PoE) | 802.3af/at, class 0, max 8 W |
| Protection | IP67 waterproof, IK08 vandal-proof |
| Operating Temperature | -30 °C to 60 °C |
| Storage Temperature | -40 °C to 60 °C |
| Humidity | 95% or less, non-condensing (operating and storage) |
| Certification | CE, NTRA, KC, FCC, VCCI, BSMI, ONVIF, IP67, IK08 |
Published Notes
TP-Link's feature text describes the S425 as "24h full-color" while also publishing LightPro switching between IR and full-colour night vision on detection; both are TP-Link's own descriptions.
TP-Link footnotes: H.265+ storage savings are based on laboratory testing using a 3MP VIGI camera, and actual performance varies with recorded activity, resolution and other variables; other calculated figures are from laboratory testing and are not guaranteed.
Compatibility & Software Support
| VIGI Network Video Recorders | Supported — recommended for continuous recording and central playback |
| VIGI VMS / VIGI Cloud VMS | Supported |
| VIGI App | Supported on Android and iOS |
| VIGI Config Tool | Supported — batch configuration on Windows |
| Web UI | Supported |
| Third-Party NVRs and VMS | Supported via ONVIF Profile S/T |
| Power | 802.3af/at PoE from a VIGI PoE NVR or PoE switch, or a 12 V DC adapter |
| Standalone Use | No on-board storage — pair with a VIGI NVR, VIGI VMS or an ONVIF recorder for recording |
| Omada SDN Controller | Not applicable — VIGI is TP-Link's surveillance line and is managed through VIGI tools |
Package Contents & Ordering Information
What's in the Box
| Package Contents | VIGI network camera, quick start guide, waterproof cable attachments, mounting accessories |
TP-Link's published package list does not include a power adapter.
Ordering Information
| Model | InSight S425(2.8mm) |
| SKU | InSight S425(2.8mm) |
| Lens | 2.8 mm fixed focal |
| Other Lens Options | InSight S425(4mm) (4 mm) — listed separately |
| Warranty | 5 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — InSight S425(2.8mm)
Does the InSight S425 need a VIGI recorder?
It needs somewhere to record: the S425 has no memory card slot, so pair it with a VIGI NVR, VIGI VMS / Cloud VMS or an ONVIF-compatible recorder. Live view works through the VIGI app and web UI.
Which lens should I choose?
This listing is the 2.8 mm version (horizontal 98.8°). Choose InSight S425(4mm) for the 4 mm lens; a longer focal length gives a narrower view with longer DORI distances.
How is it powered?
802.3af/at PoE over the network cable, or a 12 V DC adapter through a 5.5 mm coaxial plug. No adapter is listed in the box.
What warranty does SourceIT provide?
Five years local Singapore warranty, with a GST invoice on every order.
Is stock held locally?
SourceIT holds fast-moving VIGI lines in Singapore. Anything not in local stock is brought in on indent — ask us for the current lead time before committing to a project date.
Is this model available for project orders?
Yes. TP-Link supplies this model for project deployments; contact SourceIT with your bill of materials for pricing and lead time.
