TP-Link InSight S385PI 8MP Outdoor IR Panoramic Bullet Network Camera
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link VIGI 8MP Outdoor IR Panoramic Bullet Network Camera (InSight S385PI) - 5 Years Local Warranty

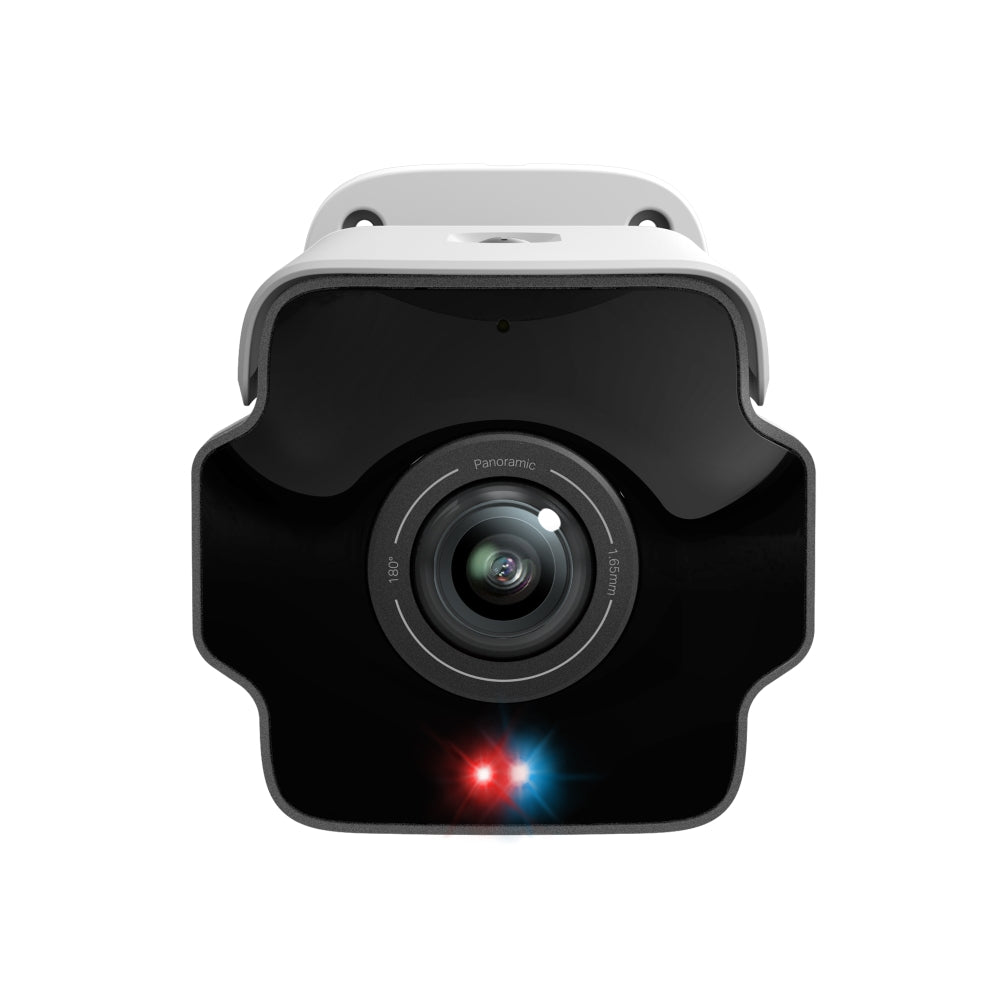

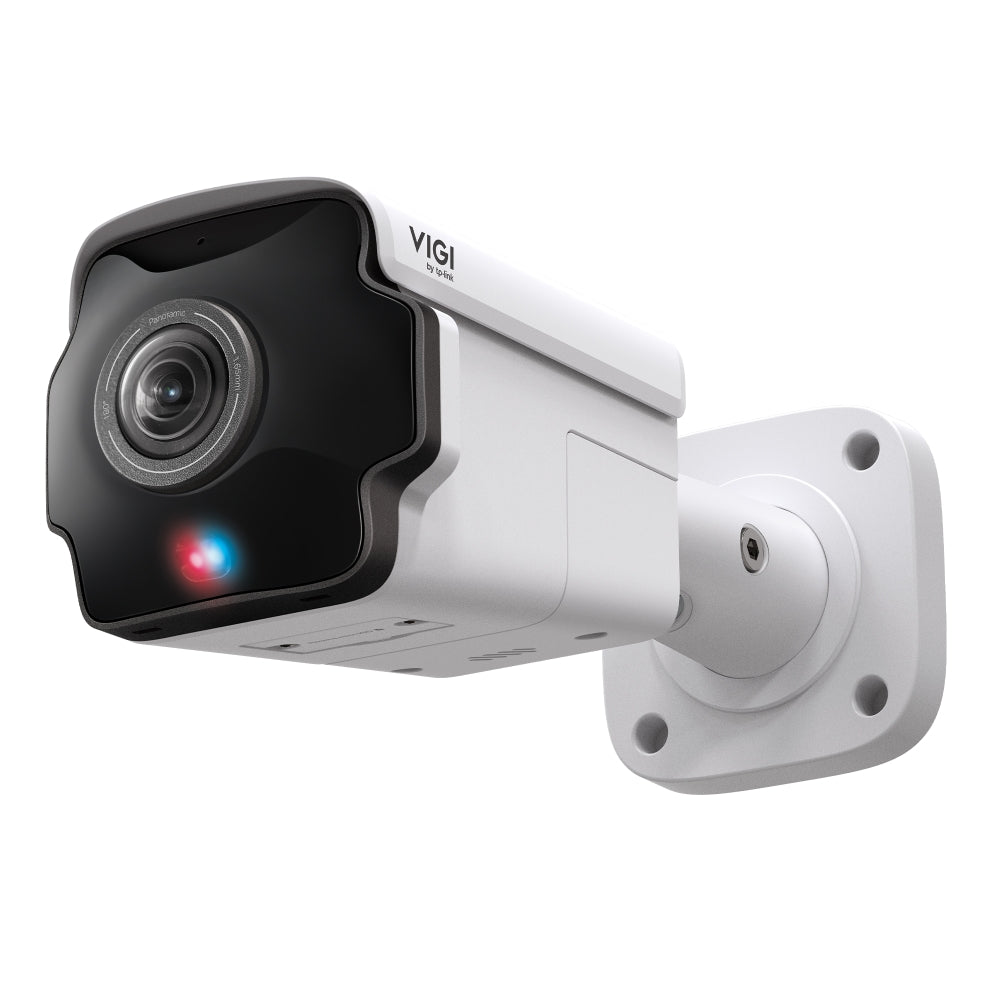

The TP-Link InSight S385PI is an 8MP (3840 x 2160) outdoor panoramic bullet network camera from the VIGI InSight series. A 1.65 mm fixed lens covers a 180° horizontal field of view, four 850 nm IR LEDs reach up to 20 m, and red-blue warning lights with audio alarms provide active deterrence. It also offers People & Vehicle Analytics, alarm and audio interfaces, and an IP67 / IK10 rated metal housing.
180° Panorama in 4K (8MP)
A 1/2.7" progressive scan CMOS sensor and 1.65 mm F2.0 lens deliver a 180° horizontal and 86° vertical view at up to 3840 x 2160, so a single camera can cover a wide frontage, yard or car park.
Red-Blue Warning Lights and Two-Way Audio
Red-blue flashing lights paired with sound alarms act as an active deterrent. A built-in microphone and speaker provide two-way audio, and 1 audio in / 1 audio out plus 1 alarm in / 1 alarm out interfaces connect external devices.
People & Vehicle Analytics and Smart Detection
Search and filter to people or vehicles of interest by attribute (with VIGI specified software). Smart events include intrusion, line-crossing, region entering and exiting, object abandoned and removal, loitering, people and vehicle detection, abnormal sound and scene change.
Built for Outdoor Installation
The metal housing is rated IP67 and IK10 and specified for -30 to 60 °C. Power it over 802.3at PoE (Class 4, max. 21 W) or 12V DC (max. 18 W), and record locally to a microSD card of up to 512 GB.
Ideal For
Building frontages, car parks, yards, loading areas and junctions where one wide 180° view replaces several fixed cameras, with active deterrence at night, managed from a VIGI NVR, VIGI VMS, VIGI Cloud VMS or the VIGI app. Supplied by SourceIT with local Singapore warranty and GST invoice.
InSight S385PI Datasheet — Technical Specifications
General
| Model | InSight S385PI |
| Official Product Name | VIGI 8MP Outdoor IR Panoramic Bullet Network Camera |
| Brand | TP-Link |
| Warranty | 5 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
Lens
| Type | Fixed Focal Lens |
| Focal Length | 1.65 mm |
| Aperture | F2.0 |
| FOV | Horizontal FOV: 180° Vertical FOV: 86° Diagonal FOV: 180° |
| Lens Mount | M12 |
| DORI Distance | D: 144.36 ft (44 m) O: 60.15 ft (18.33 m) R: 28.87 ft (8.8 m) I: 14.44 ft (4.4 m) |
| Angle Adjustment (Manual) | Pan: 0° to 360° Tilt: 0° to 90° Rotation: 0° to 360° |
Illuminator
| IR LED | Quantity: 4 Range: 65.62 ft (20 m) Wavelength: 850nm |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Max. Resolution | 3840 x 2160 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 |
| Frame Rate Note | If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 8 Mbps Sub-Stream: 64 Kbps to 1024 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 4 Regions |
| OSD Setting | Yes |
Audio
| Audio Communication | Two-Way Audio |
| Audio Input | Built-in Microphone, Audio In Interface |
| Audio Output | Built-in Speaker, Audio Out Interface |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
Network
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S/T/G) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Alarm and Event Management
| Smart Event | Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection, People Detection, Vehicle Detection, Abnormal Sound Detection, Scene Change Detection |
| Basic Event | Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts), Video Tampering Detection, Exception (Illegal Login), Alarm Input Device |
| Alarm Linkage | Memory Card Video Recording, Upload to FTP Server, Alarm Output Device, Push Notifications, Send to Alarm Server, Active Defence-Sound Alarm, Active Defence-Light Alarm, Email Alarm |
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier (must be used with VIGI specified software) |

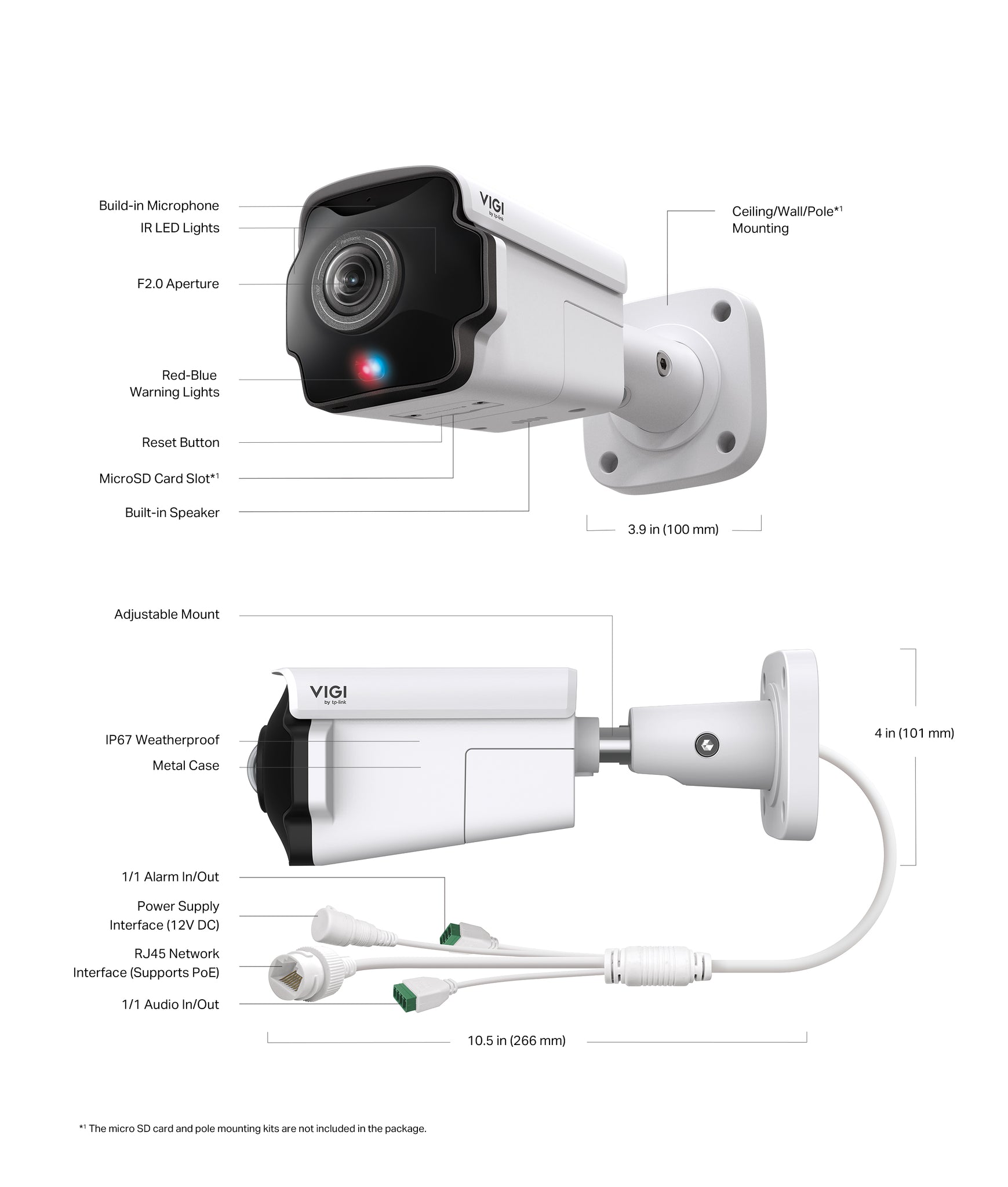

Interfaces
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | 1 Alarm In, 1 Alarm Out |
| Warning Lights | Red-Blue Warning Lights |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | 1 Audio In, 1 Audio Out |
Physical & Environment
| Operating Temperature | -30 °C to 60 °C |
| Storage Temperature | -40 to 60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Material | Metal |
| Net Weight | 1.01 Kg |
| Power Supply | 12V DC ± 5%, Max. 18W, 5.5 mm Coaxial Power Plug PoE: 802.3at, Class 4, Max. 21W |
| Protection | IP67 Weatherproof, IK10 Vandal Proof |
| Product Dimensions (L x W x H) | 10.5 x 3.9 x 4 in (266 x 100 x 101 mm) |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF |
Figures reproduced from TP-Link’s Singapore product page. TP-Link bases the IR range on laboratory testing and notes it will vary with environmental factors. The camera has no white-light illuminator, and TP-Link publishes no gross (packed) weight for this model. Notifications triggered by external alarm devices support live view only; AI-triggered notifications support playback of the event clip.
Compatibility & Software Support
| Client | VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS |
| ONVIF | Yes — Profile S/T/G |
| Cloud | Yes (as listed by TP-Link) |
| People & Vehicle Analytics | Requires VIGI specified software |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Power | PoE+ switch or injector (802.3at, Class 4), or 12V DC adapter with 5.5 mm coaxial plug |
| Local Storage | MicroSD card up to 512 GB (not included) |
Package Contents & Ordering Information
Package Contents
| VIGI Network Camera | Included |
| Quick Start Guide | Included |
| Waterproof Cable Attachments | Included |
| Mounting Accessories | Included |
The microSD card and pole mounting kits are not included.
Ordering Information
| Model | InSight S385PI |
| SKU | InSight S385PI |
| Warranty | 5 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — InSight S385PI
What warranty does SourceIT provide?
This camera is supplied with a 5 Years Local Warranty (Singapore), handled in line with TP-Link’s replacement warranty policy for Singapore. Every order comes with a GST invoice.
How wide is the view?
The 1.65 mm lens gives a 180° horizontal, 86° vertical and 180° diagonal field of view. TP-Link rates identification at up to 4.4 m and detection at up to 44 m.
Does it need PoE+?
When powered over Ethernet it requires 802.3at PoE (Class 4, max. 21 W), so use a PoE+ switch, NVR port or injector. Alternatively, it can run from a 12V DC supply (max. 18 W).
Can it connect to external alarms and speakers?
Yes. It has 1 alarm in, 1 alarm out, 1 audio in and 1 audio out, in addition to its built-in microphone, speaker and red-blue warning lights.
Can SourceIT quote this for an office or a project?
Yes. SourceIT quotes VIGI cameras, NVRs, PoE switches and storage for offices, shops, warehouses and multi-site projects in Singapore. Send the quantity and site details for a project quote.
