TP-Link InSight S385 8MP Outdoor Full-Color Bullet Network Camera, 4mm Lens
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link VIGI 8MP Outdoor Full-Color Bullet Network Camera (InSight S385 4mm) - 5 Years Local Warranty

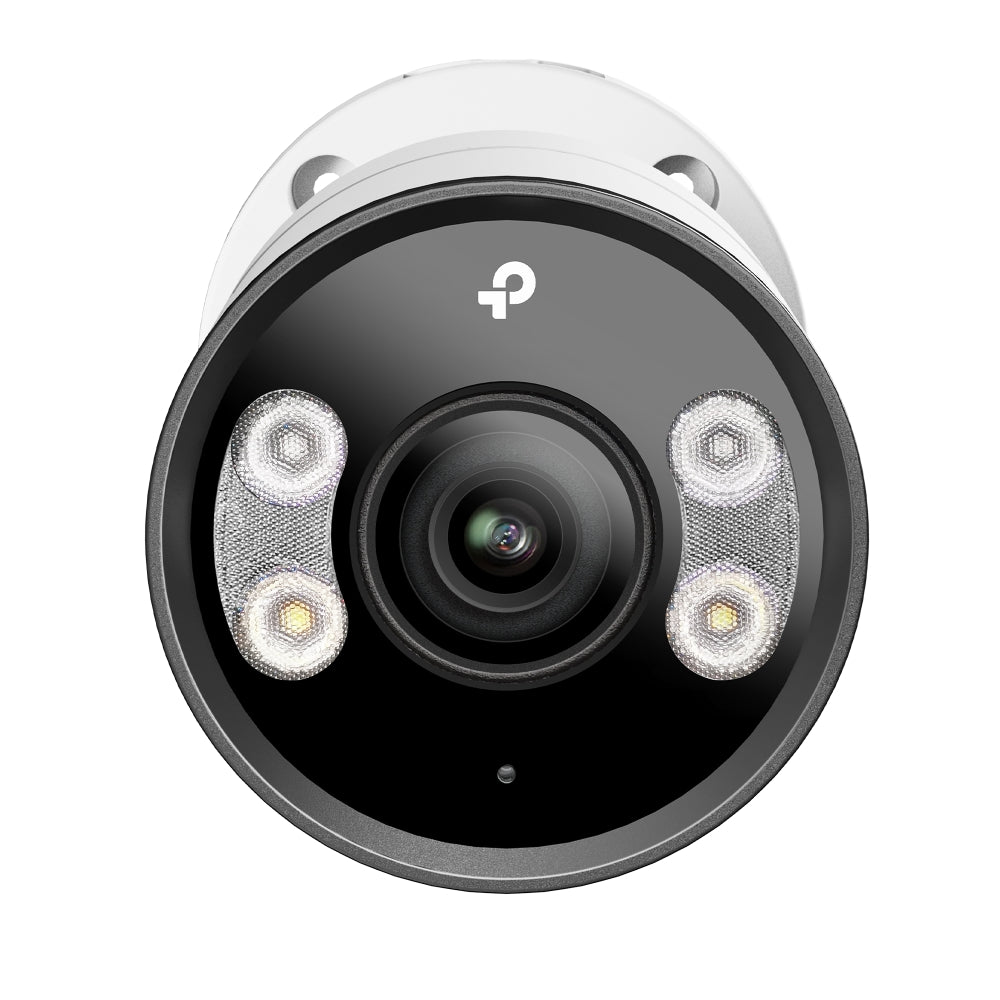

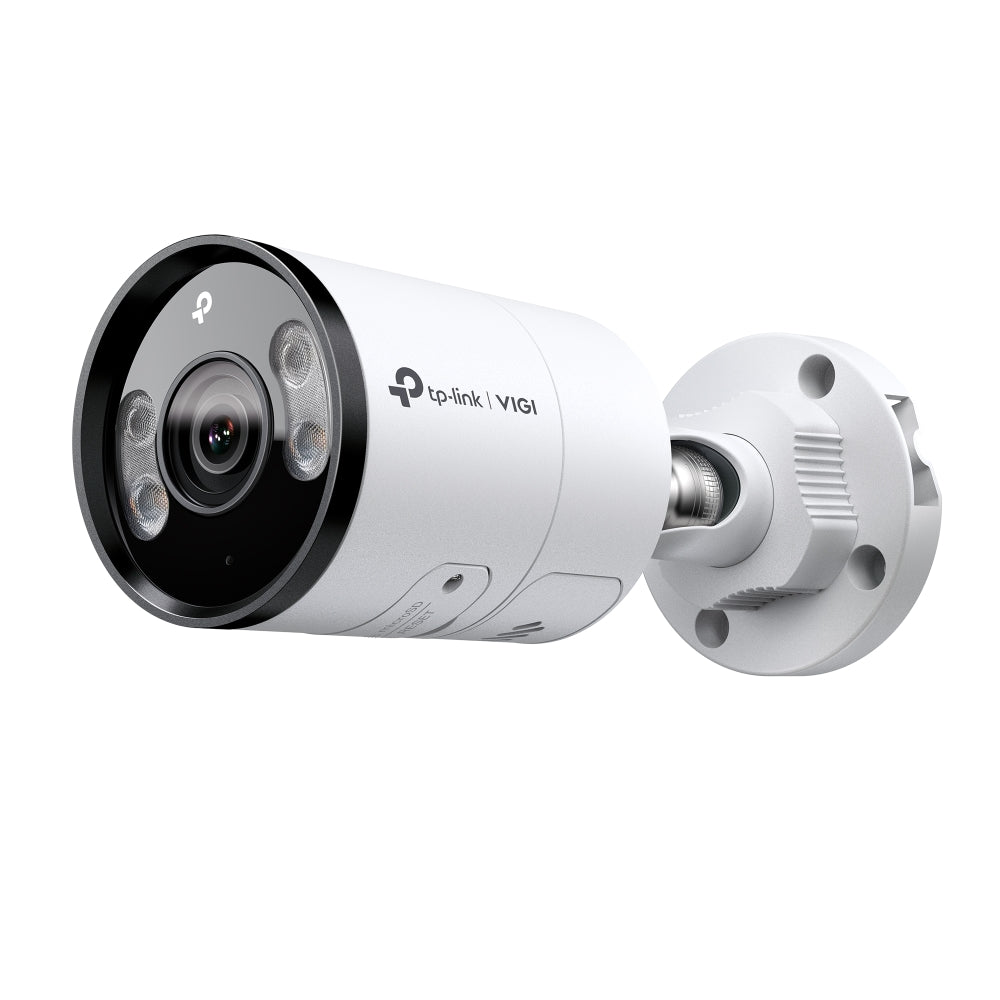

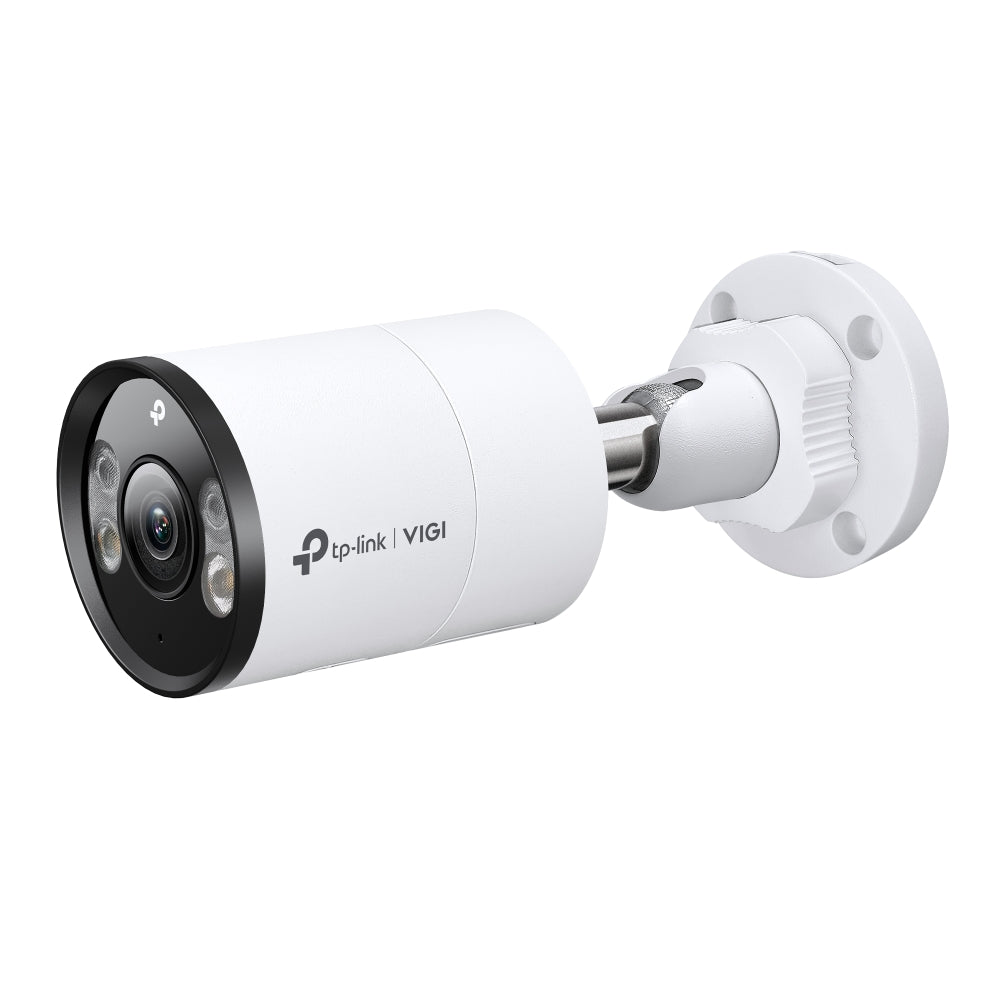

The TP-Link InSight S385 is an 8MP (3840 x 2160) outdoor bullet camera from the VIGI InSight series, with a fixed 4mm F1.6 lens, full-colour night imaging and a metal IP67 housing. It supports two-way audio, active defence with white light flashing and an audible warning, and people & vehicle analytics.
4K Ultra HD Resolution
A 1/2.7" progressive scan CMOS sensor records at up to 3840 x 2160, with 120 dB WDR and H.265+ compression on the main stream.
Full-Color Night Imaging
Two white LEDs and two 850 nm IR LEDs each reach 30 m, with minimum illumination down to 0.005 Lux.
Active Defence and Two-Way Audio
Events can trigger white light flashing and an audible warning. The built-in microphone and speaker allow two-way conversation with visitors or intruders.
Smart Detection and Analytics
Intrusion, line-crossing, loitering, abnormal sound and scene change detection are supported, with motion detection enhanced by human & vehicle classification and a people & vehicle analytics search.
Ideal For
Building perimeters, car parks, gates and warehouse yards that need 4K detail, colour night footage and on-site deterrence. Supplied by SourceIT with local Singapore warranty and GST invoice.
InSight S385 Datasheet — Technical Specifications
General
| Model | InSight S385(4mm) |
| Official Product Name | VIGI 8MP Outdoor Full-Color Bullet Network Camera |
| Brand | TP-Link |
| Warranty | 5 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
Lens
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.6 |
| FOV | Horizontal FOV: 91.5° Vertical FOV: 46.1° Diagonal FOV: 109.6° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | Detect: 107 m (350 ft) Observe: 44 m (146 ft) Recognize: 21 m (70 ft) Identify: 11 m (35 ft) |
Angle Adjustment (Manual)
| Range | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
Illuminator
| IR LED | Quantity: 2 Range: 30m Wavelength: 850nm |
| White LED | Quantity: 2 Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Max. Resolution | 3840 x 2160 |
| Main Stream | Frame Rate 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Frame Rate 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB is turned on, the frame rate can only support up to 20fps. |
| Sub-Stream | Frame Rate 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Frame Rate 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Resolution: 704x576, 640x480, 352x288, 320x240 |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
Audio
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
Network
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | ONVIF Profile S/T/G |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Alarm and Event Management
| Smart Event | Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection, People Detection, Vehicle Detection, Abnormal Sound Detection, Scene Change Detection |
| Basic Event | Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts), Video Tampering Detection, Exception (Illegal Login) |
| Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
| Output Notification | Message Push |
Deep Learning Function
| People & Vehicle Analytics | Yes |
Interfaces
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB** |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
Power
| Power Supply | 12V DC ± 5%, Max. 10.5 W, 5.5 mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 11.5 W |
Physical & Environment
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Protection | IP67 |
| Material | Metal |
| Product Dimensions (L x W x H) | 7.2 x 2.9 x 2.9 in (184 x 74 x 74 mm) |
| Net Weight | 0.525 Kg |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
**SD card is not included in the package.
TP-Link does not publish a gross (packed) weight for the InSight S385.
Compatibility & Software Support
| Management Clients | VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Cloud | Yes |
| Third-Party Integration | ONVIF Profile S/T/G |
| On-Camera Storage | microSD, up to 512 GB (card not included) |
Package Contents & Ordering Information

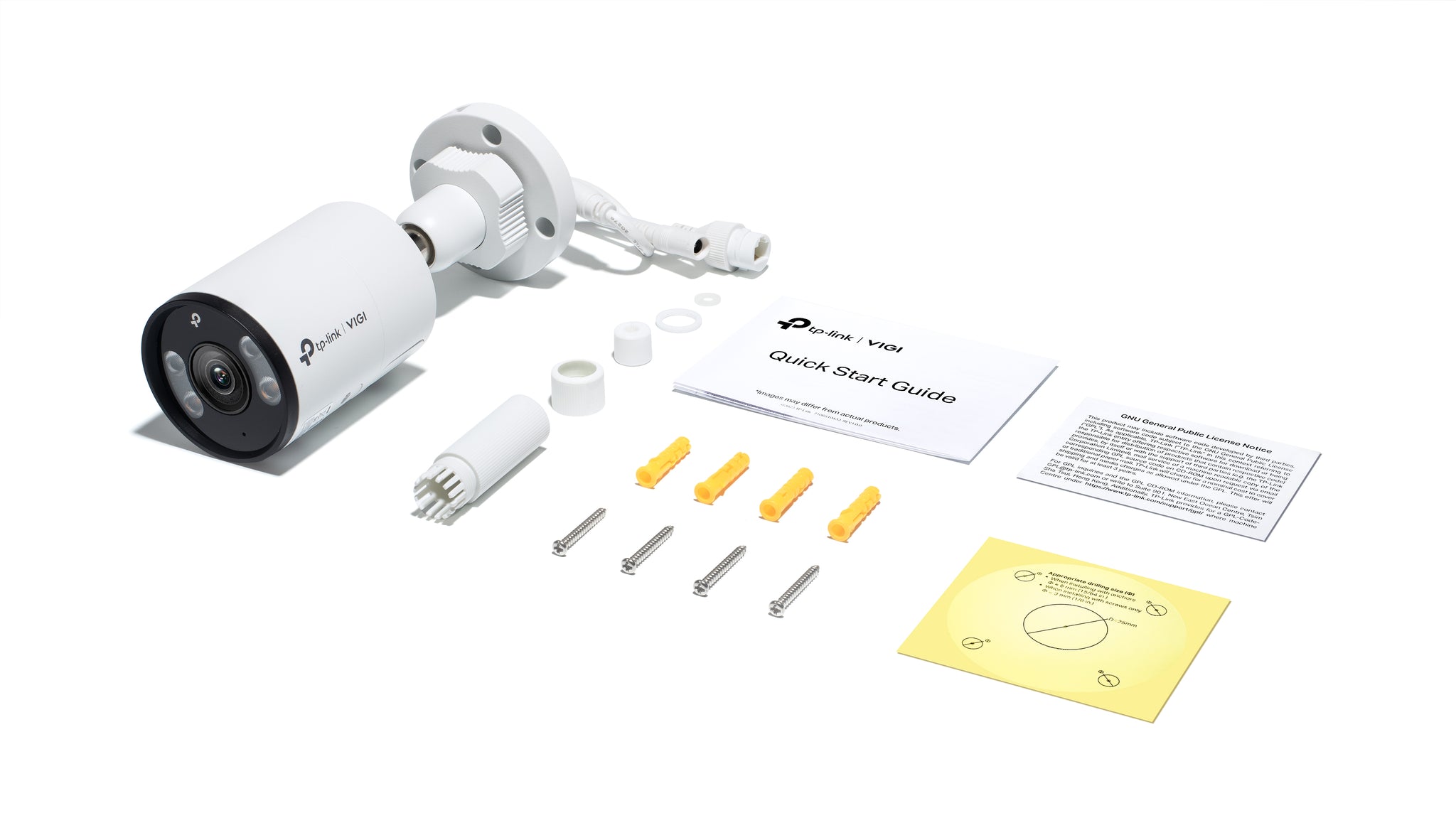

Package Contents
| VIGI Network Camera | Included |
| Quick Start Guide | Included |
| Waterproof Cable Attachments | Included |
| Mounting Accessories | Included |
microSD card not included.
Ordering Information
| Model | InSight S385(4mm) |
| Other Focal Lengths | InSight S385 (2.8mm) (also available) |
| SKU | InSight S385(4mm) |
| Warranty | 5 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — InSight S385
What resolution does the InSight S385 record?
Up to 3840 x 2160 (8MP). TP-Link notes the frame rate is limited to 20fps when the image is rotated 90°/270° or when 120 dB WDR is turned on.
Which lens should I choose?
The 2.8 mm version covers 111.4° horizontally with an 8 m identification distance; the 4 mm version covers 91.5° with an 11 m identification distance.
Can it warn off intruders?
Yes. Alarm linkage includes an audible warning and white light flashing, and two-way audio lets you speak through the camera.
What warranty does SourceIT provide?
The InSight S385 is supplied with a 5-year local warranty in Singapore, handled under TP-Link's replacement warranty policy. Keep the GST invoice as proof of purchase.
Can SourceIT quote this for an office or a project?
Yes. SourceIT quotes VIGI cameras together with VIGI NVRs, PoE switches and storage for offices, shops, warehouses and multi-site projects, with a GST invoice for every order.
