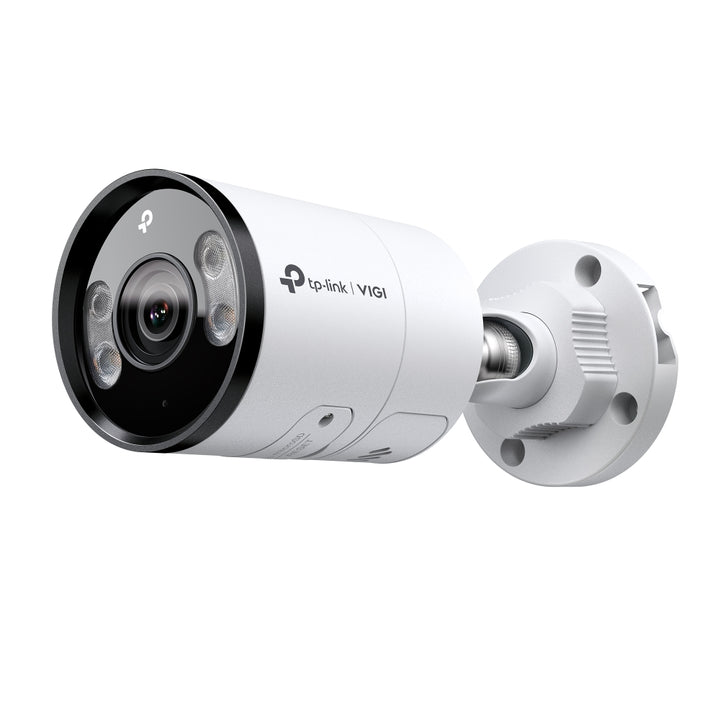

TP-Link InSight S355 5MP Outdoor Full-Color Bullet Network Camera, 2.8mm Lens
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link VIGI 5MP Outdoor Full-Color Bullet Network Camera (InSight S355 2.8mm) - 5 Years Local Warranty
The TP-Link InSight S355 is a 5MP (2880 x 1620) outdoor bullet camera with a 2.8 mm fixed lens, built-in IR and white-light illuminators for full-colour night images up to 30 m, and an IP67-rated metal housing. It adds on-camera human and vehicle classification, People & Vehicle Analytics, two-way audio and active sound-and-light deterrence, and powers from PoE (802.3af/at) or 12V DC.
5MP Resolution with 24-Hour Full Colour
A 1/2.7" progressive-scan CMOS sensor, F1.6 lens and two white LEDs alongside two 850 nm IR LEDs let the camera record colour footage after dark, with a stated minimum illumination of 0.005 Lux. The illuminator can run automatically, on a schedule or be forced on or off.
Human & Vehicle Classification and Smart Detection
On-camera AI separates people and vehicles from other movement to cut false alerts. Intrusion, line-crossing, region entering and exiting, loitering, abandoned and removed object, abnormal sound and scene change detection are all built in, and People & Vehicle Analytics lets you search recorded footage by attribute when used with VIGI software.
Active Defence and Two-Way Audio
A built-in microphone and speaker allow live two-way conversation from the VIGI app, while audible warnings and flashing white light can be triggered when an event is detected.
H.265+ Compression and Flexible Storage
H.265+ reduces bandwidth and storage load on the main stream. Footage can go to a VIGI NVR, to VIGI VMS or VIGI Cloud VMS, or to a microSD card of up to 512 GB in the camera itself (card not included).
Ideal For
Car parks, building perimeters, loading bays, gates and shopfronts where colour detail at night matters, in offices, warehouses, condominiums and retail sites across Singapore. Supplied by SourceIT with local Singapore warranty and GST invoice.
InSight S355 2.8mm Datasheet — Technical Specifications
General
| Model | InSight S355 2.8mm |
| Official Product Name | VIGI 5MP Outdoor Full-Color Bullet Network Camera |
| Brand | TP-Link |
| Warranty | 5 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
Lens
| Type | Fixed Focal Lens |
| Focal Length | 2.8 mm |
| Aperture | F1.6 |
| FOV | Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | Detect: 64 m (210 ft) Observe: 27 m (89 ft) Recognize: 13 m (43 ft) Identify: 6 m (20 ft) |
| Angle Adjustment (Manual) | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
Illuminator
| IR LED | Quantity: 2 Range: 30m Wavelength: 850nm |
| White LED | Quantity: 2 Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Max. Resolution | 2880 x 1620 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB Note: When People & Vehicle Analytics is enabled, only DWDR is supported. |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
Audio
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
Network
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | ONVIF Profile S/T/G |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Alarm & Event Management
| Smart Event | Intrusion Detection Line-Crossing Detection Region Entering Detection Region Exiting Detection Object Abandoned Detection Object Removal Detection Loitering Detection People Detection Vehicle Detection Abnormal Sound Detection Scene Change Detection |
| Basic Event | Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) Video Tampering Detection Exception (Illegal Login) |
| Alarm Linkage | Memory Card Video Recording Message Push Audible Warning White Light Flashing |
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier. (Must be used with VIGI specified software.) |
Interfaces
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB (SD card is not included in the package) |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
General
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Material | Metal |
| Net Weight | 0.525 Kg |
| Power Supply | 12V DC ± 5%, Max. 9.7 W, 5.5 mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 10.7 W |
| Protection | IP67 |
| Product Dimensions (L x W x H) | 7.2 x 2.9 x 2.9 in (184 x 74 x 74 mm) |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
TP-Link publishes a net weight but no gross (packed) weight for the InSight S355. TP-Link states that H.265+ savings figures are based on laboratory testing with a 3MP VIGI camera and actual performance may vary.
Compatibility & Software Support
| Management | VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS |
| Cloud | Yes |
| Third-Party Integration | ONVIF (Profile S/T/G) |
| On-Camera Storage | MicroSD card up to 512 GB (not included) |
| Power | PoE 802.3af/at or 12V DC |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
Package Contents & Ordering Information
Package Contents
| In the Box | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories |
Ordering Information
| Model | InSight S355 2.8mm |
| SKU | InSight S355(2.8mm) |
| Other Focal Lengths | 4 mm, 6 mm |
| Warranty | 5 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — InSight S355
What warranty does SourceIT provide?
The InSight S355 2.8mm is supplied by SourceIT with 5 years local warranty (Singapore), backed by TP-Link Singapore. Keep your GST invoice as proof of purchase for any warranty claim.
Which lens should I choose?
The InSight S355 is offered with 2.8 mm, 4 mm and 6 mm lenses. TP-Link rates the 2.8 mm at 111.4° horizontal field of view (identify at 6 m), the 4 mm at 88° (identify at 8 m) and the 6 mm at 57.3° (identify at 12 m). Wider lenses cover more area; longer lenses give more detail at distance.
Does it need a separate power adapter?
No, if you use a PoE switch or PoE NVR: the camera accepts 802.3af/at PoE (max. 10.7 W). It also has a 12V DC port for a separate adapter, which is not listed in the package contents.
Can it record without an NVR?
Yes. It has a built-in microSD slot supporting cards up to 512 GB; the card is sold separately. It can also record to a VIGI NVR or be managed through VIGI VMS and VIGI Cloud VMS.
Can SourceIT quote this for an office or a project?
Yes. SourceIT can quote the InSight S355 2.8mm in quantity together with VIGI network video recorders, PoE switches, hard drives and cabling for offices, shops, warehouses and multi-site projects. Contact our sales team with your camera count and site details for a consolidated quotation with GST invoice.
