TP-Link InSight S345ZI 4MP Outdoor IR Motorized Varifocal Bullet Network Camera
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link VIGI 4MP Outdoor IR Motorized Varifocal Bullet Network Camera (InSight S345ZI) - 5 Years Local Warranty

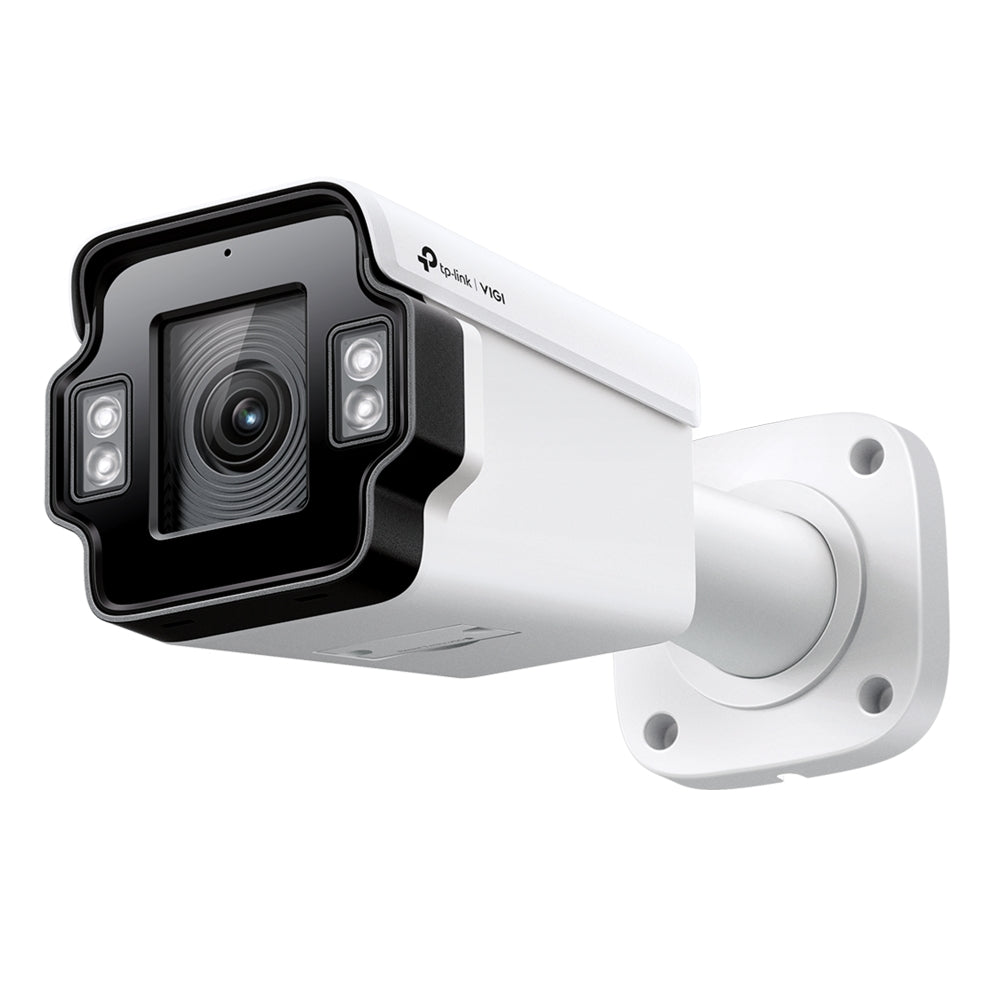

The TP-Link VIGI InSight S345ZI is a 4MP outdoor bullet network camera with a 2.7-13.5 mm motorised varifocal lens (5X optical zoom), four IR LEDs reaching 60 m, human and vehicle classification, alarm and audio interfaces and a metal IP67 / IK10 housing. It runs on PoE (802.3af/at) or 12V DC.
5X Motorised Varifocal Lens
The 2.7-13.5 mm lens is adjusted remotely, so the field of view can be set from 102.0° wide to 29.6° narrow after mounting without re-aiming the camera.
4MP Resolution and 60 m IR

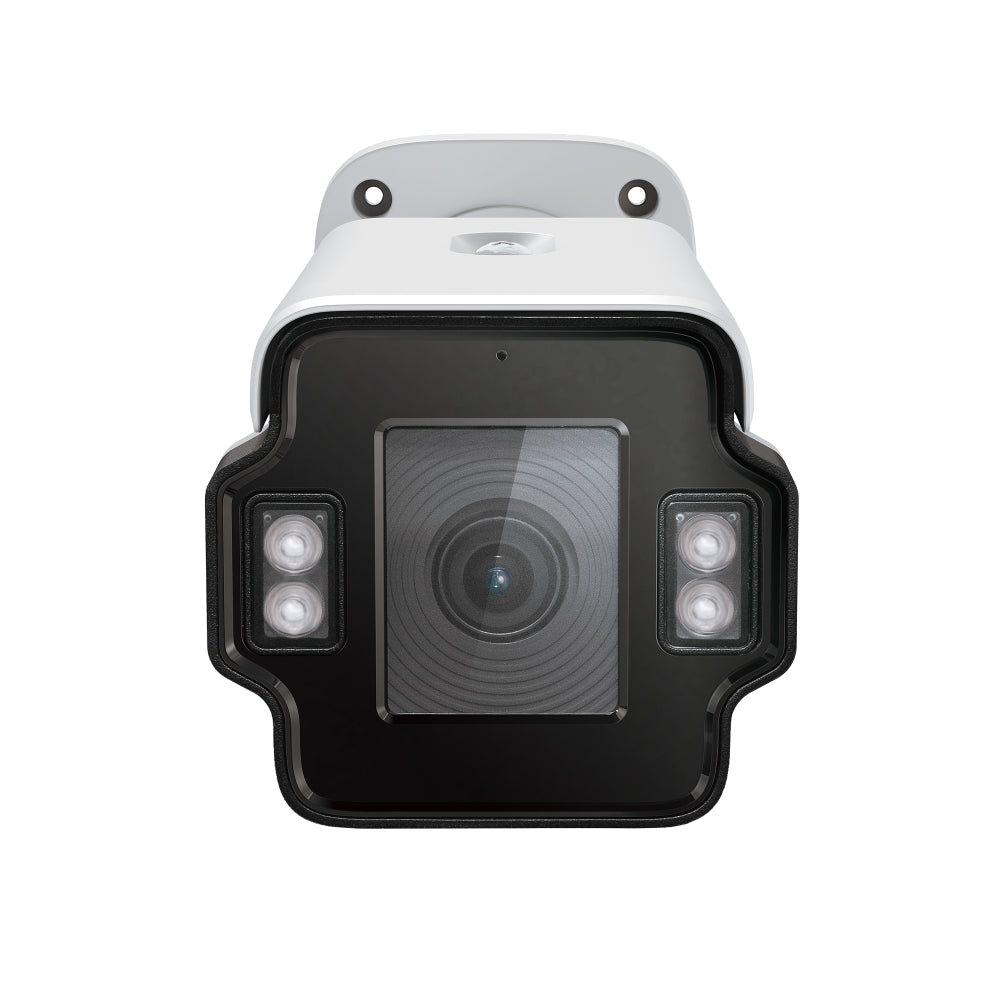

A 1/2.9" progressive scan CMOS sensor records up to 2688 x 1520, with 120 dB WDR and four IR LEDs covering up to 60 m (197 ft).
Human & Vehicle Classification and Smart Detection
Intrusion, line-crossing, region entering and exiting, object abandoned and removal, loitering, people, vehicle, abnormal sound and scene change detection are supported.
Audio and Alarm Interfaces
A built-in microphone plus 1 audio in, 1 audio out, 1 alarm in and 1 alarm out allow external speakers, sirens and sensors to be linked to events.
IP67 and IK10 Metal Housing
The metal body is rated IP67 weatherproof and IK10 vandal proof for exposed outdoor positions.
Ideal For
Car parks, gates, loading bays, perimeters and long driveways where the field of view needs fine adjustment after installation. Supplied by SourceIT with local Singapore warranty and GST invoice.
InSight S345ZI Datasheet — Technical Specifications
General
| Model | InSight S345ZI |
| Official Product Name | VIGI 4MP Outdoor IR Motorized Varifocal Bullet Network Camera |
| Brand | TP-Link |
| Warranty | 5 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
Lens
| Type | Motorized Varifocal Lens |
| Focal Length | 2.7-13.5 mm (5X Optical Zoom) |
| Aperture | F1.6 |
| FOV | Horizontal FOV: 29.6°-102.0°; Vertical FOV: 16.8°-53.8°; Diagonal FOV: 34.1°-122.8° |
| Lens Mount | Φ14 |
| DORI Distance | Detect: 66-207 m (217-579 ft); Observe: 28-86 m (92-282 ft); Recognize: 13-41 m (43-135 ft); Identify: 7-21 m (23-69 ft) |
Angle Adjustment (Manual)
| Range | Pan: 0° to 360°; Tilt: 0° to 90°; Rotation: 0° to 360° |
Illuminator
| Illuminator Type | 4 x IR LED |
| Illuminator Distance | 197 ft (60 m) |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Max. Resolution | 2688 x 1520 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps. Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080 (if the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps) |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps. Resolution: 1280x720, 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 (if the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps) |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 6 Mbps; Sub-Stream: 64 Kbps to 1024 Kbps |
| Image Settings | Mirror, Rotation, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White balance, Prevent overexposure to infrared light, HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
Audio
| Audio Input | Built-in Microphone; Audio In Interface |
| Audio Output | Audio Out Interface |
| Audio Compression | Yes |
| Audio Sampling Rate | 8 KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
Network
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, 802.1x, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile G/S/T) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client |
| Web Browser | Google Chrome® 57 and above; Firefox® 52 and above; Safari® 11 and above; Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication, 802.1X Authentication |
Alarm and Event Management
| Smart Event | Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection, People Detection, Vehicle Detection, Abnormal Sound Detection, Scene Change Detection |
| Basic Event | Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts), Video Tampering Detection, Exception (Illegal Login) |
| Alarm Linkage | Memory Card Video Recording, Upload to FTP server, Push Notifications, Active Defence-Sound Alarm, Email Alarm, Send to Alarm Server, Alarm Out Device |

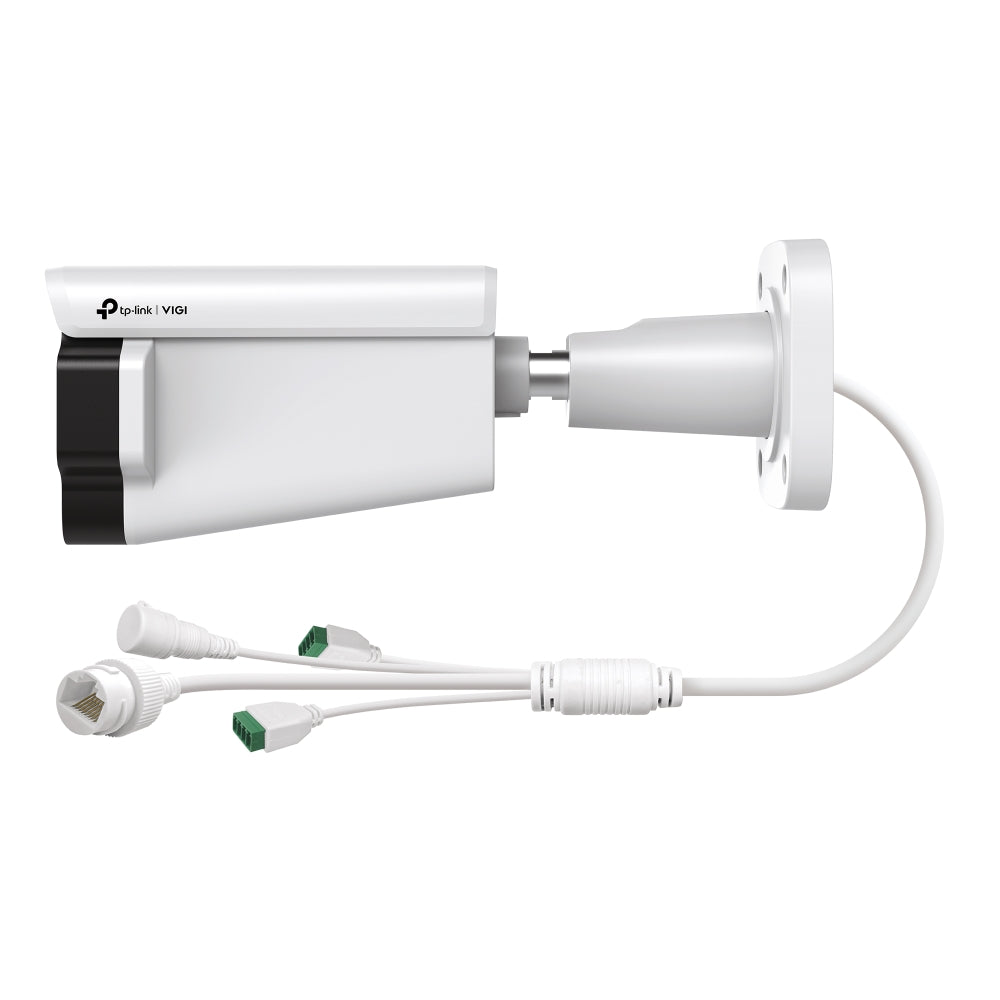

Interfaces
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | 1 Alarm In, 1 Alarm Out |
| Audio | 1 Audio In, 1 Audio Out |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB* |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | N/A |
Power
| DC | 12V DC ± 5%, Max. 10.8 W, 5.5 mm Coaxial Power Plug; Recommended Power Supply: T120100-2C1 (for EU Regions) |
| PoE | 802.3af/at, class 0, Max. 12 W |
| ErP Information | Power consumption in networked standby when all wired network ports are connected: 2.1 W |
Physical & Environment
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Storage Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Product Dimensions (L x W x H) | 10.1 x 3.9 x 4 in (256 x 100 x 101 mm) |
| Material | Metal |
| Net Weight | 1.04 Kg |
| Protection | IP67 Weatherproof, IK10 Vandal Proof |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF |
*SD card is not included in the package.
TP-Link publishes the upper Detect distance as 207 m and as 579 ft; 207 m is about 679 ft, so one of the two published figures is inconsistent. Both are shown as published. TP-Link publishes no gross weight for this camera.
Compatibility & Software Support
| Clients | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client |
| Web Browser | Google Chrome® 57 and above; Firefox® 52 and above; Safari® 11 and above; Microsoft® Edge 91 and above |
| Third-Party Integration | Open Network Video Interface (Profile G/S/T) |
| Storage | MicroSD card up to 512 GB (card not included); FTP upload |
| External Devices | 1 alarm in, 1 alarm out, 1 audio in, 1 audio out |
| Power | PoE 802.3af/at switch or NVR, or 12V DC adapter |
Package Contents & Ordering Information

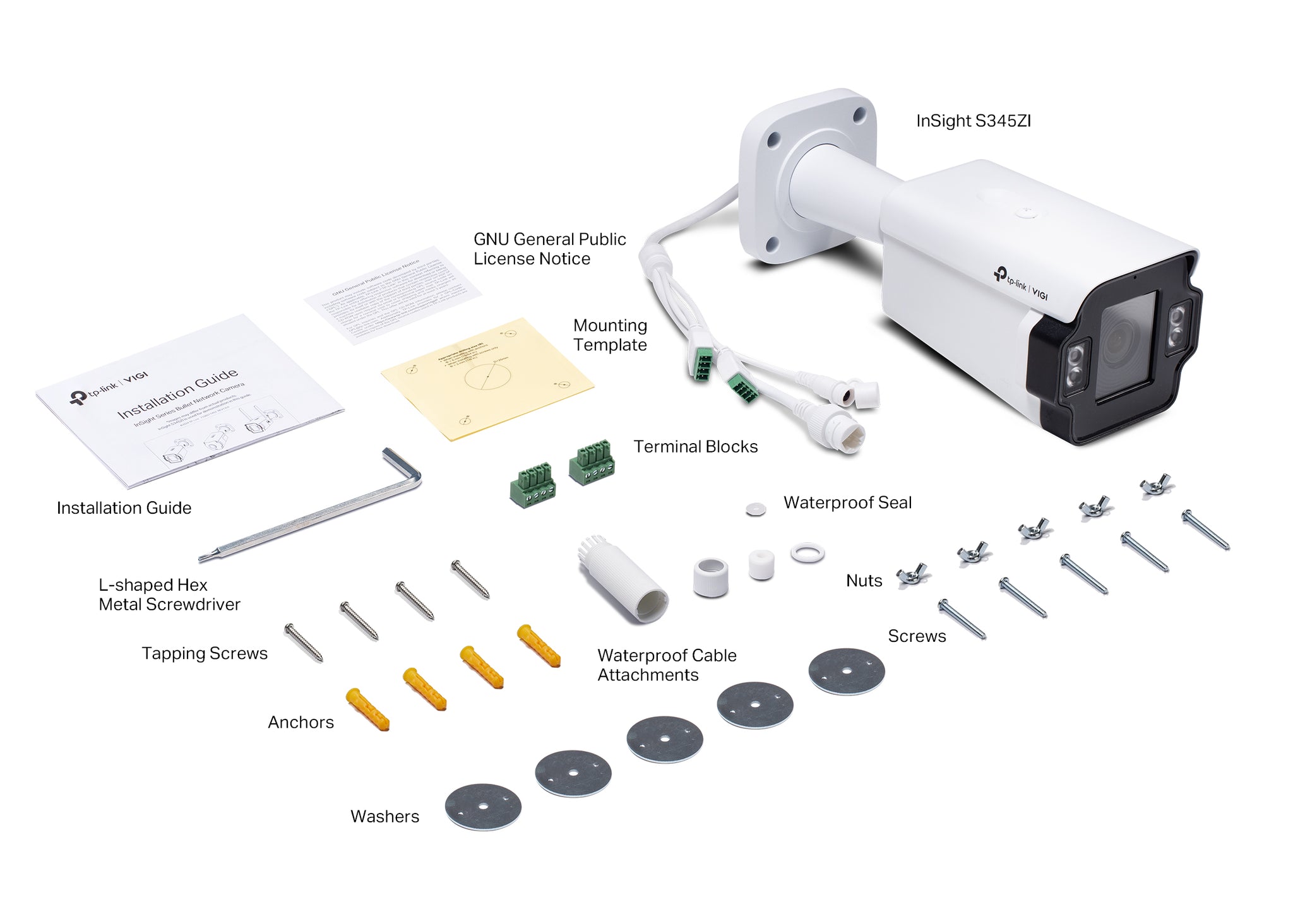

Package Contents
| VIGI Network Camera | Included |
| Quick Start Guide | Included |
| Waterproof Cable Attachments | Included |
| Mounting Accessories | Included |
Ordering Information
| Model | InSight S345ZI |
| SKU | InSight S345ZI |
| Warranty | 5 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — InSight S345ZI
What does the motorised varifocal lens do?
The 2.7-13.5 mm lens provides 5X optical zoom that is adjusted from the software, so the horizontal field of view can be set anywhere from 102.0° to 29.6° after installation.
Can it record without an NVR?
Yes. It has a microSD card slot supporting cards up to 512 GB (card not included), and can also upload to an FTP server.
Is it suitable for exposed outdoor locations?
Yes. The metal housing is rated IP67 weatherproof and IK10 vandal proof, with an operating range of -30 °C to 60 °C.
What warranty does SourceIT provide?
The InSight S345ZI is supplied with a 5-year local warranty in Singapore. Warranty claims are handled locally in line with TP-Link's replacement warranty policy, linked in the downloads section above.
Can SourceIT quote this for an office or a project?
Yes. SourceIT quotes VIGI cameras together with VIGI NVRs, PoE switches and cabling for offices, shops, warehouses and multi-site projects in Singapore, with a GST invoice. Contact the SourceIT sales team with the number of cameras and the areas to be covered.
