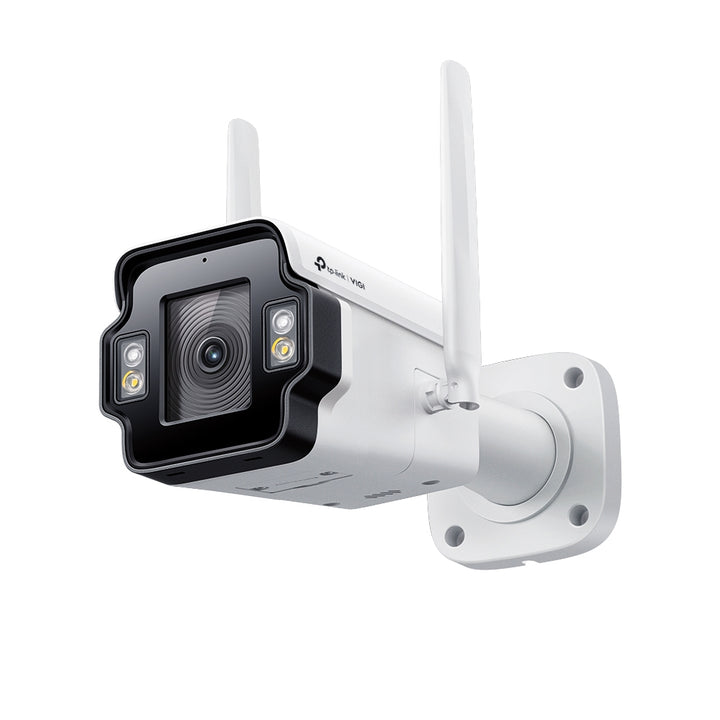

TP-Link InSight S345-4G 4MP Outdoor Full-Color 4G Bullet Network Camera, 4mm Lens
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link InSight S345-4G 4MP Outdoor Full-Color 4G Bullet Network Camera, 4mm Lens (InSight S345-4G(4mm)) - 5 Years Local Warranty
The InSight S345-4G is TP-Link's VIGI 4MP outdoor full-colour bullet camera with a built-in 4G Cat 4 modem and three 10/100 LAN ports. It needs no fixed broadband at the site: insert a Nano-SIM and the camera streams over the mobile network, while the three LAN ports share that connection with up to three downstream devices such as further cameras. TP-Link positions it for pairing with solar power systems on sites where running cable is impractical.
4G Cat 4 and Three LAN Ports for Cable-Free Sites
The cellular modem supports LTE-FDD bands 1/3/5/7/8/20/28, LTE-TDD bands 38/40/41 and WCDMA bands 1/5/8, at up to 150 Mbps downlink and 50 Mbps uplink, through two external omni-directional dipole antennas. TP-Link describes the three RJ45 10/100 LAN ports as an industry first, enabling simultaneous connectivity for up to three devices — so one SIM can serve a small cluster of equipment at a construction site, remote gate, plantation, pump house or temporary event.
4MP Detail With a 4 mm F1.6 Lens
Maximum resolution is 2688x1520 at up to 25 fps (50 Hz) or 30 fps (60 Hz), with main-stream bit rates up to 6 Mbps. The fixed 4 mm F1.6 lens gives a horizontal field of view of 80.4 degrees on hardware V1 (81 degrees on V1.20), and TP-Link publishes DORI distances of detect 80 m, observe 33 m, recognise 16 m and identify 8 m. True WDR at 120 dB keeps bright skies and shaded areas properly exposed in the same frame.
LightPro Night Vision With 50 m IR
Two 850 nm IR LEDs reach 50 m and two white LEDs reach 30 m. TP-Link's LightPro Night Vision keeps the camera on IR most of the night and switches the white light on when a person or vehicle is detected, capturing colour detail when it matters while reducing light pollution and energy use — relevant on solar-powered installations where every watt counts. Minimum illumination is 0.005 lux, or 0 lux with the illuminators on.
Active Defence, Two-Way Audio and Smart Detection
A built-in microphone (5 m radius) and speaker provide two-way audio, and alarm linkage includes audible warning and white-light flashing to deter intruders on unattended sites, as well as microSD recording, message push, FTP upload, alarm server and email. Motion detection is enhanced with human and vehicle classification, and smart events cover intrusion, line-crossing, region entering and exiting, object abandoned and removed, loitering, people and vehicle detection, abnormal sound and scene change.
Local microSD Recording in an IP66 Metal Housing
A built-in slot takes a microSD card up to 512 GB, so the camera records locally and only streams over 4G when viewed or when events are pushed, keeping mobile data use under control. The metal housing is rated IP66 and specified for -30 to 60 degrees C. Power is 12 V DC 1 A through a 5.5 mm coaxial plug, and a power adapter is included in the box.
Ideal For
Singapore construction sites, remote gates and fence lines, temporary event and works areas, farms, utility and pump stations, and any location without fixed broadband or where trenching cable is not worth the cost — especially when paired with a solar power system. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
InSight S345-4G(4mm) Datasheet — Technical Specifications
General
| Model | InSight S345-4G (4 mm lens) |
| Official Product Name | VIGI 4MP Outdoor Full-Color 4G Bullet Network Camera |
| Brand | TP-Link VIGI |
| Warranty | 5 Years Local Warranty (Singapore) |
Camera and Lens
| Image Sensor | V1.0: 1/2.7" Progressive Scan CMOS; V1.20: 1/2.65" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s, slow shutter supported |
| Minimum Illumination | 0.005 lux; 0 lux with IR/white light |
| Day/Night | IR cut filter; unified / scheduled / auto switching |
| Lens | Fixed focal, 4 mm, F1.6, M12 mount |
| Field of View (V1.0) | Horizontal 80.4°, vertical 41.8°, diagonal 98.7° |
| Field of View (V1.20) | Horizontal 81°, vertical 43.9°, diagonal 96.39° |
| DORI Distance | Detect 80 m (262 ft) / observe 33 m / recognise 16 m (52 ft) / identify 8 m (26 ft) |
| Angle Adjustment (Manual) | Pan 0° to 360°, tilt 0° to 90°, rotate 0° to 360° |
| Illuminator | 2x IR LED, 50 m (164 ft), 850 nm; 2x white LED, 30 m (98 ft) |
| Illuminator Control | Auto / scheduled / always on / always off |
4G Cellular
| Standard | LTE-TDD / LTE-FDD / WCDMA |
| Category | LTE Cat 4 |
| Frequency Bands | LTE-FDD: B1/3/5/7/8/20/28; LTE-TDD: B38/40/41; WCDMA: B1/5/8 |
| Data Rate | Downlink 150 Mbps, uplink 50 Mbps |
| SIM Type | Nano-SIM (built-in slot; SIM not included) |
| Antennas | 2x 690–960 & 1710–2690 MHz dipole omni-directional; Ant1 0.84 dBi @ 690–960 MHz, 2.85 dBi @ 1710–2690 MHz; Ant2 0.74 dBi @ 690–960 MHz, 3.06 dBi @ 1710–2690 MHz |
Video and Image
| Max Resolution | 2688 x 1520 |
| Main Stream | 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720; 50 Hz up to 25 fps, 60 Hz up to 30 fps |
| Sub-Stream | 848x480, 704x576, 640x480, 640x360, 352x288, 320x240; 50 Hz up to 25 fps, 60 Hz up to 30 fps (up to 20 fps if image rotation is 90° or 270°) |
| Video Compression | Main stream H.265+/H.265/H.264+/H.264; sub-stream H.265/H.264 |
| H.264 / H.265 Profile | H.264 High Profile; H.265 Main Profile |
| Video Bit Rate | Main stream 256 Kbps to 6 Mbps; sub-stream 64 Kbps to 512 Kbps |
| Bit Rate Control | CBR, VBR |
| Image Settings | Mirror, brightness, contrast, saturation, sharpness, exposure, WDR, white balance, prevent overexposure to infrared light |
| Image Enhancement | BLC / 3D DNR / HLC / Smart IR |
| Wide Dynamic Range | 120 dB |
| Privacy Mask / ROI | Up to 4 masks; 1 ROI region; OSD supported |
Audio
| Audio Communication | Two-way audio |
| Built-in Microphone | Yes; records within a 16.4 ft (5 m) radius of the camera |
| Built-in Speaker | Yes |
| Audio Bit Rate / Sampling | 64 Kbps (G.711 a-law); 8 kHz; environment noise filtering |
Network, Events and Interfaces
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| Interoperability | ONVIF (Profile S/G/T) |
| Simultaneous Live View | 3 main streams and 3 sub-streams |
| Client | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS |
| Cloud | Yes |
| Security | Password protection, HTTPS encryption, IP address filter, digest authentication |
| Smart Event | Intrusion, line-crossing, region entering, region exiting, object abandoned, object removal, loitering, people detection, vehicle detection, abnormal sound detection, scene change detection |
| Basic Event | Motion detection (enhanced with human & vehicle classification), video tampering detection, exception (illegal login) |
| Alarm Linkage | Memory card video recording, message push, audible warning, white light flashing, upload to FTP server, send to alarm server, email alarm |
| Network Interface | 3x RJ45 10/100M LAN ports |
| On-board Storage | Built-in microSD card slot, up to 512 GB (card not included) |
| Reset Button / Alarm I/O | Reset: yes; alarm: N/A |
| Power Port | DC power port |
Physical, Power and Environment
| Dimensions | 256 × 122 × 101 mm (10 × 4.8 × 4.0 in), excluding antennas |
| Material | Metal |
| Net Weight | 1.09 kg |
| Power Supply | 12 V DC / 1 A, 5.5 mm coaxial plug (power adapter included); networked standby 2.7 W with all wired ports connected |
| Protection | IP66 weatherproof |
| Operating / Storage Temperature | -30 °C to 60 °C / -40 °C to 60 °C |
| Operating / Storage Humidity | 95% or less, non-condensing |
| Certification | See published notes |
Published Notes and Contradictions
Hardware versions: the datasheet covers V1.0 and V1.20, which differ in sensor size and field of view as shown above. It also describes a US variant with a different sensor and field of view and data-only SIM support; those US figures are not reproduced here.
DORI observe distance: the web page gives 33 m (109 ft) and the datasheet 33 m (108 ft); the metric figure agrees.
Certifications: the datasheet lists CE, CB, NCC, RCM, NTRA, KC, IP66, RoHS, ONVIF for the non-US version. The product web page instead lists WPS, WHQL, Energy Star, CE, NCC, NTRA, KC, RCM, ONVIF, IP66; WPS, WHQL and Energy Star are not normally camera certifications and that list is reproduced only as published.
The microSD card and Nano-SIM card are not included in the package. The camera has no PoE input; it is powered from the supplied 12 V DC adapter. Only the 4 mm lens is published for this model.
Compatibility & Software Support
| VIGI App | Supported — remote live view and playback over the 4G connection |
| VIGI VMS / VIGI Cloud VMS | Supported |
| Web UI | Supported |
| VIGI Network Video Recorders | Usable as a VIGI camera; on 4G-only sites recording is normally to the on-board microSD card |
| Third-Party NVRs and VMS | Supported via ONVIF Profile S/G/T |
| Standalone Use | Supported — records to a microSD card up to 512 GB with no recorder present |
| Mobile Network | Requires a Nano-SIM with a data plan from a Singapore mobile operator (not included) |
| Power | 12 V DC adapter (included); TP-Link positions the model for use with solar power systems |
Package Contents & Ordering Information
What's in the Box
| Package Contents | VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories, Power Adapter |
MicroSD card and Nano-SIM card are not included.
Ordering Information
| Model | InSight S345-4G(4mm) |
| Lens | 4 mm fixed |
| Other Lens Options | None — TP-Link publishes the InSight S345-4G with the 4 mm lens only |
| Warranty | 5 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — InSight S345-4G(4mm)
Does it need fixed broadband or a network cable?
No. Insert a Nano-SIM with a data plan and the camera connects over 4G Cat 4. The three LAN ports can share that connection with up to three other devices on site.
How is it powered?
From 12 V DC 1 A; a power adapter is included. It has no PoE input. TP-Link positions it for pairing with solar power systems where mains power is not available — ask us to quote a matching solar kit.
Where is footage stored?
On a microSD card of up to 512 GB in the camera (card not included), which keeps mobile data use down. Footage can be viewed and played back remotely through the VIGI App.
What warranty does SourceIT provide?
Five years local Singapore warranty, with a GST invoice on every order.
Is this model available for project orders?
Yes. TP-Link supplies this model for project deployments; contact SourceIT with your bill of materials for pricing and lead time.
