TP-Link InSight S325 2MP Outdoor Full-Color Bullet Network Camera, 2.8mm Lens
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link InSight S325 2MP Outdoor Full-Color Bullet Network Camera, 2.8mm Lens (InSight S325(2.8mm)) - 5 Years Local Warranty

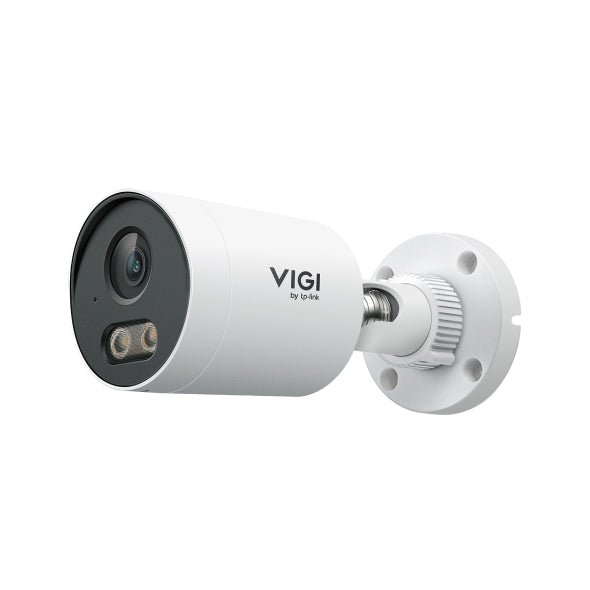

The InSight S325 is TP-Link's VIGI 2MP outdoor full-colour bullet camera in an IP67-rated metal housing. This listing is the 2.8 mm lens version, the widest in the S325 range at 98.8 degrees horizontal, suited to covering a whole yard, compound, car park bay or building frontage from one mounting point. One PoE cable carries power and 1080p video, and two integrated IR/white LEDs reach 30 m for night footage in infrared or full colour.
Wide 2.8 mm View for Yards, Frontages and Compounds
The fixed 2.8 mm F2.0 lens gives a 98.8 degree horizontal, 53.5 degree vertical and 117 degree diagonal field of view. TP-Link's datasheet gives DORI distances for this lens of detect 47 m, observe 19 m, recognise 9 m and identify 5 m, so the 2.8 mm version favours overall situational coverage; where identification at range matters more, the 4 mm version narrows the view to 75.2 degrees and extends identification to 6 m. Recording is 1920x1080 at up to 25 fps (50 Hz) or 30 fps (60 Hz) on a 1/3 inch progressive scan CMOS sensor.
LightPro Night Vision: IR by Default, Colour When It Matters
TP-Link's LightPro Night Vision switches between IR and full-colour night vision by detecting people or vehicles. The camera stays on discreet IR most of the night and switches the white light on when a person or vehicle is detected, so the frames that matter are captured in colour while light pollution and energy use are kept down. Two integrated IR/white LEDs reach 30 m at 850 nm, and minimum illumination is 0.005 lux, or 0 lux with the IR or white light active.
Human and Vehicle Classification for Fewer False Alerts
Motion detection is enhanced with human and vehicle classification, so outdoor alerts are raised for people and vehicles rather than for swaying trees, rain or animals. Smart events cover intrusion, line-crossing, region entering, region exiting, people detection and vehicle detection, with video tampering and illegal-login exception as basic events. Alarm linkage options are email, alarm server, FTP upload and message push.
H.265+ to Cut Bandwidth and Storage
The main stream supports H.265+, H.265, H.264+ and H.264 at 256 Kbps to 4 Mbps, with an H.265/H.264 sub-stream at 64 to 512 Kbps. TP-Link states H.265+ reduces the bandwidth and storage required while maintaining image quality, which extends retention on a VIGI NVR's drives. Smart Video Enhancement covers Smart IR, 3D DNR and white balance, alongside BLC, HLC and DWDR, up to four privacy masks and one ROI region.
IP67 Metal Bullet, PoE Powered
The metal housing is rated IP67 and specified for -30 to 60 degrees C, suited to exposed outdoor positions in Singapore's rain and heat. Power is 802.3af/at PoE (class 0) through a single 10/100 Mbps port, or 12 V DC through a 5.5 mm coaxial plug. A built-in microphone captures audio around the camera. There is no on-board memory card slot, so recording is to a VIGI NVR, VIGI VMS or VIGI Cloud VMS.
Ideal For
Singapore factories, warehouses, condominiums, landed homes, schools and car parks that want wide-angle 2MP colour coverage of yards, compounds and building frontages, recorded on a VIGI NVR. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
InSight S325(2.8mm) Datasheet — Technical Specifications
General
| Model | InSight S325 (2.8 mm lens) |
| Official Product Name | VIGI 2MP Outdoor Full-Color Bullet Network Camera |
| Brand | TP-Link VIGI |
| Warranty | 5 Years Local Warranty (Singapore) |
Camera and Lens
| Image Sensor | 1/3" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s, slow shutter supported |
| Minimum Illumination | 0.005 lux; 0 lux with IR/white light |
| Day/Night | IR cut filter; unified / scheduled / auto switching |
| Lens | Fixed focal, 2.8 mm, F2.0, M12*P 0.5 mount |
| Field of View (2.8 mm) | Horizontal 98.8°, vertical 53.5°, diagonal 117° |
| DORI Distance (2.8 mm, datasheet) | Detect 47 m (154.2 ft) / observe 19 m (62.3 ft) / recognise 9 m (29.5 ft) / identify 5 m (16.4 ft) |
| Angle Adjustment (Manual) | Pan 0° to 360°, tilt 0° to 90°, rotation 0° to 360° |
| Illuminator | 2x integrated IR/white LED; IR range 30 m (98 ft), white LED range 30 m (98 ft); IR wavelength 850 nm |
| Illuminator Control | Auto / scheduled / always on / always off |
Video and Image
| Max Resolution | 1920 x 1080 |
| Main Stream | 1920x1080, 1280x960, 1280x720; 50 Hz up to 25 fps, 60 Hz up to 30 fps |
| Sub-Stream | 848x480, 704x576, 640x480, 640x360, 352x288, 320x240; 50 Hz up to 25 fps, 60 Hz up to 30 fps |
| Video Compression | Main stream H.265+/H.265/H.264+/H.264; sub-stream H.265/H.264 |
| H.264 / H.265 Profile | H.264 High Profile; H.265 Main Profile |
| Video Bit Rate | Main stream 256 Kbps to 4 Mbps; sub-stream 64 Kbps to 512 Kbps |
| Bit Rate Control | CBR, VBR |
| Image Settings | Mirror, brightness, contrast, saturation, sharpness, exposure, WDR, white balance, prevent overexposure to infrared light, HLC adjustable by client software |
| Image Enhancement | BLC / 3D DNR / HLC / Smart IR; DWDR |
| SNR | ≥ 52 dB |
| Privacy Mask / ROI | Up to 4 masks; 1 ROI region; OSD supported |
Audio
| Audio Input | Built-in microphone (see published notes for pickup radius) |
| Audio Output / Two-Way Audio | N/A |
| Audio Bit Rate / Sampling | 64 Kbps (G.711 a-law); 8 kHz; environment noise filtering |
Network, Events and Interfaces
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Interoperability | ONVIF (Profile S/T) |
| Simultaneous Live View | 3 main streams and 3 sub-streams |
| Client | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool |
| Cloud | Yes |
| Security | Password protection, HTTPS encryption, IP address filter, digest authentication |
| Smart Event | Intrusion, line-crossing, region entering, region exiting, people detection, vehicle detection |
| Basic Event | Motion detection (enhanced with human & vehicle classification), video tampering detection, exception (illegal login) |
| Alarm Linkage | Sending email, send to alarm server, upload to FTP, message push |
| People & Vehicle Analytics | N/A |
| Network Interface | 1x RJ45 10/100M self-adaptive Ethernet port, PoE |
| On-board Storage / Reset / Alarm I/O | N/A |
| Power Port | DC power port |
Physical, Power and Environment
| Dimensions | 169.8 × 74 × 74 mm (6.7 × 2.9 × 2.9 in) |
| Material | Metal |
| Net Weight | 0.353 kg (datasheet) |
| Power Supply | 12 V DC ± 5%, 5.5 mm coaxial plug; or PoE 802.3af/at, class 0 (maximum wattage: see published notes) |
| Protection | IP67 |
| Operating / Storage Temperature | -30 °C to 60 °C / -40 °C to 60 °C |
| Operating / Storage Humidity | 95% or less, non-condensing |
| Certification | See published notes |
Published Notes and Contradictions
DORI (2.8 mm): the datasheet figures are shown above. The product web page lists the same four 2.8 mm distances in reverse order (detect 5 m, observe 9 m, recognise 19 m, identify 47 m), which would have identification reaching further than detection; the datasheet order is the physically consistent one.
Power: the InSight S325 datasheet gives 12 V DC max 7.4 W and PoE max 8 W; the product web page gives PoE max 7.4 W and leaves the DC maximum and net weight as unfilled placeholders ("Max. X W", "X Kg"). Both are reproduced here; size PoE budgets on the higher 8 W figure.
Microphone: the web page states the built-in microphone records within a 16.4 ft (5 m) radius; the datasheet states a 15 ft radius.
Certifications: the web page lists CE, NTRA, KC, BSMI, IC; the datasheet lists CE, FCC, BSMI, VCCI, KC, NTRA.
TP-Link's H.265+ storage figures are based on laboratory testing using a 3MP VIGI camera; actual performance may vary with the amount of activity recorded, resolution and other variables. Only the 2.8 mm lens figures are published on this listing; the 4 mm version is listed separately.
Compatibility & Software Support
| VIGI Network Video Recorders | Supported — recommended for continuous recording, as the S325 has no on-board memory card slot |
| VIGI App | Supported |
| VIGI VMS / VIGI Cloud VMS | Supported |
| Web UI / VIGI Config Tool | Supported |
| Third-Party NVRs and VMS | Supported via ONVIF Profile S/T |
| Power | 802.3af/at PoE from a VIGI PoE NVR or any PoE switch, or a 12 V DC adapter |
Package Contents & Ordering Information
What's in the Box
| Package Contents | VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories |
TP-Link's published package list does not include a power adapter. Tell us whether you will power the camera by PoE or 12 V DC and we will quote accordingly.
Ordering Information
| Model | InSight S325(2.8mm) |
| Lens | 2.8 mm fixed |
| Other Lens Options | InSight S325 with 4 mm lens (narrower 75.2° horizontal view; detect 59 m / identify 6 m) — listed separately as InSight S325(4mm). TP-Link also publishes a 6 mm lens version; ask SourceIT if you need it. |
| Warranty | 5 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — InSight S325(2.8mm)
Can this camera be used outdoors?
Yes. TP-Link rates the metal housing IP67 with an operating range of -30 to 60 °C, suited to exposed positions in Singapore's rain and heat.
Does the S325 need a recorder?
For recording, yes. The S325 has no memory card slot, so footage is recorded to a VIGI NVR, VIGI VMS or VIGI Cloud VMS, or a third-party ONVIF recorder.
What warranty does SourceIT provide?
Five years local Singapore warranty, with a GST invoice on every order.
Is stock held locally?
Fast-moving VIGI lines are held in Singapore; anything not in local stock is brought in on indent. Ask us for the current lead time before committing to an installation date.
Is this model available for project orders?
Yes. TP-Link supplies this model for project deployments; contact SourceIT with your bill of materials for pricing and lead time.
