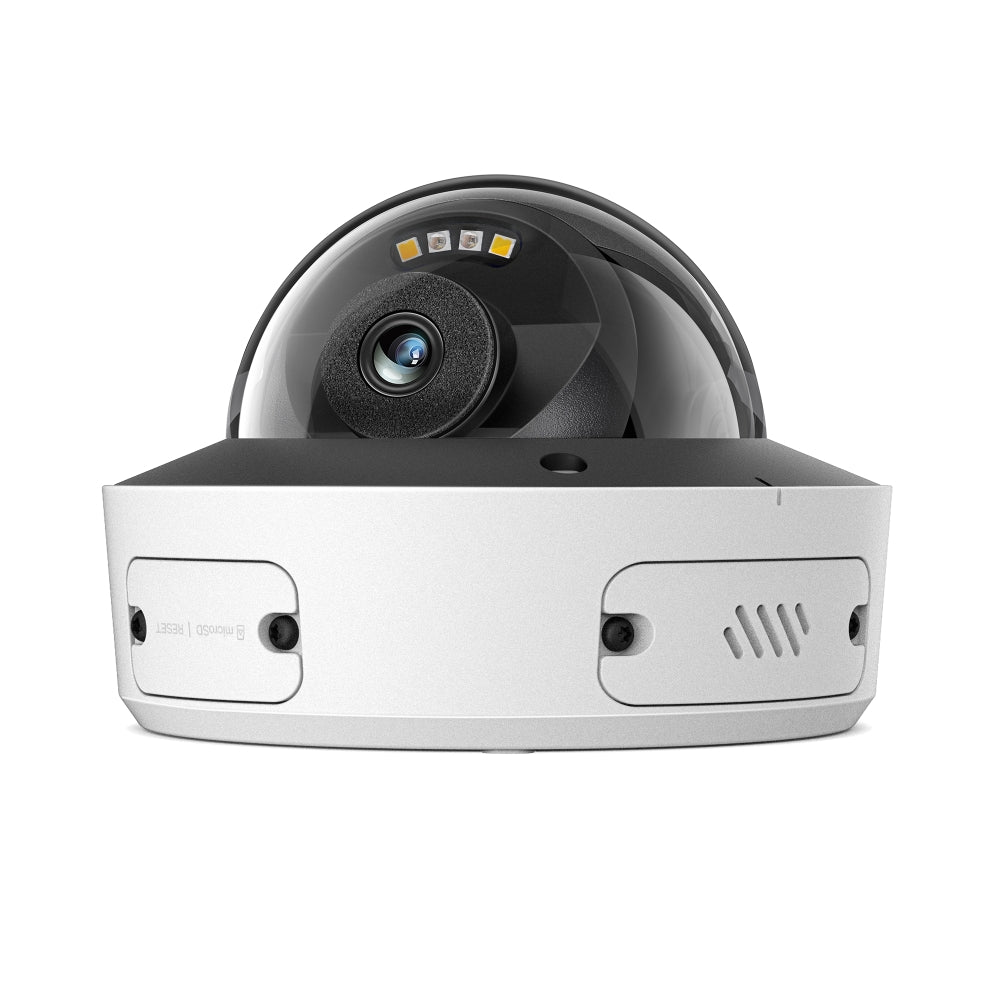

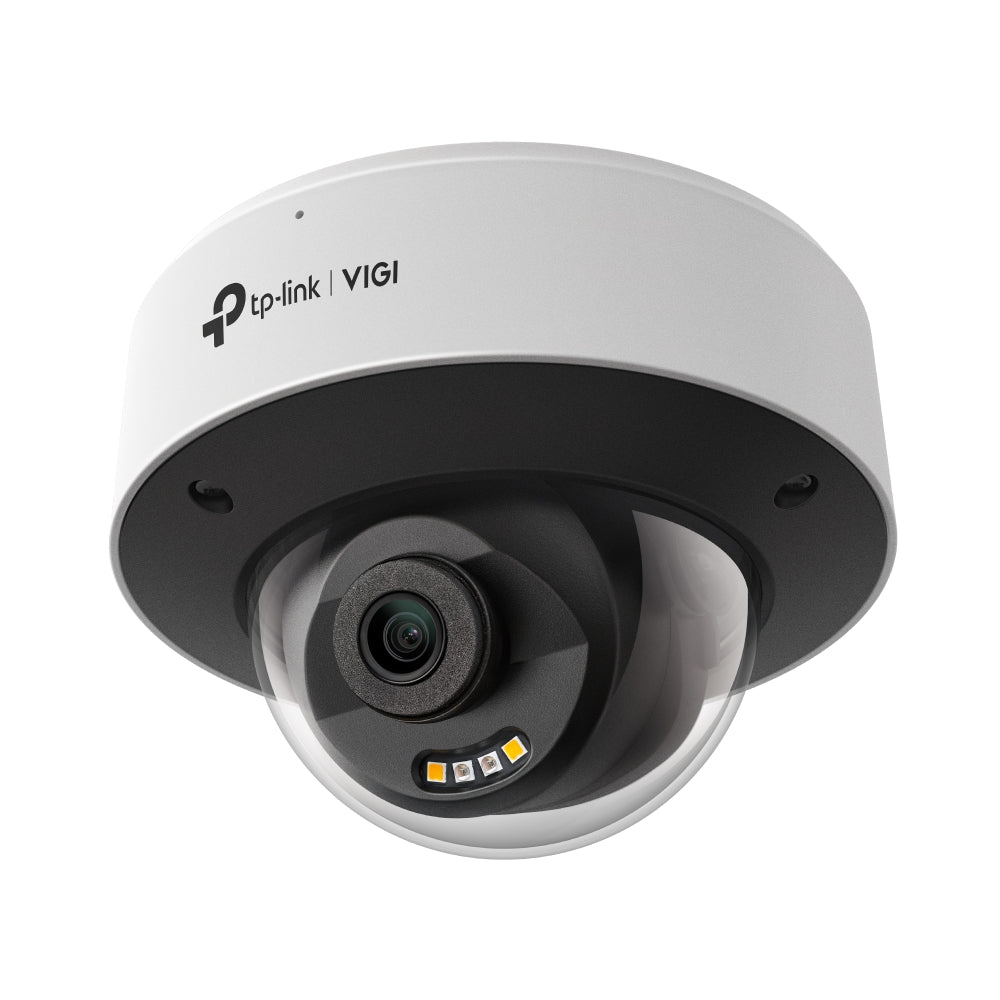

TP-Link InSight S285 8MP Full-Color Dome Network Camera, 4mm Lens
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link VIGI 8MP Full-Color Dome Network Camera (InSight S285 4mm) - 5 Years Local Warranty
The TP-Link InSight S285 is an 8MP (3840 x 2160) full-colour dome network camera from the VIGI InSight series, with a fixed 4mm F1.6 lens and a 1/2.7" progressive scan CMOS sensor. It adds People & Vehicle Analytics for faster post-event search, two-way audio with audible warnings, 120 dB true WDR and an IP67 / IK10 rated metal housing.
4K (8MP) Ultra HD and 24h Full-Color
Records at up to 3840 x 2160. Minimum illumination is 0.005 Lux, and two white LEDs and two 850 nm IR LEDs (each rated to 30 m) support colour or IR imaging after dark.
People & Vehicle Analytics
Search and filter to people or vehicles of interest based on many different attributes, making post-event search faster and easier. This function must be used with VIGI specified software. Motion detection is also enhanced with human and vehicle classification.
Smart Detection with Active Defence
Smart events include intrusion, line-crossing, region entering and exiting, object abandoned and removal, loitering, people and vehicle detection, abnormal sound and scene change. Alarm linkage can trigger an audible warning, white light flashing, memory card recording and a push message, and a built-in speaker and microphone provide two-way audio.
IP67 Waterproof and IK10 Vandal-Proof
The metal dome housing is rated IP67 and IK10 and specified for -30–60 °C. Power it over 802.3af/at PoE (max. 12.3 W) or 12V DC (max. 11 W), and record locally to a microSD card of up to 512 GB.
Ideal For
Lobbies, retail floors, warehouses, car park entrances and other areas where 4K detail, colour night imaging and attribute-based search of people and vehicles help investigations, managed from a VIGI NVR, VIGI VMS or the VIGI app. Supplied by SourceIT with local Singapore warranty and GST invoice.
InSight S285(4mm) Datasheet — Technical Specifications
General
| Model | InSight S285(4mm) |
| Official Product Name | VIGI 8MP Full-Color Dome Network Camera |
| Brand | TP-Link |
| Warranty | 5 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
Lens
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.6 |
| FOV | Horizontal FOV: 88° Vertical FOV: 46° Diagonal FOV: 105.4° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | Detect: 107 m (350 ft) Observe: 44 m (146 ft) Recognize: 21 m (70 ft) Identify: 11 m (35 ft) |
| Angle Adjustment (Manual) | Pan: 0° to 346° Tilt: 0° to 75° Rotation: 0° to 355° |
Illuminator
| IR LED | Quantity: 2 Range: 30m Wavelength: 850nm |
| White LED | Quantity: 2 Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Max. Resolution | 3840 x 2160 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 |
| Frame Rate Note | If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If HDR is turned on, the frame rate can only support up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 8 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/Smart IR |
| Wide Dynamic Range | 120 dB (when People & Vehicle Analytics is enabled, only DWDR is supported) |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
Audio
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
Network
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S/T/G) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Alarm and Event Management
| Smart Event | Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection, People Detection, Vehicle Detection, Abnormal Sound Detection, Scene Change Detection |
| Basic Event | Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts), Camera Tampering, Exception (Illegal Login) |
| Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier (must be used with VIGI specified software) |
Interfaces
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB (SD card not included) |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
Physical & Environment
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Material | Metal |
| Net Weight | 0.62 Kg |
| Power Supply | 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 12.3 W |
| Protection | IP67 Waterproof, IK10 Vandal Proof |
| Product Dimensions (L x W x H) | 4.80 x 4.80 x 3.50 in (122 x 122 x 89 mm) |
| Certifications | CE, NTRA, FCC, VCCI, BSMI, ONVIF, KC |
Figures reproduced from TP-Link’s Singapore product page for the 4mm lens version; the 2.8 mm and 4 mm versions share every row except focal length, FOV and DORI distance. TP-Link publishes no gross (packed) weight for this model, and its 60Hz frame-rate list tops out at 25fps.
Compatibility & Software Support
| Client | VIGI App, Web UI, VIGI VMS, Utility |
| ONVIF | Yes — Profile S/T/G |
| Cloud | Yes (as listed by TP-Link) |
| People & Vehicle Analytics | Requires VIGI specified software |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Power | PoE switch or injector (802.3af/at), or 12V DC adapter with 5.5 mm coaxial plug |
| Local Storage | MicroSD card up to 512 GB (not included) |
Package Contents & Ordering Information
Package Contents
| VIGI Network Camera | Included |
| Quick Start Guide | Included |
| Waterproof Cable Attachments | Included |
| Mounting Accessories | Included |
The microSD card is not included.
Ordering Information
| Model | InSight S285(4mm) |
| Other Focal Lengths | InSight S285(2.8mm) (sold separately) |
| SKU | InSight S285(4mm) |
| Warranty | 5 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — InSight S285
What warranty does SourceIT provide?
This camera is supplied with a 5 Years Local Warranty (Singapore), handled in line with TP-Link’s replacement warranty policy for Singapore. Every order comes with a GST invoice.
Which lens should I choose?
This version has the 4mm lens. The 2.8 mm lens covers a 110° horizontal view with identification at up to 8 m; the 4 mm lens narrows to 88° and extends identification to 11 m.
What is People & Vehicle Analytics?
It lets you search recorded footage for people or vehicles by attributes, making post-event search faster. TP-Link states the function must be used with VIGI specified software, and that only DWDR (not 120 dB WDR) is available while it is enabled.
Does the InSight S285 support two-way audio?
Yes. It has a built-in microphone and a built-in speaker for two-way audio, and can play an audible warning as part of alarm linkage.
Can SourceIT quote this for an office or a project?
Yes. SourceIT quotes VIGI cameras, NVRs, PoE switches and storage for offices, shops, warehouses and multi-site projects in Singapore. Send the quantity and site details for a project quote.
