TP-Link InSight S245ZI 4MP IR Motorized Varifocal Dome Network Camera
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION

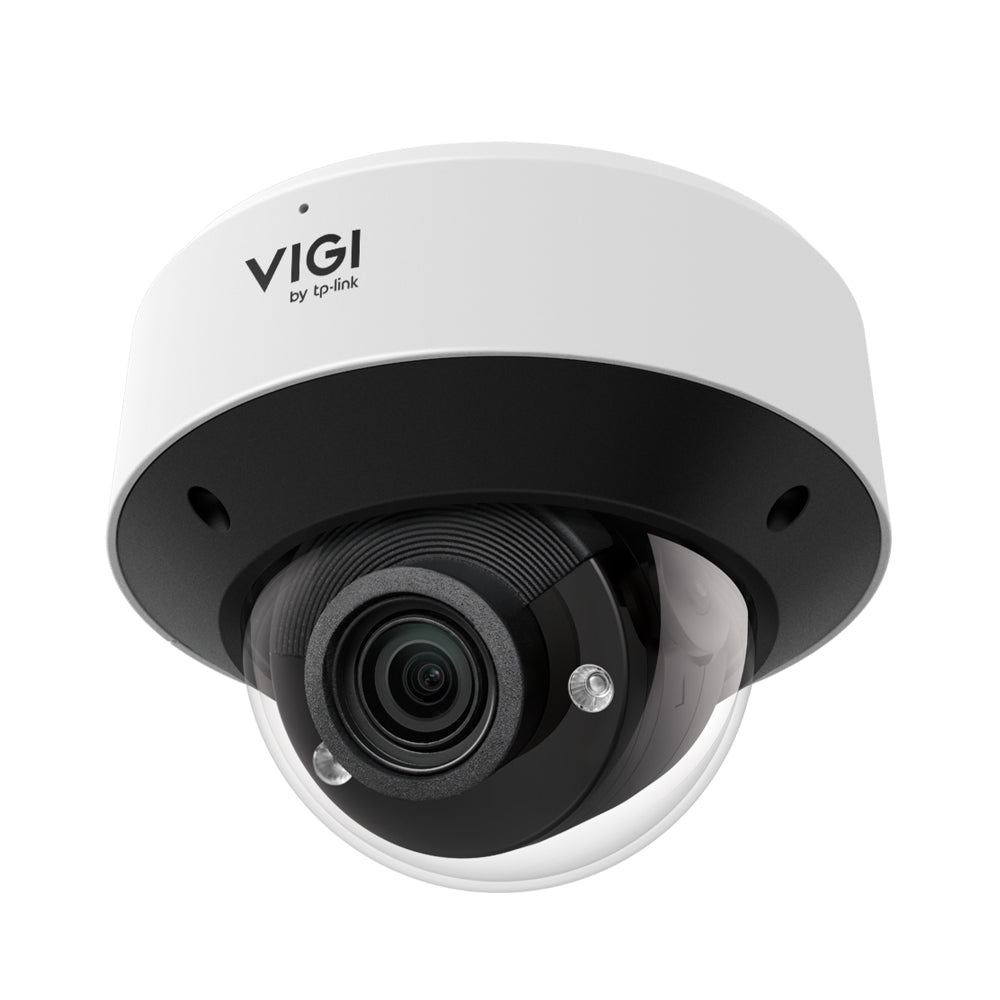

TP-Link VIGI 4MP IR Motorized Varifocal Dome Network Camera (InSight S245ZI) - 5 Years Local Warranty
The TP-Link InSight S245ZI is a 4MP IR dome network camera with a 2.7-13.5 mm motorised varifocal lens (5X optical zoom), so the field of view can be adjusted after installation. It combines a 1/2.9" progressive scan CMOS sensor, four 850 nm IR LEDs rated to 60 m, 120 dB WDR, AI human and vehicle classification, and a metal IP67 weatherproof, IK10 vandal-proof housing.
Motorised Varifocal Lens
Adjusting the field of view helps concentrate on areas of interest, minimise invalid detection zones and improve target clarity. Horizontal FOV ranges from 29.6° to 102.0° across the 2.7-13.5 mm zoom range.
Human & Vehicle Classification and Smart Events
Smart events include intrusion, line-crossing, region entering and exiting, object abandoned and object removal, loitering, people and vehicle, abnormal sound and scene change detection. Alarm linkage covers memory card recording, push notifications, an active-defence sound alarm, email, FTP upload, alarm output and alarm server.
Smart Video Enhancement
True WDR (120 dB), Smart IR, 3D DNR and white balance processing keep detail in high-contrast and low-light scenes.
H.265+ Compression
TP-Link states H.265+ saves 57.5% and 15% more storage space compared with H.264 and H.265 respectively.*2
Installer-Friendly Interfaces
The camera adds 1 alarm in / 1 alarm out, 1 audio in / 1 audio out, 802.1X authentication, ONVIF Profile G/S/T and a microSD slot of up to 512 GB.*3
Ideal For
Car parks, entrances, warehouses, campuses and building perimeters where the view must be framed or re-framed without a ladder, and projects integrating alarm devices or third-party ONVIF systems. Supplied by SourceIT with local Singapore warranty and GST invoice.
InSight S245ZI Datasheet — Technical Specifications
General
| Model | InSight S245ZI |
| Official Product Name | VIGI 4MP IR Motorized Varifocal Dome Network Camera |
| Brand | TP-Link |
| Warranty | 5 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/Scheduled/Auto |
Lens
| Type | Motorized Varifocal Lens |
| Focal Length | 2.7-13.5 mm (5X Optical Zoom) |
| Aperture | F1.6 |
| FOV | Horizontal FOV: 29.6°-102.0°; Vertical FOV: 16.8°-53.8°; Diagonal FOV: 34.1°-122.8° |
| Lens Mount | Φ14 |
| DORI Distance | Detect: 203-656 ft (62-200 m); Observe: 89-276 ft (27-84 m); Recognize: 43-131 ft (13-40 m); Identify: 23-69 ft (7-21 m) |
| Angle Adjustment (Manual) | Pan: 0° to 350°, Tilt: 0° to 75°, Rotate: 0° to 344° |
Illuminator
| Illuminator Type | 4x IR LED |
| IR LED | Quantity: 4; Range: 197 ft (60 m)*1; Wavelength: 850 nm |
| Illuminator Distance | 197 ft (60 m)*1 |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Max. Resolution | 2688x1520 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps. Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080. Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps. Resolution: 1280x720, 848x480, 704x576, 640x480, 640x360, 352x288, 320x240. Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 6 Mbps; Sub-Stream: 64 Kbps to 1024 Kbps |
| Image Settings | Mirror, Rotation, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White balance, Prevent overexposure to infrared light, HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
Audio
| Audio Communication | Two-Way Audio |
| Audio Input | Built-in Microphone, Audio In Interface |
| Audio Output | Audio Out Interface |
| Audio Compression | Yes |
| Audio Sampling Rate | 8 KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
Network
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, 802.1x, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile G/S/T) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication, 802.1X Authentication |
Alarm and Event Management
| Smart Event | Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection, People Detection, Vehicle Detection, Abnormal Sound Detection, Scene Change Detection |
| Basic Event | Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts), Video Tampering Detection, Exception (Illegal Login), Alarm Input Device |
| Alarm Linkage | Memory Card Video Recording, Push Notifications, Active Defence-Sound Alarm, Email Alarm, Upload to FTP Server, Alarm Output Device, Send to Alarm Server |

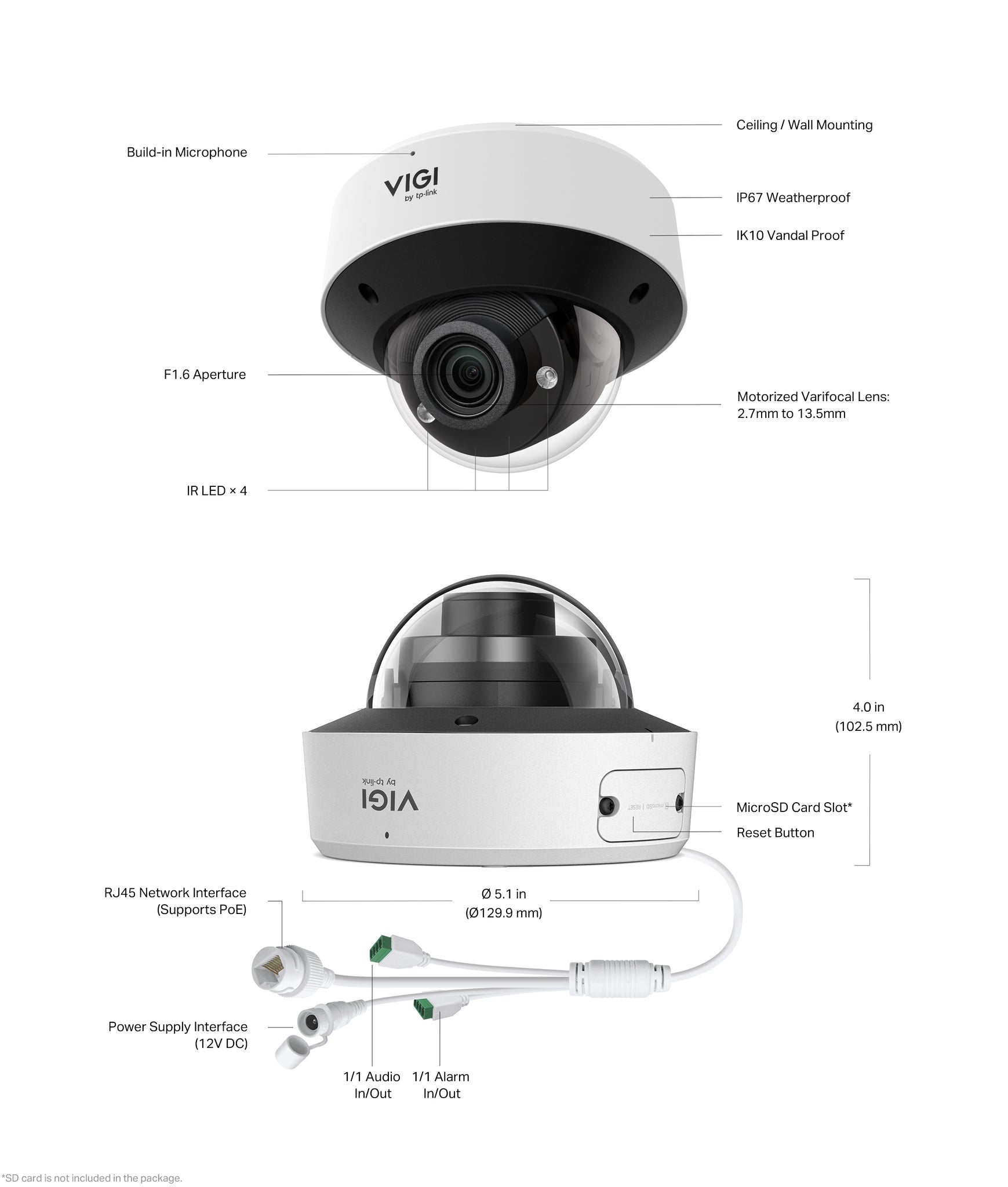

Interfaces
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | 1 Alarm In, 1 Alarm Out |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support microSD Card, up to 512 GB*3 |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | N/A |
| Audio | 1 Audio In, 1 Audio Out |
Physical & Environment
| Operating Temperature | -30°C to 60 °C |
| Storage Temperature | -40°C to 60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Material | Metal |
| Net Weight | 0.775 Kg |
| Power Supply | 12V DC ± 5%, Max. 10.8 W, 5.5 mm Coaxial Power Plug; PoE: 802.3af/at, class 0, Max. 12 W |
| Protection | IP67 Weatherproof, IK10 Vandal Proof |
| Product Dimensions (L x W x H) | Φ5.1 x 4.0 in (Φ129.9 x 102.5 mm) |
| Certifications | CE, NTRA, FCC, VCCI, BSMI, KC, IC, ONVIF, IP67, IK10 |
*1 Calculations are based on laboratory testing. Actual data is not guaranteed and will vary as a result of client limitations and environmental factors. *2 Calculations based on laboratory testing using a 3MP VIGI camera, and an actual performance may vary according to the amount of activity recorded, resolution and other variables. *3 SD card is not included in the package.
TP-Link publishes no gross weight for the InSight S245ZI.
Compatibility & Software Support
| Client | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client |
| Cloud | Yes |
| ONVIF | Yes — Open Network Video Interface (Profile G/S/T) |
| Web Browser | Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above |
| Alarm Integration | 1 alarm in, 1 alarm out; Send to Alarm Server linkage |
| Local Storage | microSD card up to 512 GB (card not included) |
Package Contents & Ordering Information
Package Contents

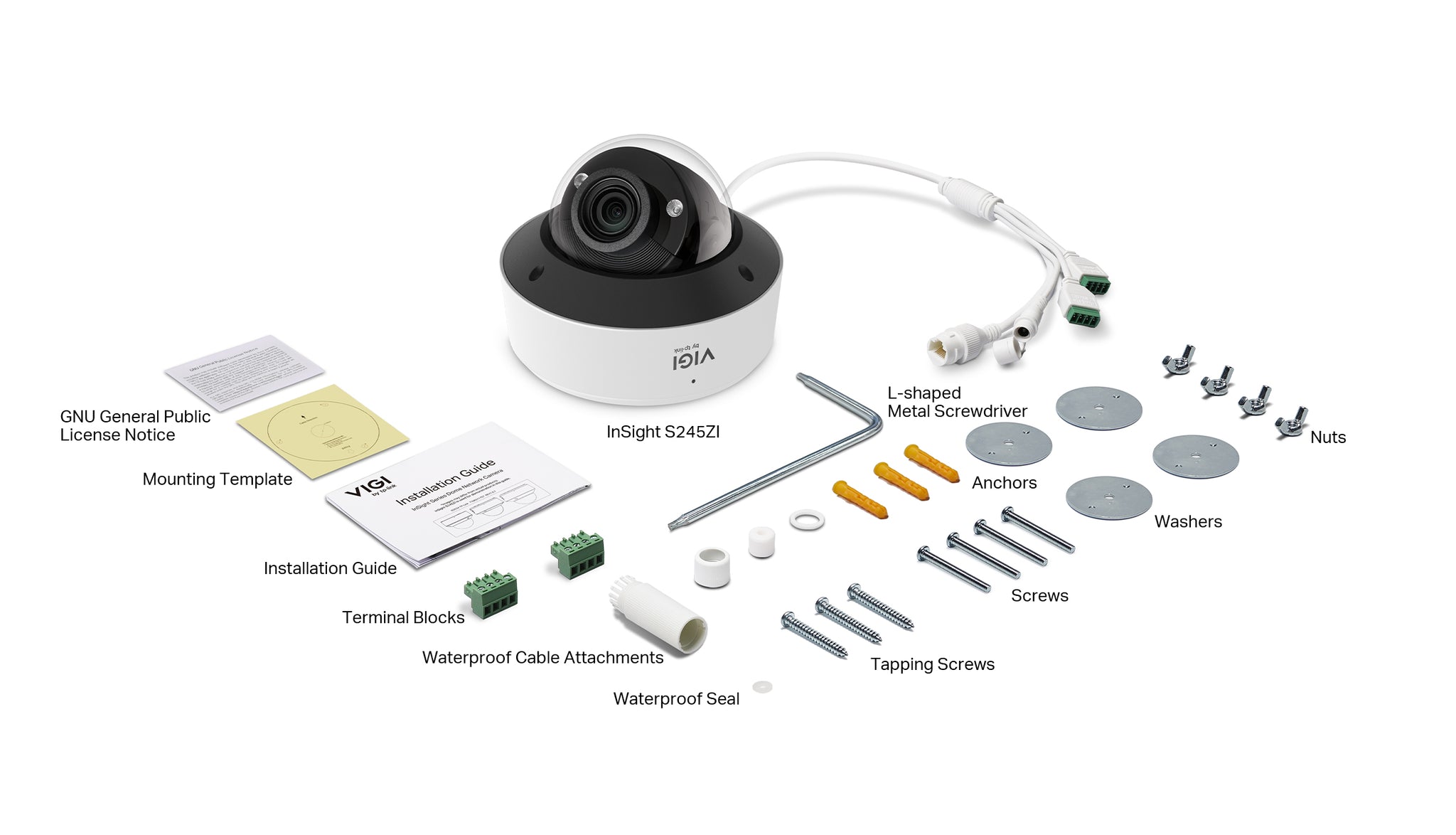

| In the Box | VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories |
Ordering Information
| Model | InSight S245ZI |
| SKU | InSight S245ZI |
| Warranty | 5 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — InSight S245ZI
Can the zoom be adjusted after installation?
Yes. The 2.7-13.5 mm motorised varifocal lens gives 5X optical zoom and a motorised lens, so the field of view can be adjusted after the camera is mounted.
How is the InSight S245ZI powered?
By PoE (802.3af/at, class 0, max. 12 W) or a 12V DC adapter via the 5.5 mm coaxial power port.
How far does the night vision reach?
TP-Link rates the four 850 nm IR LEDs at 197 ft (60 m), based on laboratory testing.
What warranty does SourceIT provide?
The InSight S245ZI is supplied with a 5-year local warranty in Singapore, handled through SourceIT together with TP-Link.
Can SourceIT quote this for an office or a project?
Yes. SourceIT can quote the InSight S245ZI in volume together with VIGI NVRs, PoE switches, cabling and storage for offices, retail premises and multi-site projects, with a GST invoice.
