TP-Link InSight LPR345Z 4MP Outdoor License Plate Recognition Bullet Network Camera
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link InSight LPR345Z 4MP Outdoor License Plate Recognition Bullet Network Camera (InSight LPR345Z) - 5 Years Local Warranty
The InSight LPR345Z is a 4MP outdoor bullet camera with on-board automatic number plate recognition (ANPR) built for car park entrances and exits. It reads plates up to 8 m away at default zoom and 15 m at maximum zoom, checks them against an allowlist or blocklist of up to 100,000 entries, and drives a barrier gate directly from its own relay output, so a controlled vehicle entry point needs no separate LPR server.
On-Camera Plate Recognition and Barrier Control
Capture is triggered by video detection or an I/O coil, in Entrance & Exit scene mode, and each event can save a scene picture or a scene picture plus close-up at 2560x1440 in JPEG. Captures are overlaid with time, plate number and vehicle permission type (allowlist, blocklist or temporary). Barrier gate control is handled by the camera through a 1-channel relay output that opens and closes the gate, and TP-Link recommends a microSD card when the allowlist and blocklist are large.
5X Motorised Zoom for Easy Lane Framing
The 2.7-13.5 mm motorised varifocal lens (5X optical zoom, F1.6) lets the installer frame the lane remotely rather than adjusting the lens at height. Horizontal field of view runs from 102.0 to 29.6 degrees. TP-Link's recommended recognition range is 3-6 m (10-20 ft), and published DORI distances are detect 66-207 m, observe 28-86 m, recognise 13-41 m and identify 7-21 m across the zoom range.
4MP Video With Full-Colour Night Imaging

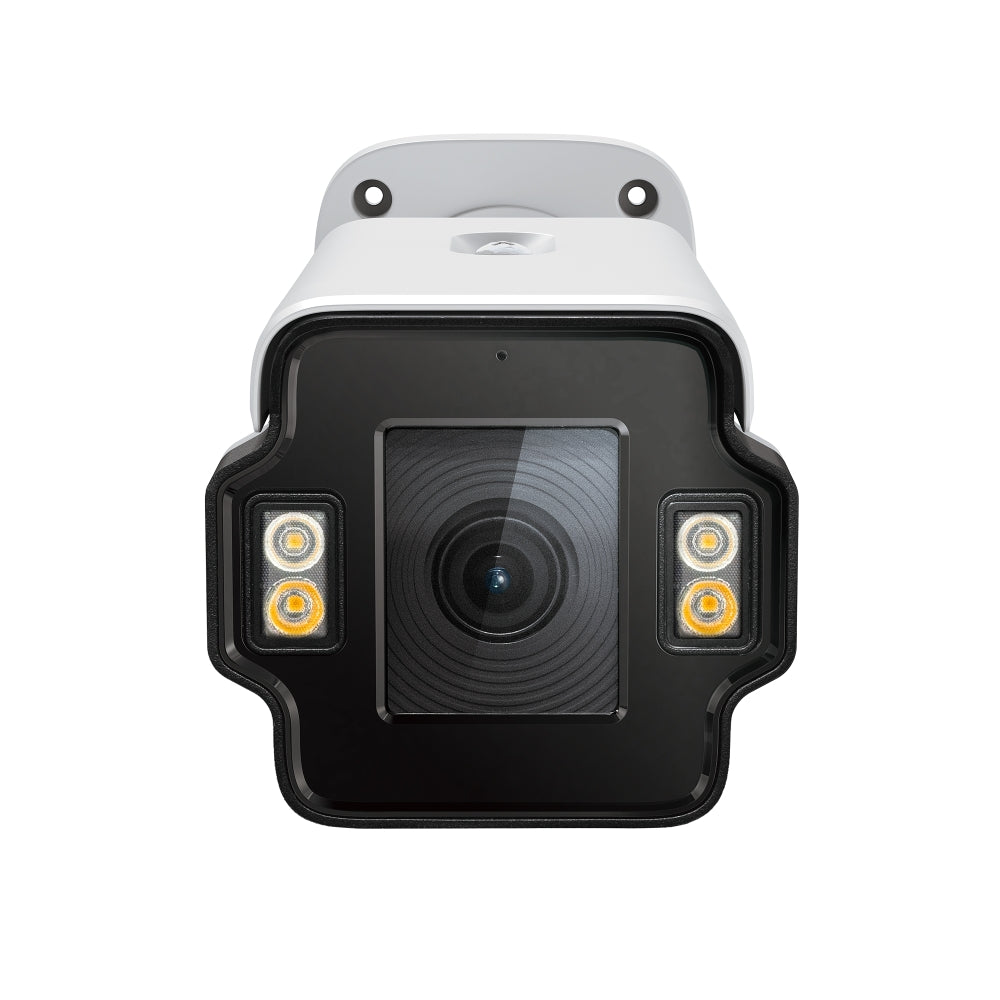

A 1/2.9 inch progressive scan CMOS records up to 2688 x 1520 with H.265+ on the main stream at 256 Kbps to 6 Mbps. Four white LEDs support full-colour imaging at night with auto, scheduled or always-off control, and minimum illumination is 0.005 lux, or 0 lux with white light. 120 dB wide dynamic range, BLC and 3D DNR help against headlights and low sun at gate lanes.
IP67 and IK10 Rated for Gate Lanes

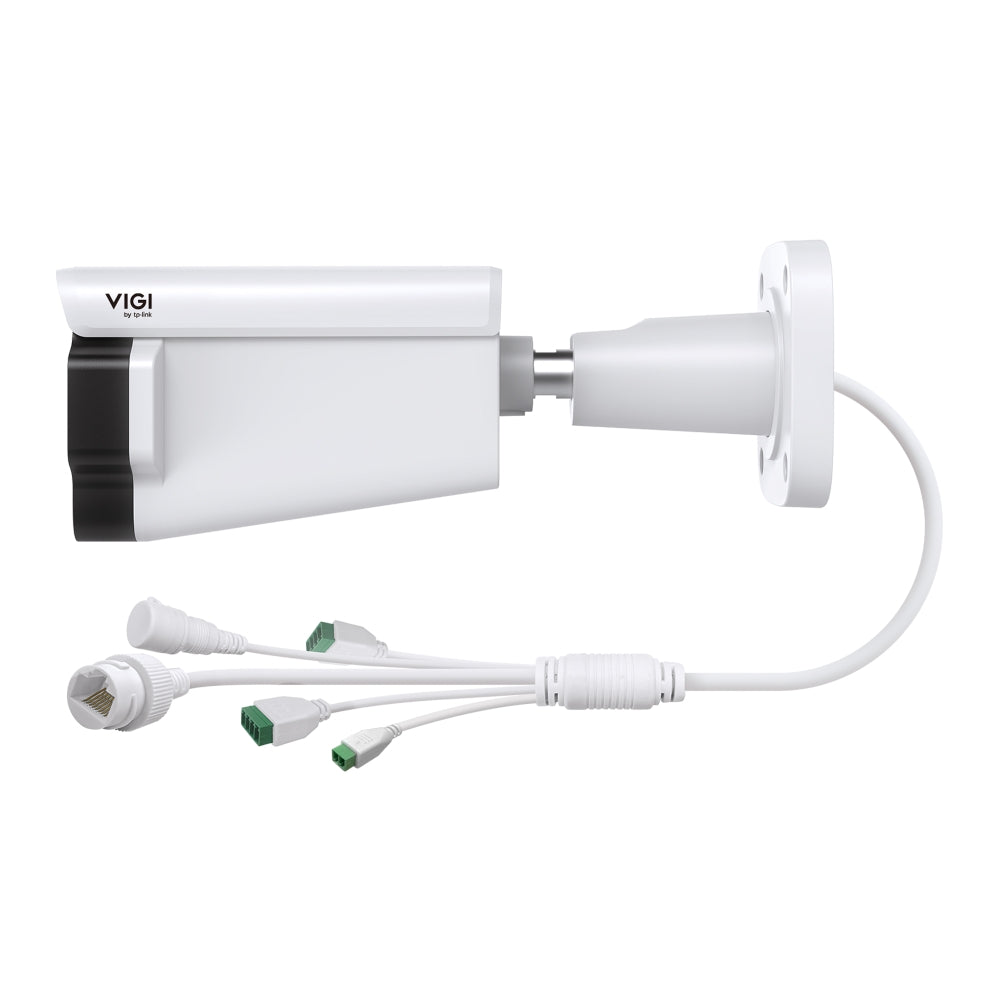

The metal housing is IP67 weatherproof and IK10 vandal-proof, rated -30 to 60 degrees C. It runs from 802.3af PoE (class 0, max 12.95 W) on one 10/100 Mbps port or from 12 V DC (max 10.8 W). Interfaces include 1 alarm in, 1 alarm out, 1 audio in, 1 audio out, RS-485, a built-in microphone and a microSD slot up to 512 GB.
Ideal For
Singapore condominium, office, factory and car park entrances and exits that want plate-based access control, visitor logging and gate automation from a single PoE camera. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
InSight LPR345Z Datasheet — Technical Specifications
General
| Model | InSight LPR345Z |
| Official Product Name | VIGI 4MP Outdoor License Plate Recognition Bullet Network Camera |
| Brand | TP-Link VIGI |
| Warranty | 5 Years Local Warranty (Singapore) |
Camera and Lens
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Shutter Speed | 1/100 to 1/1000 s; slow shutter supported |
| Minimum Illumination | 0.005 Lux; 0 Lux with White Light |
| Lens | Motorized varifocal, 2.7-13.5 mm (5X optical zoom), F1.6, Φ14 mount |
| Field of View | Horizontal 29.6-102.0 deg; vertical 16.8-53.8 deg; diagonal 34.1-122.8 deg |
| DORI Distance | Detect 66-207 m / observe 28-86 m / recognise 13-41 m / identify 7-21 m |
| Angle Adjustment (Manual) | Pan 0-360 deg, tilt 0-90 deg, rotation 0-360 deg |
| Illuminator | 4x white LED; auto / scheduled / always off |
License Plate Recognition
| Trigger Type | Video detection, I/O coil |
| Picture Type | Scene picture; scene picture + close-up picture |
| Max Recognition Distance | 8 m (26 ft) at default zoom; 15 m (49 ft) at maximum zoom |
| Recommended Recognition Range | 3-6 m (10-20 ft) |
| Scene Mode | Entrance & Exit |
| Capture Parameters | JPEG; 2560x1440; automatic / time-based LED control; ANPR |
| Capture Overlay | Capture time, plate number, vehicle permission type (allowlist, blocklist, temporary) |
| Barrier Gate Control | By camera; 1-ch relay output for opening and closing barrier gates |
| Allowlist / Blocklist | Up to 100,000 entries in total (microSD card recommended) |
Video and Image
| Max Resolution | 2688 x 1520 |
| Main Stream | 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080; 50 Hz up to 25 fps, 60 Hz up to 30 fps |
| Sub-Stream | 1280x720, 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 |
| Video Compression | Main H.265+/H.265/H.264+/H.264; sub H.265/H.264 |
| Video Bit Rate | Main 256 Kbps to 6 Mbps; sub 64 Kbps to 1024 Kbps |
| Bit Rate Control | CBR, VBR |
| Image Enhancement | BLC / 3D DNR; 120 dB WDR |
| SNR | 52 dB or better |
| Privacy Mask / ROI | Up to 4 masks; 1 ROI region |
Audio
| Audio Input | Built-in microphone (5 m radius); audio in interface |
| Audio Output | Audio out interface (no built-in speaker) |
| Audio Bit Rate / Sampling | 64 Kbps (G.711 a-law); 8 kHz; environment noise filtering |
Network and Events
| Protocol | TCP/IP, UDP, ICMP, ARP, SNMP, RTMP, HTTP, HTTPS, DHCP, DNS, RTSP, RTP, NTP, IPv4, IPv6, UPnP, SSL/TLS, FTP/SFTP |
| Interoperability | ONVIF (Profile G/S/T) |
| Simultaneous Live View | 3 main streams and 3 sub-streams |
| Client | Web UI |
| Cloud | Yes |
| Security | Password protection, HTTPS encryption, IP address filter, digest authentication, 802.1X authentication |
| Basic Event | Motion detection, camera tampering, exception (illegal login) |
| Alarm Linkage | Push notifications |
Interfaces, Physical and Power
| Network Interface | 1x RJ45 10/100M self-adaptive Ethernet, PoE |
| Alarm | 1 alarm in, 1 alarm out |
| Other Interfaces | RS-485, DC power port, reset button, 1 audio in, 1 audio out |
| On-board Storage | MicroSD card slot, up to 512 GB (card not included) |
| Power Supply | 12 V DC +/- 5%, max 10.8 W, 5.5 mm coaxial plug; or PoE 802.3af, class 0, max 12.95 W |
| Networked Standby | 2 W |
| Protection | IP67 weatherproof, IK10 vandal proof |
| Material | Metal |
| Dimensions | 256 x 100 x 101 mm (10.1 x 3.9 x 4 in) |
| Net Weight | 1.07 kg |
| Operating Temperature | -30 to 60 C |
| Storage Temperature | -40 to 60 C |
| Humidity | 95% or less, non-condensing |
| Certifications | CE, NTRA, KC, FCC, IP67, IC, IK10, VCCI, BSMI, ONVIF |
Compatibility & Software Support
| Client | Web UI (as published on TP-Link's specification table); configuration via VIGI Config Tool |
| Cloud | Supported |
| Third-Party NVRs and VMS | Supported via ONVIF (Profile G/S/T) |
| Web Browsers | Chrome 57+, Firefox 52+, Safari 11+, Edge 91+ |
| Gate Integration | 1-ch relay output for barrier gate control by the camera; I/O coil trigger input |
| Power | 802.3af PoE switch or PoE NVR port, or 12 V DC adapter |
| Omada SDN Controller | Not applicable — VIGI is managed through VIGI tools |
TP-Link's specification table lists only the Web UI as the client for this model; the VIGI Config Tool is listed for its download page. Ask SourceIT to confirm VIGI App / NVR / VMS support for LPR events before designing a site around them.
Package Contents & Ordering Information
What's in the Box
| Package Contents | VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories |
The microSD card and pole mounting kits are not included.
Ordering Information
| Model | InSight LPR345Z |
| Warranty | 5 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — InSight LPR345Z
Does it need a separate LPR server or controller?
No. Recognition runs on the camera, the allowlist and blocklist (up to 100,000 entries) are held on the camera, and its 1-channel relay output opens and closes the barrier gate directly.
How far away can it read a plate?
TP-Link publishes a maximum recognition distance of 8 m at default zoom and 15 m at maximum zoom, with a recommended recognition range of 3-6 m.
What warranty does SourceIT provide?
5 years local Singapore warranty, with a GST invoice on every order.
Is stock held locally?
Anything not in local stock is brought in on indent — ask SourceIT for the current lead time before committing to a project date.
Is this model available for project orders?
Yes. TP-Link supplies this model for project deployments; contact SourceIT with your bill of materials for pricing and lead time.
