TP-Link RE305 AC1200 Wi-Fi Range Extender
PRODUCT DESCRIPTION
TP-Link AC1200 Wi-Fi Range Extender (RE305) - 3 Years Local Warranty
The RE305 is TP-Link’s long-running AC1200 wall-plug extender: 867 Mbps on 5 GHz, 300 Mbps on 2.4 GHz, two aimable external antennas and a 10/100 Ethernet port in a compact 80 x 78 x 77 mm body. It is the volume seller of the AC range and the usual answer to one weak room.
AC1200 Across Both Bands
TP-Link rates the RE305 at up to 867 Mbps on 5 GHz and up to 300 Mbps on 2.4 GHz. For the work most extenders actually do — video calls from a back bedroom, streaming in a room the router cannot reach, keeping smart-home devices attached — that is ample. Published wireless functions are wireless statistics, a concurrent mode boosting both bands, access control, LED control and a domain login function.

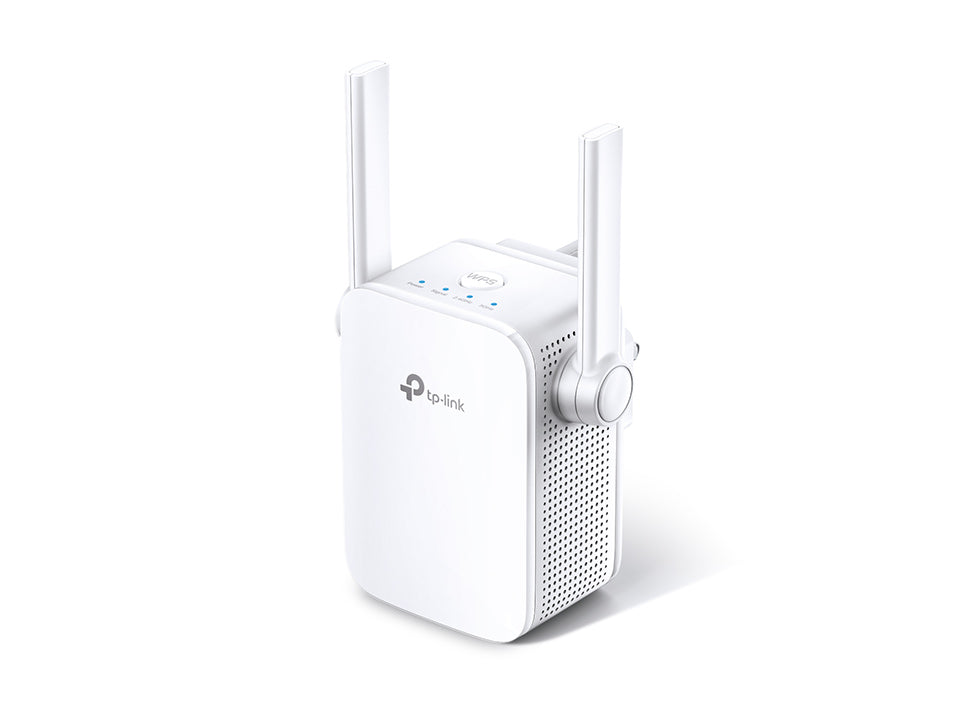

Two External Antennas You Can Aim
The two external antennas are the practical difference between the RE305 and the slimmer RE330. Once the extender is in its final socket, angling the antennas toward the router usually buys a measurable improvement in the link back — which is the part of the chain that limits everything downstream of it.
Compact Body, Low Draw
At 80 x 78 x 77 mm and a maximum 7.3 W from a 100-240 V outlet, the RE305 sits square against the wall rather than hanging down, and its running cost is negligible. Transmission power is rated under 17 dBm on both the 2.4 GHz and 5 GHz bands.
Range Extender and Access Point Modes
Working modes are Range Extender and Access Point. The Ethernet port is 10/100 Mbps, so a device wired through the extender is capped at 100 Mbps — fine for a TV or a console, less so for a NAS. Wireless security covers 64/128-bit WEP and WPA-PSK/WPA2-PSK.
Ideal For
Singapore flats and small offices with one problem room, and buyers who want a proven, inexpensive AC-class extender rather than a Wi-Fi 6 model. Supplied by SourceIT with local Singapore warranty and GST invoice.
RE305 Datasheet — Technical Specifications
General
| Model | RE305 |
| Official Product Name | AC1200 Wi-Fi Range Extender |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Hardware
| Standards and Protocols | IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b |
| Plug Type | EU, UK, US |
| Interface | 1 x 10/100Mbps Ethernet Port (RJ45) |
| Button | WPS Button, Reset Button |
| Input Power | 100-240V~50/60Hz |
| Max. Power Consumption | 7.3 W |
| Dimensions (W x D x H) | 3.1 x 3.0 x 3.0 in. (80 x 78 x 77 mm) |
| Antenna | 2 x external |
Wireless
| Wireless Standards | IEEE 802.11a/n/ac 5GHz; IEEE 802.11b/g/n 2.4GHz |
| Frequency | 2.4GHz & 5GHz (11ac) |
| Signal Rate | 5GHz: Up to 867Mbps; 2.4GHz: Up to 300Mbps |
| Working Modes | Range Extender / Access Point |
| Wireless Modes | Range Extender / Access Point; Wireless Statistic; Concurrent Mode boost both 2.4G/5G Wi-Fi band |
| Wireless Functions | Wireless Statistic; Concurrent Mode boost both 2.4G/5G Wi-Fi band; Access Control; LED Control; Domain Login Function |
| Wireless Security | 64/128-bit WEP; WPA-PSK / WPA2-PSK |
| Transmission Power | <17dBm (2.4GHz); <17dBm (5GHz) |
Others
| Certification | CE, FCC, RoHS |
| Box Dimensions (W x D x H) | 6.15 x 4 x 3.7 in. (156.5 x 101.5 x 95 mm) |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature | -40°C ~ 70°C (-40°F ~ 158°F) |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 90% non-condensing |
TP-Link publishes no mesh-technology row, no coverage area, no supported client count and no net weight for the RE305, so none is claimed here. Maximum wireless signal rates are physical rates from the IEEE 802.11 specifications; actual throughput and coverage are not guaranteed.
Compatibility & Software Support
| Works With | Any standard Wi-Fi router or gateway, in Range Extender mode |
| Mesh | TP-Link publishes no mesh technology for the RE305, in either its specification table or its product-page feature copy |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10; Mac OS; NetWare; UNIX or Linux |
| Management | Web-based configuration |
Package Contents & Ordering Information
What’s in the Box

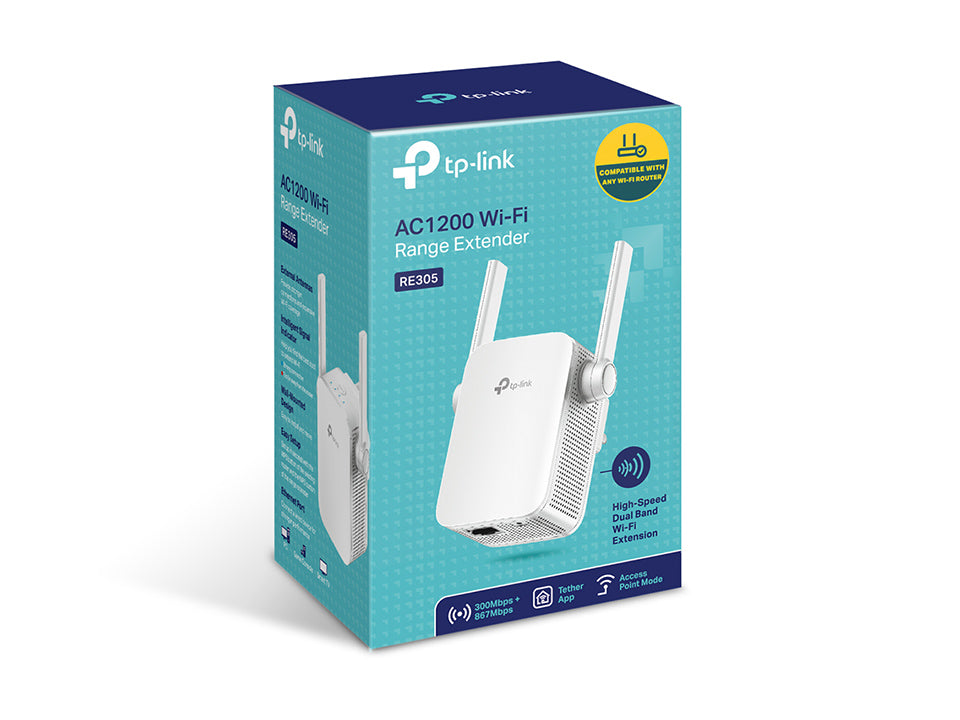

| Package Contents | AC1200 Wi-Fi Range Extender RE305; Quick Installation Guide |
Ordering Information
| Model | RE305 |
| SKU | RE305 |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — RE305
RE305 or RE330?
Identical speed ratings and the same 10/100 port. The RE305 has two external antennas you can aim and a squarer 80 x 78 x 77 mm body; the RE330 is slimmer with two internal antennas, and TP-Link markets the RE330 as forming a OneMesh network with a OneMesh router. Choose on placement and on whether single-Wi-Fi-name roaming matters, rather than on speed.
Will it work with my ISP router?
Yes, in Range Extender mode with any standard Wi-Fi router or gateway. TP-Link publishes no mesh technology for this model, so the extended network is configured on its own rather than merging into the router’s.
How fast is the Ethernet port?
10/100 Mbps, so a wired device behind the extender is capped at 100 Mbps.
What warranty does SourceIT provide?
Three years local Singapore warranty, in line with TP-Link’s published replacement warranty for this category. Every unit sold by SourceIT comes with a GST invoice.
