TP-Link Omada 8-Port Gigabit Easy Smart Switch with 4-Port PoE+ 64W

TP-Link 8-Port Gigabit Easy Smart Switch with 4-Port PoE+ (TL-SG108PE) - 5 Years Local Warranty

The TL-SG108PE is the eight-port Easy Smart switch with four 802.3af/at PoE+ ports and a 64 W budget. It powers a small cluster of access points, cameras or IP phones while still giving you VLANs, QoS, IGMP snooping and PoE Auto Recovery from a fanless 158 mm desktop case.

Eight Gigabit Ports, Four of Them PoE+

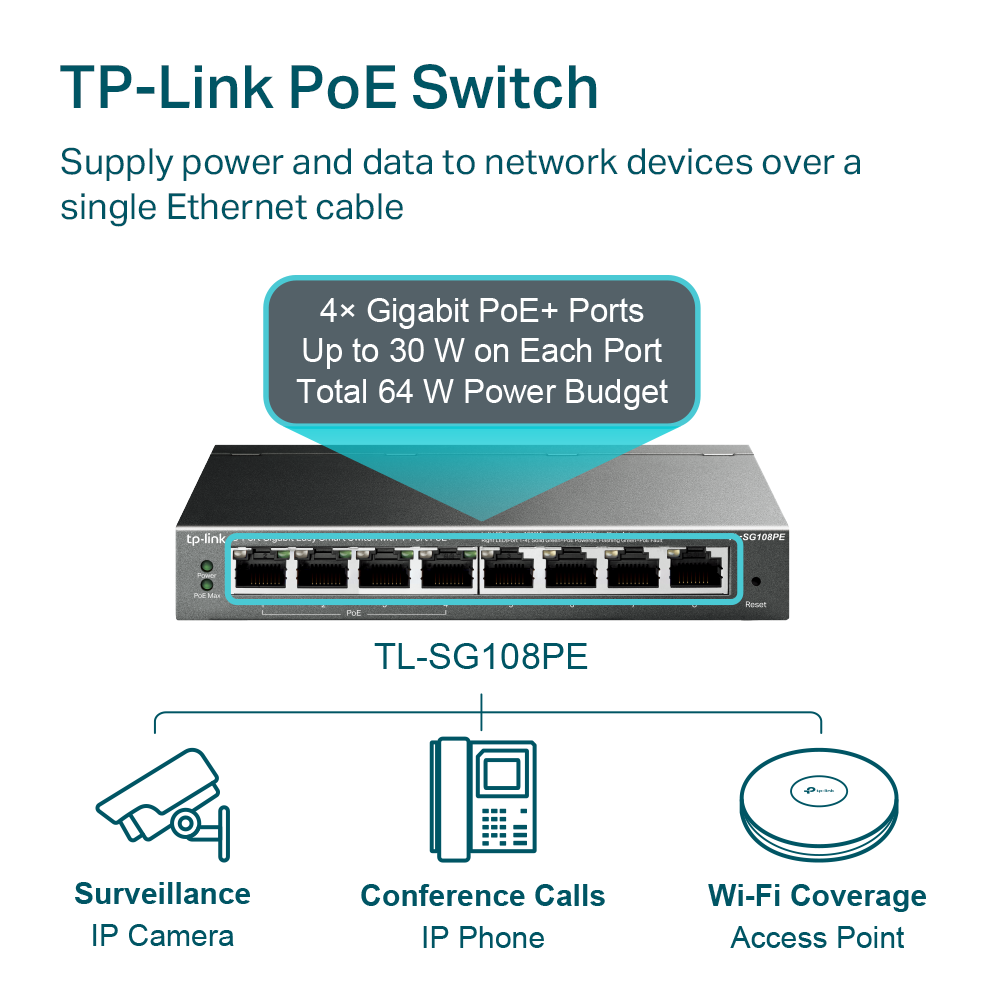

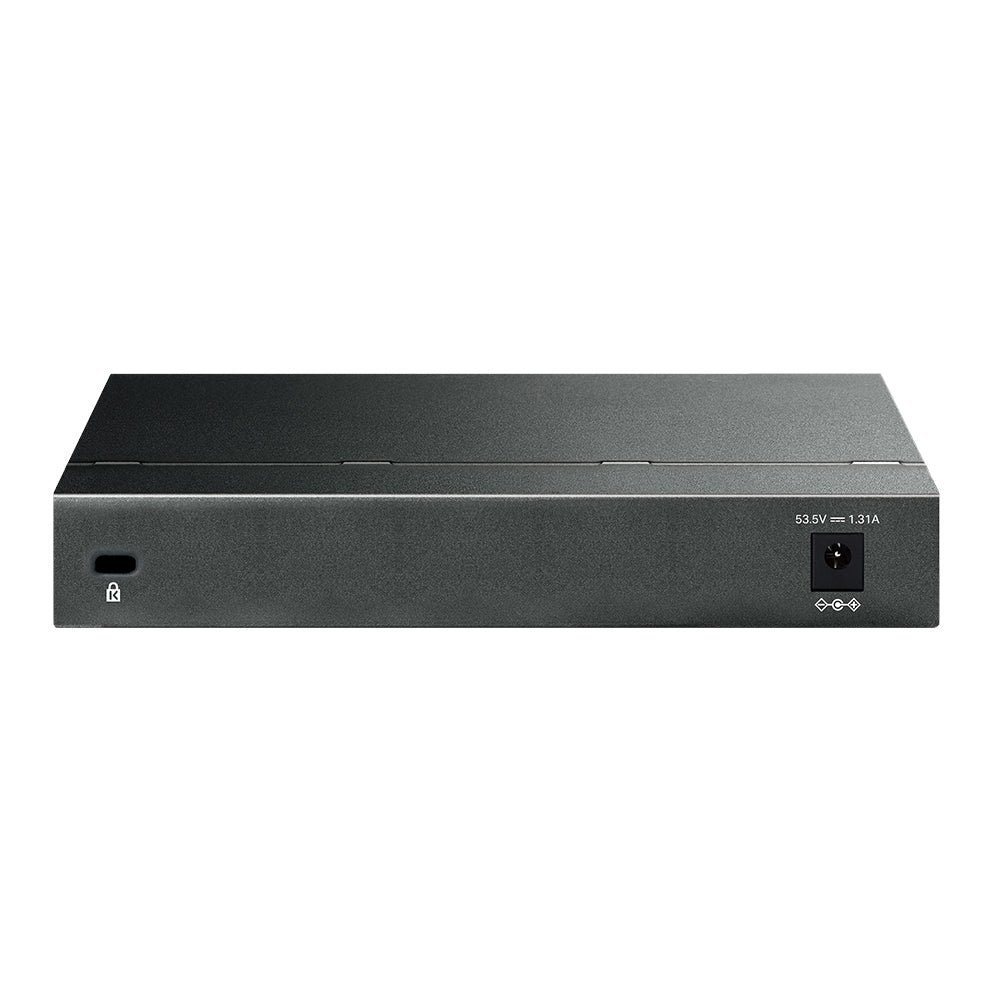

All eight ports run at 10/100/1000 Mbps with auto-negotiation and auto MDI/MDIX; ports 1-4 also deliver 802.3af/at power from a total budget of 64 W. That is a practical allocation for two PoE+ access points and two cameras, or four lighter 802.3af devices. Power comes from an external 53.5 V DC/1.31 A adapter. The switch draws 5.41 W with nothing powered and 74.27 W at a full 64 W PoE load.

PoE Auto Recovery Keeps Remote Devices Alive

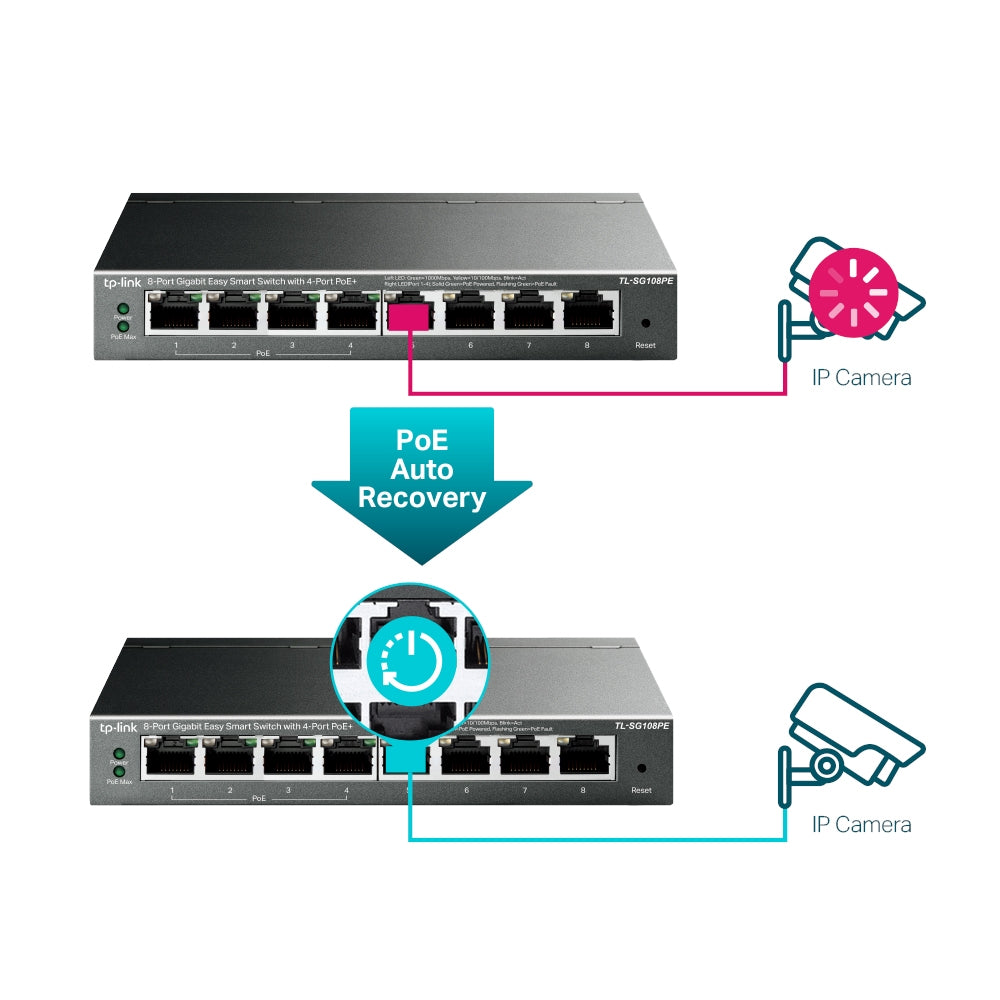

PoE Auto Recovery monitors each powered device and power-cycles its port when the device stops responding. On a site where the cameras or access points are up a ceiling or across a courtyard, that turns a site visit into a non-event. Combined with per-port PoE control from the web interface, it gives a small installation a lot of the operational behaviour normally associated with a managed switch.

VLAN Segmentation and Four QoS Queues

Up to 32 simultaneous VLANs are available from the full 4K VLAN ID range, in MTU, port-based and 802.1Q tag-based modes — so cameras, guest Wi-Fi and staff data can be kept apart on one switch. Quality of Service covers port-based, 802.1p and DSCP priority across four queues, with rate limiting and storm control. IGMP Snooping v1/v2/v3 stops camera multicast flooding every port, and static link aggregation gives you a wider uplink when one Gigabit port is not enough.

Fanless, Compact and Fully Documented

The chassis measures 158 x 101 x 25 mm and is fanless, so it fits on a shelf, in a cupboard or inside a wall cabinet without noise. Switching capacity is 16 Gbps with an 11.9 Mpps forwarding rate, a 4K MAC address table, 1.5 Mb of packet buffer and 16 KB jumbo frame support. Maximum heat dissipation is 18.45 BTU/h idle and 253.26 BTU/h at full PoE load — worth allowing for in an enclosed cabinet. Certification is FCC, CE and RoHS.

Ideal For

Singapore offices, retail units, clinics and small sites powering four PoE devices alongside four ordinary Gigabit connections, and integrators who need segmentation and PoE fault recovery without a rack. Supplied by SourceIT with five years local Singapore warranty, GST invoice and project pricing on request.
