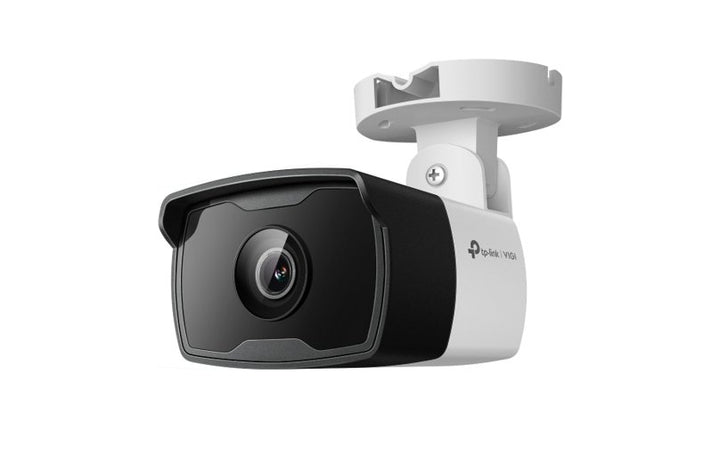

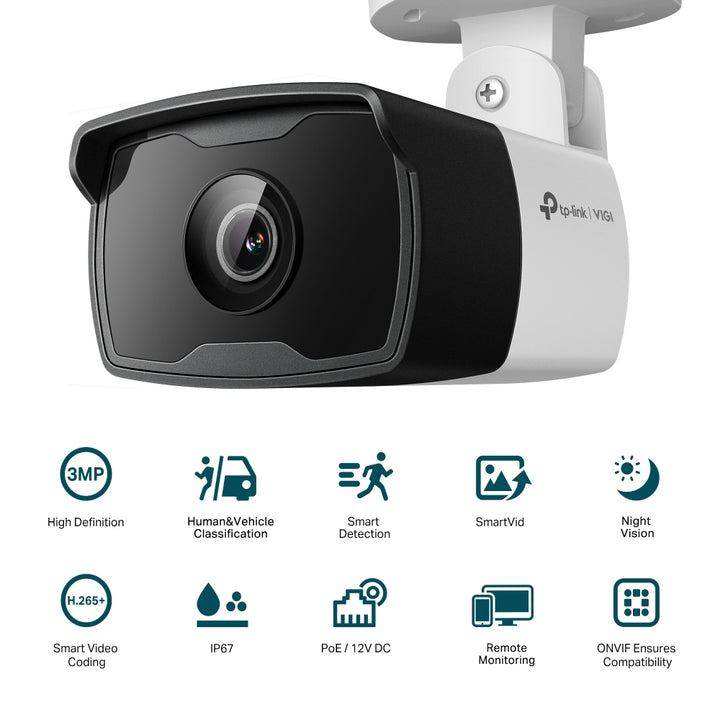

TP-Link VIGI C330I 3MP Outdoor IR Bullet Network Camera, 6mm Lens
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link VIGI 3MP Outdoor IR Bullet Network Camera (VIGI C330I 6mm) - 3 Years Local Warranty
The TP-Link VIGI C330I is a 3MP (2304 x 1296) outdoor bullet camera with a fixed 6mm lens, 30 m IR night vision and an IP67 housing. It classifies humans and vehicles, runs smart detection events such as line crossing and area intrusion, and is powered by PoE or 12V DC.
3MP Resolution with H.265+
A 1/2.8" progressive scan CMOS sensor records at up to 2304 x 1296. H.265+ compression on the main stream reduces storage and network load compared with standard encoding.
Human & Vehicle Classification and Smart Detection
The camera separates people and vehicles from other movement for more accurate alerts, and supports area intrusion, line-crossing, region entering/exiting, object abandoned and object removal detection.
Night Vision and Image Enhancement
Two 850 nm IR LEDs cover up to 30 m. Smart IR, DWDR, 3D DNR, BLC and HLC help keep footage usable in low light and backlit scenes.
Built for Outdoor Installation
The IP67-rated housing is designed for outdoor use, and the camera takes power from an 802.3af/at PoE switch or a 12V DC adaptor, keeping cabling simple.
Ideal For
Car parks, building perimeters, entrances, loading bays and shopfronts that need 3MP IR coverage on a VIGI NVR or the VIGI app. Supplied by SourceIT with local Singapore warranty and GST invoice.
VIGI C330I Datasheet — Technical Specifications
General
| Model | VIGI C330I(6mm) |
| Official Product Name | VIGI 3MP Outdoor IR Bullet Network Camera |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | Color: 0.1 Lux; 0 Lux with IR |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Day/Night/Auto/Schedule-Switch |
| Digital Noise Reduction | 3D DNR |
| WDR | DWDR |
| Weatherproof Rating | IP67 |
| IR Working Distance | 30m |
Lens
| Type | Fixed Focal Lens |
| Focal Length | 6 mm |
| Aperture | F2.0 |
| FOV | Horizontal FOV: 51.9° Vertical FOV: 28.7° Diagonal FOV: 60° |
| Lens Mount | M12 |
| DORI Distance | Detect: 98 m (321 ft) Observe: 41 m (134 ft) Recognize: 20 m (64 ft) Identify: 10 m (32 ft) |
Angle Adjustment (Manual)
| Range | Pan: -90° to 90° Tilt: -90° to 90° |
Illuminator
| IR LED | Quantity: 2 Range: 30m Wavelength: 850nm |
| White LED | N/A |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Max. Resolution | 2304 x 1296 |
| Main Stream | Frame Rate 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Frame Rate 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps Frame Rate 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704x576, 640x480, 352x288, 320x240 |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
Audio
| Audio | N/A (no audio input, output or built-in microphone) |
Network
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Yes |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Alarm and Event Management
| Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception (Illegal Login) |
| Alarm Linkage | Message Push |
| Output Notification | Message Push |
Interfaces
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Alarm | N/A |
| Reset Button | N/A |
| Power | DC Power Port |
| On-board Storage | N/A |
| Built-in Microphone | N/A |
| Built-in Speaker | N/A |
Power
| Power Supply | 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0) |
| Max. Power Consumption | 12V DC: Max 5W PoE: Class 0 |
Physical & Environment
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Protection | IP67 |
| Material | Plastic |
| Product Dimensions (L x W x H) | 174 x 74 x 71 mm |
| Net Weight | 0.2 Kg |
| Gross Weight | 0.35 Kg |
| General Features | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| Certifications | CE/BSMI/VCCI/ONVIF |
The VIGI C330I has no microSD slot, so recordings are kept on a VIGI NVR or other ONVIF recorder rather than on the camera.
Compatibility & Software Support
| Management Clients | VIGI App, VIGI Security Manager, VIGI NVR, Web |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Cloud | Yes |
| Third-Party Integration | ONVIF |
| On-Camera Storage | N/A — record to an NVR |
Package Contents & Ordering Information

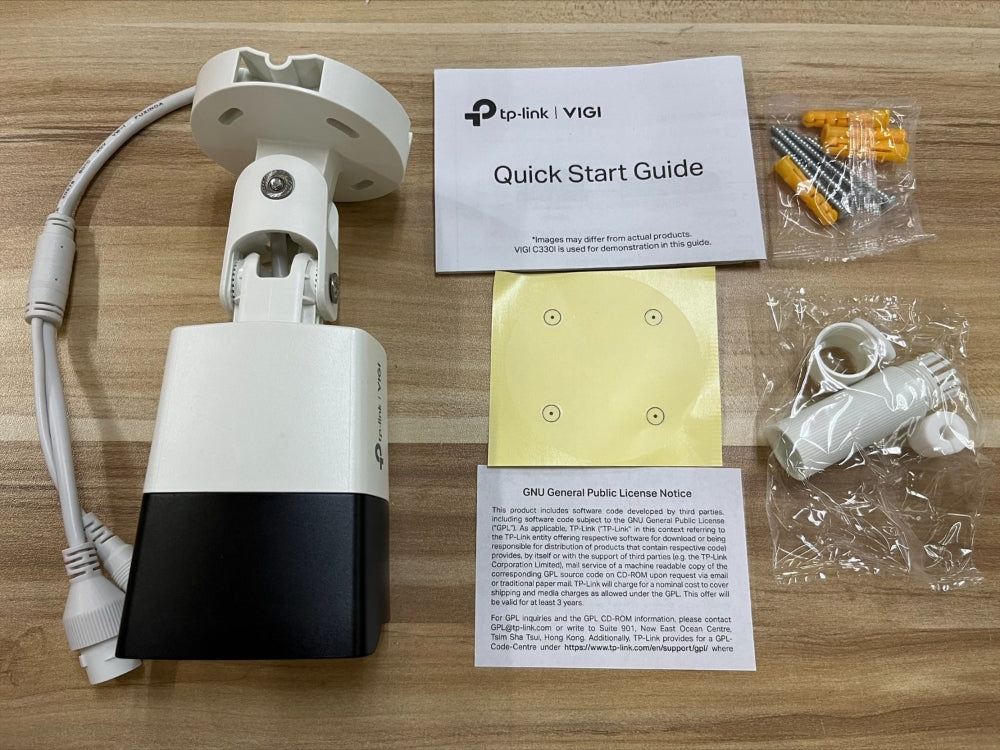

Package Contents
| VIGI Network Camera | Included |
| Quick Start Guide | Included |
| Waterproof Cable Attachments | Included |
| Mounting Accessories | Included |
Ordering Information
| Model | VIGI C330I(6mm) |
| Other Focal Lengths | VIGI C330I (2.8mm), VIGI C330I (4mm) (also available) |
| SKU | VIGI C330I |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — VIGI C330I
Does the VIGI C330I record audio?
No. TP-Link lists audio input, audio output and built-in microphone as N/A for this model.
Which lens should I choose?
The 2.8 mm version gives the widest view (97.8° horizontal), the 4 mm version 82.5°, and the 6 mm version 51.9° with the longest identification distance (10 m). Wide lenses suit enclosed areas; the 6 mm suits long driveways and open yards.
Can it be powered over the network cable?
Yes. It accepts 802.3af/at PoE (class 0) or a 12V DC supply through a 5.5 mm coaxial plug.
What warranty does SourceIT provide?
The VIGI C330I is supplied with a 3-year local warranty in Singapore, handled under TP-Link's replacement warranty policy. Keep the GST invoice as proof of purchase.
Can SourceIT quote this for an office or a project?
Yes. SourceIT quotes VIGI cameras together with VIGI NVRs, PoE switches and storage for offices, shops, warehouses and multi-site projects, with a GST invoice for every order.
