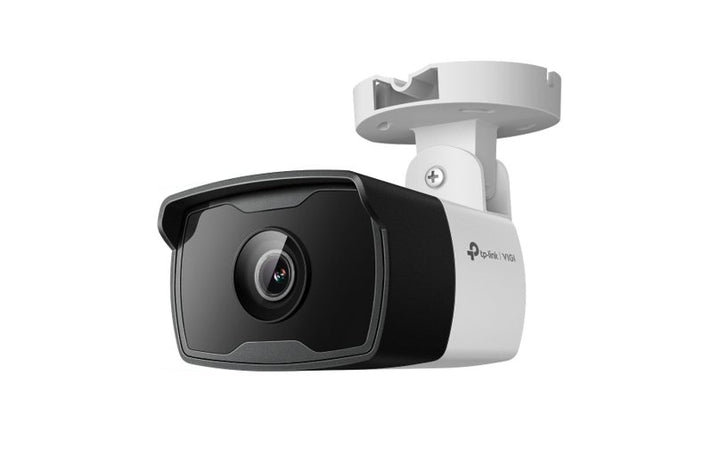

TP-Link VIGI C320I 2MP Outdoor IR Bullet Network Camera, 6mm Lens
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link VIGI 2MP Outdoor IR Bullet Network Camera (VIGI C320I 6mm) - 3 Years Local Warranty

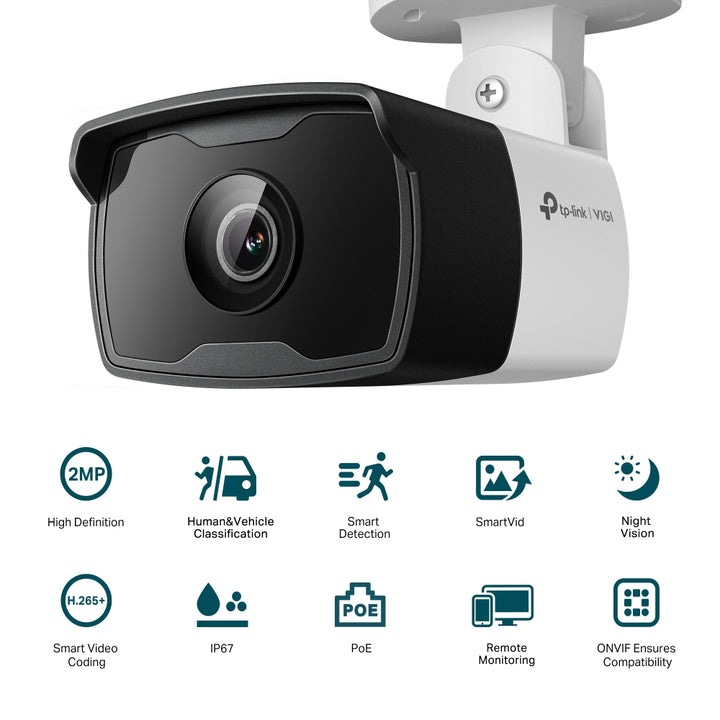

The TP-Link VIGI C320I is a 2MP (1920 x 1080) outdoor bullet network camera with a fixed 6mm lens, a 1/3" progressive scan CMOS sensor and two 850 nm IR LEDs rated to 50 m. It is powered over a single PoE cable, rated IP67 for outdoor use, and adds human and vehicle classification, smart detection events and H.265+ compression for efficient recording.
2MP Full HD with Smart IR Night Vision
A 1/3" progressive scan CMOS sensor records up to 1920 x 1080. Minimum illumination is 0.01 Lux in colour and 0 Lux with IR, and two 850 nm IR LEDs cover up to 50 m in darkness, with Smart IR, DWDR, BLC, HLC and 3D DNR image enhancement.

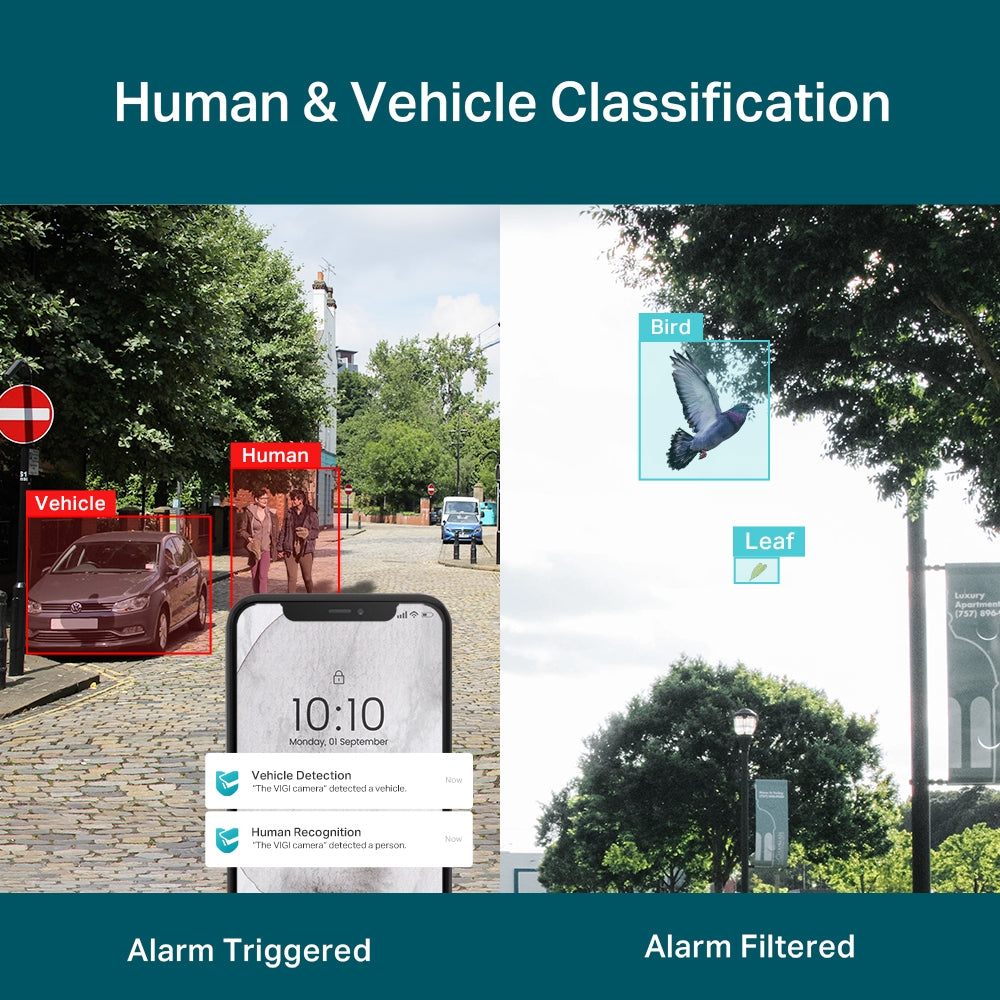

Human & Vehicle Classification and Smart Detection
Motion detection is enhanced with human and vehicle classification for more accurate alerts. Smart events include intrusion, line-crossing, region entering and exiting, object abandoned/removal, abnormal sound, people and vehicle detection, with message push notifications.
H.265+ Compression
The main stream supports H.265+/H.265/H.264+/H.264, reducing bandwidth and storage requirements for continuous recording compared with standard H.264.
IP67 Outdoor Housing and Single-Cable PoE
Rated IP67 and specified for -30–60 °C operation, the camera is powered by 802.3af/at PoE (max. 5.5 W) through one RJ45 cable, so no separate power adapter is required. A built-in microphone captures audio within about 5 m.
Ideal For
Building perimeters, car parks, entrances, loading bays and shopfronts where a compact 2MP bullet camera with IR night vision is needed on a PoE network, managed from a VIGI NVR, the VIGI app or VIGI Security Manager. Supplied by SourceIT with local Singapore warranty and GST invoice.
VIGI C320I(6mm) Datasheet — Technical Specifications
General
| Model | VIGI C320I(6mm) |
| Official Product Name | VIGI 2MP Outdoor IR Bullet Network Camera |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/3" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | Color: 0.01 Lux; 0 Lux with IR |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
Lens
| Type | Fixed Focal Lens |
| Focal Length | 6 mm |
| Aperture | F2.0 |
| FOV | Horizontal FOV: 49.8° Vertical FOV: 27.6° Diagonal FOV: 57.7° |
| Lens Mount | M12 |
| DORI Distance | Detect: 91 m (297 ft) Observe: 38 m (124 ft) Recognize: 18 m (59 ft) Identify: 9 m (30 ft) |
| Angle Adjustment (Manual) | Pan: 0° to 360° Tilt: 0° to 90° Rotation: 0° to 360° |
Illuminator
| IR LED | Quantity: 2 Range: 50m Wavelength: 850nm |
| White LED | N/A |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Max. Resolution | 1920 x 1080 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 1920x1080, 1280x960, 1280x720 |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704x576, 640x480, 352x288, 320x240 |
| Frame Rate Note | If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation (90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
Audio
| Audio Communication | N/A |
| Audio Input | Yes |
| Audio Output | N/A |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
Network
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Alarm and Event Management
| Smart Event | Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned/Removal Detection, Abnormal Sound Detection, People Detection, Vehicle Detection |
| Basic Event | Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts), Video Tampering Detection, Exception (Illegal Login) |
| Alarm Linkage | Message Push |
Interfaces
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | N/A |
| Power | N/A |
| On-board Storage | N/A |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | N/A |
| Audio | N/A |
Physical & Environment
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Material | Plastic |
| Net Weight | 0.28 Kg |
| Gross Weight | 0.43 Kg |
| Power Supply | PoE: 802.3af/at, class 0, Max. 5.5 W |
| Protection | IP67 Waterproof |
| Product Dimensions (L x W x H) | 78.50 x 188.03 x 71.55 mm (3.09 x 7.40 x 2.82 in) |
| Certifications | CE, NTRA, VCCI, BSMI |
Figures reproduced from TP-Link’s Singapore product page for the 6mm lens version; the 2.8 mm, 4 mm and 6 mm versions share every row except focal length, aperture, FOV and DORI distance. The camera has no memory card slot, no DC power input and no speaker, and TP-Link publishes no IK vandal-resistance rating for this model.
Compatibility & Software Support
| Client | VIGI App, VIGI Security Manager, Web UI |
| NVR Management | Managed through the NVR UI of a VIGI network video recorder |
| ONVIF | Yes — Profile S |
| Cloud | Yes (as listed by TP-Link) |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Power | PoE switch or injector, 802.3af/at |
| Local Storage | None on the camera — record to a VIGI NVR or other ONVIF recorder |
Package Contents & Ordering Information

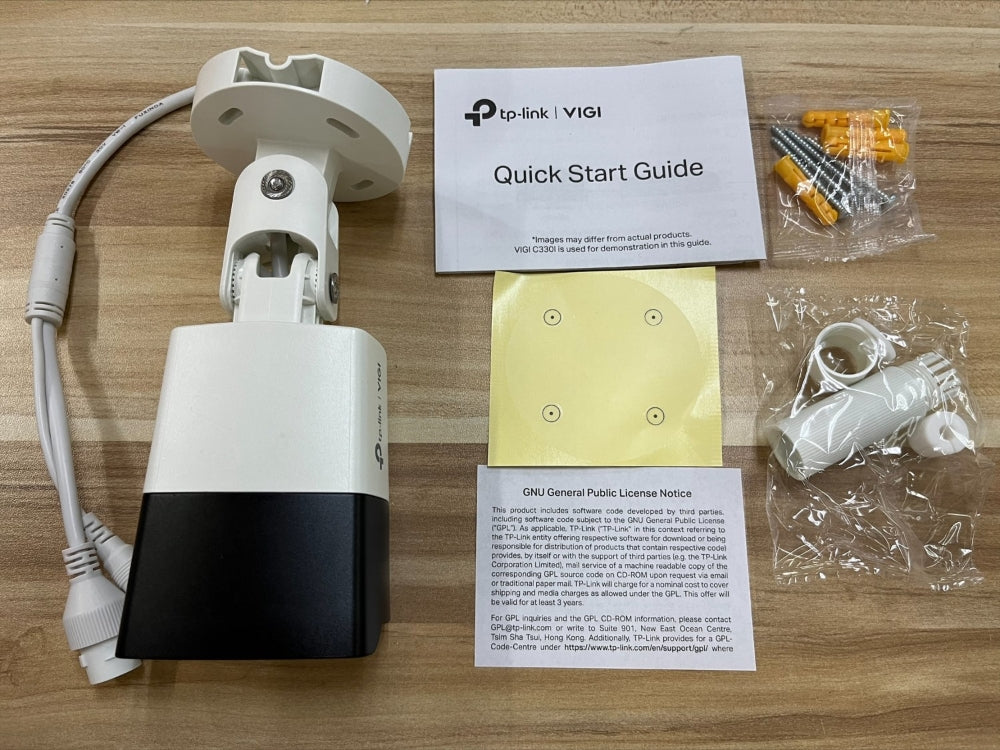

Package Contents
| VIGI Network Camera | Included |
| Quick Start Guide | Included |
| Waterproof Cable Attachments | Included |
| Mounting Accessories | Included |
Ordering Information
| Model | VIGI C320I(6mm) |
| Other Focal Lengths | VIGI C320I(2.8mm), VIGI C320I(4mm) (sold separately) |
| SKU | VIGI C320I |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — VIGI C320I
What warranty does SourceIT provide?
This camera is supplied with a 3 Years Local Warranty (Singapore), handled in line with TP-Link’s replacement warranty policy for Singapore. Every order comes with a GST invoice.
Which lens should I choose?
This version has the 6mm lens. The 2.8 mm lens gives the widest view (88.2° horizontal) for general coverage; the 4 mm (75.2°) and 6 mm (49.8°) lenses give narrower views with longer DORI distances — for example, identification at up to 9 m with the 6 mm lens versus 5 m with the 2.8 mm lens.
Does the VIGI C320I need a power adapter?
No. It is powered by PoE (802.3af/at, max. 5.5 W) over the same RJ45 cable that carries data. The camera has no DC power port, so a PoE switch, PoE NVR or PoE injector is required.
Can it record without an NVR?
The VIGI C320I has no memory card slot. Recording is done on a VIGI NVR or another ONVIF Profile S compatible recorder, while live view is available through the VIGI app, VIGI Security Manager and the web UI.
Can SourceIT quote this for an office or a project?
Yes. SourceIT quotes VIGI cameras, NVRs, PoE switches and storage for offices, shops, warehouses and multi-site projects in Singapore. Send the quantity and site details for a project quote.
