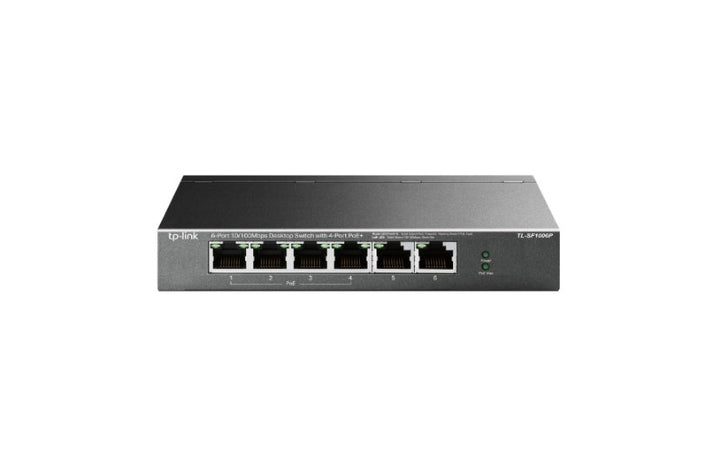

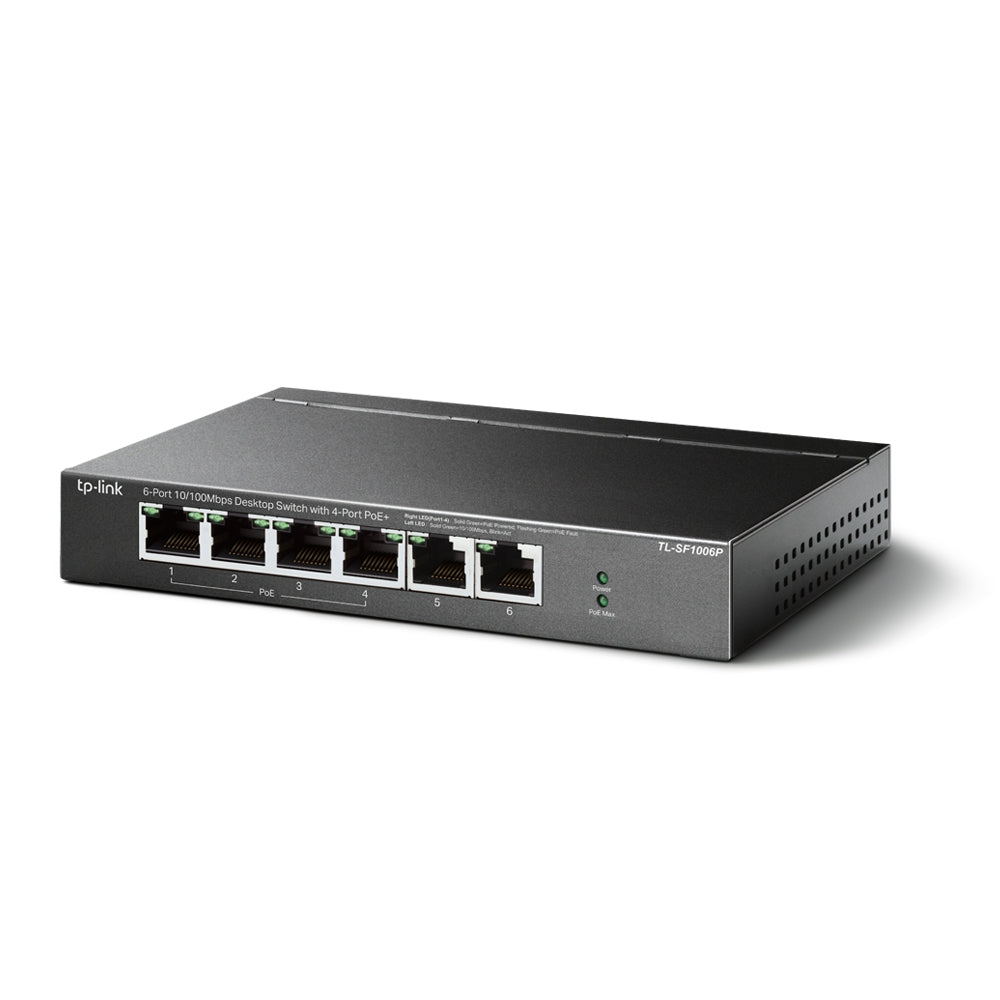

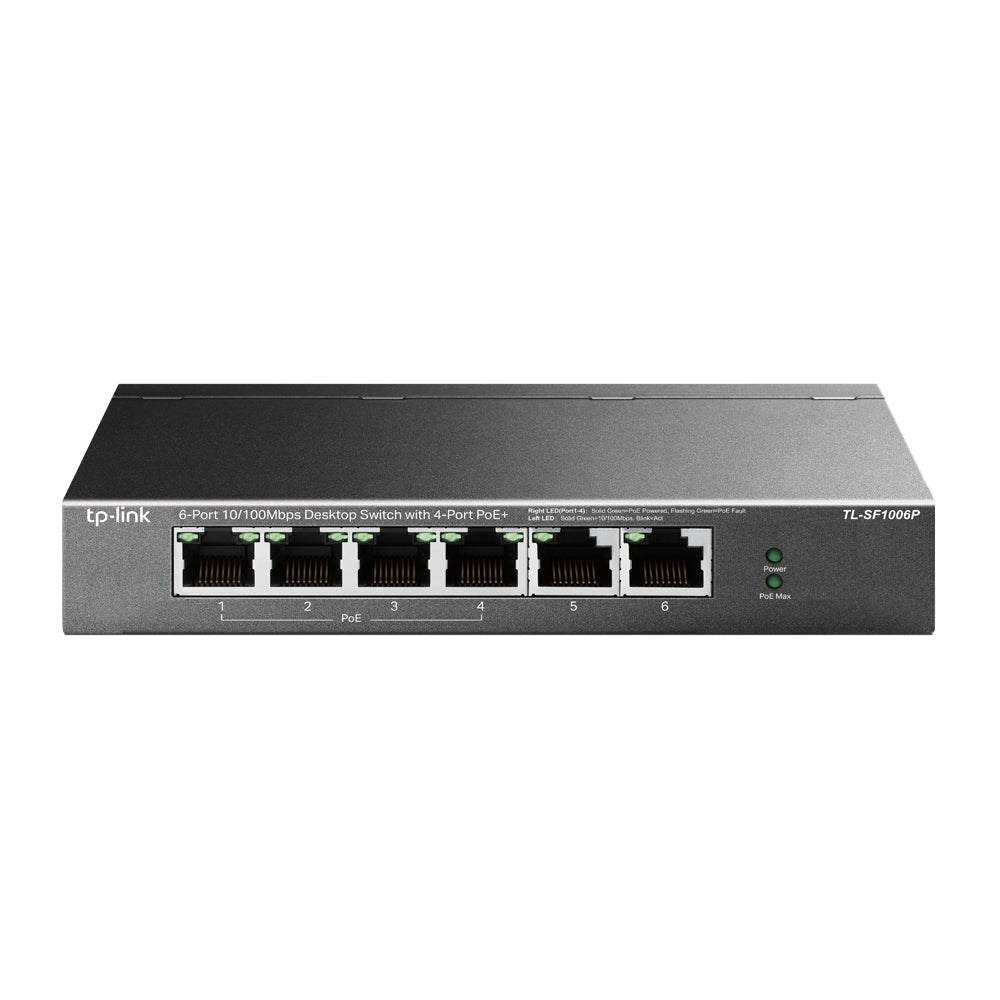

TP-Link Omada 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ 67W

TP-Link 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ (TL-SF1006P) - 5 Years Local Warranty

The TL-SF1006P is a compact six-port Fast Ethernet switch with 802.3at PoE+ on ports 1 to 4 and a 67 W budget — an unusually large allowance for a switch this size. At 158 mm wide and fanless, it powers four demanding cameras or access points from a shelf or a cupboard, with Extend and Priority buttons instead of a configuration screen.

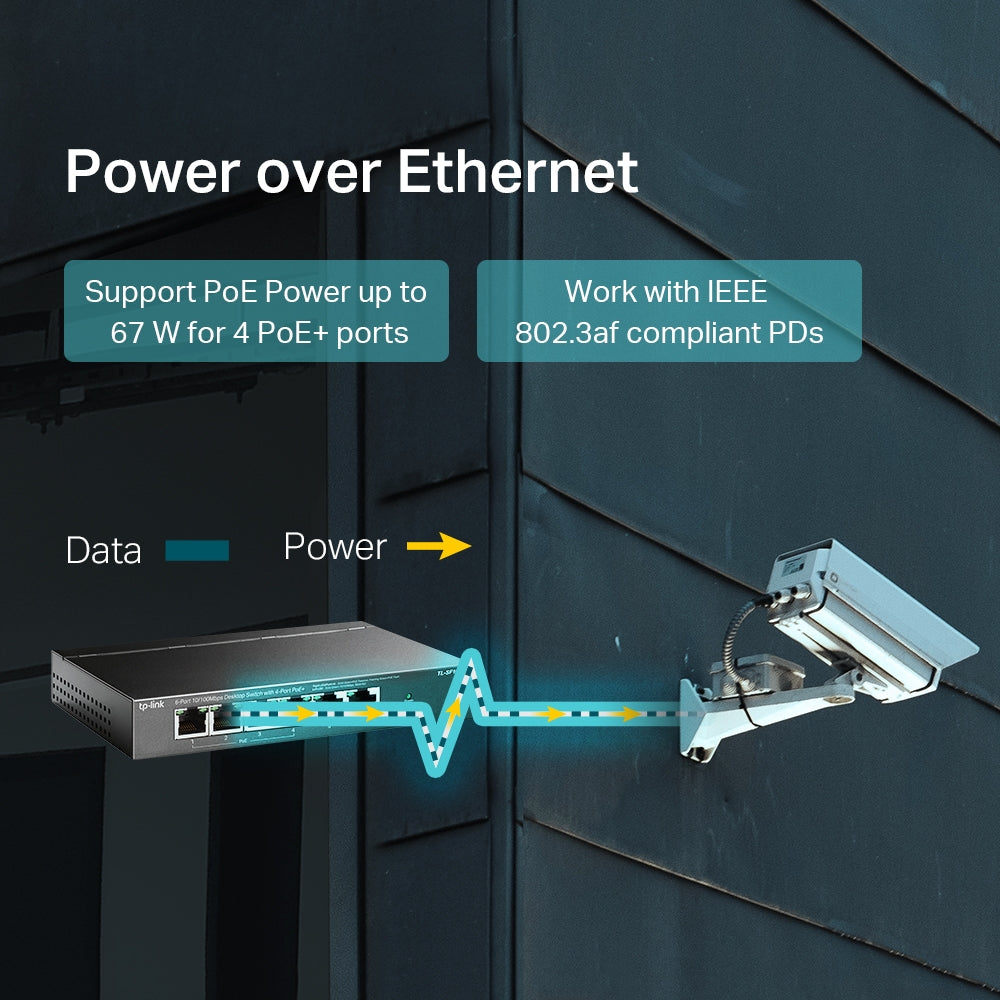

67 W Across Four 802.3at PoE+ Ports

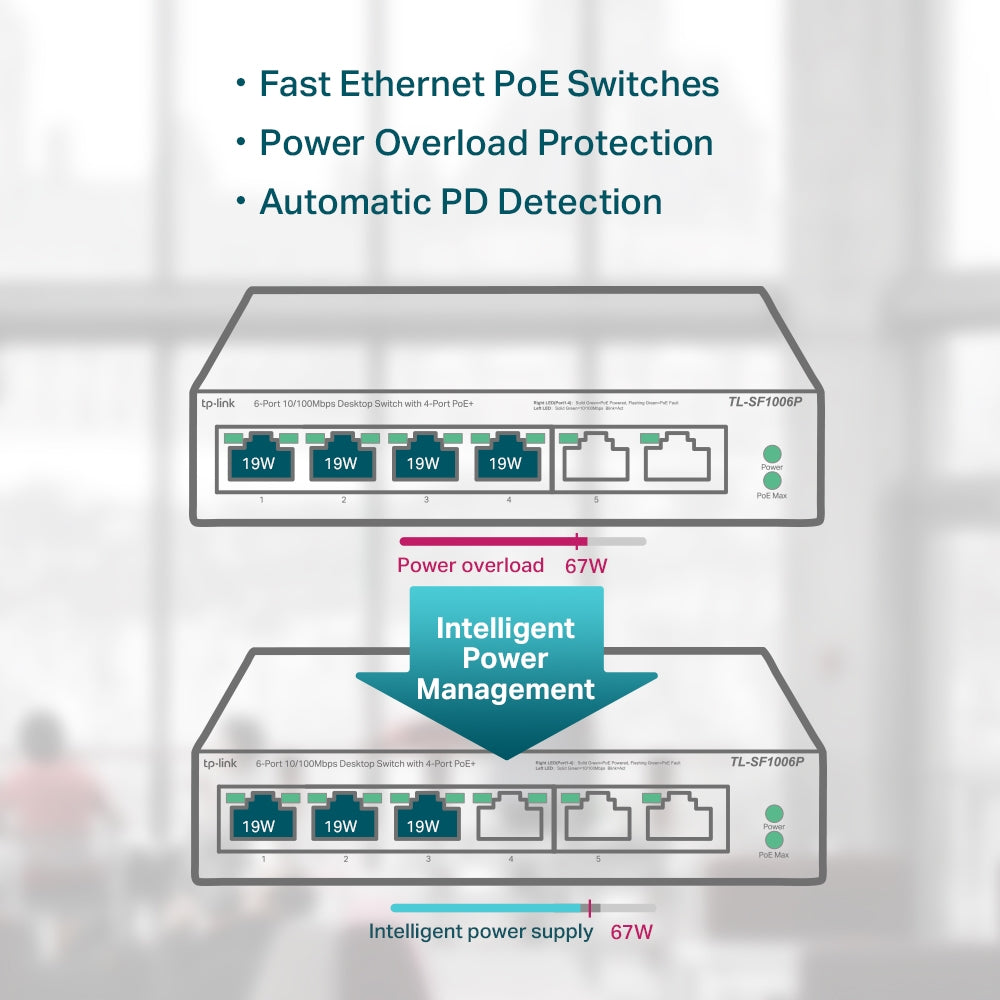

Ports 1 to 4 are IEEE 802.3af/at compliant against a 67 W system budget — nearly 17 W per port with all four loaded, which puts genuine 802.3at devices within reach rather than only 802.3af ones. PTZ domes, IR-illuminated cameras, video door stations and dual-band access points all fall inside that envelope. Ports 5 and 6 carry data only, so an NVR, a router or a workstation shares the same box.

Extend Mode on Ports 1-4 for Long Cable Runs

The Extend mode switch applies to ports 1 to 4 and carries power and data beyond the 100 m Ethernet limit at reduced throughput. It is the feature that lets a camera reach the far end of a car park deck, a barrier controller at a service entrance or a sensor in a detached store without a mid-span cabinet or a converter pair. Bandwidth is traded for distance, which is the correct trade for a camera or a reader and the wrong one for a workstation.

Priority Mode for the Two Most Important Ports

Priority mode covers ports 1 and 2, reserving forwarding capacity for whatever is patched there when the switch is congested. On a six-port segment that is usually the camera feeding the recorder or the handset at reception, and keeping it ahead of a bulk copy on a data port removes the most common cause of stuttering video or clipped audio. Both modes are hardware switch positions, so the behaviour survives power cuts and resets.

1.2 Gbps Non-Blocking Fabric, 2K MAC Table

All six ports are 10/100 Mbps with auto negotiation and auto MDI/MDIX on a 1.2 Gbps fabric at 892.8 Kpps — every port full duplex simultaneously with no oversubscription. The 2K MAC address table suits a small edge segment, 2 KB jumbo frame support handles slightly oversized payloads, and store-and-forward switching checks each frame before forwarding it, keeping corrupted frames off the rest of the network.

Small, Silent and Easy to Site

At 158 × 101 × 25 mm and fanless, the TL-SF1006P is the smallest PoE+ switch in this family and makes no noise at all — appropriate for a reception desk, a shop counter, a clinic or a meeting room rather than only a comms cupboard. The external 54 VDC / 1.3 A adapter keeps the mains side outside the enclosure. Draw is 1.9 W with nothing powered and 74 W with a full 67 W of powered devices attached.

Ideal For

Singapore shops, clinics, small offices and remote sites running up to four higher-draw 802.3at cameras or access points in a small footprint, and integrators needing one long cable run without extra hardware. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
