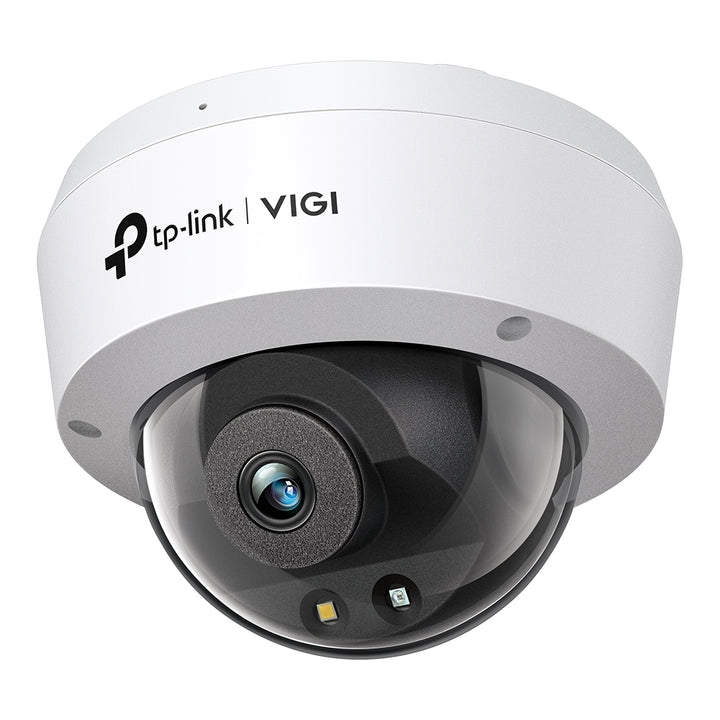

TP-Link VIGI C240 4MP Full-Color Dome Network Camera, 4mm Lens
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link VIGI 4MP Full-Color Dome Network Camera (VIGI C240 4mm) - 3 Years Local Warranty
The TP-Link VIGI C240 is a 4MP (2560 x 1440) full-colour dome network camera with a fixed 4mm F1.6 lens. A large-aperture lens and a white supplemental light keep images in colour at night, while the IP67 and IK10 rated housing suits exposed indoor and outdoor positions. It runs on PoE or 12V DC and records locally to a microSD card of up to 256 GB.
4MP Resolution with 24h Full-Color
The 1/3" progressive scan CMOS sensor records up to 2560 x 1440. With an F1.6 aperture, minimum illumination is 0.005 Lux in colour, and one white LED plus one 850 nm IR LED (each rated to 30 m) support colour or IR viewing after dark.
Human & Vehicle Classification and Smart Detection
Smart events include area intrusion, line-crossing, region entering and exiting, object abandoned and object removal, plus people and vehicle detection. Alarm linkage can flash the white light and push a message to the VIGI app.
IK10 Vandal-Proof and IP67 Waterproof
The dome housing is rated IK10 and IP67 for positions where the camera may be tampered with or exposed to rain and dust, with an operating range of -30–60 °C.
PoE or 12V DC Power, with On-board Storage
Power the camera over 802.3af/at PoE (max. 6 W) or from a 12V DC supply (max. 5.4 W). A built-in microSD card slot takes cards up to 256 GB, and H.265+ compression reduces bandwidth and storage use.
Ideal For
Reception areas, retail floors, corridors, lift lobbies and building entrances where a compact vandal-resistant dome with colour night imaging is preferred, managed from a VIGI NVR, the VIGI app or VIGI Security Manager. Supplied by SourceIT with local Singapore warranty and GST invoice.
VIGI C240(4mm) Datasheet — Technical Specifications
General
| Model | VIGI C240(4mm) |
| Official Product Name | VIGI 4MP Full-Color Dome Network Camera |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/3" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | Color: 0.005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
Lens
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.6 |
| FOV | Horizontal FOV: 79.7° Vertical FOV: 42.9° Diagonal FOV: 93.9° |
| Lens Mount | M12 |
| DORI Distance | Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft) |
| Angle Adjustment (Manual) | Pan: 0° to 355° Tilt: 0° to 75° |
Illuminator
| IR LED | Quantity: 1 Range: 30m Wavelength: 850nm |
| White LED | Quantity: 1 Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Max. Resolution | 2560 x 1440 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240 |
| Frame Rate Note | If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
Audio
| Audio Communication | N/A |
| Audio Input | Yes |
| Audio Output | N/A |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
Network
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Yes |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Alarm and Event Management
| Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception (Illegal Login) |
| Alarm Linkage | White Light Flashing, Message Push |
| Linkage Method | N/A |
| Output Notification | Message Push |
Interfaces
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | N/A |
| Power | DC Power Port |
| On-board Storage | Built-in Memory Card Slot, Support MicroSD Card, Up to 256 GB |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | N/A |
| Audio | N/A |
Physical & Environment
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Material | Plastic |
| Net Weight | 0.28 Kg |
| Gross Weight | 0.46 Kg |
| Power Supply | 12V DC ± 5%, Max. 5.4 W, 5.5mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 6 W |
| Protection | IP67, IK10 |
| Product Dimensions (L x W x H) | 115 x 86 x 115 mm |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC |
Figures reproduced from TP-Link’s Singapore product page for the 4mm lens version; the 2.8 mm and 4 mm versions share every row except focal length, FOV and DORI distance. TP-Link’s feature text describes the built-in microphone as recording within a 15-ft radius, while its specification table states 16.4 ft (5 m); both figures are TP-Link’s own.
Compatibility & Software Support
| Client | VIGI App, VIGI Security Manager, Web UI |
| NVR Management | Managed through the NVR UI of a VIGI network video recorder |
| ONVIF | Yes |
| Cloud | Yes (as listed by TP-Link) |
| Web Browser | Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above |
| Power | PoE switch or injector (802.3af/at), or 12V DC adapter with 5.5 mm coaxial plug |
| Local Storage | MicroSD card up to 256 GB (not included) |
Package Contents & Ordering Information
Package Contents
| VIGI Network Camera | Included |
| Quick Start Guide | Included |
| Waterproof Cable Attachments | Included |
| Mounting Accessories | Included |
A microSD card is not listed in the package contents.
Ordering Information
| Model | VIGI C240(4mm) |
| Other Focal Lengths | VIGI C240(2.8mm) (sold separately) |
| SKU | VIGI C240 |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — VIGI C240
What warranty does SourceIT provide?
This camera is supplied with a 3 Years Local Warranty (Singapore), handled in line with TP-Link’s replacement warranty policy for Singapore. Every order comes with a GST invoice.
Which lens should I choose?
This version has the 4mm lens. The 2.8 mm lens gives the wider view (95.7° horizontal, identification at up to 6 m); the 4 mm lens gives a narrower 79.7° view with identification at up to 8 m.
Does the VIGI C240 show colour at night?
Yes. TP-Link specifies 24h full-colour imaging using the F1.6 lens and a white supplemental light rated to 30 m. An 850 nm IR LED is also fitted, and the illuminator can be set to auto, scheduled, always on or always off.
Can it record without an NVR?
Yes. The camera has a built-in microSD card slot supporting cards up to 256 GB. It can also record to a VIGI NVR, and is viewable through the VIGI app, VIGI Security Manager and the web UI.
Can SourceIT quote this for an office or a project?
Yes. SourceIT quotes VIGI cameras, NVRs, PoE switches and storage for offices, shops, warehouses and multi-site projects in Singapore. Send the quantity and site details for a project quote.
