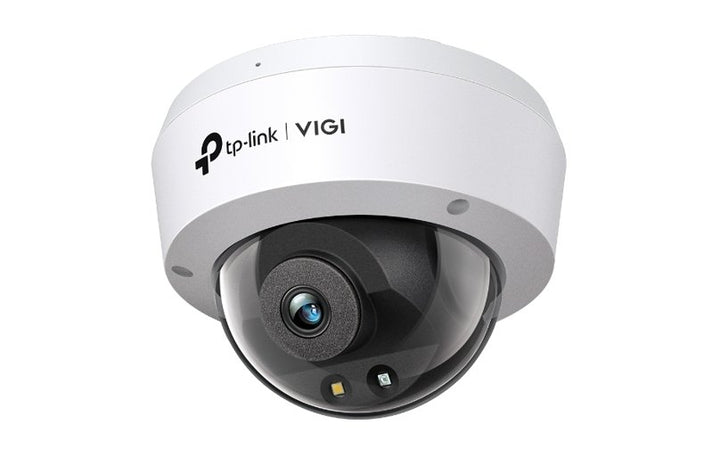

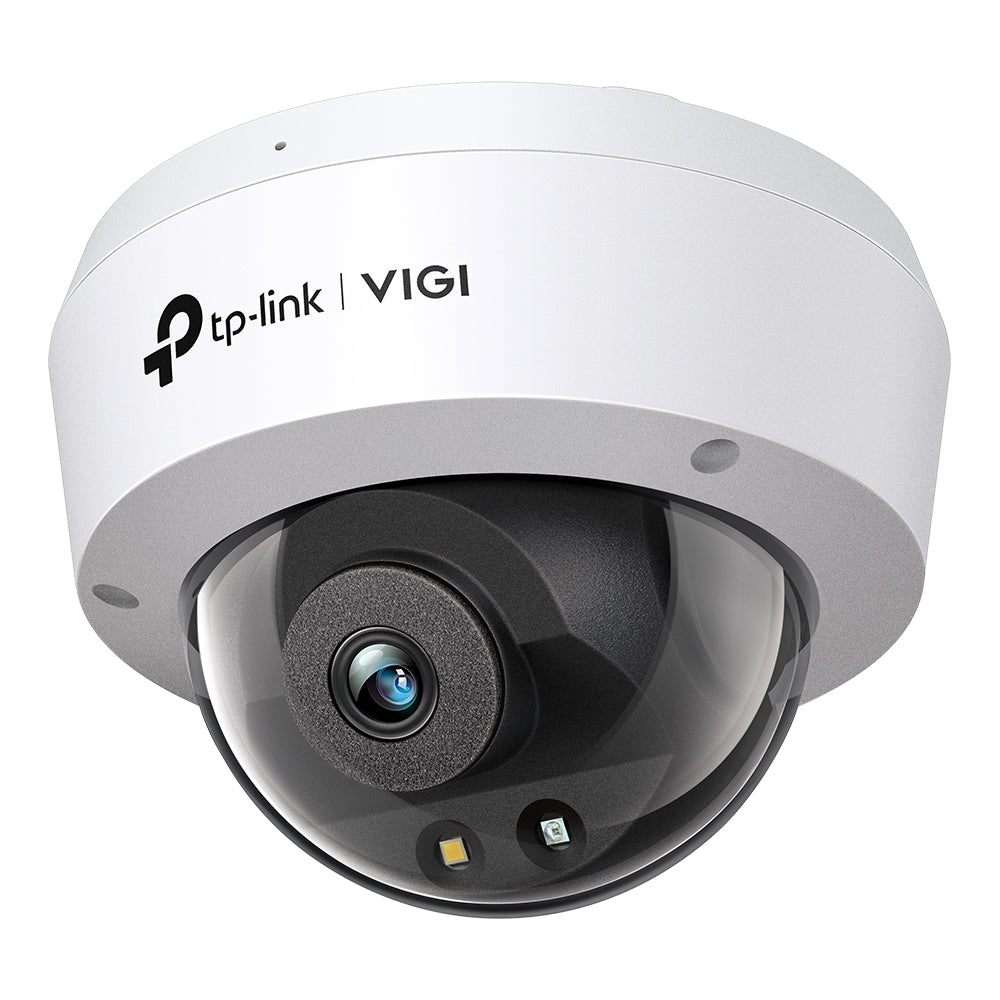

TP-Link VIGI C230 3MP Full-Color Dome Network Camera, 4mm Lens
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link VIGI 3MP Full-Color Dome Network Camera (VIGI C230 4mm) - 3 Years Local Warranty

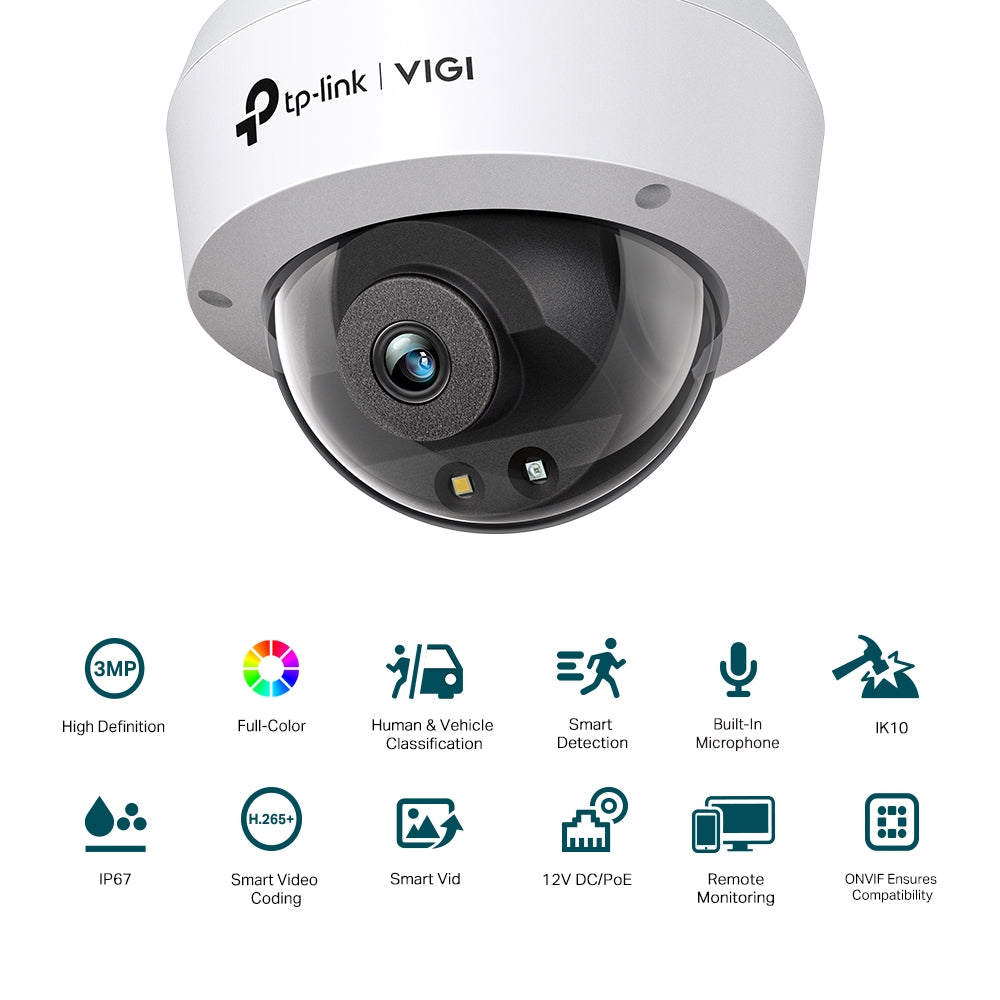

The TP-Link VIGI C230 is a 3MP full-colour dome network camera with a 4mm F1.6 fixed lens, IR and white LEDs rated to 30 m, human and vehicle classification and an IP67 / IK10 housing. It is powered by PoE (802.3af/at) or 12V DC and records to a VIGI NVR.

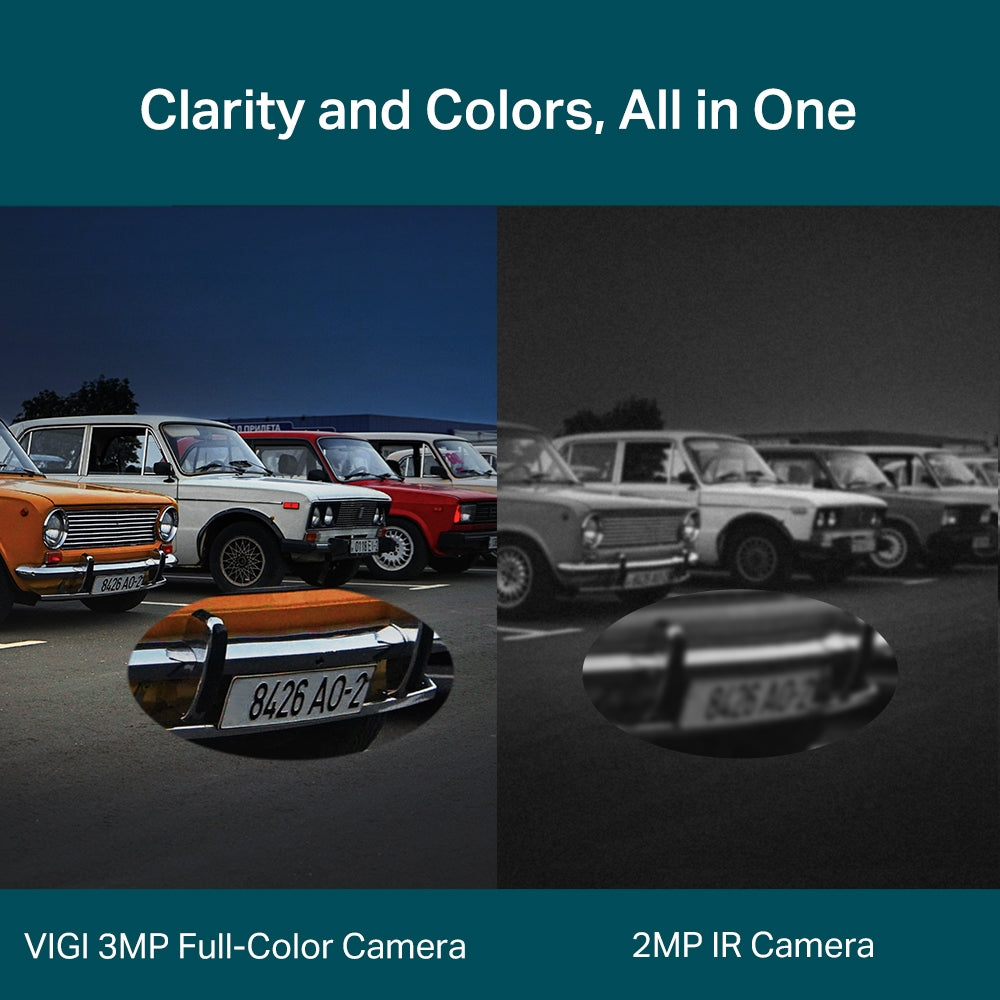

3MP Resolution with 24-Hour Full Colour
A 1/2.8" progressive scan CMOS sensor records up to 2304 x 1296. With 0.005 lux colour sensitivity, an F1.6 lens and a supplementary white LED, the camera can keep images in colour at night.

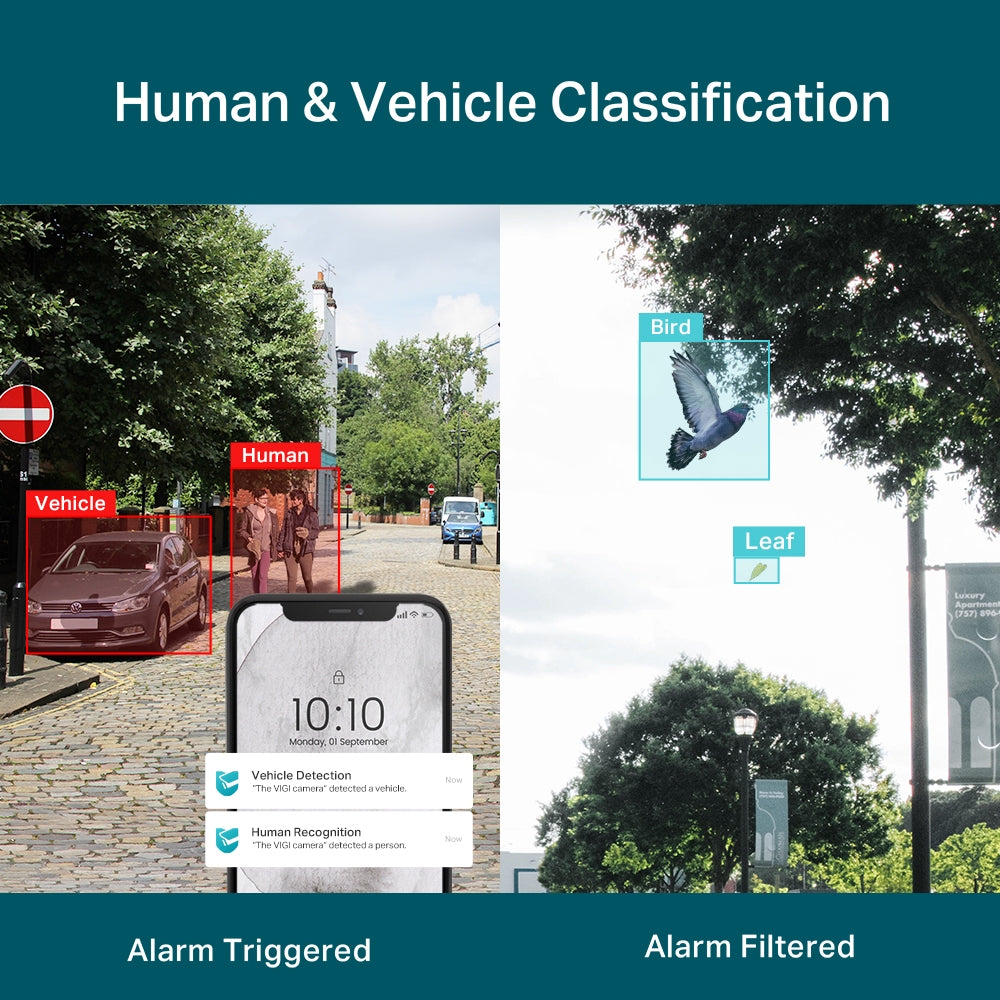

Human & Vehicle Classification
Classification separates people and vehicles from other movement for more accurate alerts.

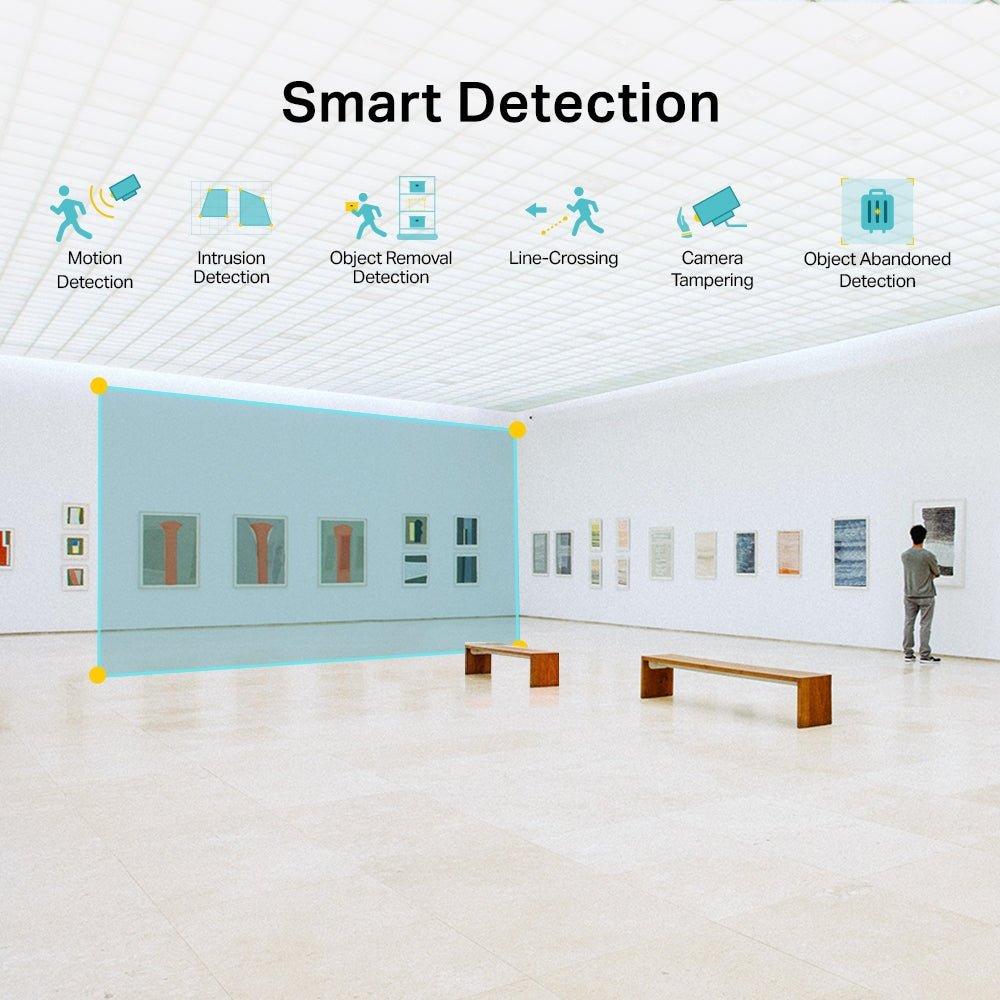

Smart Detection
Area intrusion, line-crossing, region entering and exiting, and object abandoned and removal detection are supported, with white-light flashing and message push linkage.
IP67 and IK10 Dome Housing
The dome is rated IP67 against dust and water and IK10 against vandalism, for outdoor or public-facing installations.
Ideal For
Entrances, car parks, lift lobbies, retail floors and building perimeters where a vandal-resistant dome with colour night images is preferred. Supplied by SourceIT with local Singapore warranty and GST invoice.
VIGI C230 Datasheet — Technical Specifications
General
| Model | VIGI C230 4mm |
| Official Product Name | VIGI 3MP Full-Color Dome Network Camera |
| Brand | TP-Link |
| Lens Option | 4mm fixed focal lens |
| Warranty | 3 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | Color: 0.005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
Lens
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.6 |
| Lens Mount | M12 |
| FOV | Horizontal FOV: 89.1°, Vertical FOV: 45.1°, Diagonal FOV: 106.9° |
| DORI Distance | Detect: 70 m (230 ft); Observe: 29 m (96 ft); Recognize: 14 m (46 ft); Identify: 7 m (23 ft) |
Angle Adjustment (Manual)
| Range | Pan: 0° to 355°; Tilt: 0° to 75° |
Illuminator
| IR LED | Quantity: 1; Range: 30m; Wavelength: 850nm |
| White LED | Quantity: 1; Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Max. Resolution | 2304 x 1296 |
| Main Stream | Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps. Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720 (if the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps) |
| Sub-Stream | Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps. Resolution: 704x576, 640x480, 352x288, 320x240 (if the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps) |
| Bit Rate Control | CBR, VBR |

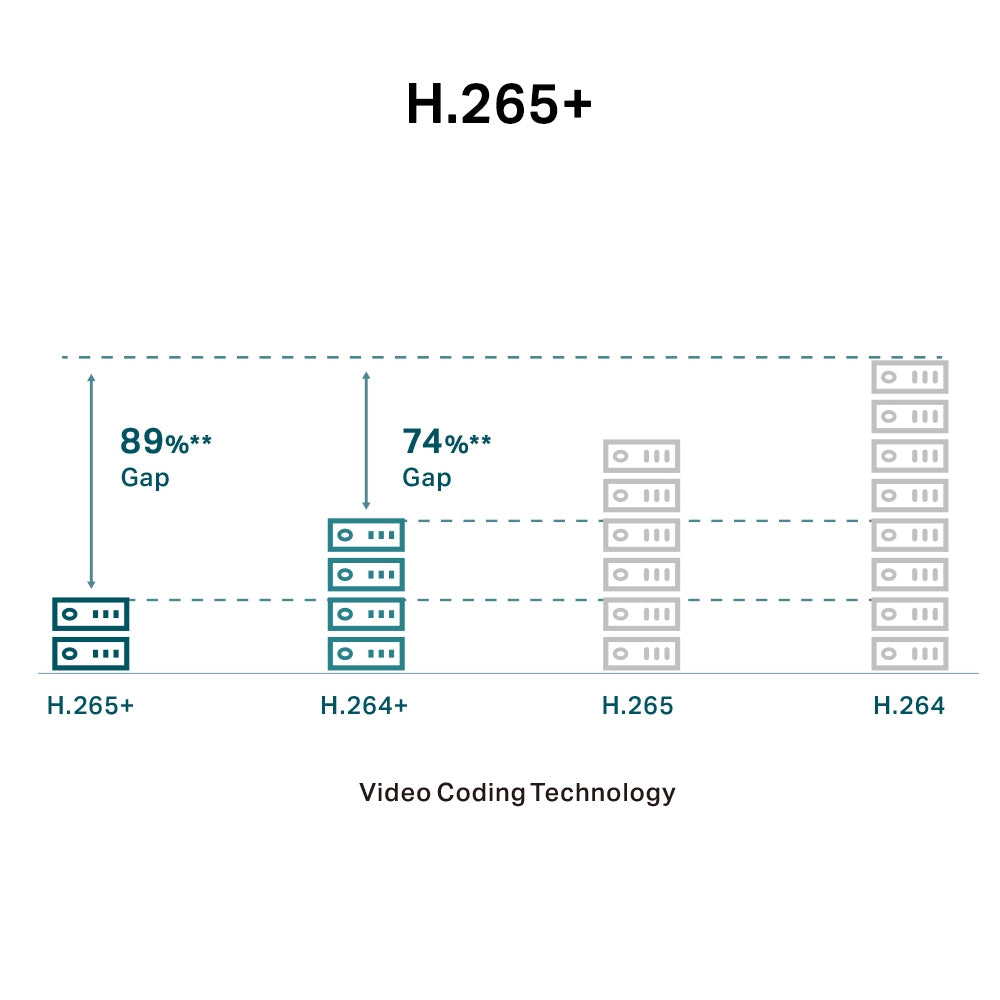

| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps; Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°) |

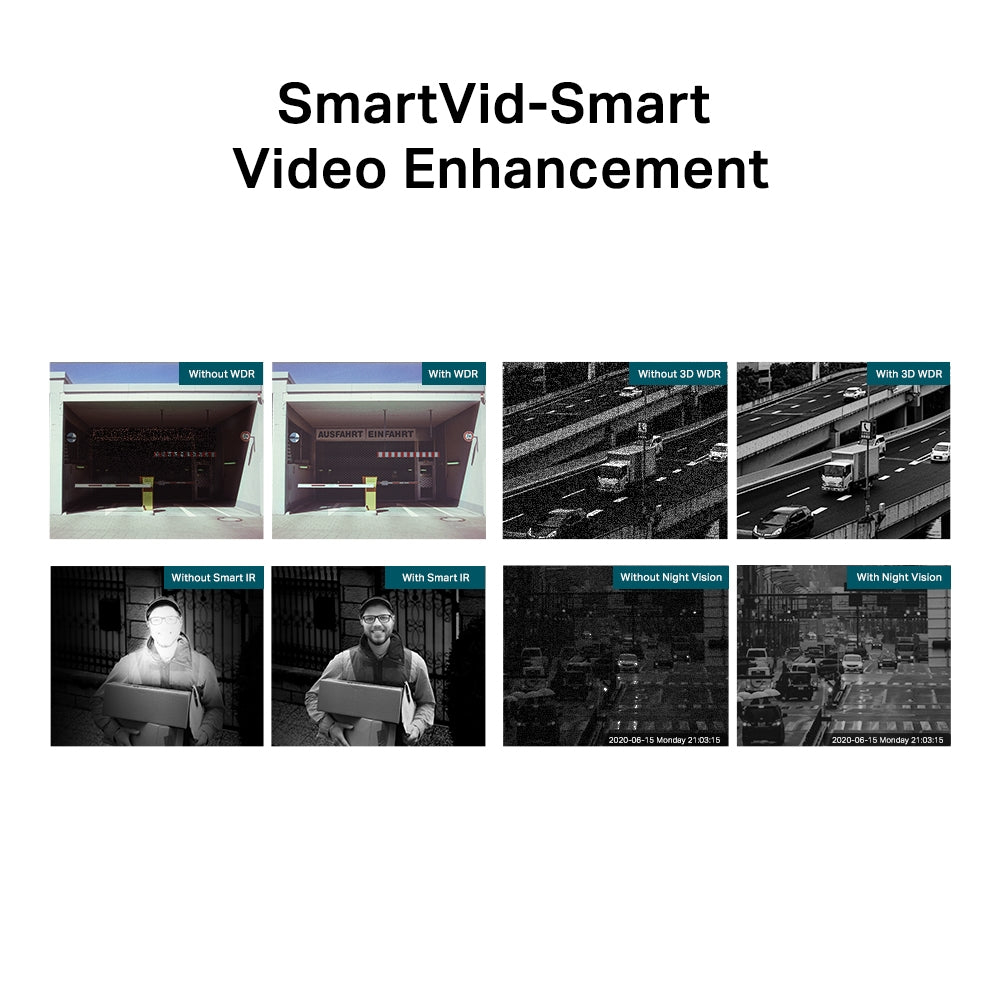

| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
Audio
| Audio Communication | N/A |
| Audio Input | Yes |
| Audio Output | N/A |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
Network
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Yes |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | Google Chrome® 57 and above; Firefox® 52 and above; Safari® 11 and above; Microsoft® Edge 91 and above |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Alarm and Event Management
| Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception (Illegal Login) |
| Alarm Linkage | White Light Flashing, Message Push |
| Linkage Method | N/A |
| Output Notification | Message Push |
Interfaces
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | N/A |
| Power | DC Power Port |
| On-board Storage | N/A |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | N/A |
Power
| Power Supply | 12V DC ± 5%, Max. 4.7 W, 5.5mm Coaxial Power Plug; PoE: 802.3af/at, class 0, Max. 5.5 W |
Physical & Environment
| Operating Temperature | -30 °C to 60 °C |
| Storage Temperature | -40 °C to 60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Product Dimensions (L x W x H) | 115 x 86 x 115 mm |
| Material | Plastic |
| Net Weight | 0.28 Kg |
| Gross Weight | 0.47 Kg |
| Protection | IP67, IK10 |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC |
TP-Link lists no on-board storage or built-in speaker for this camera; recording is handled by a VIGI NVR or other ONVIF recorder.
Compatibility & Software Support
| Clients | VIGI App, VIGI Security Manager, Web UI; also manageable from a VIGI NVR UI |
| Web Browser | Google Chrome® 57 and above; Firefox® 52 and above; Safari® 11 and above; Microsoft® Edge 91 and above |
| Third-Party Integration | ONVIF |
| Storage | No on-board storage; records to an NVR |
| Power | PoE 802.3af/at switch or NVR, or 12V DC adapter |
Package Contents & Ordering Information
Package Contents
| VIGI Network Camera | Included |
| Quick Start Guide | Included |
| Waterproof Cable Attachments | Included |
| Mounting Accessories | Included |
Ordering Information
| Model | VIGI C230 4mm |
| Lens | 4mm |
| SKU | VIGI C230 |
| Warranty | 3 Years Local Warranty (Singapore) |
| Other Lens Options | VIGI C230 2.8mm (listed separately) |
Datasheet & Downloads
Frequently Asked Questions — VIGI C230
Can the VIGI C230 be installed outdoors?
Yes. TP-Link rates the housing IP67 and IK10, with an operating temperature of -30 °C to 60 °C.
Does it record in colour at night?
It has one white LED and one 850 nm IR LED, each rated to 30 m, with auto, scheduled, always-on and always-off illuminator control, so it can be set for colour or IR night images.
Does it need an NVR?
TP-Link lists no on-board storage, so continuous recording needs a VIGI NVR or another ONVIF-compatible recorder.
What warranty does SourceIT provide?
The VIGI C230 4mm is supplied with a 3-year local warranty in Singapore. Warranty claims are handled locally in line with TP-Link's replacement warranty policy, linked in the downloads section above.
Can SourceIT quote this for an office or a project?
Yes. SourceIT quotes VIGI cameras together with VIGI NVRs, PoE switches and cabling for offices, shops, warehouses and multi-site projects in Singapore, with a GST invoice. Contact the SourceIT sales team with the number of cameras and the areas to be covered.
