TP-Link Omada 48-Port 10/100Mbps Rackmount Switch

TP-Link 48-Port 10/100Mbps Rackmount Switch (TL-SF1048) - Local Warranty

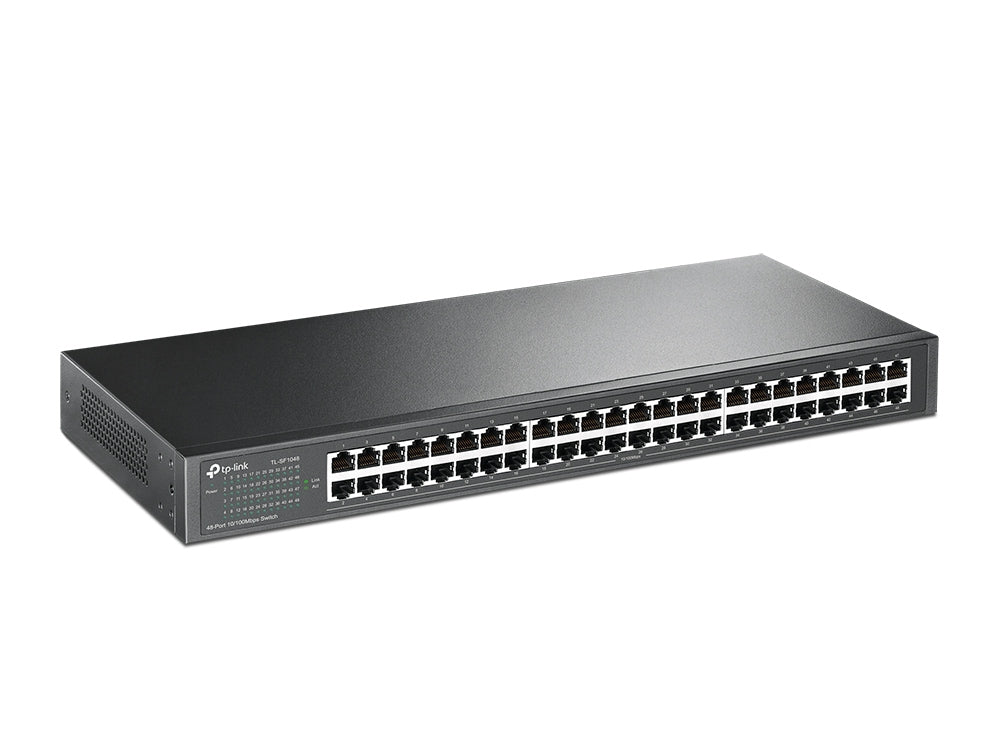

The TL-SF1048 puts 48 Fast Ethernet ports into a single fanless 1U chassis with an internal power supply and a rackmount kit in the box. It is plug-and-play unmanaged switching for high port-count, low-bandwidth estates - card readers, IP phones, POS terminals, legacy CCTV and building-services devices - where port density and silence matter more than Gigabit speed.

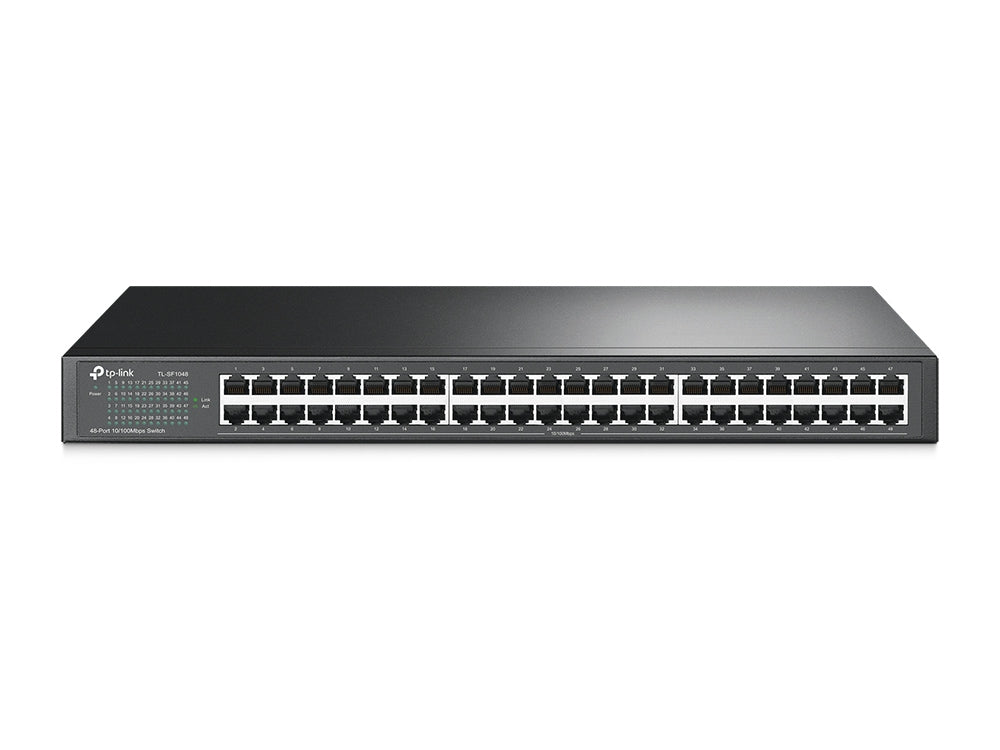

48 Fast Ethernet Ports in One 1U Rack Slot

All 48 ports are 10/100Mbps RJ45 with auto-negotiation and Auto MDI/MDIX, so any cable works and any device negotiates its own speed and duplex without configuration. At 440 x 180 x 44 mm the switch occupies a single rack unit, which is the practical appeal: one slot serves a whole floor of low-bandwidth endpoints instead of two or three smaller switches with their own power bricks and patch leads. The rackmount kit and rubber feet are both supplied.

Fanless and Silent, With an Internal Power Supply

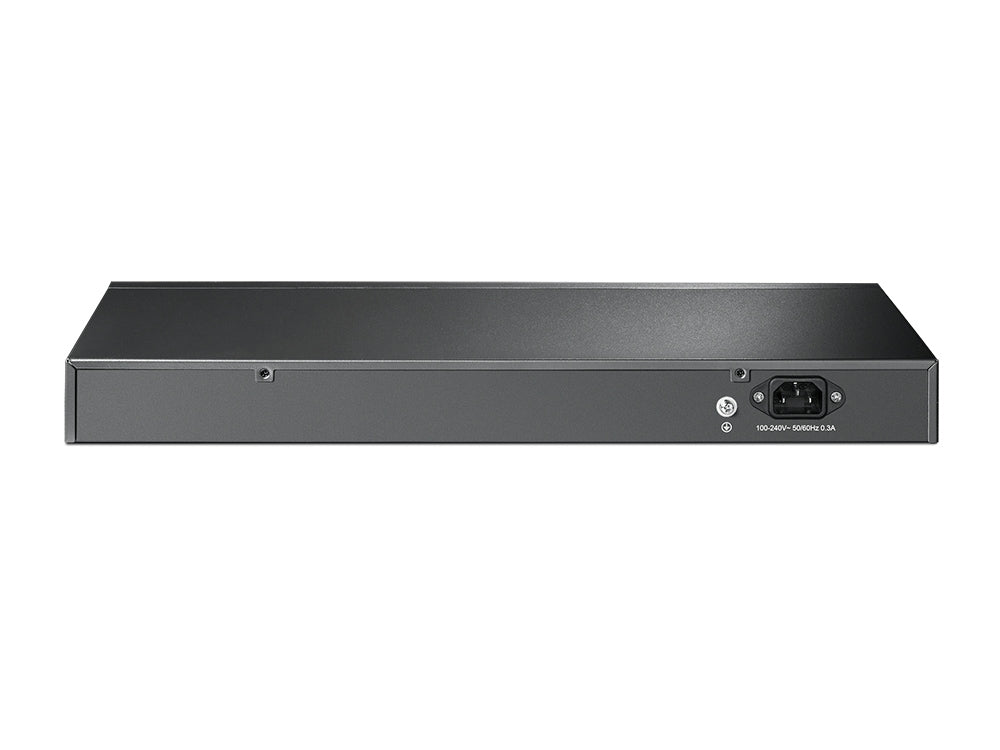

There is no fan in the TL-SF1048 and no external adapter - the unit takes 100-240VAC at 50/60Hz directly, so there is one IEC cord and nothing to lose behind the rack. Maximum power consumption is 9.9W across all 48 ports, and maximum heat dissipation is 33.78 BTU/h, which is modest enough that the switch can sit in a wall cabinet or a comms riser without forced ventilation. Silent operation also makes it viable in an office ceiling void or a classroom cupboard.

9.6 Gbps Non-Blocking Fabric With Store-and-Forward Switching

The switching capacity of 9.6 Gbps is exactly 48 ports x 100Mbps x 2 for full duplex, so the fabric is non-blocking - every port can send and receive at line rate simultaneously without the backplane becoming the limit. A packet forwarding rate of 7.14 Mpps sustains that at minimum frame size, and the 8K MAC address table is generous for a Fast Ethernet access switch, comfortably covering a dense floor of endpoints. Store-and-forward transmission validates each frame before forwarding it, so corrupted frames are dropped rather than propagated.

802.3x Flow Control and Green Technology Power Saving

IEEE 802.3x flow control lets a congested port signal the sender to pause rather than silently discarding frames, which protects throughput when a fast source feeds a slower link - a common pattern when a Gigabit uplink switch feeds this one. TP-Link's Green Technology reduces draw on ports where no link is detected, which is part of why a fully populated 48-port switch draws under 10W. Nothing needs enabling; both behaviours are always on.

Unmanaged by Design - No Configuration, No Controller

The TL-SF1048 has no web interface, no console port and no VLAN, QoS or SNMP support. That is the point: it is installed, cabled and forgotten, with no firmware to maintain and no configuration to lose. Where a site needs VLANs, PoE, central management or Omada SDN adoption, the managed and smart Omada switch ranges are the correct choice and SourceIT can specify the equivalent port count. Use this model where an unmanaged Fast Ethernet aggregation point is genuinely what the design calls for.

Ideal For

Singapore offices, schools, hotels and industrial sites needing dense low-bandwidth port capacity in a rack - IP telephony, access control, POS, signage and legacy device estates. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
