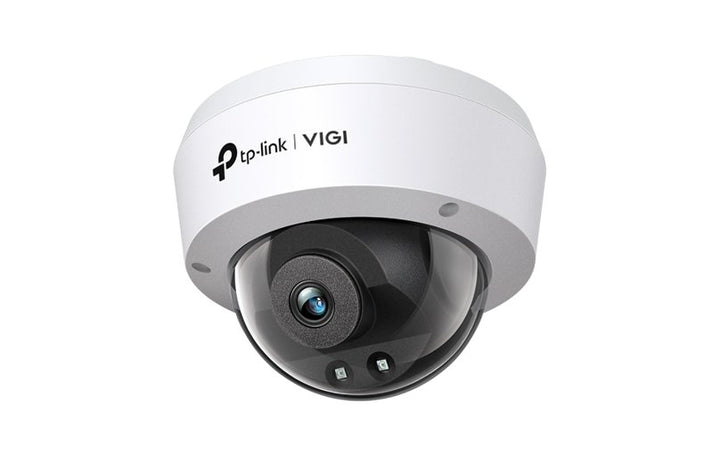

TP-Link VIGI C220I 2MP IR Dome Network Camera, 2.8mm Lens
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
TP-Link VIGI 2MP IR Dome Network Camera (VIGI C220I 2.8mm) - 3 Years Local Warranty

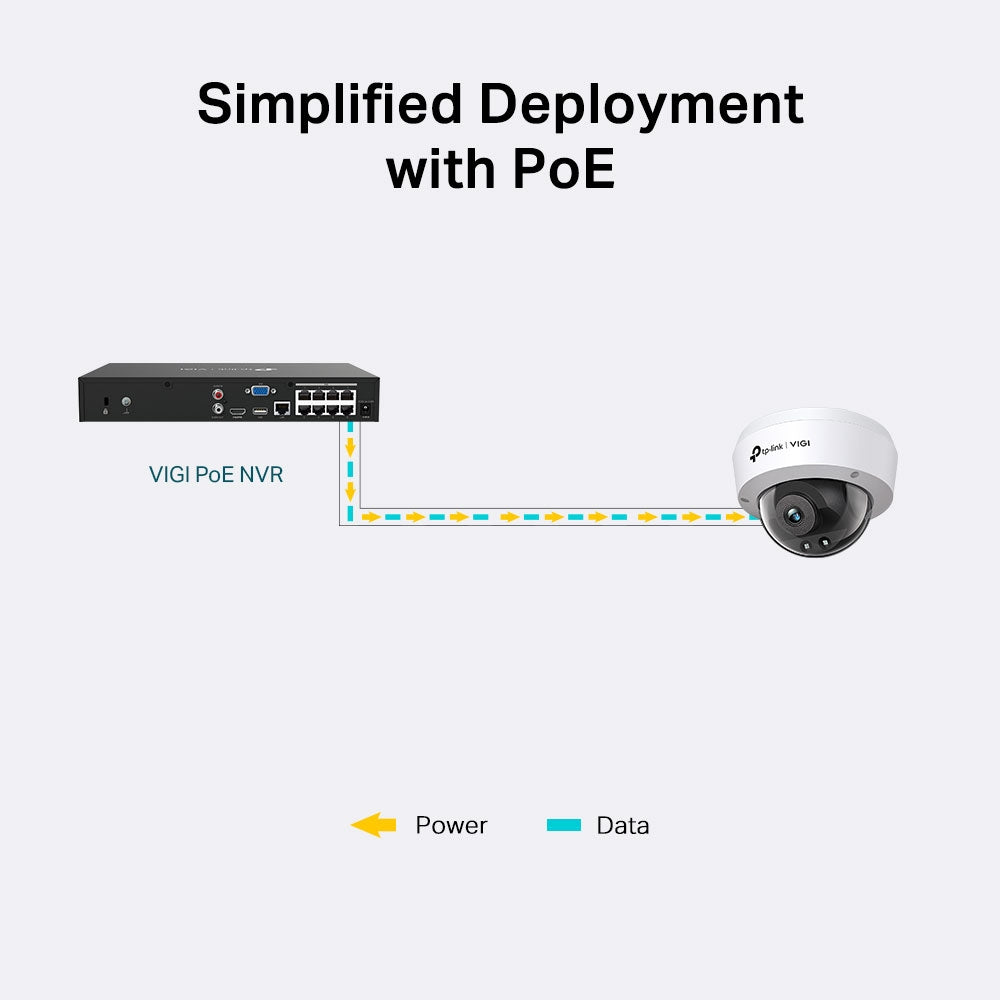

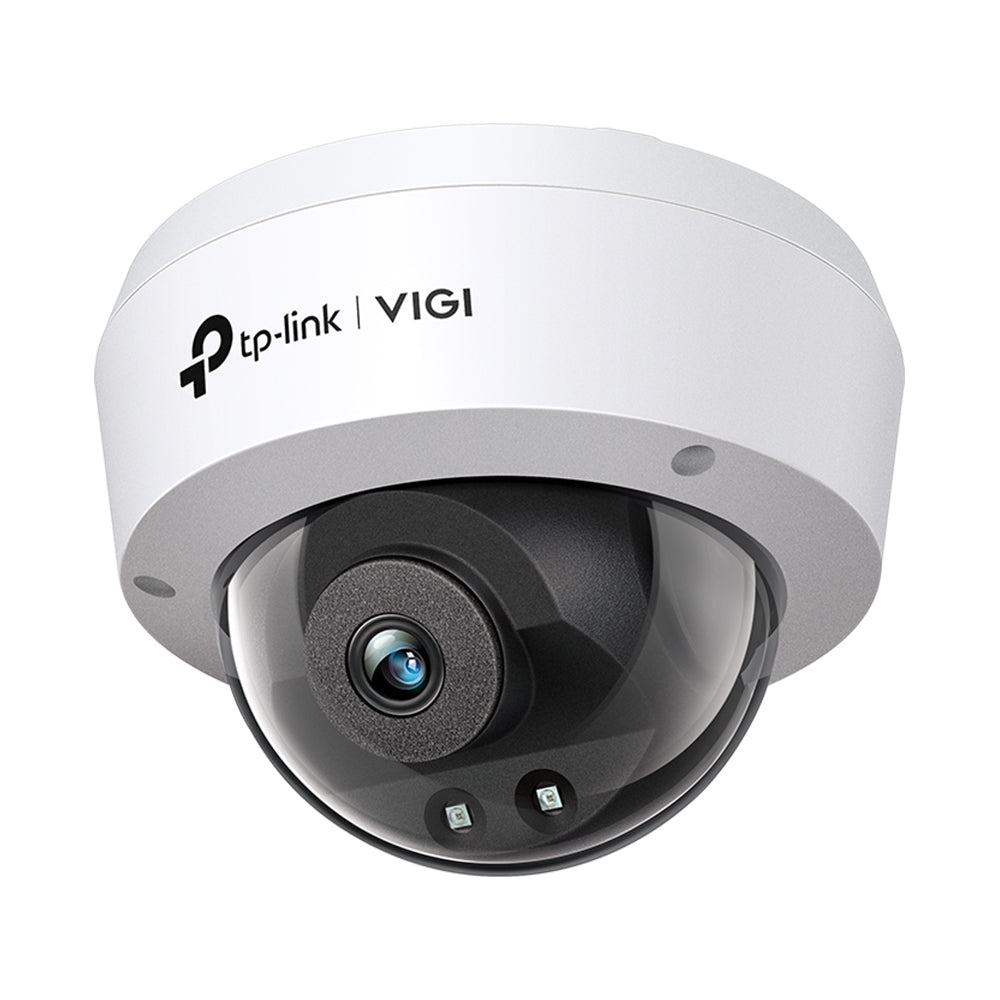

The TP-Link VIGI C220I is a 2MP IR dome network camera, here with the 2.8 mm fixed lens. It pairs a 1/3" progressive scan CMOS sensor with two 850 nm IR LEDs (30 m range), AI human and vehicle classification and an IK10 vandal-proof, IP67 waterproof housing. Power and data run over a single PoE cable.
2MP Resolution

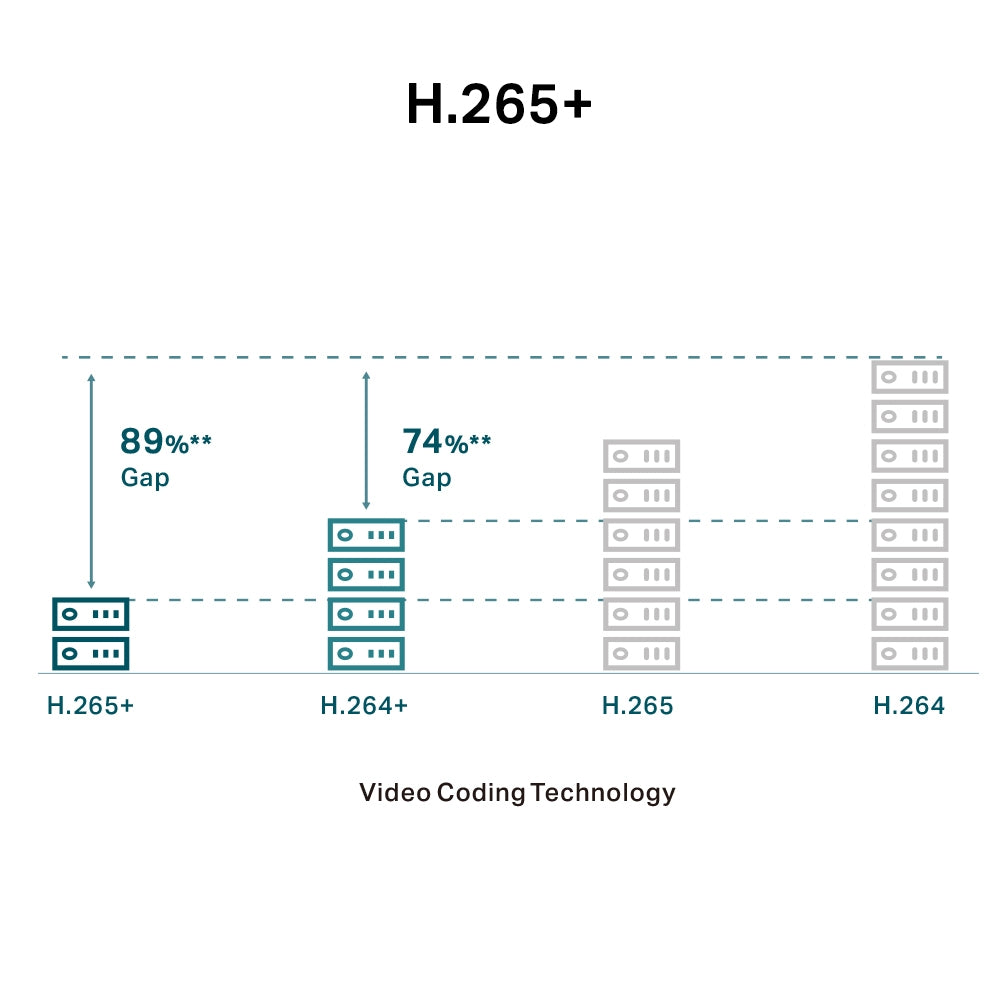

Maximum resolution is 1920 x 1080, with H.265+/H.265/H.264+/H.264 compression on the main stream to reduce bandwidth and storage.
Human & Vehicle Classification and Smart Detection
Motion detection is enhanced with human and vehicle classification for more accurate alerts. Smart events include intrusion, line-crossing, region entering and exiting, object abandoned/removal, abnormal sound, people and vehicle detection.

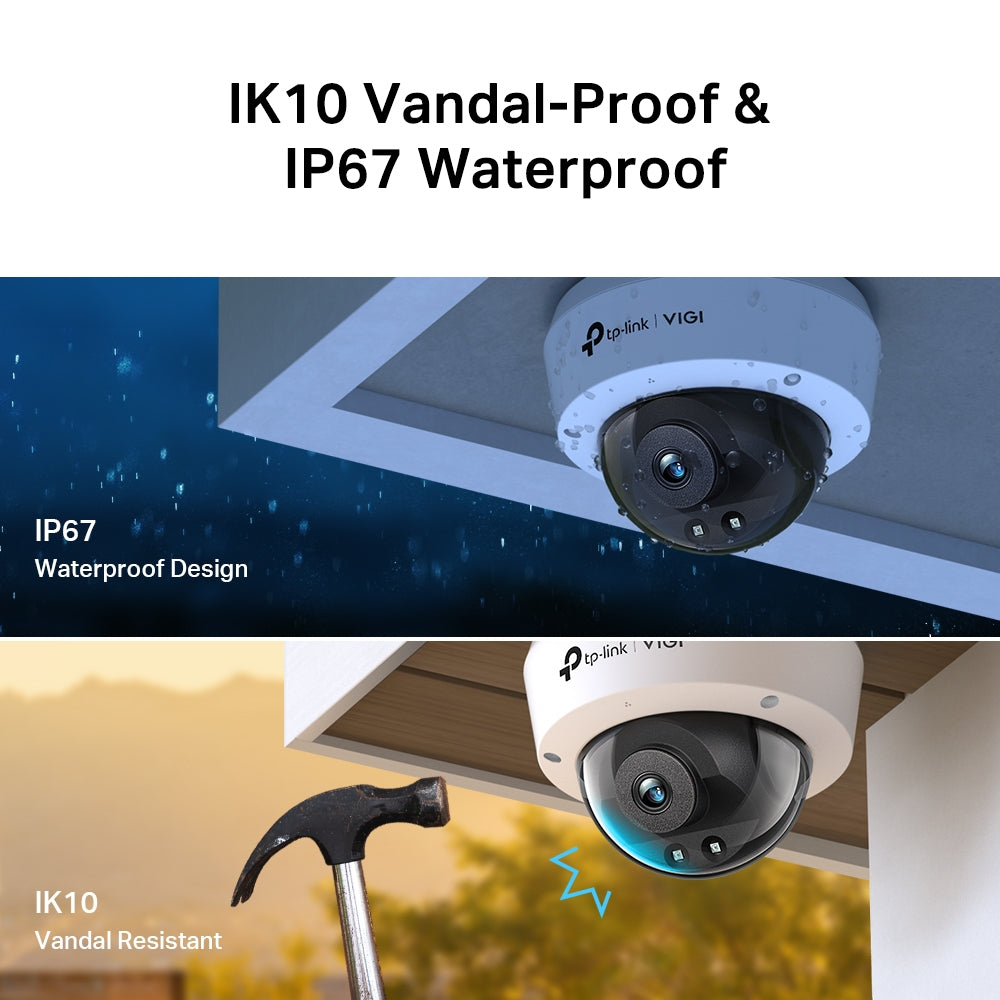

IK10 Vandal-Proof & IP67 Waterproof
The rugged dome housing is rated IK10 against impact and IP67 against rain and dust.
Smart Video Enhancement
BLC, 3D DNR, HLC, Smart IR and DWDR processing are supported, and a built-in microphone records audio within a 5 m (16.4 ft) radius.
Ideal For
Entrances, lift lobbies, corridors, stairwells and exterior walls where a tamper-resistant dome is preferred. Supplied by SourceIT with local Singapore warranty and GST invoice.
VIGI C220I Datasheet — Technical Specifications
General
| Model | VIGI C220I(2.8mm) |
| Official Product Name | VIGI 2MP IR Dome Network Camera |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Camera
| Image Sensor | 1/3" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | Color: 0.01 Lux; 0 Lux with IR |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
Lens
| Type | Fixed Focal Lens |
| Focal Length | 2.8 mm |
| Aperture | F2.2 |
| FOV | Horizontal FOV: 88.2°, Vertical FOV: 48.7°, Diagonal FOV: 106.5° |
| Lens Mount | M12 |
| DORI Distance | Detect: 45 m (149 ft); Observe: 19 m (62 ft); Recognize: 9 m (30 ft); Identify: 5 m (15 ft) |
| Angle Adjustment (Manual) | Pan: 0° to 355°, Tilt: 0° to 75° |
Illuminator
| IR LED | Quantity: 2; Range: 30m; Wavelength: 850nm |
| White LED | N/A |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Max. Resolution | 1920 x 1080 |
| Main Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps. Resolution: 1920x1080, 1280x960, 1280x720. Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps. Resolution: 704x576, 640x480, 352x288, 320x240. Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps; Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
Audio
| Audio Communication | N/A |
| Audio Input | Yes |
| Audio Output | N/A |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
Network
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, ARP |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
Alarm and Event Management
| Smart Event | Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned/Removal Detection, Abnormal Sound Detection, People Detection, Vehicle Detection |
| Basic Event | Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts), Video Tampering Detection, Exception (Illegal Login) |
| Alarm Linkage | Message Push |
Interfaces
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | N/A |
| Power | N/A |
| On-board Storage | N/A |
| Built-in Microphone | Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera |
| Built-in Speaker | N/A |
Physical & Environment
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Material | Plastic |
| Net Weight | 0.27 Kg |
| Gross Weight | 0.45 Kg |
| Power Supply | PoE: 802.3af/at, class 0, Max. 5.5 W |
| Protection | IP67 Waterproof, IK10 Vandal Proof |
| Product Dimensions (L x W x H) | 115 x 115 x 86 mm (4.53 x 4.53 x 3.39 in) |
| Certifications | CE, NTRA, VCCI, BSMI |
The VIGI C220I has no memory card slot and no white-light illuminator; recording is handled by an NVR.
Compatibility & Software Support
| Client | VIGI App, VIGI Security Manager, Web UI |
| Cloud | Yes |
| ONVIF | Yes — Open Network Video Interface (Profile S) |
| Web Browser | Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above |
| Local Storage | None on the camera (On-board Storage: N/A) |
Package Contents & Ordering Information
Package Contents

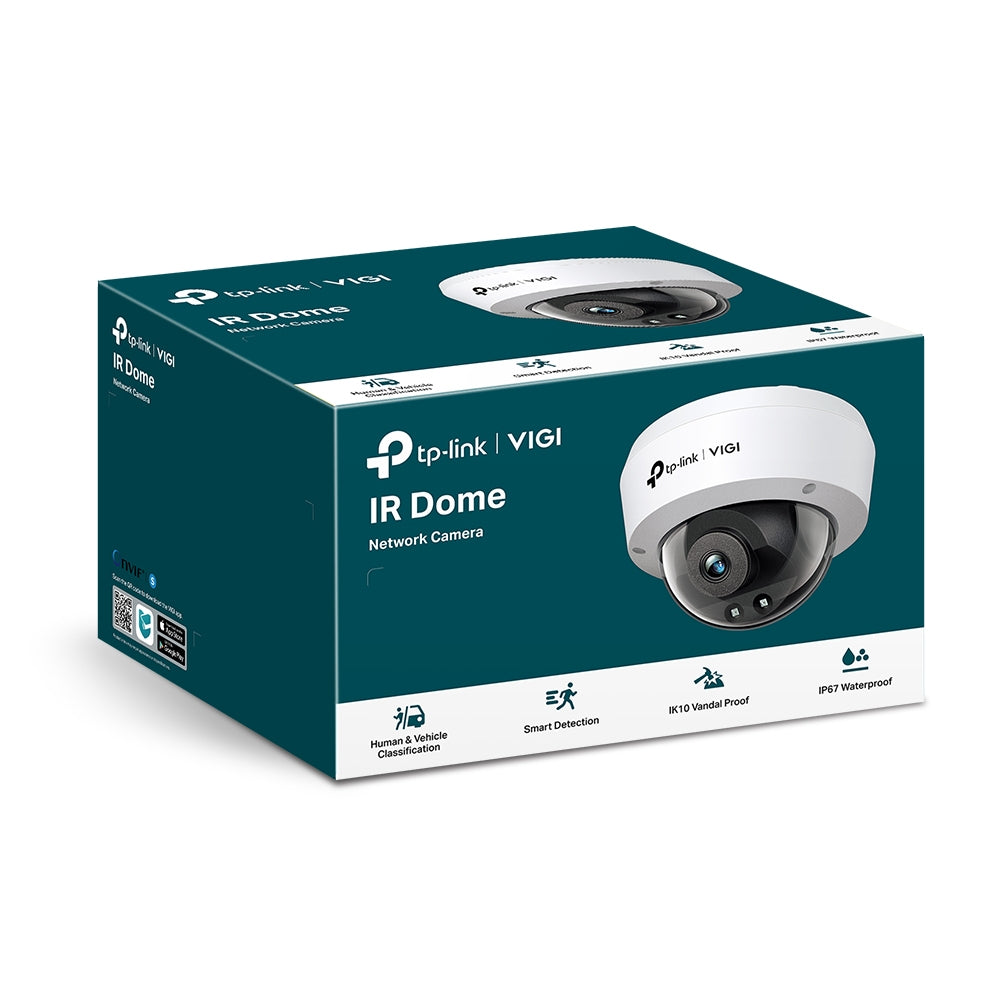

| In the Box | VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories |
Ordering Information
| Model | VIGI C220I(2.8mm) |
| Other Focal Lengths | VIGI C220I(4mm) |
| SKU | VIGI C220I |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Frequently Asked Questions — VIGI C220I
Is the VIGI C220I suitable for outdoor mounting?
TP-Link rates the housing IP67 waterproof and IK10 vandal proof, with an operating range of -30–60 °C.
How is the VIGI C220I powered?
By PoE only (802.3af/at, class 0, max. 5.5 W). TP-Link lists no DC power port for the C220I, so it needs a PoE switch, PoE NVR or PoE injector.
What does the 2.8 mm lens cover?
Horizontal FOV: 88.2°, Vertical FOV: 48.7°, Diagonal FOV: 106.5°. TP-Link rates DORI distances at Detect: 45 m (149 ft); Observe: 19 m (62 ft); Recognize: 9 m (30 ft); Identify: 5 m (15 ft).
What warranty does SourceIT provide?
The VIGI C220I 2.8mm is supplied with a 3-year local warranty in Singapore, handled through SourceIT together with TP-Link.
Can SourceIT quote this for an office or a project?
Yes. SourceIT can quote the VIGI C220I in volume together with VIGI NVRs, PoE switches, cabling and storage for offices, retail premises and multi-site projects, with a GST invoice.
