TP-Link Omada 16-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+ 110W

TP-Link 16-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+ (TL-SG1016PE) - 5 Years Local Warranty

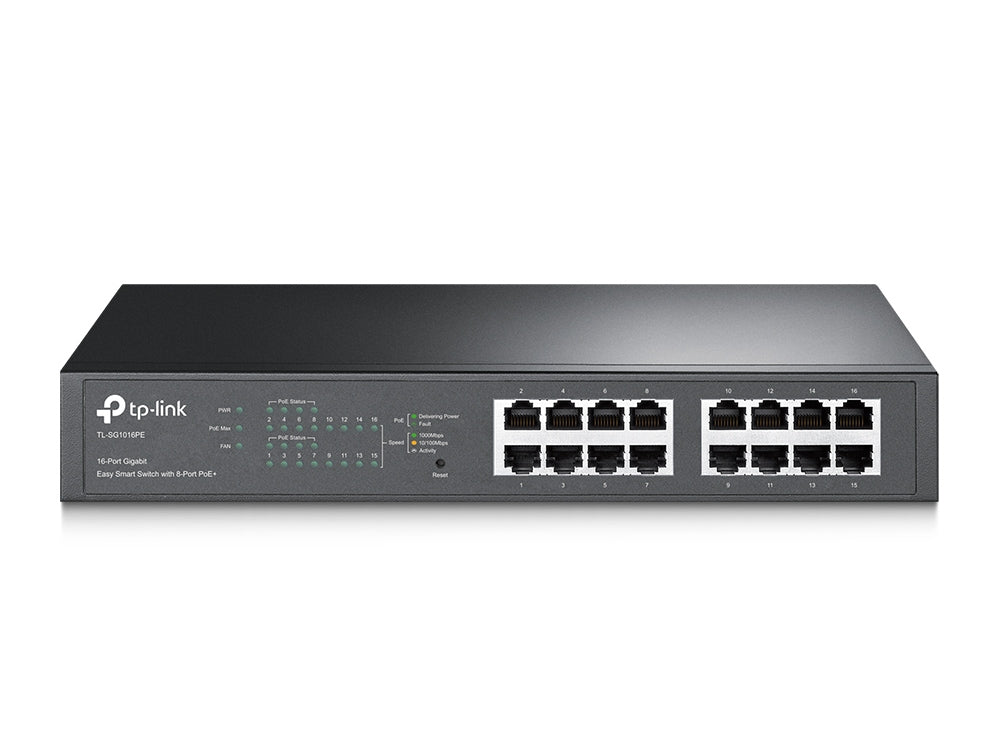

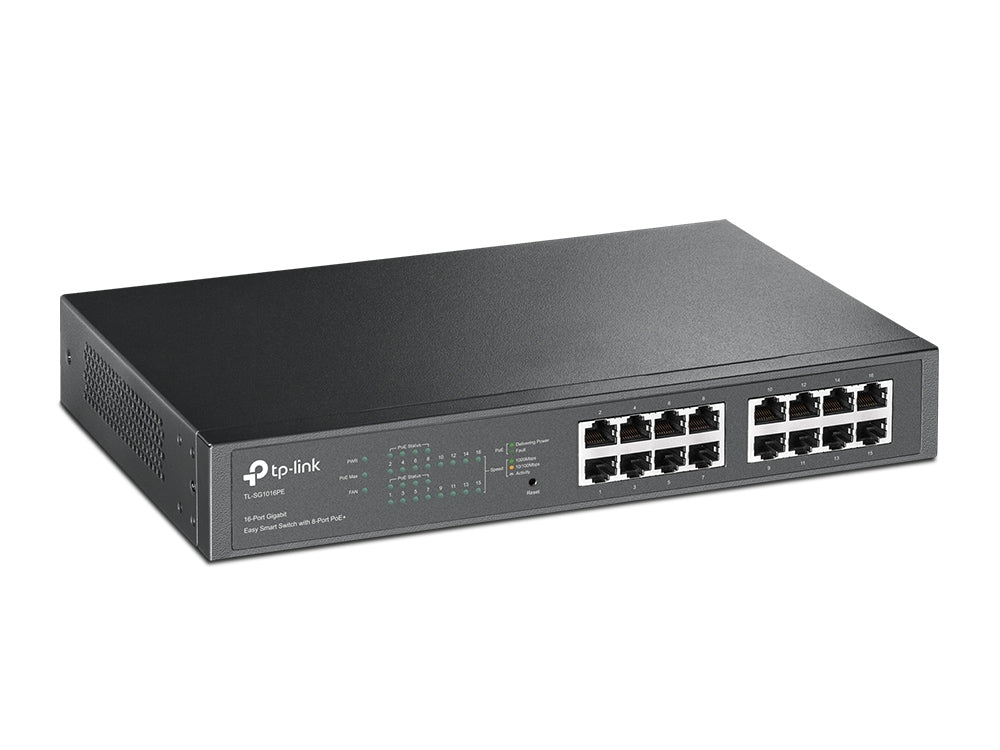

The TL-SG1016PE is a rack-mountable sixteen-port Easy Smart switch with eight 802.3at PoE+ ports sharing a 110 W budget. It is the model to reach for when a floor's worth of cameras or access points needs power and VLAN segmentation from a single 1U unit with a security lock slot.

Sixteen Gigabit Ports With Eight PoE+ Outputs

Ports 1-8 deliver 802.3at power up to 30 W each, drawn from a shared 110 W budget; all sixteen ports run at 10/100/1000 Mbps with auto-negotiation and auto MDI/MDIX. That is enough to power eight ordinary IP cameras, or a smaller number of higher-draw PoE+ access points, while the remaining eight ports handle uplinks, servers and workstations. Mains power comes from the supplied cord rather than an external brick.

1U Rack Chassis With a Physical Security Lock

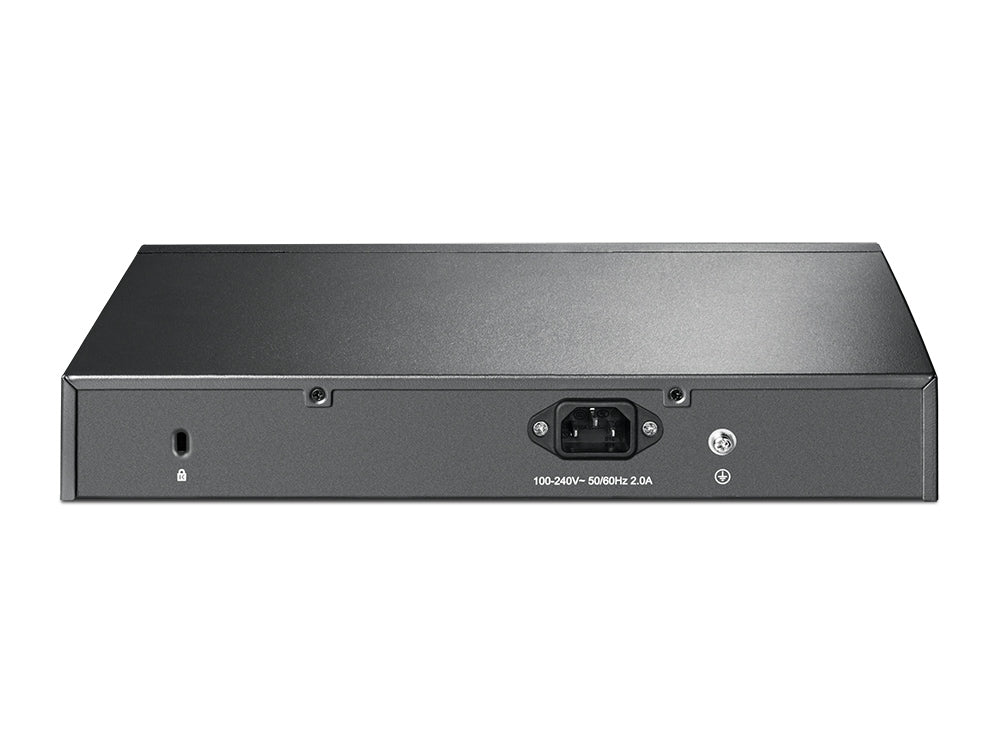

The chassis measures 294 x 180 x 44 mm and mounts in both 13-inch and 19-inch 1U racks — useful in the shallow wall cabinets common in Singapore retail and F&B sites. A physical security lock slot is provided, which matters where the switch sits in a semi-public riser or back-of-house cupboard. One fan handles the thermal load from PoE delivery.

VLANs, QoS and PoE Auto Recovery From One Web Interface

Up to 32 VLANs can be active at once, drawn from the full 4K VLAN ID range, in MTU, port-based and 802.1Q tag-based modes — the mechanism that keeps a camera network separate from staff data on shared switching. QoS covers port-based, 802.1p and DSCP priority across four queues with rate limiting and storm control. PoE Auto Recovery power-cycles a port whose device has stopped responding, so a frozen camera restarts itself rather than waiting for a site visit.

Multicast Control and Diagnostics for Surveillance Traffic

IGMP Snooping v1/v2/v3 keeps multicast confined to the ports that requested it — the single most useful feature on a switch carrying camera streams. Link aggregation widens the uplink to the core, port mirroring gives an analyser somewhere to sit, cable diagnostics identify a failing run from the browser, and loop prevention guards the accidental patch loop. Switching capacity is 32 Gbps with an 8K MAC address table, 4.1 Mb of packet buffer and 9 KB jumbo frames.

Ideal For

Singapore surveillance installs, retail and F&B sites, offices and schools needing eight PoE+ ports and sixteen Gigabit connections in a lockable 1U chassis, and integrators standardising the camera access layer. Supplied by SourceIT with five years local Singapore warranty, GST invoice and project pricing on request.
