TP-Link Omada 16-Port Gigabit Rackmount Switch

TP-Link 16-Port Gigabit Rackmount Switch (TL-SG1016) - 5 Years Local Warranty

The TL-SG1016 is a sixteen-port Gigabit unmanaged switch in a fanless 19-inch rack chassis — the quiet, low-power way to add wired capacity to a comms cabinet. A 32 Gbps fabric, 8K MAC table and loop prevention across all sixteen ports mean it handles a real office access layer, while drawing under 10 W and making no noise at all.

Sixteen Gigabit Ports, Fanless and Silent

Every port auto-negotiates 10, 100 or 1000 Mbps with Auto MDI/MDIX, so any cable works either way round. What distinguishes this model from most sixteen-port rack switches is that it has no fan: at a maximum 9.26 W draw there is nothing to cool actively. In a cabinet shared with an office or a meeting room that matters, and it removes the single moving part most likely to fail in service.

Loop Prevention and Port Isolation Built In

Loop Prevention runs across ports 1 to 16 and shuts down a port that has been patched back into the switch, which is the most common way a small network is brought down by accident. Isolation Mode on ports 1 to 14 separates client ports from one another for guest or public segments. Both are hardware behaviours rather than configuration — there is no interface to log into and nothing to set up.

32 Gbps Fabric With an 8K MAC Table

The 32 Gbps switching capacity covers all sixteen ports at full duplex simultaneously, and the 23.8 Mpps forwarding rate sustains line rate at minimum frame size. An 8K MAC address table is generous for a switch of this size, so it copes with a floor of endpoints behind access points and daisy-chained desk switches. Jumbo frames up to 10 KB help NAS and backup traffic, and Green Technology reduces power on idle and short links.

19-Inch 1U Chassis, Kit Included

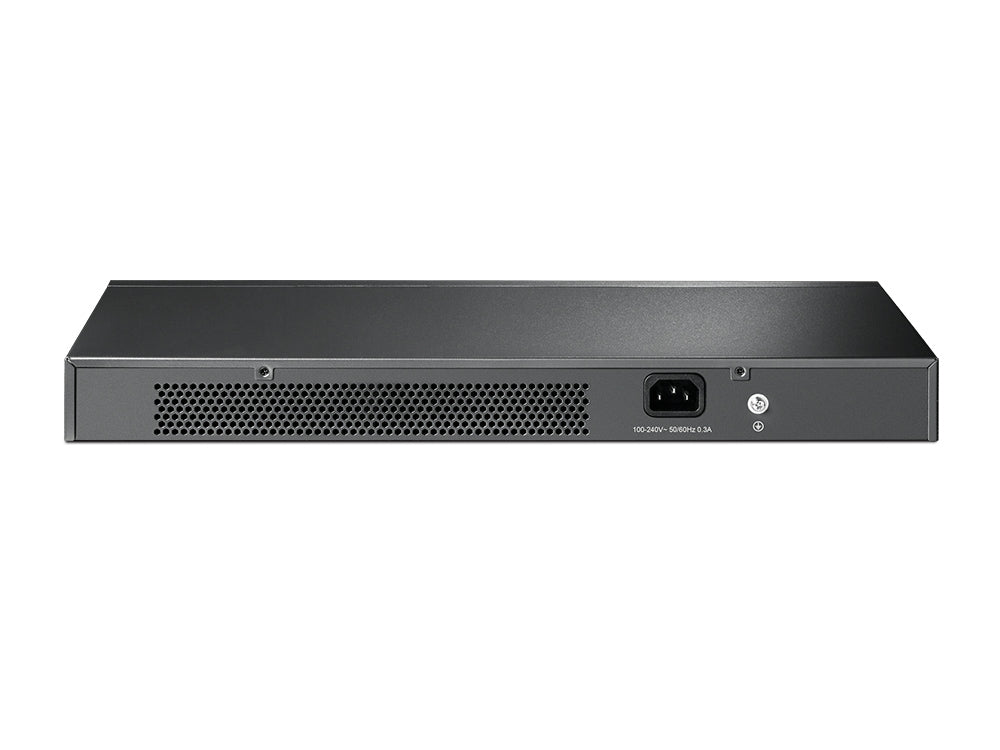

At 440 x 180 x 44 mm the switch fits a standard rack and ships with both rackmount kits and rubber feet, so the same unit works on a shelf. Power is 100-240 VAC through a supplied cord with no external adapter. Maximum heat dissipation is 35.6 BTU/h, low enough that the switch adds negligible load to a cabinet's cooling.

Ideal For

Singapore offices, workshops and schools adding sixteen wired ports to a rack where nothing needs to be configured, powered over Ethernet or managed. Supplied by SourceIT with local Singapore warranty, GST invoice and project pricing on request.
