TP-Link Omada 100-240V Redundant Power Supply Module for Media Converter Chassis
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION

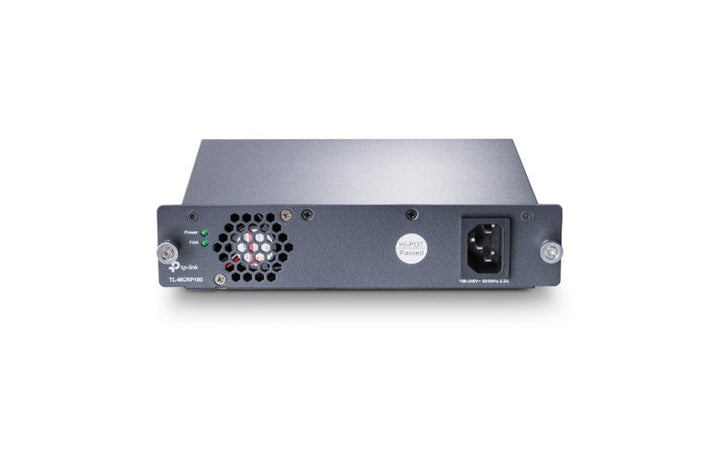

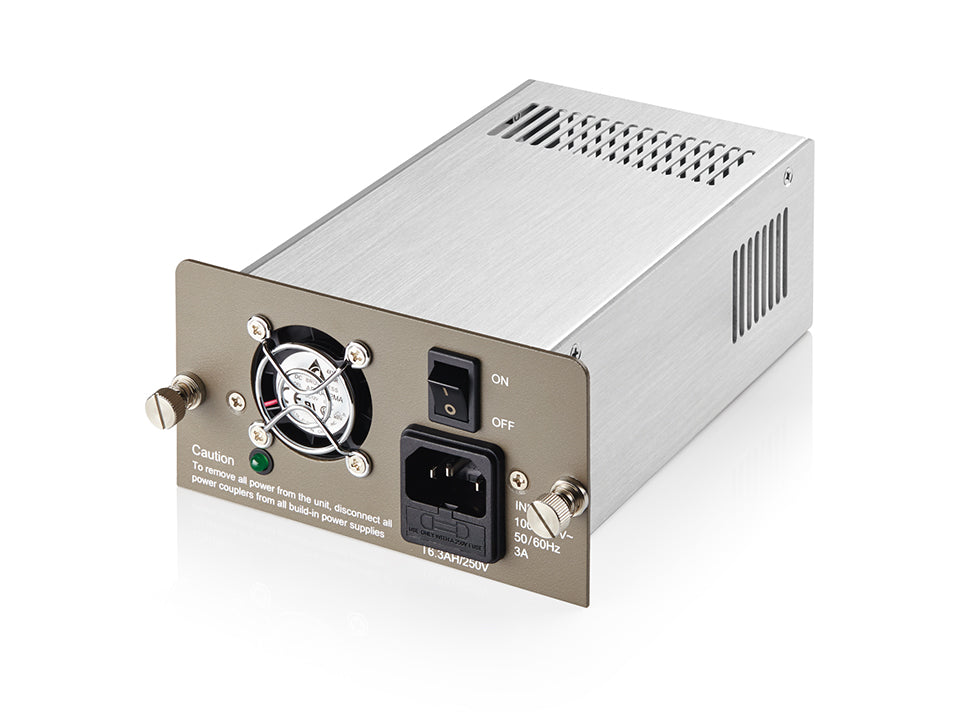

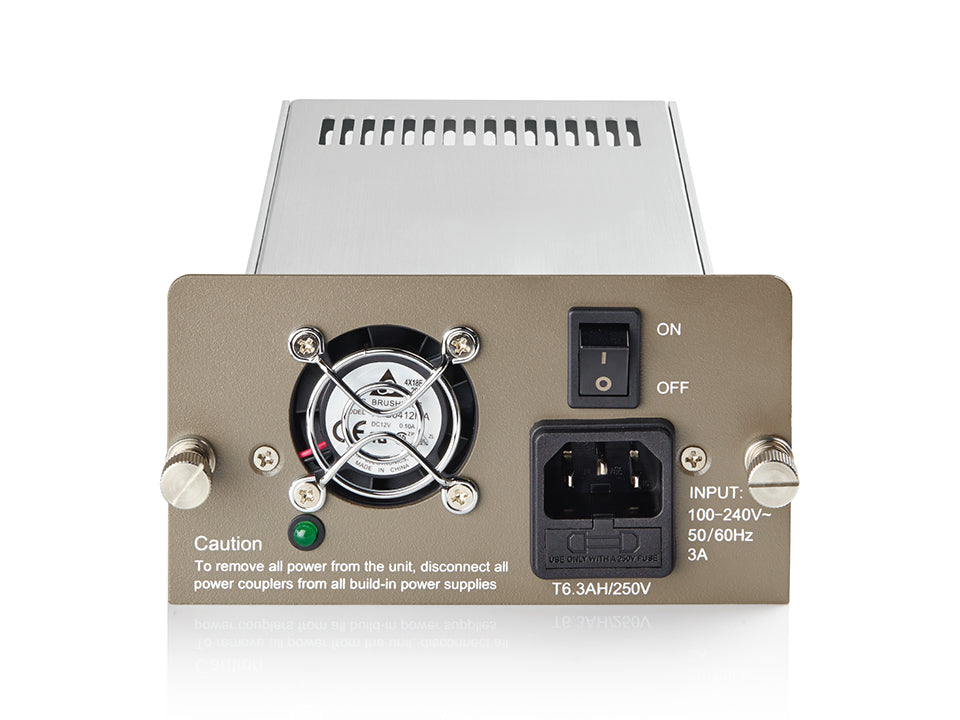

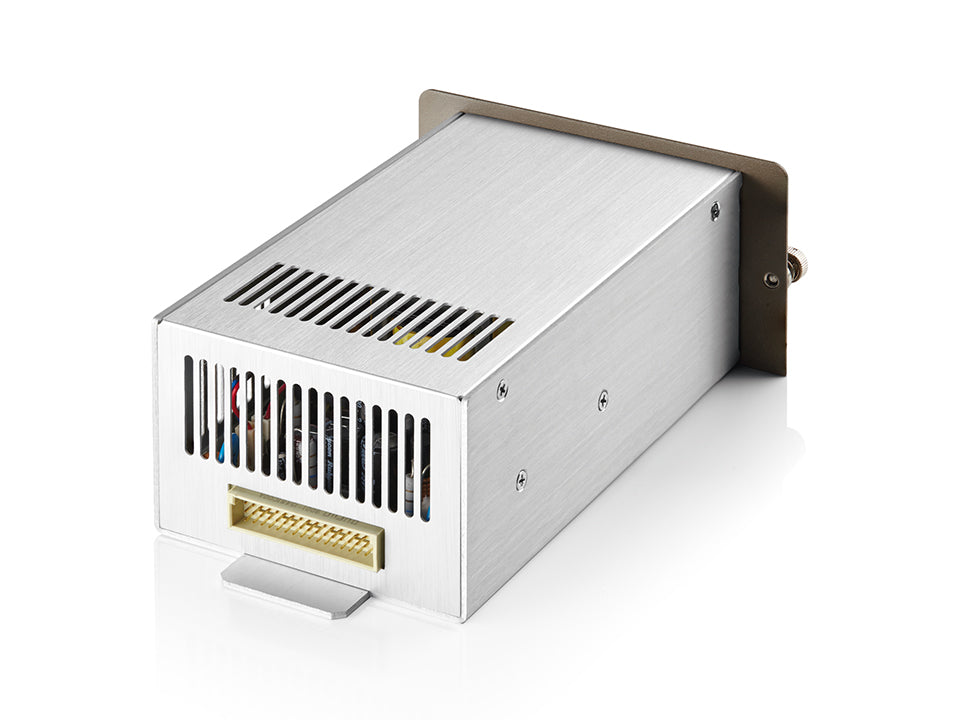

TP-Link Omada 100-240V Redundant Power Supply Module (TL-MCRP100) - Local Warranty
The TL-MCRP100 is the redundant power supply module for TP-Link's TL-MC1400 14-slot media converter chassis. It takes 100-240 V AC and supplies 9.5 V DC at 9.5 A to the backplane, so a fully populated chassis keeps running if the primary supply fails. A single internal fan handles cooling. It is a chassis accessory, not a standalone converter.
Second Supply for a Fully Populated Chassis
A 14-slot chassis concentrates a great many fibre links into one box, which makes its power supply a single point of failure for all of them. Fitting the TL-MCRP100 alongside the primary module means a supply fault takes out one module rather than every converter in the rack. For sites where the chassis carries inter-building or tenant links, that is usually the difference between a logged fault and an outage.
Wide-Range AC Input, 9.5 V DC Output
The module accepts 100-240 V at 50/60 Hz drawing up to 3 A, which covers Singapore's 230 V supply with margin and allows the same part to be used on sites abroad. Output to the chassis backplane is 9.5 V DC at 9.5 A. Because the module is fed independently, the two supplies can be taken from separate circuits or separate UPS feeds, which protects against a tripped breaker as well as a failed supply.
Built for Continuous Operation in a Rack
TP-Link publishes an operating range of 0 to 60 degrees Celsius and a storage range of -35 to 85 degrees, both wider than the converters the chassis carries, so the module is not the limiting factor in a warm comms room. Operating humidity is 20 to 90 percent RH non-condensing. One fan provides active cooling. At 210 x 130 x 70 mm the module is sized to slot into the chassis rather than to sit on a shelf.
Ideal For
Singapore sites running a TL-MC1400 chassis where the fibre links it carries cannot tolerate a power-supply failure — building risers, tenant distribution, campus links and anywhere the chassis sits in a rack shared with production equipment.
TP-Link has marked the TL-MCRP100 End of Life. Availability is limited to remaining stock. Contact SourceIT for current availability and for advice on the recommended alternative before specifying this module for a new project.
TL-MCRP100 Datasheet — Technical Specifications
General
| Model | TL-MCRP100 |
| Official Product Name | 100-240V Redundant Power Supply Module |
| Brand | TP-Link Omada |
| Warranty | Local Warranty (Singapore) |
| Lifecycle Status | End of Life (as published by TP-Link) |
Specifications
| AC Power Supply | 100-240V~ 50/60Hz 3A |
| DC Power Output | 9.5V / 9.5A |
| Fan Quantity | 1 |
| Dimensions (W x D x H) | 210 × 130 × 70 mm |
| Operating Temperature | 0 °C to 60 °C (32 °F to 140 °F) |
| Storage Temperature | -35 °C to 85 °C (-31 °F to 185 °F) |
| Operating Humidity | 20% to 90% RH, non-condensing |
| Storage Humidity | 10% to 95% RH, non-condensing |
TP-Link publishes no certification row, no MTBF figure and no hardware version for this module, so none is claimed here. Only the rows above are published.
Compatibility & Software Support
The TL-MCRP100 is a passive power module. It has no firmware, no licence and no management interface of its own, and it cannot be adopted into an Omada Software Controller, Hardware Controller or Cloud-Based Controller. The chassis it sits in owns the installation; the module simply supplies it.
| Compatible Chassis | TL-MC1400 — 14-Slot Rackmount Chassis (the only chassis TP-Link lists for this module) |
| Omada SDN Controller | Not supported — the module cannot be adopted or centrally managed |
| Management Interface | None published — no web GUI, CLI or firmware |
| Role | Redundant (secondary) supply, fitted alongside the chassis primary supply |
TP-Link lists the TL-MC1400 as the compatible chassis for this module and publishes no other. If you are working with a different chassis, send us the model and we will confirm before quoting rather than assume it fits.
Package Contents & Ordering Information
Package Contents
TP-Link does not publish a package contents list for the TL-MCRP100, so none is reproduced here. Ask SourceIT to confirm exactly what is in the box before ordering.
Ordering Information
| Model | TL-MCRP100 |
| Fits | TL-MC1400 14-Slot Rackmount Chassis |
| Lifecycle Status | End of Life — limited availability |
| Supplied By | SourceIT Pte Ltd, Singapore |
TP-Link publishes no EAN and no carton pack size for this module, so neither is stated here.
Datasheet & Downloads
Frequently Asked Questions — TL-MCRP100
Which chassis does this module fit?
TP-Link lists the TL-MC1400 14-slot rackmount chassis and no other. Send us your chassis model if it differs and we will confirm before quoting.
Is this a replacement supply or an additional one?
It is a redundant supply, fitted alongside the chassis primary supply so that a failure of one does not take the chassis down. It can of course also be used as a spare.
Can the two supplies be fed from different circuits?
Yes. Each module takes its own 100-240 V AC feed, so they can be taken from separate circuits or separate UPS outputs, which also protects against a tripped breaker rather than only a failed module.
What warranty does SourceIT provide?
Local Singapore warranty. TP-Link's Omada replacement warranty schedule does not list a duration for rackmount power modules, so we do not state one here — ask us for the current terms before ordering. Every TL-MCRP100 sold by SourceIT comes with a GST invoice.
Is it still available?
TP-Link has marked it End of Life, so supply is limited to remaining stock. Contact SourceIT for current availability and lead time before committing to a project date.
