Samsung SM55H 55" 4K Spatial Signage Display
PRODUCT DESCRIPTION
Samsung SM55H 55" Spatial Signage Display (LH55SMHPBGCXXS) - Local Warranty
55-Inch Glasses-Free Depth at Full 4K Resolution

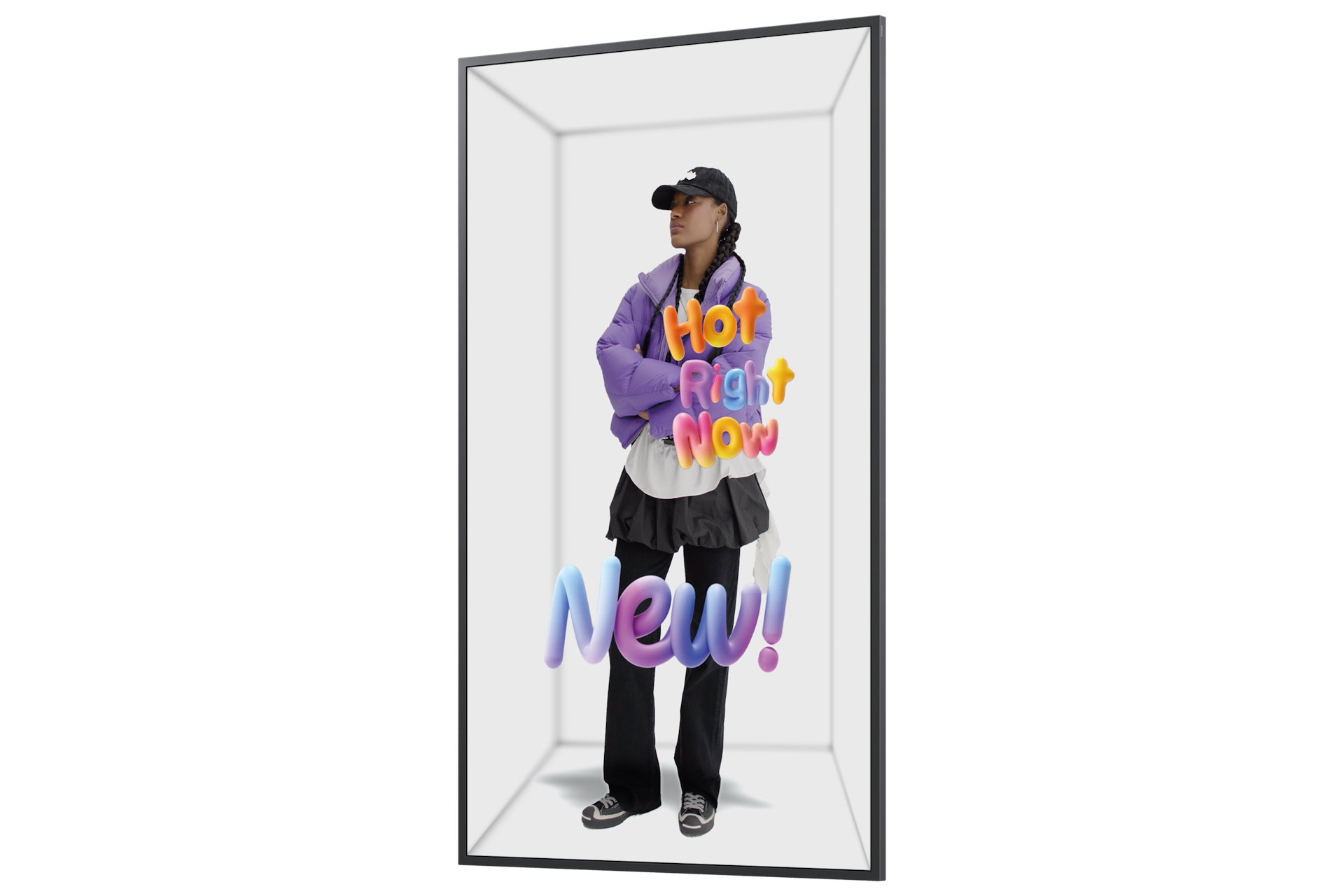

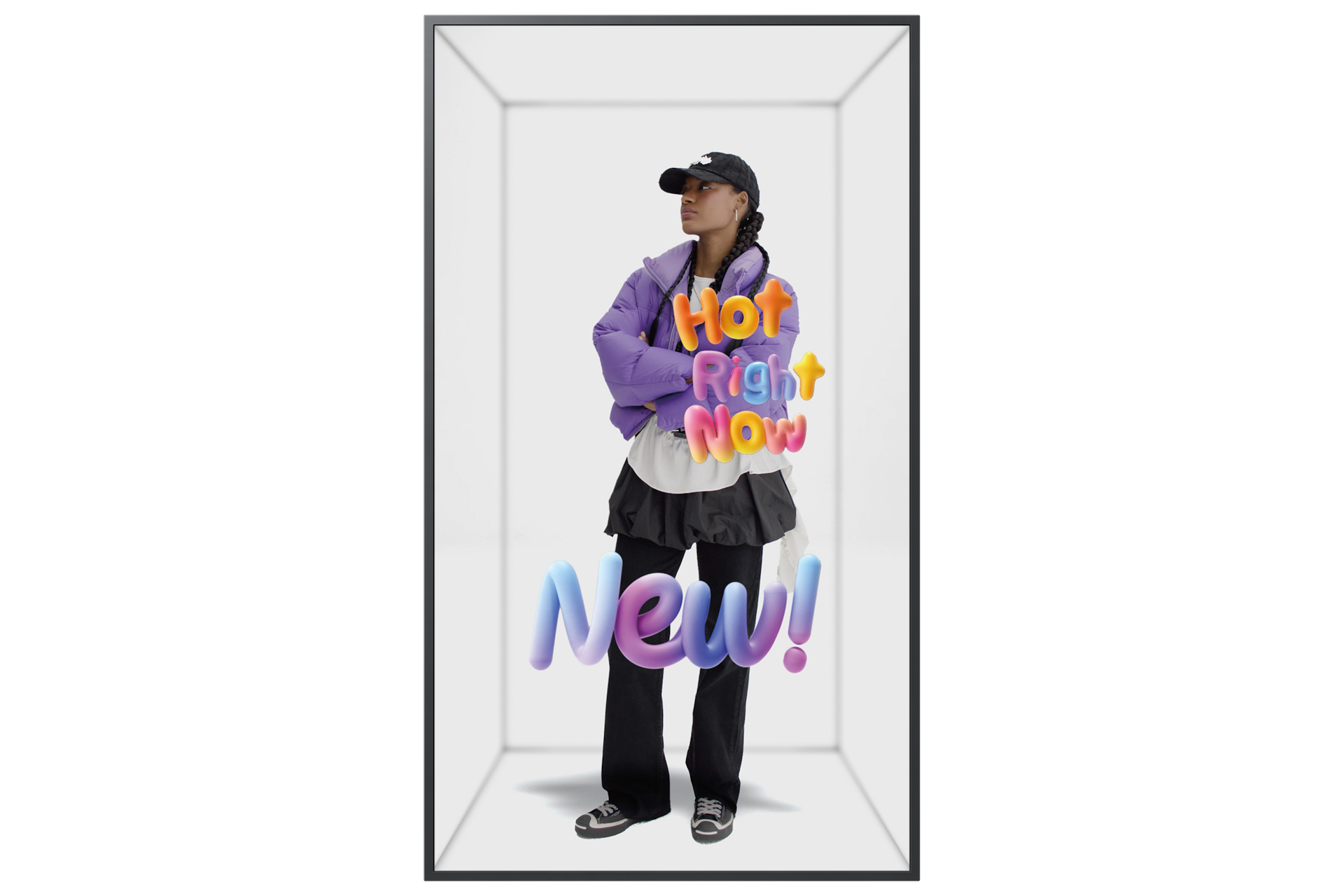

The Samsung SM55H brings glasses-free spatial depth to a 55-inch 3840 x 2160 canvas, large enough to anchor a retail window, a corporate lobby or an exhibition stand on its own. An optical 3D plate bonded to the UHD VA panel separates the left and right eye images so viewers perceive depth with no headset, no app and no instructions to read. With 178-degree viewing angles in both planes, the effect holds for groups moving past the screen rather than for one person standing in a single sweet spot, which is what a mall or concourse placement actually demands.
True 3D Enhancer Gives Existing Assets Depth
Samsung's True 3D Enhancer converts conventional flat content into spatial content in real time, so the SM55H can run the brand videos and product renders you already own without a specialist 3D production pipeline standing behind it. Native 3D assets are supported as well, letting creative teams start with converted material and move to purpose-built depth content as the library grows. Playback stays on the panel, so scheduling and reporting work exactly as they do on the rest of your Samsung signage estate.
Anti-Glare Panel Built for Bright Public Spaces
A 25 percent haze anti-glare treatment cuts the reflections that normally wash out a glossy 3D surface under downlights or daylight, and that matters more here than on a flat panel, because a reflection breaks the depth illusion faster than it spoils ordinary content. The 500-nit panel with a 4000:1 contrast ratio and an 8 ms grey-to-grey response keeps fast-moving spatial sequences clean, and the display is rated for 24 hours a day, 7 days a week of continuous commercial duty in an unattended public setting.
Slim 51.8 mm Build With Tizen 7.0 On Board
At 51.8 mm deep and 18.6 kg, the SM55H mounts flush on a standard 200 x 200 mm VESA pattern without a deep enclosure, so a lobby or window install keeps a clean line. Tizen 7.0 with 16 GB of internal storage runs content directly on the display, removing the external player and its power and network requirements from the install, while Samsung VXT handles scheduling, monitoring and remote power control across sites. Three HDMI inputs plus DisplayPort cover live feeds and external sources when you need them.
Samsung SM55H Datasheet — Technical Specifications
General
| Product | Samsung SM55H 55" Spatial Signage Display |
| Part Number (SKU) | LH55SMHPBGCXXS |
| Display Type | Spatial (glasses-free 3D) commercial signage |
| Operating Time | 24/7 continuous commercial operation |
| Platform | Tizen 7.0 |
| Internal Storage | 16 GB |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice |
Display
| Screen Size | 55" |
| Resolution | 3,840 x 2,160 (4K UHD) |
| Panel Type | VA |
| Brightness | 500 nit |
| Contrast Ratio | 4,000:1 |
| Response Time | 8 ms (grey to grey) |
| Viewing Angle | 178° / 178° (H/V) |
| Surface Treatment | Anti-glare, 25% haze |
| 3D Technology | Virtual 3D display with bonded 3D plate and True 3D Enhancer |
Smart Platform & Management
| Embedded Player | Yes — Tizen 7.0 on board, no external player required |
| Internal Storage | 16 GB |
| Content Management | Samsung VXT cloud signage platform (subscription sold separately) |
Connectivity
| HDMI | 3 x HDMI |
| DisplayPort | 1 x DisplayPort |
| USB | 2 x USB |
Physical & Environmental
| Depth | 51.8 mm |
| Weight | 18.6 kg |
| VESA Mount | 200 x 200 mm |
| Colour | Black |
Power
| Power Consumption (typical) | Approximately 190 W |
Specifications are taken from Samsung's published product data for this model. Where Samsung does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting and placement

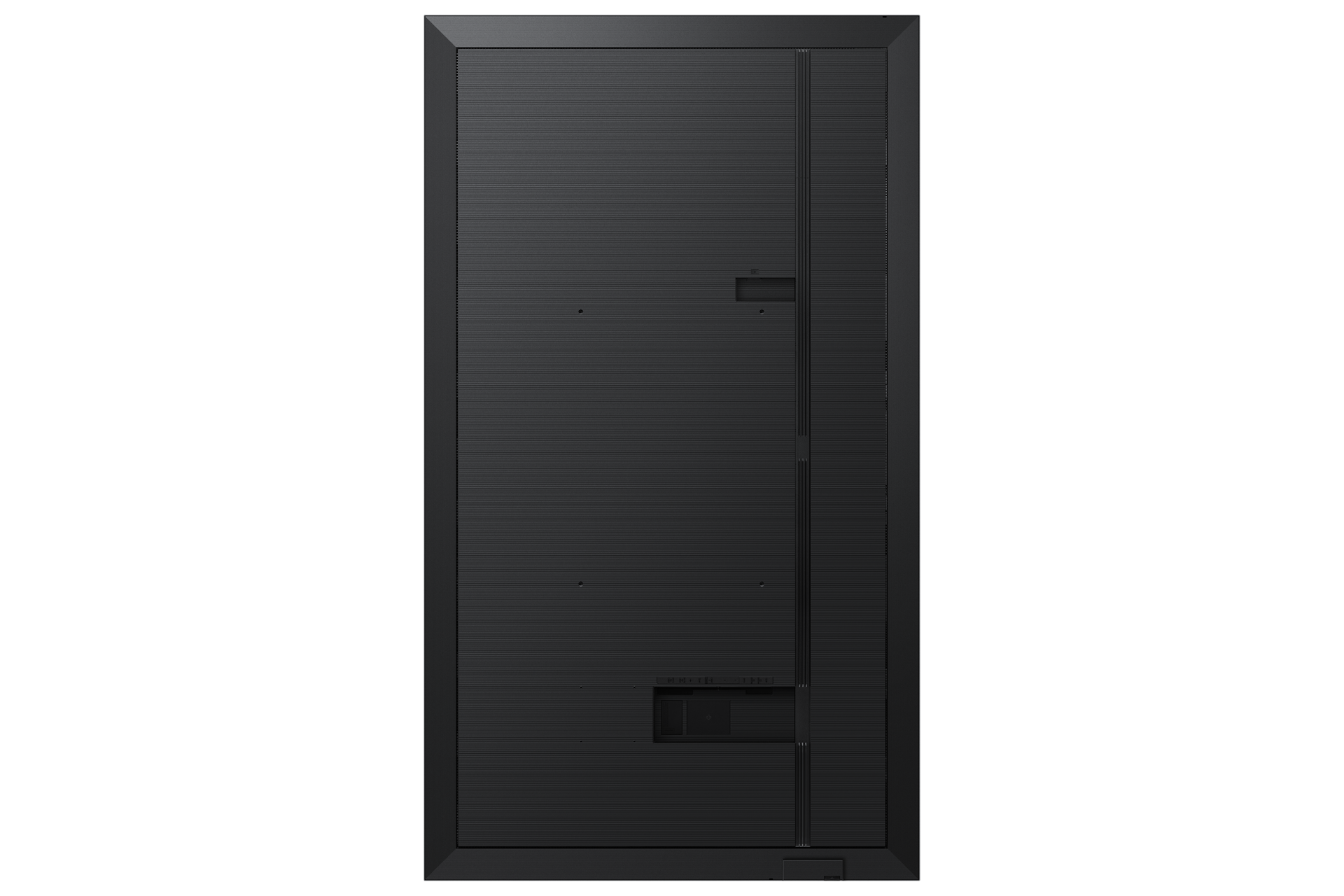

The SM55H uses a 200 x 200 mm VESA pattern and weighs 18.6 kg, so it sits on a standard commercial flat-panel bracket well within the load rating of any properly specified mount. At 51.8 mm deep it finishes close to the wall without a deep enclosure. Samsung does not publish a portrait-orientation rating for the spatial series, so we do not claim one; tell us if your fixture needs portrait and we will confirm with Samsung before you order. Plan the primary viewing position roughly square to the screen, since the depth effect is produced optically.
What it connects to
Three HDMI inputs and one DisplayPort input take a media player, a laptop, a small-form-factor PC, a camera feed or a matrix switcher output, and two USB ports handle local media and service. Most spatial installations never use an external source, because Tizen runs the content on the panel itself, but the inputs are there when a live feed or a room system has to reach the screen.
Network and content management
Tizen 7.0 with 16 GB of internal storage holds and plays content locally, and Samsung VXT provides cloud scheduling, playlist management, device health monitoring and remote power control across a multi-site estate from one console. A VXT subscription is licensed separately from the hardware. Because playback is local, a brief network outage does not blank the screen — the scheduled content keeps running.
Related models
The same glasses-free technology is available as the Samsung SM32H at 32 inches Full HD for close-range window and showcase work, and the Samsung SM85H at 85 inches 4K for atrium and concourse landmarks. Where the depth effect is not required, the Samsung QM55C is the conventional 55-inch 4K signage equivalent.
Package Contents & Samsung Spatial Signage Range
In the box
Samsung does not publish a package contents list for the SM55H on its Singapore product data, so we do not itemise one here. SourceIT will confirm the exact carton contents for the current production revision with your quotation.
Package contents follow Samsung's product data for this model; items not listed by Samsung are not claimed here.
Samsung spatial signage range
| Model | Size | Resolution |
| SM32H | 32" | 1,920 x 1,080 (Full HD) |
| SM55H (this listing) | 55" | 3,840 x 2,160 (4K UHD) |
| SM85H | 85" | 3,840 x 2,160 (4K UHD) |
Datasheet & Downloads
- Samsung Singapore — 55" Spatial Signage SMHX-P product page (LH55SMHPBGCXXS)
- Samsung Singapore — SM55H (SM55HX-P) manuals, firmware and downloads
SourceIT can email the current data sheet revision for the SM55H together with a quotation. Tell us the fixture, the viewing distance and whether your content is converted or native 3D and we will size the install with you.
Frequently Asked Questions — Samsung SM55H
Do viewers need glasses or a headset?
No. A 3D plate bonded to the panel separates the left and right eye images optically, so anyone walking past sees the depth with nothing to wear. There is no app to download and nothing to hand out or collect back, which is why it suits unattended public placements.
How far away does the effect still work?
Samsung specifies 178-degree viewing angles in both planes, so the image stays consistent for groups approaching from either side rather than only from a single sweet spot. Samsung does not publish an optimum viewing-distance figure for this model, so we do not quote one — tell us the room and we will confirm with Samsung.
Do I have to produce special 3D content?
Not to start. True 3D Enhancer converts standard flat content to a spatial look in real time, so existing brand films, product renders and stills can run as they are. Native 3D assets are supported too, if you want to commission purpose-built depth content later.
Does it need an external media player?
No. Tizen 7.0 runs on the panel with 16 GB of internal storage, so content plays from the display itself. The three HDMI inputs and DisplayPort are there for live feeds or a room system when you want one, not as a requirement.
Can it run 24 hours a day?
Yes. The SM55H is rated for 24/7 continuous commercial operation, so a mall window, a lobby or a concourse placement can run around the clock without being cycled off.
Why does the anti-glare treatment matter on a 3D screen?
Reflections interfere with the optical separation that creates the depth, so a glossy surface under strong downlighting degrades the effect more than it degrades flat content. The 25 percent haze anti-glare finish is there to keep the illusion intact in a bright public space.
How does it differ from the SM32H and SM85H?
The technology is identical across the three. The SM32H is 32-inch Full HD for close-range windows and showcases, the SM55H is 55-inch 4K for a window bay, lobby or exhibition stand, and the SM85H is 85-inch 4K for an atrium or concourse landmark. Choose by viewing distance and fixture size.
What warranty and invoicing do I get?
Every SM55H sold by SourceIT comes with local Singapore warranty and a GST invoice on every unit, which is what your finance and procurement teams need for claims and for local service.
Price on application. Contact SourceIT for a quotation on this model.
