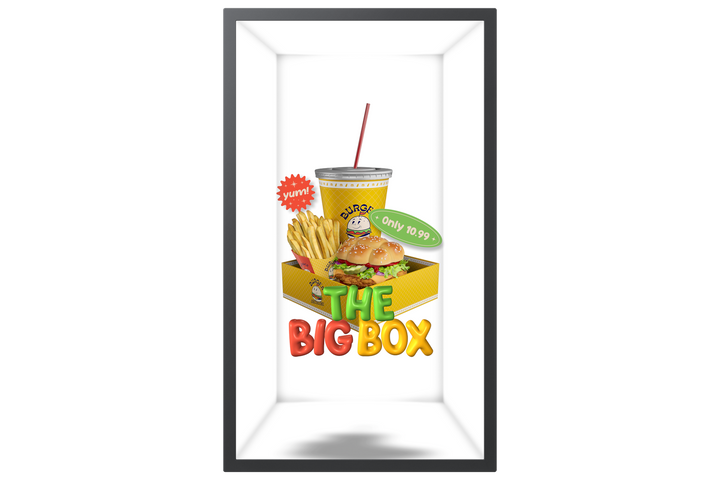

Samsung SM32H 32" FHD 3D Spatial Signage Display
Prices in SGD, excluding 9% GST.
PRODUCT DESCRIPTION
Samsung SM32H 32" FHD 3D Spatial Signage Display - 3 Years Local Warranty

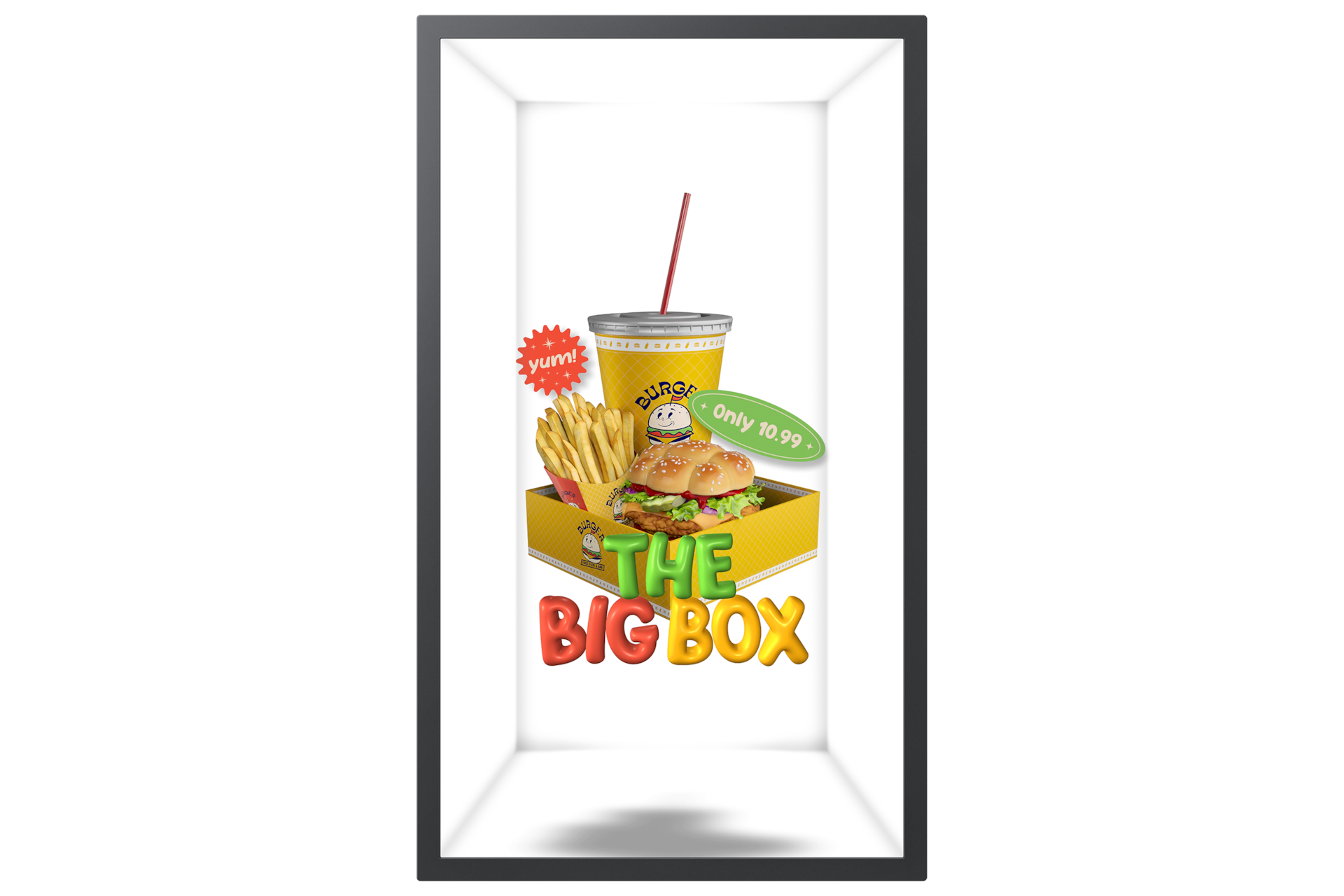

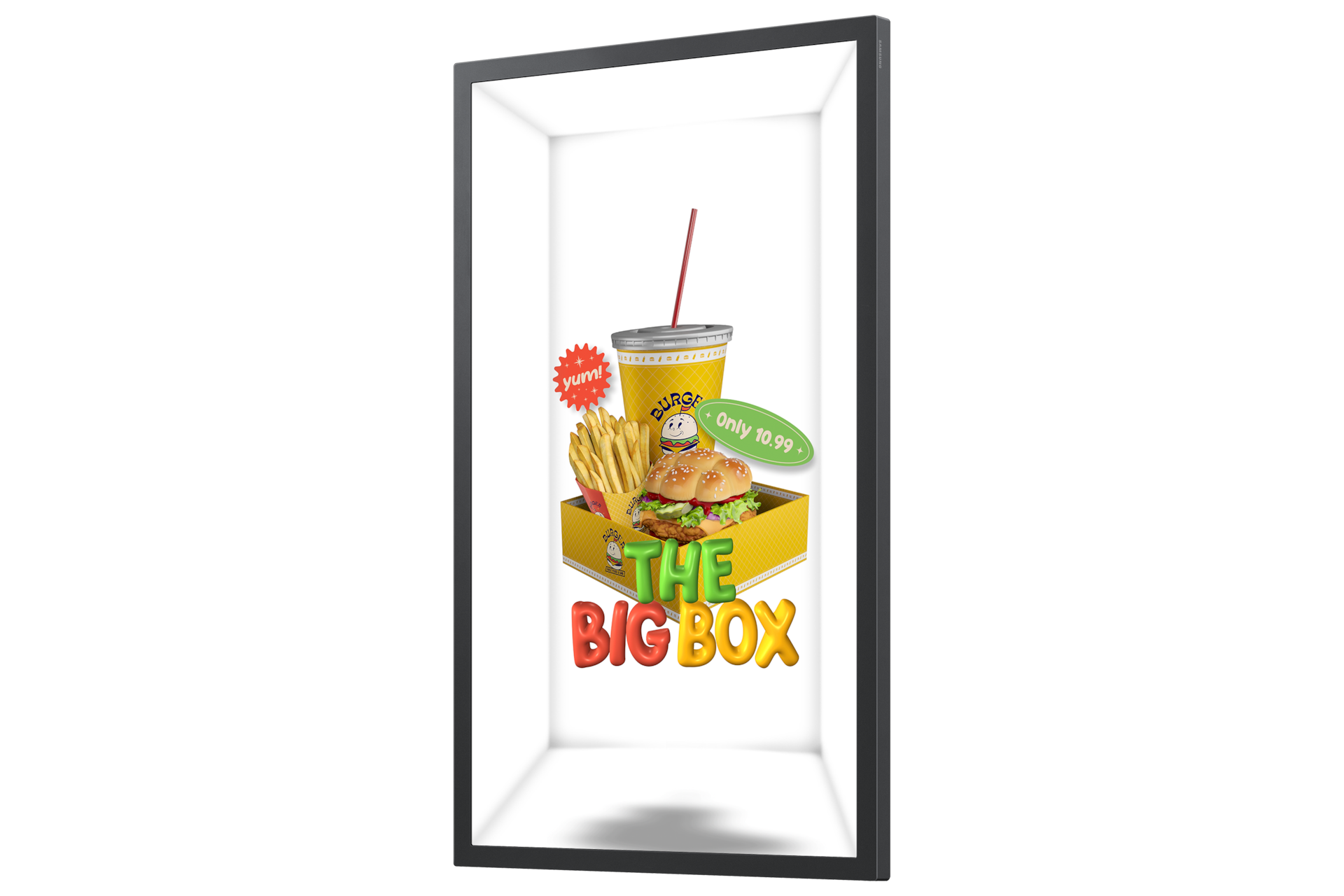

Glasses-Free 3D Depth
The Samsung SM32H Spatial Signage uses Samsung's 3D plate technology to give content a lifelike sense of depth without 3D glasses, on a 32" FHD VA panel at 500 nit.
True 3D Enhancer and Anti-Glare
True 3D Enhancer maximises the 3D effect for greater impact, while the anti-glare panel helps maintain visibility under challenging lighting.
UltraThin, 24/7 Design
A slim 49.4 mm set depth and 24/7 operation rating suit retail windows, showrooms, lobbies and brand experience spaces.
Managed With Samsung VXT
Tizen 7.0 with 16 GB storage, plus Samsung VXT cloud content and device management and SmartThings Pro IoT control (both sold separately; availability varies by region).
Samsung SM32H Datasheet — Technical Specifications
General
| Model | SM32H |
| Part Number | LH32SMHPBGCXXS |
| Series | Samsung Spatial Signage SMHX-P |
| Colour | Black |
| Local Warranty (Singapore) | 3 years local warranty |
Display
| Diagonal Size | 32" |
| Panel Type | VA |
| Resolution | 1,920 x 1,080 (FHD) |
| Pixel Pitch (H x V) | 0.36375 x 0.36375 mm |
| Brightness (Typ.) | 500 nit |
| Contrast Ratio | 4,000:1; dynamic contrast Mega |
| Viewing Angle (H/V) | 178/178 |
| Response Time | 8 ms (GTG) |
| Colour Gamut | 72% (NTSC) |
| Glass Haze | 25% |
| H-Scanning Frequency | 30–81 kHz |
| V-Scanning Frequency | 24–75 Hz |
| Max. Pixel Frequency | 148.5 MHz |
| Operation Time | 24/7 |
Smart Platform
| OS | Tizen 7.0 |
| Flash Memory | 16 GB |
Connectivity
| HDMI In | 3 (HDMI 2, HDCP 2.2) |
| DisplayPort In | 1 (DP 1.2) |
| USB | 2 |
| IR In | Yes |
| Audio In | No |
| Audio Out | Stereo mini jack |
| RS232 In / Out | Yes / Yes |
| RJ45 In | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
Power
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption (On Mode) | 100 W |
| Power Consumption (Sleep Mode) | 0.5 W |
Physical & Environmental
| Set Dimensions (W x H x D) | 436.8 x 742.3 x 49.4 mm |
| Package Dimensions (W x H x D) | 826.0 x 521.0 x 130.0 mm |
| Set Weight | 8.5 kg |
| Package Weight | 10.5 kg |
| VESA Mount | 100 x 100 mm |
| Bezel Width | 19.4 |
| Frame | Non-glossy |
| Operating Temperature | 0–40 °C |
| Operating Humidity | 10–80%, non-condensing |
| EMC | Class A |
| Safety | 62368-1, 60950-1 |
Compatibility & Installation
Mounting & Orientation
VESA 100 x 100 mm. Samsung lists the set dimensions as 436.8 x 742.3 x 49.4 mm (W x H x D), i.e. a portrait-format display.
Content Management
Samsung VXT cloud-based content and device management and SmartThings Pro (sold separately; availability varies by region).
Sources
Three HDMI inputs and one DisplayPort 1.2 input for external players; RS232 and RJ45 for control.
Typical Use
Retail windows and flagship stores, showrooms, museums, hotel and corporate lobbies, and events where eye-catching depth draws attention.
Package Contents & Samsung Spatial Signage Ordering Information
Datasheet & Downloads
| Samsung product page | SM32H on samsung.com Singapore |
| User Manual | SMHX User Manual (PDF, English) |
| Samsung Support | LH32SMHPBGCXXS support page & downloads |
Frequently Asked Questions — Samsung SM32H
Do viewers need 3D glasses?
No. Spatial Signage creates a sense of depth without glasses, using Samsung's 3D plate technology.
Is it rated for 24/7 operation?
Yes. Samsung rates it for 24/7 operation.
How do I create 3D content?
Content can be managed with Samsung VXT; check Samsung's content tools for the Spatial Signage range.
Is it portrait or landscape?
Samsung lists the set dimensions as 436.8 x 742.3 x 49.4 mm (W x H x D), a portrait format.
Do I need an external media player?
No. Tizen 7.0 with 16 GB storage plays content on board; external players can be connected over HDMI or DisplayPort.
What warranty do I get?
3 years local warranty; supplied by SourceIT with a GST invoice.
