Samsung SH37C 37" Stretch Commercial Display
PRODUCT DESCRIPTION
Samsung SH37C 37" Stretch Commercial Display (LH37SHCEBGBXXS) - Local Warranty
A 16:4.5 Panel Shaped for Shelves, Ledges and Transit Spaces
The Samsung SH37C is a 37-inch stretch display with a 16:4.5 aspect ratio and 1920 x 540 resolution, built for the long, shallow spaces where a conventional 16:9 panel simply will not fit. Shelf edges, checkout rails, lift lobbies, bar backs, MRT platform runs and above-door spans all suit this format. Rather than cropping standard content into an awkward slot and losing half the message, the SH37C gives the fixture a display sized to it from the start, which is usually the difference between a screen that gets specified and one that gets value-engineered out.
700 Nits for Supermarket Aisles and Station Concourses
A 700-nit VA panel with a 4000:1 static contrast ratio holds its content against the strong overhead lighting typical of supermarkets, quick-service counters and station concourses, where a 350-nit panel would look grey. Viewing angles of 178 degrees in both planes keep the message readable for people passing at an angle rather than standing square on, and a non-glare surface treatment cuts the reflections that stretch panels pick up when they are mounted low, at eye level and close to shoppers.
Rated for 24/7 Operation With a Near-Seamless Frame
The SH37C is rated for 24 hours a day, 7 days a week of continuous commercial duty, so it can run a full trading day and an overnight promotion loop without being cycled off, which matters in a 24-hour supermarket or an unstaffed transit concourse. A slim frame of 9.8 mm top and bottom and 7.9 mm at the sides keeps the bezel unobtrusive, and that matters most on stretch formats, where the panel usually sits within centimetres of shoppers or passengers and every millimetre of frame is visible.
Tizen 7.0 With Wi-Fi and Full Commercial Control Ports

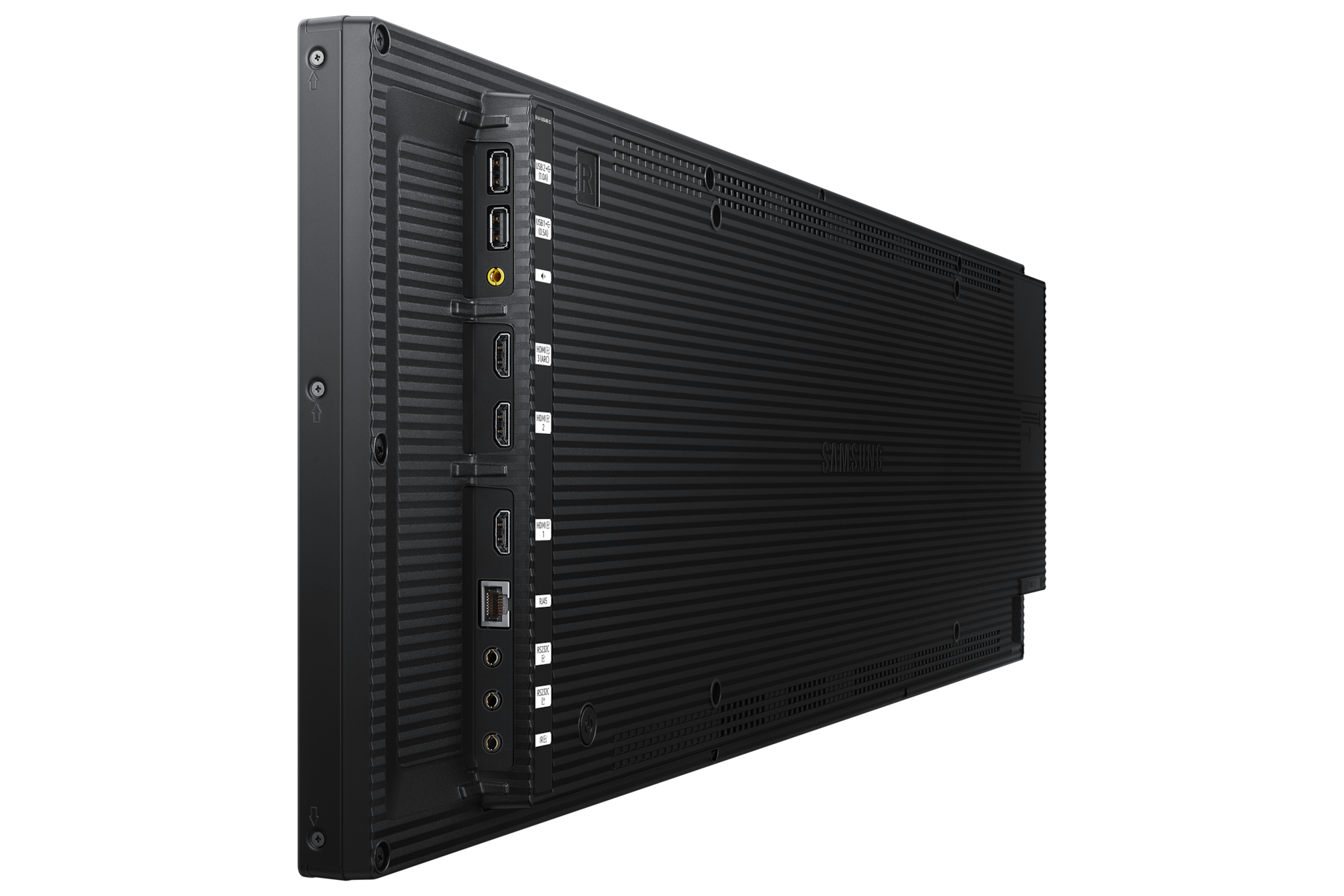

Tizen 7.0 runs content directly on the panel, removing the media player from an install where there is rarely room for one behind a shelf-edge or above-door fixture. Built-in Wi-Fi and Bluetooth allow deployment without a data drop at the fixture, which is often the deciding factor in a retrofit. RJ45, RS232 in and out, three HDMI 1.4 inputs and two USB ports cover wired networking, daisy-chained serial control and external sources for integrators who need a wired path.
Samsung SH37C Datasheet — Technical Specifications
General
| Product | Samsung SH37C 37" Stretch Commercial Display |
| Part Number (SKU) | LH37SHCEBGBXXS |
| Display Type | Stretch (16:4.5) commercial signage |
| Operating Time | 24/7 continuous commercial operation |
| Platform | Tizen 7.0 |
| Local Warranty (Singapore) | Supplied by SourceIT with GST invoice |
Display
| Screen Size | 37" stretch |
| Resolution | 1,920 x 540 |
| Aspect Ratio | 16:4.5 |
| Panel Type | VA |
| Brightness | 700 nit |
| Contrast Ratio | 4,000:1 (static) |
| Viewing Angle | 178° / 178° (H/V) |
| Surface Treatment | Non-glare |
Smart Platform & Management
| Embedded Player | Yes — Tizen 7.0 on board, no external player required |
| Content Management | Samsung VXT cloud signage platform (subscription sold separately) |
| Remote Control & Monitoring | RS232 In / Out and RJ45 (LAN) |
| Wireless | Built-in Wi-Fi and Bluetooth |
Connectivity
| HDMI | 3 x HDMI 1.4 |
| USB | 2 x USB |
| Network | 1 x RJ45 (LAN) |
| Serial Control | RS232 In / Out |
| Wi-Fi | Built-in |
| Bluetooth | Supported |
Physical & Environmental
| Bezel Width | 9.8 mm top and bottom, 7.9 mm sides |
| Colour | Black |
Specifications are taken from Samsung's published product data for this model. Where Samsung does not publish a figure for this exact model it has been left out rather than estimated.
Compatibility & Installation
Mounting and orientation
Stretch displays are normally mounted horizontally along a shelf edge, a counter rail, a bar back or an above-door span, and vertically as a tall column beside a lift door or an entrance. Samsung does not publish a VESA pattern or an explicit portrait rating for the SH37C on its Singapore data, so we do not claim either here — send us the fixture detail and we will confirm the mounting interface and the supported orientations with Samsung before you order brackets or joinery. Allow access behind the panel for the power and signal tails, which is the usual constraint in a shelf-edge retrofit.
What it connects to
Three HDMI 1.4 inputs and two USB ports take a media player, a laptop, a point-of-sale feed or local media on a stick. In most installations none of these is used, because Tizen 7.0 plays the content on the panel itself. RS232 in and out give integrators serial control and daisy-chaining across a run of panels along an aisle or a platform, and RJ45 provides a wired network path where Wi-Fi coverage at shelf height is unreliable.
Network and content management
Built-in Wi-Fi and Bluetooth let the SH37C join a site network without a data drop at the fixture, which is frequently what makes a shelf-edge or above-door placement viable at all. Tizen 7.0 runs the content locally and Samsung VXT provides cloud scheduling, playlist management, device health monitoring and remote power control across a multi-site estate. A VXT subscription is licensed separately from the hardware.
Where it fits against other Samsung signage
Nothing else in the Samsung range covers the 16:4.5 slot, so the SH37C is specified by shape rather than by size class. If the fixture will in fact take a conventional panel, the Samsung QM32R-B at 32 inches Full HD or the Samsung QB43C at 43 inches 4K are the nearest standard alternatives.
Package Contents & Samsung Stretch Range
In the box
Samsung does not publish a package contents list for the SH37C on its Singapore product data, so we do not itemise one here. SourceIT will confirm the exact carton contents for the current production revision with your quotation.
Package contents follow Samsung's product data for this model; items not listed by Samsung are not claimed here.
Where it fits in the Samsung signage range
The SH37C is the only stretch-format panel SourceIT currently lists, so there is no sibling size to compare it against — it is chosen for its 16:4.5 shape, not as one size in a ladder. If your fixture will actually accommodate a conventional 16:9 panel, the closest alternatives are the Samsung QM32R-B at 32 inches Full HD for a compact aisle or counter position and the Samsung QB43C at 43 inches 4K where there is height to spare. For a battery-powered, mains-free alternative in a shelf or menu position, see the Samsung EM32D colour E-Paper display.
Datasheet & Downloads
- Samsung Singapore — 37" Stretched Display SH37C product page (LH37SHCEBGBXXS)
- Samsung Singapore — SH37C manuals, firmware and downloads
SourceIT can email the current data sheet revision for the SH37C together with a quotation. Send us the fixture dimensions and we will confirm the mounting interface and the orientation before you commit the joinery.
Frequently Asked Questions — Samsung SH37C
What does the 16:4.5 aspect ratio actually mean in practice?
It means the panel is roughly three and a half times wider than it is tall, at 1920 x 540 pixels. That is the shape of a shelf edge, a counter rail, an above-door span or a platform run, so the content fills the fixture instead of being letterboxed into a slot designed for something else.
Is 700 nits enough for a supermarket aisle?
Yes. 700 nit is roughly double the brightness of a typical office or meeting-room panel, and it is the specification Samsung sets for bright retail and transit environments. Combined with the non-glare surface treatment it holds its content under supermarket and concourse lighting.
Does it need an external media player?
No. Tizen 7.0 runs on the panel, so content plays from the display itself. That matters more on a stretch format than on a standard panel, because there is rarely room behind a shelf-edge or above-door fixture to hide a player box.
Can I run it 24 hours a day?
Yes. The SH37C is rated for 24/7 continuous commercial operation, so a 24-hour supermarket, a transit concourse or an unstaffed lobby can leave it running without cycling the power.
Can it be mounted vertically as a column?
Vertical mounting is the normal second use for a stretch panel, beside a lift door or an entrance. Samsung does not publish an explicit portrait rating for the SH37C on its Singapore data, so we do not claim one here — confirm the orientation with us before you finalise the design and we will check with Samsung.
Is it a touchscreen?
No. The SH37C is a non-touch signage panel. It is intended for one-way messaging at shelf edges, counters, lift lobbies and platforms rather than for interactive wayfinding.
What do the letters in SH37C mean?
SH designates Samsung's stretch signage line, 37 is the diagonal in inches, and C is the generation. The preceding generation carried the same SH prefix with a different generation letter.
What warranty and invoicing do I get?
Every SH37C sold by SourceIT comes with local Singapore warranty and a GST invoice on every unit, which is what your finance and procurement teams need for claims and for local service.
