Samsung QH98C 98" 4K UHD Smart Signage Display
Prices in SGD, excluding 9% GST.
PRODUCT DESCRIPTION
Samsung QH98C 98" 4K UHD Smart Signage Display - 3 Years Local Warranty
A 98-Inch 4K Canvas for Lobbies, Showrooms and Boardrooms
The Samsung QH98C puts a 98-inch 3,840 x 2,160 picture on one panel, so a single display can do the job of a multi-screen wall without the seams. At 700 nit typical brightness with a non-glare finish it stays readable in bright reception areas, retail floors and large meeting rooms.
Rated for 24/7 Operation
The QH98C is rated for 24/7 operation, so it can run around the clock in transport hubs, control rooms and stores with extended trading hours.
Built-in Tizen Player
Tizen 7.0 with 16 GB of flash memory plays scheduled content on the display itself, so no separate media player is needed. Samsung VXT (purchased separately) manages content and devices from the cloud, and SmartView+ shares screens wirelessly in meeting rooms.
Even Bezel, Slim Profile

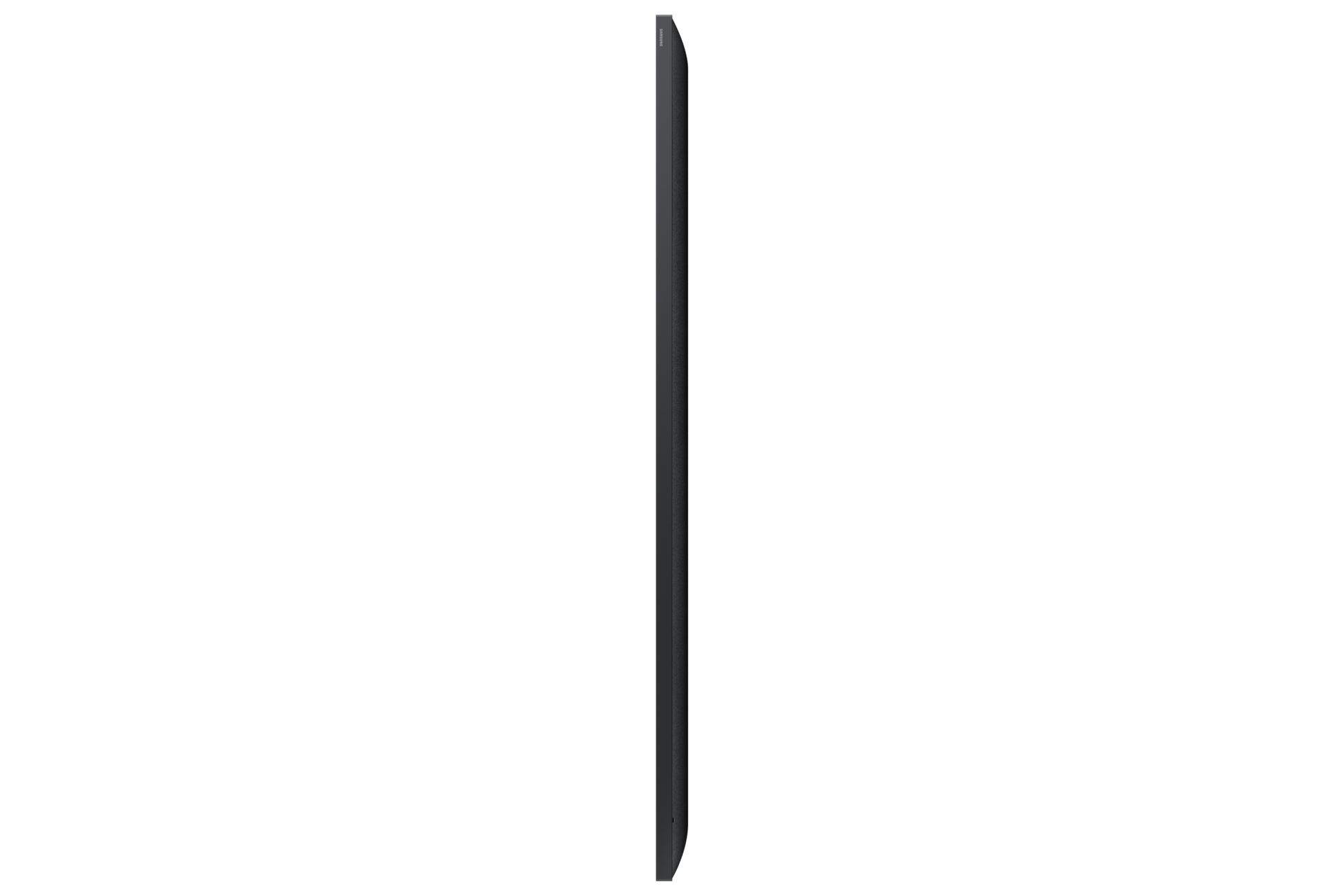

A 14.8 mm even bezel and a 48.1 mm depth keep the panel tidy on the wall, and the Quantum Processor Lite 4K upscales lower-resolution sources to UHD.
Samsung QH98C Datasheet — Technical Specifications
General
| Product | Samsung QH98C 98" Crystal UHD Signage (QHC series) |
| Model | QH98C |
| Part Number (SKU) | LH98QHCEBGCXXS |
| Operation Time | 24/7 |
| Local Warranty (Singapore) | 3 years local warranty |
Display
| Diagonal Size | 98" |
| Panel Type | VA (Direct) |
| Resolution | 3,840 x 2,160 (4K UHD) |
| Pixel Pitch (H x V) | 0.562 x 0.562 mm |
| Brightness (Typ.) | 700 nit |
| Contrast Ratio | 5,500:1 (Dynamic: Mega) |
| Viewing Angle (H/V) | 178° / 178° |
| Response Time | 8 ms |
| Colour Gamut | 72% (NTSC) |
| Glass Haze | 25% |
| H-Scanning Frequency | 30 ~ 81 kHz |
| V-Scanning Frequency | 48 ~ 75 Hz |
| Maximum Pixel Frequency | 594 MHz |
Smart Platform & SoC
| Operating System | Tizen 7.0 |
| Flash Memory | 16 GB |
| Video Processor | Quantum Processor Lite 4K |
| Content Management | Samsung VXT (purchased separately) |
Connectivity
| HDMI In | 3 (HDMI 2.0) |
| DisplayPort In | 1 (DP 1.2) |
| HDCP | 2.2 |
| USB | 2 |
| RS232 In / Out | Yes / Yes |
| RJ45 (LAN) | Yes |
| IR In | Yes |
| Audio In | No |
| Audio Out | Stereo mini jack |
| Wi-Fi | Yes |
| Bluetooth | Yes |
Power
| Power Supply | AC 100-240 V, 50/60 Hz |
| Power Consumption (On) | 517 W |
| Power Consumption (Sleep) | 0.5 W |
Physical & Environmental
| Set Dimensions (W x H x D) | 2193.2 x 1248.8 x 48.1 mm |
| Package Dimensions (W x H x D) | 2370 x 1395 x 230 mm |
| Set Weight | 56.3 kg |
| Package Weight | 77.2 kg |
| VESA Mount | 600 x 400 mm |
| Bezel Width | 14.8 mm (even) |
| Frame | Non-glossy (metal) |
| Operating Temperature | 0 °C to 40 °C |
| Humidity | 10% to 80%, non-condensing |
| EMC | Class A |
| Safety | 60950-1, 62368-1 |
Compatibility & Installation
Mounting and Orientation
Standard 600 x 400 mm VESA pattern. Samsung lists the WMN-8200SC wall mount as an optional accessory. Refer to Samsung's user manual for supported orientations, installation clearances and ventilation.
Content Management
Content can play from the built-in Tizen player (USB or network), from Samsung VXT cloud CMS (purchased separately), or from an external source over HDMI or DisplayPort. RS232 and LAN allow control by room or building management systems, and SmartView+ supports wireless screen sharing.
Typical Use
Corporate lobbies, showrooms, flagship retail, auditoriums and large meeting rooms, and other large venues where one screen must be seen from a distance.
Package Contents & Samsung QHC Series Ordering Information
In the Box
Samsung does not publish an in-box list on the product page for this model. Refer to Samsung's packing list in the Quick Setup Guide.
Optional Accessories
| Wall mount | WMN-8200SC |
| Cloud CMS | Samsung VXT (licence purchased separately) |
Samsung Crystal UHD QHC Series
| Model | Key feature |
| QH43C | 43" 4K UHD, 28.5 mm deep |
| QH50C | 50" 4K UHD, 28.5 mm deep |
| QH55C | 55" 4K UHD, 28.5 mm deep |
| QH65C | 65" 4K UHD, 28.5 mm deep |
| QH75C | 75" 4K UHD, 28.5 mm deep |
| QH98C (this listing) | 98" 4K UHD supersized, 48.1 mm deep |
Datasheet & Downloads
| Samsung product page | Samsung QH98C on samsung.com Singapore |
| Samsung support | Samsung Singapore support page for LH98QHCEBGCXXS |
Frequently Asked Questions — Samsung QH98C
Can the QH98C run 24 hours a day?
Yes. Samsung rates it for 24/7 operation.
Do I need a separate media player?
No. The built-in Tizen 7.0 player with 16 GB flash memory plays content from USB, the network or Samsung VXT. You can still connect an external player or PC over HDMI or DisplayPort.
How bright is it?
700 nit typical, with a non-glare panel and 25% glass haze.
How heavy is it?
The set weighs 56.3 kg (77.2 kg packed), so plan the wall structure and installation accordingly.
What wall mount fits?
It uses a 600 x 400 mm VESA pattern; Samsung lists the WMN-8200SC as its optional wall mount.
What warranty do I get?
3 years local warranty; supplied by SourceIT with a GST invoice.
