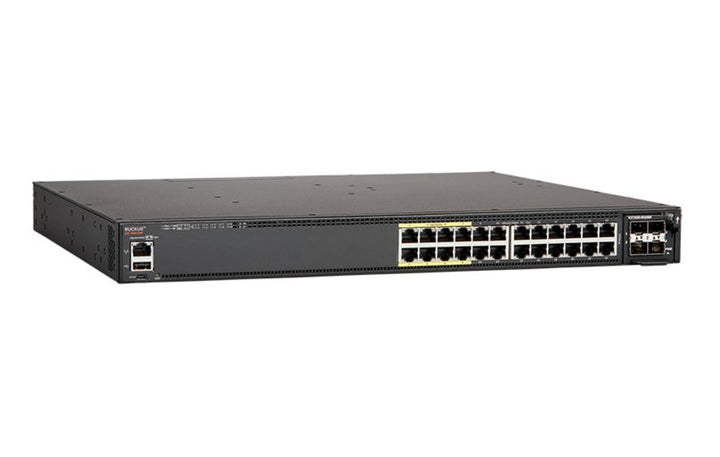

Ruckus 24‑Port 1G PoE Switch 3‑Slot Uplink 4×10G+2×40G

Ruckus Network Mid-Range Access 24 Ports 1G PoE Switch 3 Slots-Uplink (ICX7450-24P) - Local Warranty

Ruckus ICX7450-24P: 24-Port 1G PoE Switch with 3 Uplink Slots
The Ruckus ICX7450-24P is a versatile 24-port PoE+ switch, designed for businesses needing a reliable, high-performance networking solution. With 24 x 1G PoE ports, it delivers power to connected devices such as IP phones, wireless access points, and security cameras. Additionally, this switch comes equipped with 3 flexible uplink slots, allowing you to customize your network connectivity with a range of SFP+ or other modules, offering excellent scalability and future-proofing for growing businesses.

Flexible Uplink Configuration with 3 Slots for Customization
The ICX7450-24P features 3 uplink slots, providing flexibility to adapt to your specific networking needs. Whether you require additional 1G, 10G, or higher-speed uplinks, these slots allow for easy customization of your network backbone. This feature is particularly useful for businesses that need to expand or adapt their infrastructure to changing demands, ensuring your network can scale as your business grows.

Power over Ethernet (PoE) for Simplified Network Deployments
Equipped with 24 PoE+ ports, the Ruckus ICX7450-24P simplifies network deployments by delivering both power and data through a single Ethernet cable to connected devices. This reduces the need for separate power adapters and streamlines the installation process for power-hungry devices such as wireless access points, IP cameras, and VoIP phones. With up to 30W per port, the ICX7450-24P ensures that even high-powered devices are reliably supported.

Advanced Layer 2 and Layer 3 Features for Robust Networking
The ICX7450-24P supports both Layer 2 and Layer 3 features, making it an ideal solution for businesses that require advanced routing, VLANs, traffic management, and network security. It offers rich Layer 2 features like VLAN tagging, MAC address learning, and Spanning Tree Protocol (STP), while also providing Layer 3 routing features for efficient data routing between subnets and across larger networks. This switch also includes advanced traffic prioritization, ensuring that critical applications receive the bandwidth they need for optimal performance.

Technical Specifications of Ruckus ICX7450-24P

• Model: Ruckus ICX7450-24P
• Ports: 24 x 1G PoE+ ports (up to 30W per port)
• Uplink Slots: 3 x 1G/10G uplink slots (SFP+ or other modules)
• Switching Capacity: 480 Gbps
• Form Factor: 1U rack-mountable
• Power Supply: Dual redundant power supplies (optional)
• Management: Managed via SmartZone or Ruckus Cloud
• Stacking: Supports stacking for increased network scalability
• Layer 2 and Layer 3 Features: VLANs, QoS, routing, and security
• Warranty: 1-year standard warranty
• Additional Features: High availability, port security, and traffic optimization

GTIN/UPC Code: 180018015629

Why Choose the Ruckus ICX7450-24P?
The Ruckus ICX7450-24P is an ideal choice for businesses that require a cost-effective, mid-range network switch with the flexibility to adapt to evolving networking needs. Its 24 PoE+ ports and 3 uplink slots offer a powerful combination of scalability and performance. This switch is equipped with advanced Layer 2 and Layer 3 features to enhance your network’s reliability, security, and efficiency. Whether you're building a new network or upgrading an existing one, the ICX7450-24P provides a robust foundation for your business's networking infrastructure.
