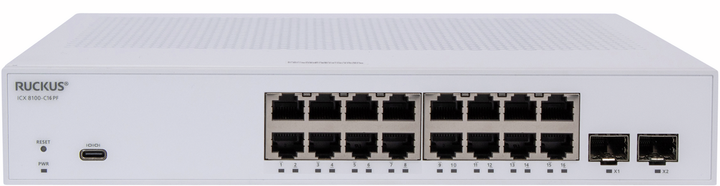

RUCKUS ICX 8100-C16P 16-Port Gigabit PoE+ Compact Switch with 2 x 1G SFP
PRODUCT DESCRIPTION
RUCKUS ICX 8100-C16P 16-Port Gigabit PoE+ Compact Switch with 2 x 1G SFP (ICX8100-C16P) - Limited Lifetime Local Warranty
Entry-Level Enterprise-Class Layer 2 Access Switch
The RUCKUS ICX 8100-C16P is a compact, fanless access switch from the RUCKUS ICX 8100 family, which RUCKUS positions as an entry-level enterprise-class L2 access switch. It has 16 x 10/100/1000 Mbps RJ-45 ports with PoE+ (802.3at, up to 30 W per port) from a 124 W PoE budget and 2 x 1 GbE SFP uplink ports.
1 GbE SFP Uplinks
The standard ICX8100-C16P has 2 x 1 GbE SFP uplink ports. If you need 10 GbE uplinks, the ICX8100-C16P-X is the same switch with 1/10 GbE SFP+ uplinks.
PoE+ for Access Points, Cameras and Phones
Each RJ-45 port supplies 802.3at PoE+ at up to 30 W (Class 4), shared from a 124 W budget — suitable for Wi-Fi 6 access points such as the RUCKUS R550, IP cameras and IP phones.
Cloud, On-Premises or Controller-Less Management
RUCKUS lists RUCKUS One (cloud, AI-driven management and assurance), SmartZone (on premises) and RUCKUS Unleashed (controller-less), plus the CLI and a web-based standalone interface.
Supplied in Singapore with Local Warranty
RUCKUS covers the ICX 8100 with a limited lifetime warranty and 90 days of free RUCKUS TAC support; continued TAC access needs a RUCKUS support contract. SourceIT supplies it locally in Singapore with a GST invoice. The power cord and transceivers are not included. Email sales@sourceit.com.sg for a quote.
RUCKUS ICX 8100-C16P ICX8100-C16P Datasheet — Technical Specifications
General
| Product Name | RUCKUS ICX 8100-C16P Switch |
| Part Number | ICX8100-C16P |
| RUCKUS Description | RUCKUS ICX 8100 Switch, 16x10/100/1000 Mbps PoE+ 802.3at, 30W Class 4 ports, 2x1GbE SFP uplink-ports, 124W PoE budget |
| Form Factor | Compact, fanless |
| Manufacturer Warranty | Limited lifetime warranty; 90 days RUCKUS TAC support (RUCKUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Ports
| Access Ports | 16 x 10/100/1000 Mbps RJ-45, PoE+ 802.3at (30 W Class 4 per port) |
| Uplink Ports | 2 x 1 GbE SFP |
| PoE Budget | 124 W |
Performance
| Switching Capacity | 72 Gbps (RUCKUS figure for the ICX 8100-C16P model line; the full rate assumes 10 GbE uplinks) |
| Forwarding Rate | 54 Mpps |
| MAC Addresses | 32K |
| VLANs | 4,095 |
Layer 2 / Layer 3
| Positioning | Layer 2 access switch |
| Layer 3 | Static routing only; dynamic routing not supported (RUCKUS data sheet) |
Power & Cooling
| Maximum Power Consumption | 152 W (100% traffic, full PoE load) |
| Cooling | Fanless (silent operation) |
Physical & Environmental
| Operating Temperature | 0°C to 45°C at sea level |
Figures are taken from the RUCKUS ICX 8100 data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
RUCKUS One (cloud), SmartZone (on premises) or RUCKUS Unleashed (controller-less), plus CLI and web-based standalone management.
Powering Access Points
802.3at PoE+ up to 30 W per port from a shared 124 W budget. For Wi-Fi 7 APs or devices that need 802.3bt, look at the ICX 8200 PoE+++ models.
Optics
The uplink ports accept 1 GbE SFP optics. Transceivers are sold separately; ask us for RUCKUS-qualified modules.
Stacking
RUCKUS documents are not consistent on ICX 8100 stacking (the product pages list stacking as not supported, while the data sheet table shows up to 4 units). Please confirm with us before designing a stack.
Package Contents & RUCKUS ICX 8100 Ordering Information
In the Box
One ICX 8100-C16P switch. The power cord and transceivers are not included (per the RUCKUS data sheet). Rack mount kits are listed by RUCKUS as separate accessories; confirm with us before ordering if you need one.
RUCKUS ICX 8100 Switches — Ordering Information
| RUCKUS ICX 8100-C08PF | 8 x 1G PoE+, 2 x 1G SFP, 124 W PoE | ICX8100-C08PF |
| RUCKUS ICX 8100-C08PF-X | 8 x 1G PoE+, 2 x 1/10G SFP+, 124 W PoE | ICX8100-C08PF-X |
| RUCKUS ICX 8100-C16P (this listing) | 16 x 1G PoE+, 2 x 1G SFP, 124 W PoE | ICX8100-C16P |
| RUCKUS ICX 8100-C16P-X | 16 x 1G PoE+, 2 x 1/10G SFP+, 124 W PoE | ICX8100-C16P-X |
| RUCKUS ICX 8100-24 | 24 x 1G, 4 x 1G SFP | ICX8100-24 |
| RUCKUS ICX 8100-24-X | 24 x 1G, 4 x 1/10G SFP+ | ICX8100-24-X |
| RUCKUS ICX 8100-24P | 24 x 1G PoE+, 4 x 1G SFP, 370 W PoE | ICX8100-24P |
| RUCKUS ICX 8100-24P-X | 24 x 1G PoE+, 4 x 1/10G SFP+, 370 W PoE | ICX8100-24P-X |
| RUCKUS ICX 8100-48 | 48 x 1G, 4 x 1G SFP | ICX8100-48 |
| RUCKUS ICX 8100-48-X | 48 x 1G, 4 x 1/10G SFP+ | ICX8100-48-X |
| RUCKUS ICX 8100-48P | 48 x 1G PoE+, 4 x 1G SFP, 370 W PoE | ICX8100-48P |
| RUCKUS ICX 8100-48P-X | 48 x 1G PoE+, 4 x 1/10G SFP+, 370 W PoE | ICX8100-48P-X |
| RUCKUS ICX 8100-48PF | 48 x 1G PoE+, 4 x 1G SFP, 740 W PoE | ICX8100-48PF |
| RUCKUS ICX 8100-48PF-X | 48 x 1G PoE+, 4 x 1/10G SFP+, 740 W PoE | ICX8100-48PF-X |
The -X models have 1/10 GbE SFP+ uplinks; the standard models have 1 GbE SFP uplinks.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS ICX 8100 Switch Data Sheet |
| RUCKUS product page | RUCKUS ICX 8100-C16P |
| Technical specifications | RUCKUS ICX 8100 Switch Technical Specifications |
| Installation guide | RUCKUS ICX 8100 Hardware Installation Guide |
| Quick setup guide | RUCKUS ICX 8100 Quick Setup Guide |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting ICX8100-C16P.
Frequently Asked Questions — RUCKUS ICX 8100-C16P ICX8100-C16P
How much PoE does the ICX 8100-C16P provide?
A 124 W budget shared across 16 PoE+ ports, up to 30 W per port (802.3at).
What is the difference between ICX8100-C16P and the -X model?
The uplinks: this model has 1 GbE SFP uplinks; the ICX8100-C16P-X has 1/10 GbE SFP+ uplinks.
Does it do Layer 3 routing?
Static routing only. The ICX 8100 is a Layer 2 access switch; for OSPF, VRRP and other dynamic routing, see the ICX 8200 with its premium licence.
Can I manage it from the cloud?
Yes — RUCKUS One. It can also be managed by SmartZone, RUCKUS Unleashed, the CLI or the web interface.
What warranty and support come with it?
A RUCKUS limited lifetime warranty with 90 days of RUCKUS TAC support, supplied by SourceIT with local support and a GST invoice.
