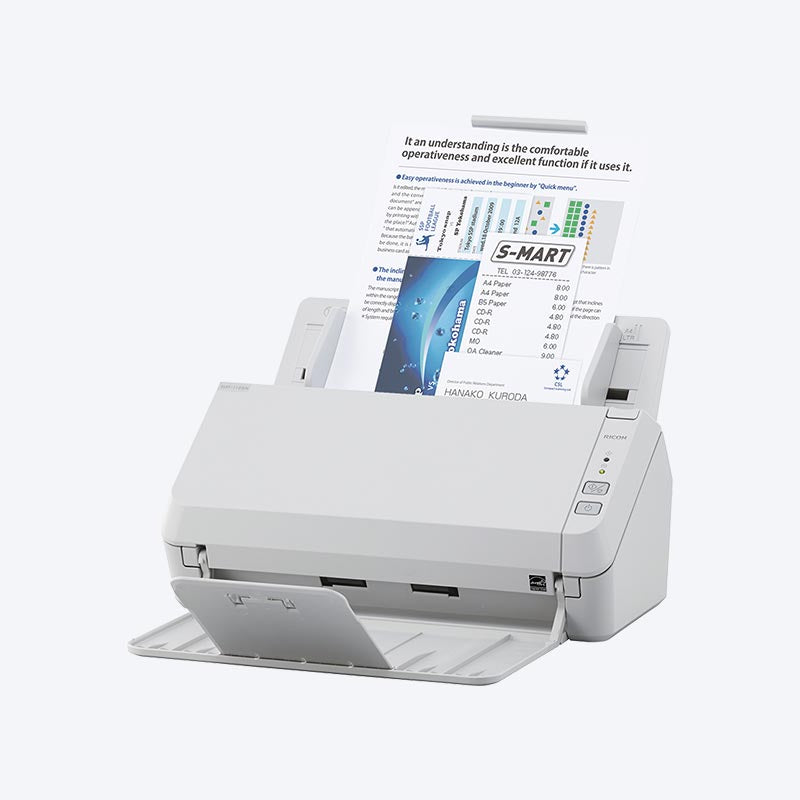

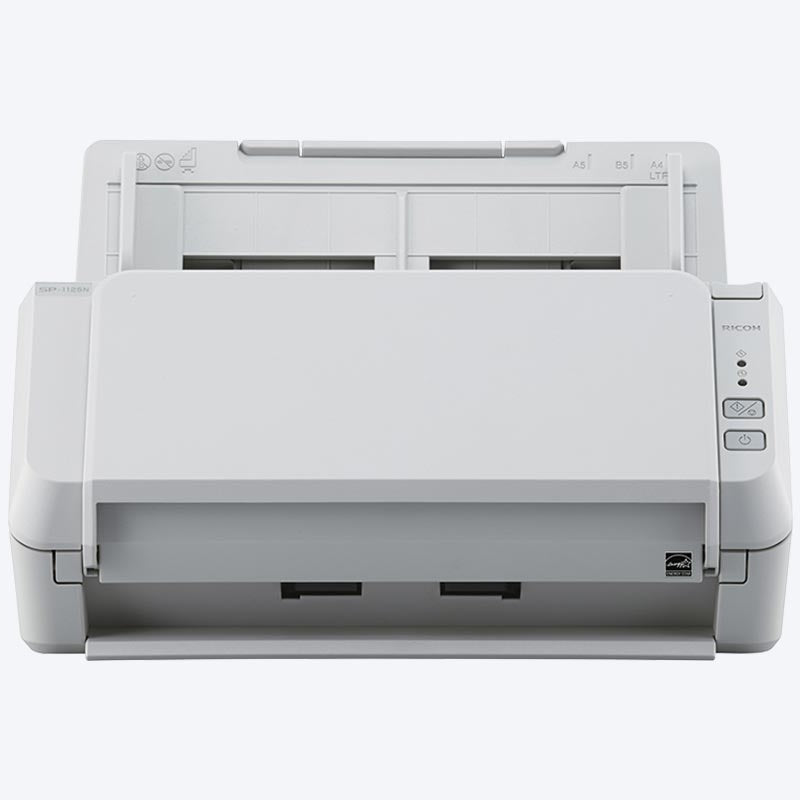

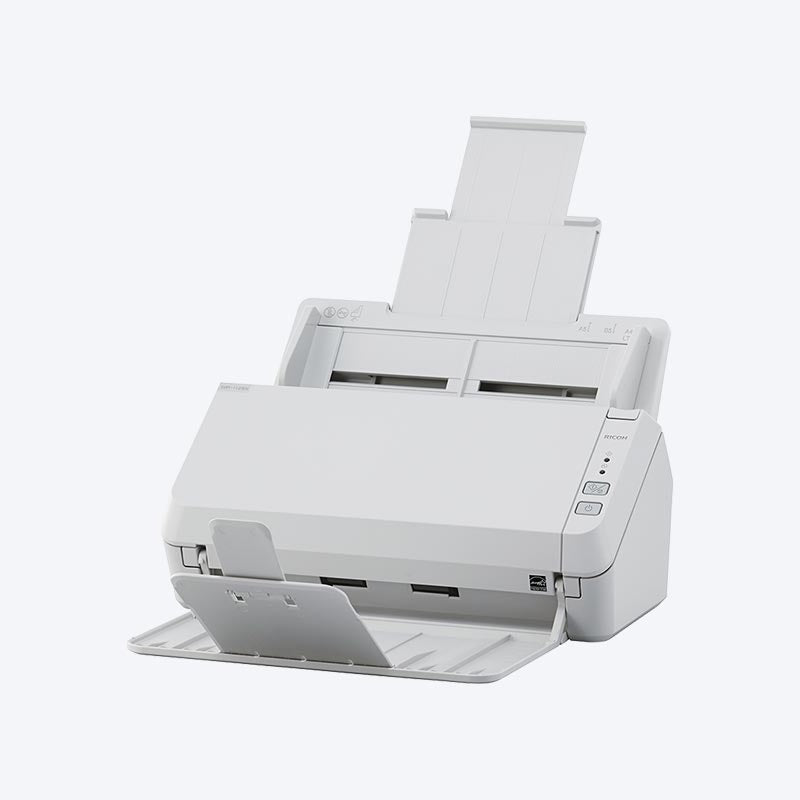

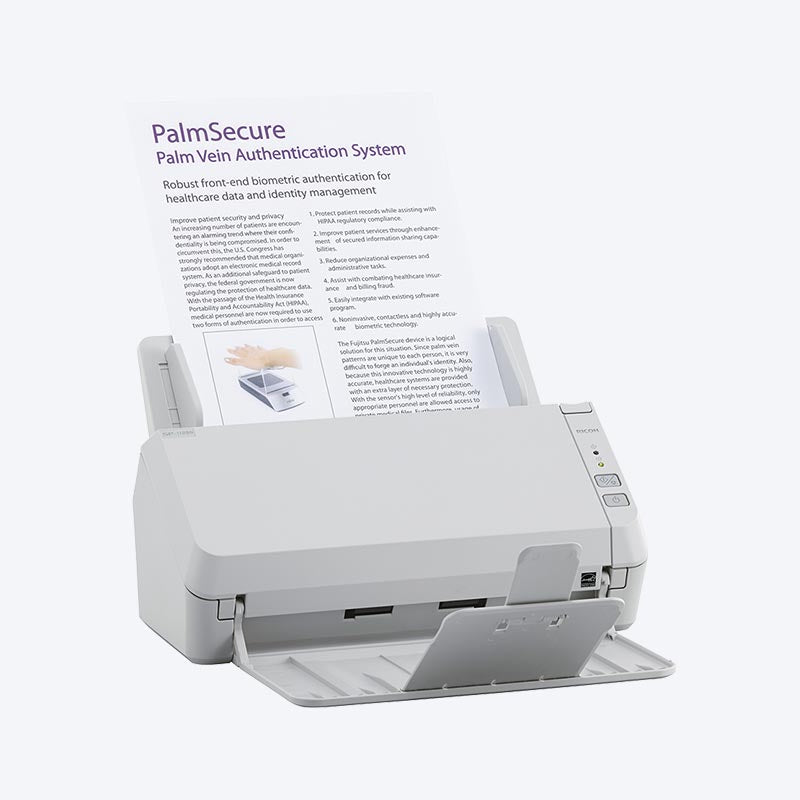

Ricoh SP-1125N A4 Duplex Network Document Scanner
PRODUCT DESCRIPTION
Ricoh SP-1125N A4 Duplex Network Document Scanner, 25 ppm / 50 ipm, USB 3.2 & Gigabit Ethernet (PA03811-B011) - 1 Year Local Warranty
25 ppm Duplex Scanning in a Compact Body
The Ricoh SP-1125N is the mid-range model of Ricoh's SP-1120N / SP-1125N / SP-1130N line of compact A4 duplex network scanners. It scans at 25 pages per minute simplex and 50 images per minute duplex (A4 portrait, 200/300 dpi), holds 50 sheets in the ADF and is rated by Ricoh for an expected daily volume of 4,000 sheets.
Simple Two-Button Operation
Ricoh designed these SP series models so anyone can scan: there are just two buttons, Scan/Stop and Power ON/OFF. The compact 298 x 135 x 133 mm body weighs 2.5 kg and fits on a reception counter or a shared desk, and you can add documents to the ADF while a scan is running.
Reliable Feeding for Mixed Documents
The SP-1125N accepts paper from 50 to 209 g/m², documents from 52 x 74 mm up to 216 x 355.6 mm, long pages up to 3,048 mm and plastic cards up to 0.76 mm thick. Brake rollers separate pages accurately and an ultrasonic sensor detects overlapping sheets, helping prevent multi-feeds and lost information.
USB 3.2 and Wired Network Built In
Connect by USB 3.2 Gen 1x1 or share the scanner on the office network over the built-in 10/100/1000BASE-T Ethernet port. PaperStream IP for SP Series (TWAIN/ISIS) cleans up scanned images automatically, and PaperStream Capture and PaperStream ClickScan are supplied for everyday scanning workflows.
Need help choosing? Email sales@sourceit.com.sg with your daily volume, document types and connection needs and we will size it for you.
Ricoh SP-1125N Datasheet — Technical Specifications
General
| Product Name | Ricoh SP-1125N Image Scanner |
| Part Number | PA03811-B011 |
| Series | Ricoh SP series (A4 ADF) |
| Scanner Type | ADF (Automatic Document Feeder), Duplex |
| Local Warranty (Singapore) | 1 year, supplied by SourceIT with a GST invoice |
Scanning
| Image Sensor | Single line CMOS-CIS x 2 (front x 1, back x 1) |
| Light Source | RGB LED x 2 (front x 1, back x 1) |
| Optical Resolution | 600 dpi |
| Output Resolution | 50 to 600 dpi (1 dpi increments), 1,200 dpi (driver) |
| Scanning Speed (A4 Portrait) | Simplex 25 ppm / Duplex 50 ipm (200/300 dpi) |
| Output Format | Colour 24-bit, Grayscale 8-bit, Monochrome 1-bit |
| Background Colour | White |
Paper Handling
| Maximum Document Size | 216 x 355.6 mm (8.5 x 14 in) |
| Minimum Document Size | 52 x 74 mm (2.0 x 2.9 in) |
| Long Page Scanning | Up to 3,048 mm (120 in) |
| Paper Weight | 50 to 209 g/m² (13.4 to 56 lb) |
| Plastic Cards | 0.76 mm or less |
| ADF Capacity | 50 sheets (A4 80 g/m²); documents can be added while scanning |
| Expected Daily Volume | 4,000 sheets |
| Multifeed Detection | Overlap detection (ultrasonic sensor) |
Connectivity & Power
| Interface | USB 3.2 Gen 1x1 / USB 2.0 / USB 1.1; Ethernet 10BASE-T / 100BASE-TX / 1000BASE-T |
| Power Requirements | AC 100 to 240 V ±10% |
| Power Consumption | Operating 18 W or less; Power Saving 2 W or less; Auto Standby (Off) 0.3 W or less |
Physical & Environmental
| Dimensions (W x D x H) | 298 x 135 x 133 mm |
| Weight | 2.5 kg (5.5 lb) |
| Operating Temperature | 5 to 35 °C |
| Operating Humidity | 20 to 80% (non-condensing) |
| Environmental Compliance | ENERGY STAR®, RoHS |
Compatibility & Software Support
Supported Operating Systems
Windows 11, Windows 10, Windows Server 2025 / 2022 / 2019 / 2016, macOS and Linux (Ubuntu), per Ricoh's SP-1125N datasheet.
Drivers
PaperStream IP for SP Series (TWAIN / TWAIN x64 / ISIS), WIA driver, Image Scanner Driver for macOS (ICA) and Image Scanner Driver for Linux (SANE).
Software
PaperStream Capture, PaperStream ClickScan, Software Operation Panel, Error Recovery Guide, PaperStream Central Admin, Network Setup Tool for SP Series and SP Series Online Update. PaperStream Capture Pro is available as a separate licence — ask us for pricing.
Image Processing
Multi-image output, automatic colour detection, automatic page size detection, blank page detection, iDTC / Advanced DTC / SDTC, error diffusion, dither, de-screen, emphasis, dropout colour, sRGB output, split image, de-skew, edge filler, vertical streak reduction, digital endorser, background pattern removal, character thickness, character augmentation and character extraction.
Package Contents & SP Series Ordering Information
In the Box (per Ricoh)
SP-1125N scanner, AC adapter, USB cable and setup DVD-ROM.
Ricoh SP Series Models
| Model | Speed (ppm / ipm) | Type | Interface | Part No. |
| SP-1120N | 20 / 40 | ADF | USB 3.2 + Ethernet | PA03811-B001 |
| SP-1125N (this listing) | 25 / 50 | ADF | USB 3.2 + Ethernet | PA03811-B011 |
| SP-1130N | 30 / 60 | ADF | USB 3.2 + Ethernet | PA03811-B021 |
| SP-1425 | 25 / 50 | ADF + Flatbed | USB 2.0 | PA03753-B001 |
Consumable: Roller Set PA03708-0001 (brake and pick rollers), replacement guideline every 100,000 sheets per Ricoh.
Need a flatbed as well? The SP-1425 pairs a 50-sheet duplex ADF with an A4 flatbed.
Datasheet & Downloads
| Ricoh datasheet | SP-1125N Datasheet (PDF) |
| Ricoh product page | SP-1125N on pfu.ricoh.com |
| Drivers & software | SP-1120N / SP-1125N / SP-1130N downloads |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting PA03811-B011.
Frequently Asked Questions — Ricoh SP-1125N
How fast is the SP-1125N?
25 ppm simplex and 50 ipm duplex on A4 portrait at 200/300 dpi. The SP-1120N (20 ppm) and SP-1130N (30 ppm) share the same body if you need a different speed.
Can it be shared on the network?
Yes. It has a built-in wired Gigabit Ethernet port as well as USB 3.2 Gen 1x1. Wi-Fi is not listed in Ricoh's specifications.
Can it scan ID cards?
Yes. It scans plastic cards up to 0.76 mm thick through the ADF.
Does it work with a Mac or Linux?
Yes. Ricoh supplies an ICA driver for macOS and a SANE driver for Linux (Ubuntu) alongside the Windows TWAIN/ISIS drivers.
What warranty do I get?
1 year local warranty in Singapore, supplied by SourceIT with a GST invoice.
