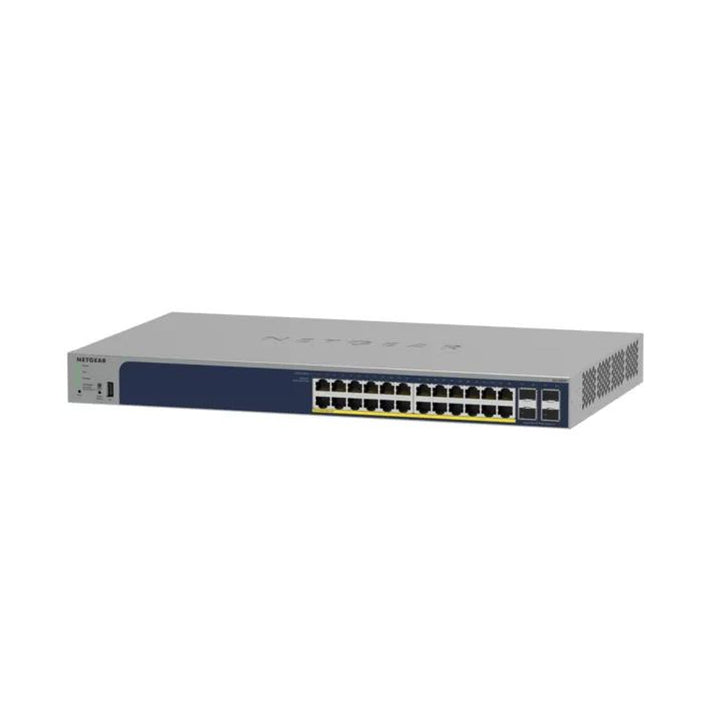

NETGEAR GS728TP 24-Port Gigabit PoE+ Smart Cloud Managed Switch with 4 SFP (190W)
PRODUCT DESCRIPTION
NETGEAR GS728TP 24-Port Gigabit Ethernet PoE+ Smart Switch with 4 SFP Ports and Remote/Cloud Management (190W) (GS728TP-300UKS) - Limited Lifetime Local Warranty
Standalone Smart Switch, Cloud Optional
The NETGEAR GS728TP (GS728TPv3) is a 24-port Gigabit PoE+ smart switch with 4 dedicated SFP ports, designed for converged networks big or small. Manage it locally through the web GUI, or remotely through the NETGEAR Insight mobile app or Insight Cloud Portal with zero-touch provisioning.
All Ports PoE+, 190W Budget
Every copper port delivers IEEE 802.3at PoE+ (up to 30W per port) from a 190W budget to power VoIP phones, IP cameras and wireless access points, with advanced per-port PoE controls and operation scheduling for remote power management.
Quieter Operation
With a lower PoE budget than the GS728TPP, the GS728TP draws 226 W max and NETGEAR rates its two fans at 26.80 dBA at 25 °C.
Advanced L2+ Features
IPv4/IPv6 static routing, LACP link aggregation, DiffServ QoS, Private VLAN, Auto-VoIP and Auto-Video VLAN, 802.1X, DHCP snooping, IGMP/MLD snooping and ACLs, with a USB port for configuration backup and firmware updates.
Need help choosing? Email sales@sourceit.com.sg with your port count, PoE and uplink needs and we will size it for you.
NETGEAR GS728TP Datasheet — Technical Specifications
General
| Product Name | NETGEAR GS728TP 24-Port Gigabit Ethernet PoE+ Smart Switch with 4 SFP Ports and Remote/Cloud Management (190W) |
| Part Number | GS728TP-300UKS |
| Hardware Version | GS728TPv3 |
| Series | NETGEAR Smart Cloud Switches (Insight Managed) |
| Local Warranty (Singapore) | Limited lifetime, supplied by SourceIT with a GST invoice |
Interfaces
| Ethernet Ports | 24 x 10/100/1000BASE-T RJ-45 |
| PoE | 24 x IEEE 802.3at PoE+ ports (all copper ports), 190W total budget |
| Fiber Ports | 4 x dedicated 1000BASE-X SFP |
| USB | 1 x USB (configuration upload/backup and firmware updates) |
Performance
| Switching Bandwidth | 56 Gbps |
| Forwarding Rate | 41.67 Mpps (64-byte packets) |
| Latency | 4.004 µs (1G copper, 64-byte packets) |
| MAC Address Table | 16K |
| Packet Buffer | 1.5 MB |
| Jumbo Frames | Up to 10K bytes |
| VLANs | Up to 256 |
Software Features
| Layer 2 | 802.1Q VLANs, Private VLAN, Auto-VoIP, Auto-Video VLAN, MVR, STP/RSTP/MSTP, LACP (16 LAGs, up to 8 members each), LLDP-MED, storm control, cable test, Energy Efficient Ethernet |
| Layer 3 Lite | IPv4/IPv6 static routing (32 IPv4 + 32 IPv6 routes), 512 ARP entries |
| QoS & Multicast | DiffServ QoS; IGMP snooping (v1/v2/v3) and MLD snooping; 512 multicast groups |
| Security | 100 shared ACLs (MAC/IP/IPv6 ingress), 802.1X, DHCP snooping |
| Management | Web GUI (HTTP/HTTPS), NETGEAR Insight mobile app or Insight Cloud Portal, zero-touch provisioning, Lite CLI, dual firmware image, PoE scheduling |
Power & Environmental
| Power Supply | 1 x internal fixed PSU, 100–240 V AC, 50–60 Hz |
| Power Consumption | 226 W max (full PoE and line-rate traffic); 13 W idle |
| Heat Dissipation | 772.9 BTU/hr |
| Cooling | 2 internal fixed fans, 26.80 dBA at 25 °C |
| MTBF | 1,751,613 hours at 25 °C |
| Operating Temperature | 0 to 50 °C |
| Operating Humidity | 90% max RH, non-condensing |
Physical
| Dimensions (W x D x H) | 440 x 257 x 43.2 mm |
| Weight | 3.78 kg |
| Mounting | Rackmount (brackets and screws included) or desktop with rubber footpads |
Certifications
| EMC | CE, FCC Class A, RCM, ICES Class A, VCCI, KC, BSMI, UKCA |
| Safety | CB, CE, CSA, RCM, KC, BSMI |
Compatibility & Software Support
Management
Local web browser GUI (HTTP/HTTPS) or Lite CLI, or NETGEAR Insight remote/cloud management through the Insight mobile app or Insight Cloud Portal. NETGEAR notes that changes made in Insight are synchronized to the device UI, and vice versa.
Typical Use
SMB, education, hospitality and retail networks powering up to 24 PoE+ phones, access points or cameras within a 190W budget, with 4 SFP ports for fiber uplinks. For a 380W budget see the GS728TPP.
Package Contents & GS728TP / GS752TP Smart Cloud PoE+ Switch Ordering Information
In the Box
GS728TP switch, AC power cord with C13 connector (localized), rack-mount brackets and screws, rubber footpads, rubber protection caps in the SFP sockets, installation guide.
NETGEAR GS724TP / GS728TP / GS752TP Smart Cloud PoE+ Switch Models
| Model | Ports | Part No. |
| GS724TP | 24 x GE + 2 x SFP (PoE+, 190 W) | GS724TP-300EUS |
| GS728TP (this listing) | 24 x GE + 4 x SFP (24 x PoE+, 190 W) | GS728TP-300UKS |
| GS728TPP | 24 x GE + 4 x SFP (24 x PoE+, 380 W) | GS728TPP-300UKS |
| GS752TP | 48 x GE + 4 x SFP (48 x PoE+, 380 W) | GS752TP |
| GS752TPP | 48 x GE + 4 x SFP (48 x PoE+, 760 W) | GS752TPP-300UKS |
Other models are available to order — email sales@sourceit.com.sg for a quote.
Datasheet & Downloads
| NETGEAR datasheet | GS728TPv3 / GS728TPPv3 / GS752TPv3 / GS752TPPv3 Datasheet (PDF) |
| Installation guide | GS728TPv3 / GS728TPPv3 Installation Guide (PDF) |
| User manual | GS728TPv3 / GS728TPPv3 / GS752TPv3 / GS752TPPv3 User Manual (PDF) |
| NETGEAR product page | GS728TP on netgear.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GS728TP-300UKS.
Frequently Asked Questions — NETGEAR GS728TP
How much PoE power does the GS728TP provide?
190W total, with PoE+ (802.3at) on all 24 copper ports and up to 30W on any single port.
Can it be managed from the cloud?
Yes. NETGEAR lists NETGEAR Insight app and Cloud Portal management alongside the local web GUI.
Does it have fiber uplinks?
Yes, 4 dedicated 1G SFP ports (SFP modules sold separately).
How does it differ from the GS728TPP?
Same 24 PoE+ ports and 4 SFP ports; the GS728TP has a 190W PoE budget versus 380W on the GS728TPP, with lower maximum power draw (226 W vs 427 W) and lower fan noise.
What warranty do I get?
Limited lifetime local warranty in Singapore, supplied by SourceIT with a GST invoice.
