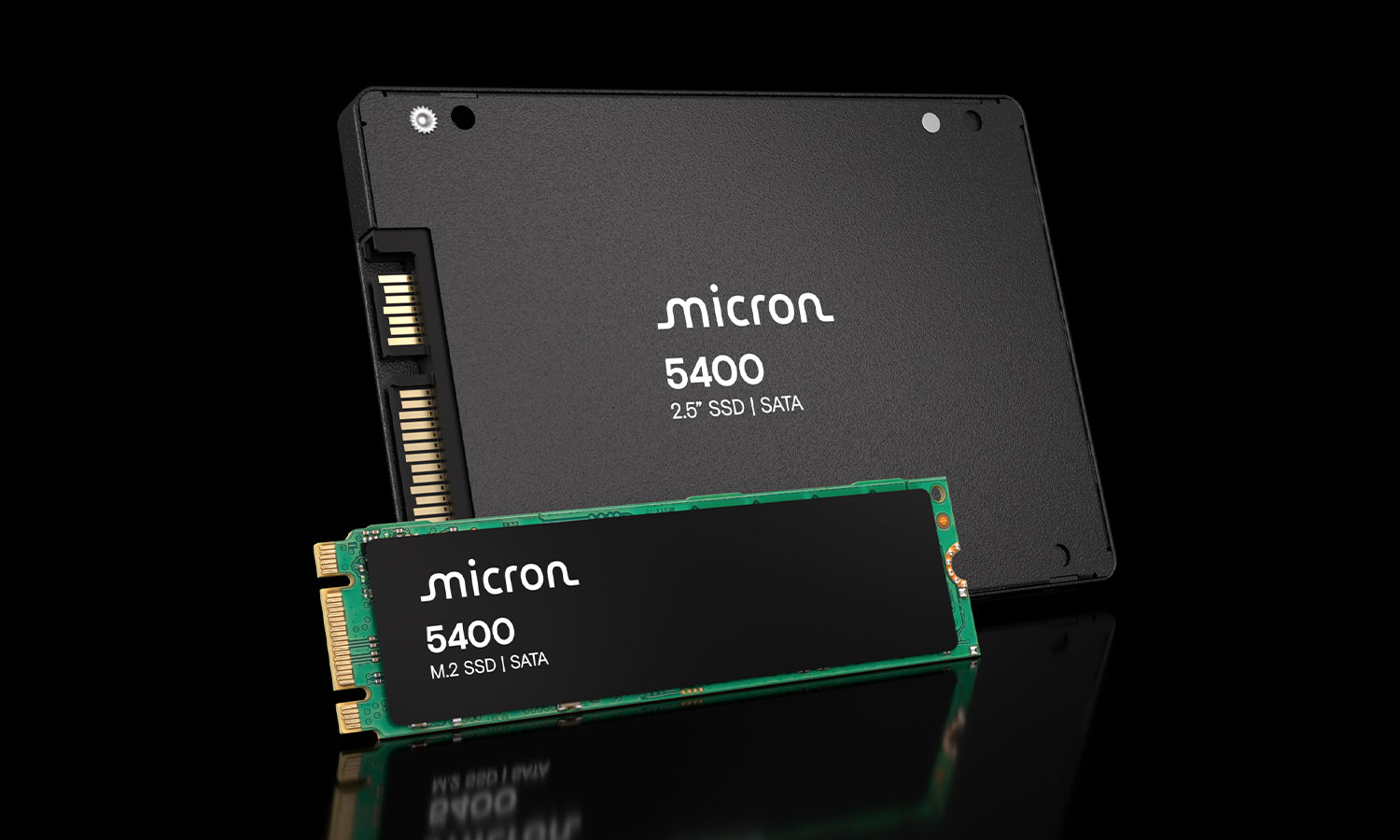

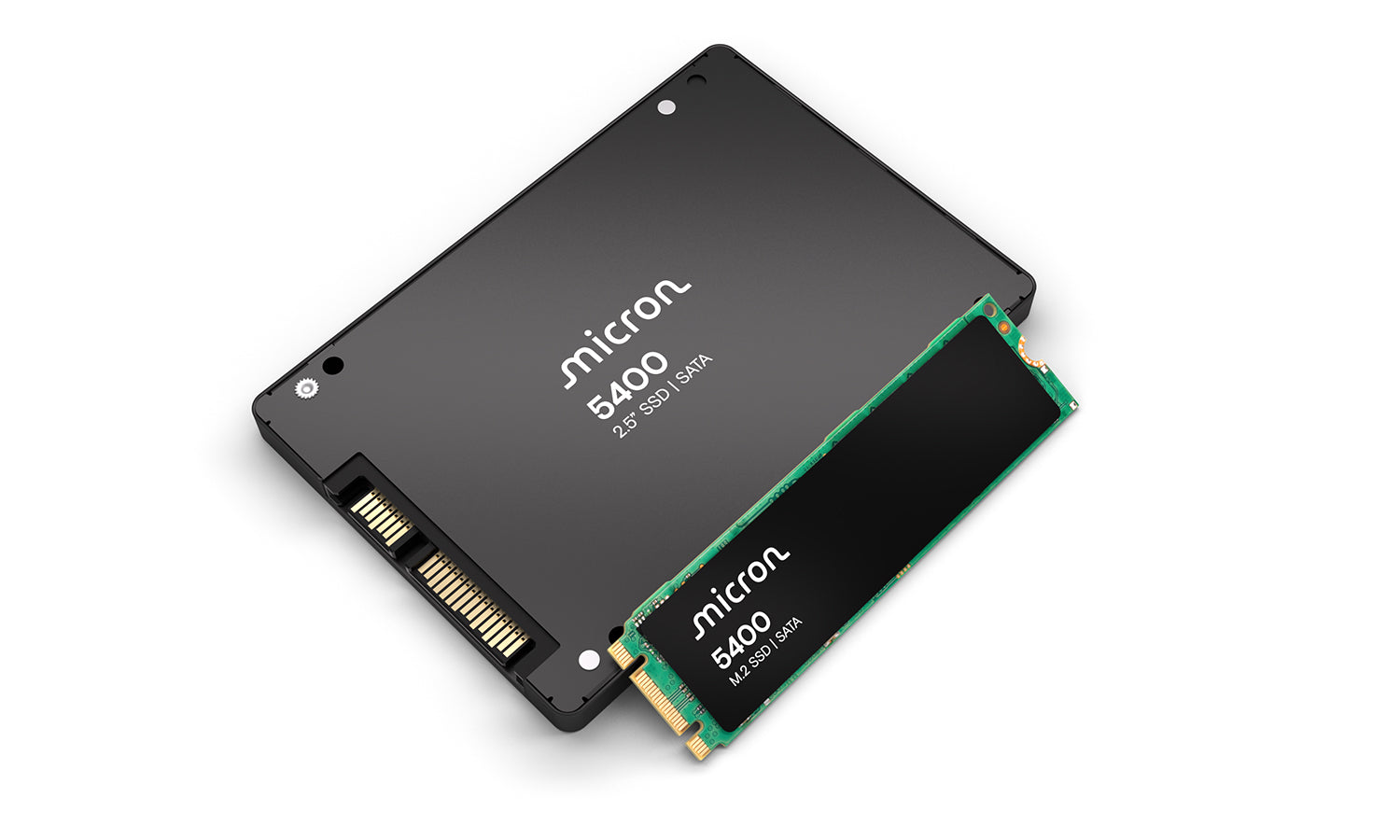

Micron 5400 PRO 480GB SATA 2.5" 7mm Enterprise SSD (Non-SED)
PRODUCT DESCRIPTION
Micron 5400 PRO 480GB SATA 2.5" 7mm Enterprise SSD MTFDDAK480TGA-1BC1ZABYYR - 5 Years Warranty
Data Center SATA, Upgraded
The Micron 5400 PRO was the world's first data center SATA SSD built on 176-layer NAND, a drop-in upgrade for SATA server bays.
Reliability First
3 million hours MTTF, power-loss protection with capacitor monitoring and end-to-end data protection keep data safe.
Consistent Performance
Up to 540 MB/s reads and 95,000 random-read IOPS with 1,324 TBW endurance and a 5-year warranty.
Micron 5400 PRO 480GB Datasheet — Technical Specifications
General
| Product Name | Micron 5400 PRO 480GB |
| Part Number | MTFDDAK480TGA-1BC1ZABYYR |
| Form Factor | 2.5-inch, 7mm |
| Interface | SATA 6Gb/s |
| Capacity | 480GB |
| Encryption | Non-SED |
| Warranty | 5 years |
Performance
| Sequential Read / Write | Up to 540 / 520 MB/s |
| Random 4K Read / Write | Up to 95,000 / 37,000 IOPS |
| Latency (typical) | Read 170 µs / write 42 µs |
Endurance & Reliability
| Endurance | 1,324 TBW (1.5 DWPD class) |
| MTTF | 3 million hours |
| UBER | <1 sector per 10^17 bits read |
| Data Protection | Enhanced power-loss protection with capacitor monitoring, end-to-end data path protection |
Power & Environment
| Power | Idle 1.5 W, read 2.5 W, write 3.1 W |
| Operating Temperature | 0 to 70 °C |
NAND
| Flash | Micron 176-layer 3D TLC NAND |
Compatibility & Applications
Typical Use
Read-intensive server boot, virtualisation, web and file serving, and upgrades from SATA HDDs or older SATA SSDs in existing server bays.
Compatibility
Fits any standard 2.5-inch SATA bay or hot-swap carrier (7mm height).
Selection Tip
Need NVMe speed for boot? See the Micron 7450 PRO M.2.
Package Contents & Micron Ordering Information
In the Box
1 x Micron 5400 PRO 480GB 2.5-inch SATA SSD (single pack). Mounting screws and cables not included.
Micron Data Center Memory & SSDs at SourceIT
| Model | Key feature |
| MTC40F2046S1RC64BH1 | DDR5 RDIMM 64GB 2Rx4 6400 MT/s CL52 (tray) |
| MTC40F2047S1RC64BB1R | DDR5 RDIMM 128GB 2Rx4 6400 MT/s CL52, 32Gb die |
| MTFDDAK480TGA-1BC1ZABYYR (this listing) | 5400 PRO 480GB SATA 2.5" 7mm |
| MTFDDAK1T9TGA-1BC1ZABYYR | 5400 PRO 1.92TB SATA 2.5" 7mm |
| MTFDKBA480TFR-1BC15ABYYR | 7450 PRO 480GB NVMe Gen4 M.2 2280, TCG Opal |
| MTFDKBA960TFR-1BC15ABYYR | 7450 PRO 960GB NVMe Gen4 M.2 2280, TCG Opal |
| MTFDLAL3T8THG-1BP1DFCYYR | 7600 PRO 3.84TB NVMe Gen5 U.2 15mm |
| MTFDLAL15T3THG-1BP1DFCYYR | 7600 PRO 15.36TB NVMe Gen5 U.2 15mm |
| MTFDLBQ7T6THA-1BK1DABYYR | 9550 PRO 7.68TB NVMe Gen5 E3.S 7.5mm |
Official Micron Videos
Micron Data Center SSDs: When Your Business Demands More (official Micron Technology channel)
How Solid State Drives (SSDs) Are Made — Inside the Manufacturing Process (official Micron Technology channel)
Datasheet & Downloads
| Product brief | Micron 5400 SATA SSD Product Brief (PDF) |
| Technical specification | Micron 5400 SSD Technical Product Specification (PDF) |
| Product page | Micron 5400 SATA SSD on micron.com |
Frequently Asked Questions — Micron 5400 PRO 480GB
Is this an enterprise SSD?
Yes. The 5400 PRO is a data center SATA SSD with power-loss protection.
Is it self-encrypting?
No. This is the non-SED version.
What is the endurance?
1,324 TBW.
What warranty do I get?
5 years Micron warranty.
Do I get a GST invoice?
Yes. Supplied by SourceIT in Singapore with a GST invoice.
