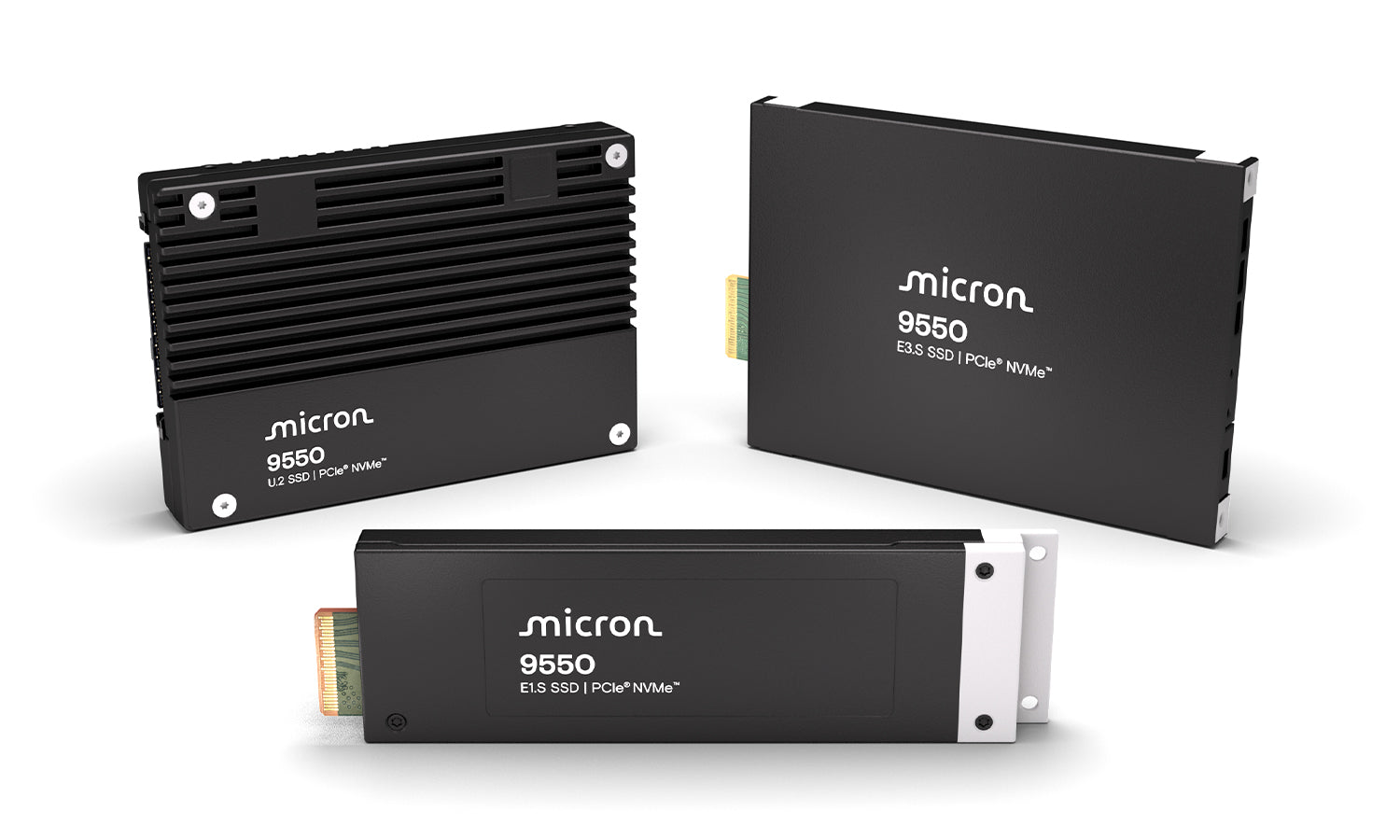

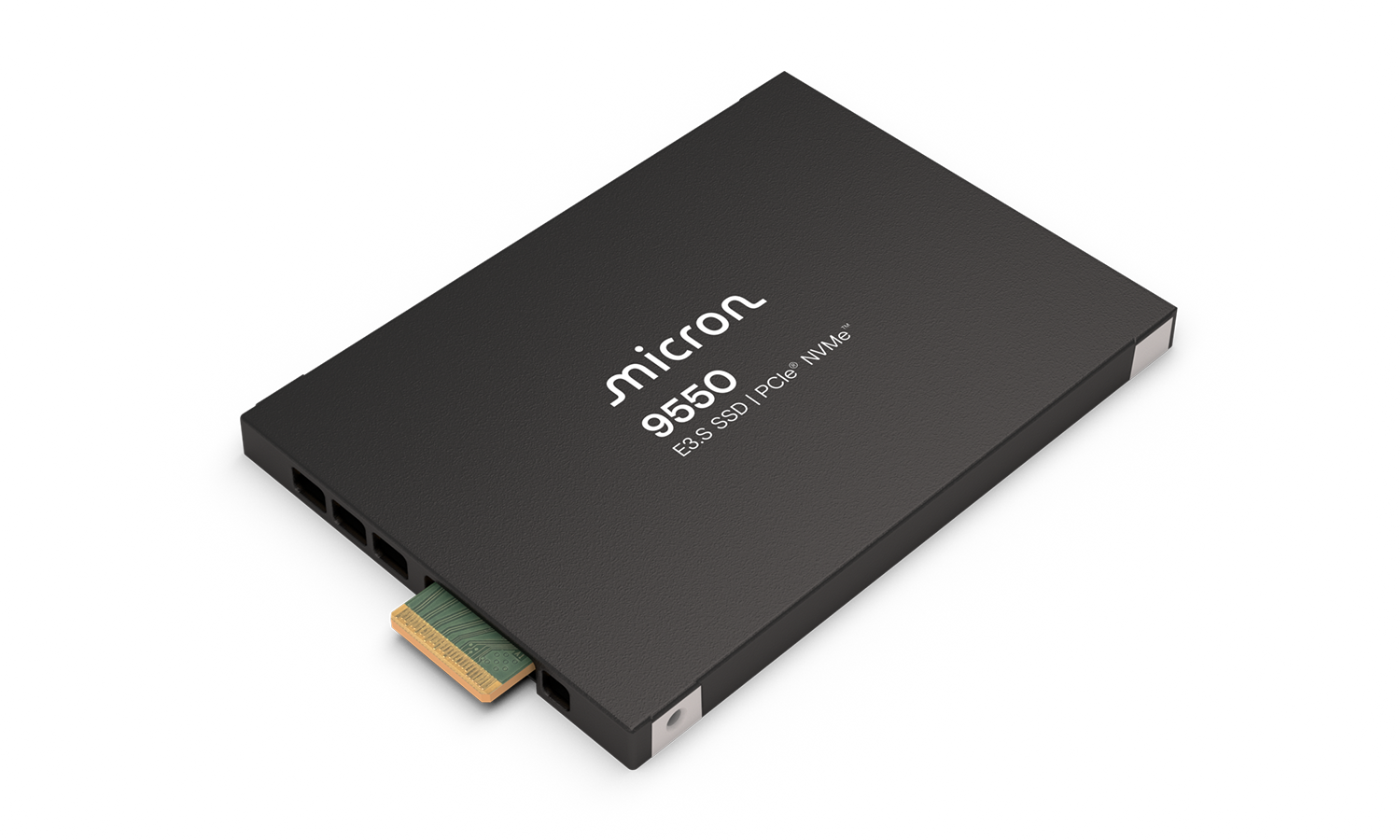

Micron 9550 PRO 7.68TB NVMe PCIe Gen5 E3.S 7.5mm Enterprise SSD
PRODUCT DESCRIPTION
Micron 9550 PRO 7.68TB NVMe PCIe Gen5 E3.S 7.5mm Enterprise SSD MTFDLBQ7T6THA-1BK1DABYYR - 5 Years Warranty
Flagship PCIe Gen5
Micron calls the 9550 the world's fastest data center SSD: up to 14,000 MB/s reads, 10,000 MB/s writes and 3.3 million random-read IOPS.
Built for AI
Designed for AI training and inference, high-performance databases and caching, with Micron's own controller, NAND, DRAM and firmware.
Secure and Efficient
Self-encrypting with TCG Opal, enterprise power-loss protection and a 5-year warranty.
Micron 9550 PRO 7.68TB Datasheet — Technical Specifications
General
| Product Name | Micron 9550 PRO 7.68TB |
| Part Number | MTFDLBQ7T6THA-1BK1DABYYR |
| Form Factor | E3.S 1T, 7.5mm |
| Interface | PCIe Gen5 NVMe 2.0b |
| Capacity | 7.68TB |
| Security | Self-encrypting (SED), TCG Opal; OCP 2.0 support |
| Warranty | 5 years |
Performance
| Sequential Read / Write | Up to 14,000 / 10,000 MB/s |
| Random 4K Read / Write | Up to 3,300,000 / 380,000 IOPS |
| Latency (typical) | Read 60 µs / write 10 µs |
Endurance & Reliability
| Endurance | 14,016 TBW (1 DWPD, 4K random) |
| MTTF | 2 million hours |
| UBER | <1 sector per 10^17 bits read |
| Data Protection | Enterprise power-loss protection |
Power & Physical
| Power | Up to 19 W read, 20 W write, 5 W idle avg |
| Operating Temperature | 0 to 70 °C |
| Dimensions | 76.00 x 112.75 x 7.58 mm |
NAND
| Flash | Micron G8 TLC NAND |
Compatibility & Applications
Typical Use
GPU servers, AI training and inference data, high-performance databases and caching tiers.
Compatibility
Needs an E3.S (EDSFF) 1T NVMe bay; not compatible with U.2 or M.2 slots.
Selection Tip
Need U.2? See the Micron 7600 PRO.
Package Contents & Micron Ordering Information
In the Box
1 x Micron 9550 PRO 7.68TB E3.S NVMe SSD (single pack).
Micron Data Center Memory & SSDs at SourceIT
| Model | Key feature |
| MTC40F2046S1RC64BH1 | DDR5 RDIMM 64GB 2Rx4 6400 MT/s CL52 (tray) |
| MTC40F2047S1RC64BB1R | DDR5 RDIMM 128GB 2Rx4 6400 MT/s CL52, 32Gb die |
| MTFDDAK480TGA-1BC1ZABYYR | 5400 PRO 480GB SATA 2.5" 7mm |
| MTFDDAK1T9TGA-1BC1ZABYYR | 5400 PRO 1.92TB SATA 2.5" 7mm |
| MTFDKBA480TFR-1BC15ABYYR | 7450 PRO 480GB NVMe Gen4 M.2 2280, TCG Opal |
| MTFDKBA960TFR-1BC15ABYYR | 7450 PRO 960GB NVMe Gen4 M.2 2280, TCG Opal |
| MTFDLAL3T8THG-1BP1DFCYYR | 7600 PRO 3.84TB NVMe Gen5 U.2 15mm |
| MTFDLAL15T3THG-1BP1DFCYYR | 7600 PRO 15.36TB NVMe Gen5 U.2 15mm |
| MTFDLBQ7T6THA-1BK1DABYYR (this listing) | 9550 PRO 7.68TB NVMe Gen5 E3.S 7.5mm |
Official Micron Videos
Micron Data Center SSDs: When Your Business Demands More (official Micron Technology channel)
How Solid State Drives (SSDs) Are Made — Inside the Manufacturing Process (official Micron Technology channel)
Datasheet & Downloads
| Product brief | Micron 9550 NVMe SSD Product Brief (PDF) |
| Technical specification | Micron 9550 SSD Technical Product Specification (PDF) |
| Product page | Micron 9550 NVMe SSD on micron.com |
Frequently Asked Questions — Micron 9550 PRO 7.68TB
Is this an enterprise SSD?
Yes. The 9550 PRO is a data center NVMe SSD rated at 1 DWPD.
Will it fit a U.2 bay?
No. It is an E3.S 1T (7.5mm) EDSFF drive.
Is it self-encrypting?
Yes. This version supports TCG Opal.
What warranty do I get?
5 years Micron warranty.
Do I get a GST invoice?
Yes. Supplied by SourceIT in Singapore with a GST invoice.
