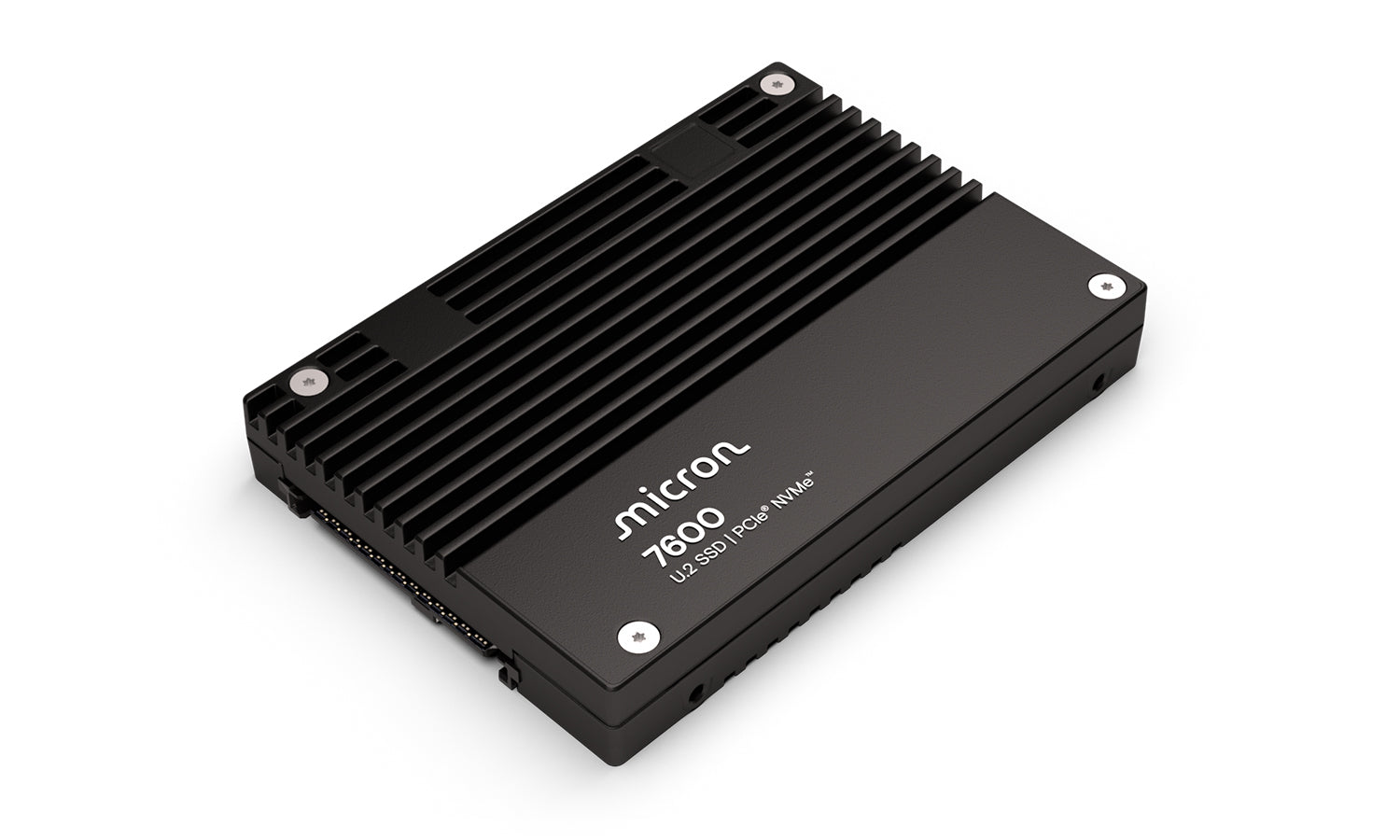

Micron 7600 PRO 15.36TB NVMe PCIe Gen5 U.2 15mm Enterprise SSD
PRODUCT DESCRIPTION
Micron 7600 PRO 15.36TB NVMe PCIe Gen5 U.2 15mm Enterprise SSD MTFDLAL15T3THG-1BP1DFCYYR - 5 Years Warranty
Mainstream PCIe Gen5
The Micron 7600 PRO brings PCIe Gen5 to mainstream servers with up to 12,000 MB/s reads and 2.1 million random-read IOPS.
Consistent Low Latency
Built on Micron G9 NAND for predictable latency in cloud, database and AI workloads.
Secure and Protected
Self-encrypting with TCG Opal, enterprise power-loss protection and a 5-year warranty.
Micron 7600 PRO 15.36TB Datasheet — Technical Specifications
General
| Product Name | Micron 7600 PRO 15.36TB |
| Part Number | MTFDLAL15T3THG-1BP1DFCYYR |
| Form Factor | U.2 2.5-inch, 15mm |
| Interface | PCIe Gen5 NVMe |
| Capacity | 15.36TB |
| Security | Self-encrypting (SED), TCG Opal; OCP 2.5 support |
| Warranty | 5 years |
Performance
| Sequential Read / Write | Up to 12,000 / 7,000 MB/s |
| Random 4K Read / Write | Up to 2,100,000 / 400,000 IOPS |
| Latency (typical) | Read 55 µs / write 15 µs |
Endurance & Reliability
| Endurance | 28,000 TBW (1 DWPD) |
| MTTF | 2 million hours |
| UBER | <1 sector per 10^17 bits read |
| Data Protection | Enterprise power-loss protection |
Power & Physical
| Power | Read 23 W, write 23 W, idle 5 W avg |
| Operating Temperature | 0 to 70 °C |
| Dimensions | 69.85 x 100.45 x 15.00 mm |
NAND
| Flash | Micron G9 TLC NAND |
Compatibility & Applications
Typical Use
Cloud and virtualisation hosts, databases, AI data pipelines and mixed-use server storage.
Compatibility
Needs a U.2 (SFF-8639) NVMe bay; works at Gen4 speeds in PCIe Gen4 servers.
Selection Tip
Want the fastest Gen5 performance in E3.S? See the Micron 9550 PRO.
Package Contents & Micron Ordering Information
In the Box
1 x Micron 7600 PRO 15.36TB U.2 NVMe SSD (single pack). Drive carrier not included.
Micron Data Center Memory & SSDs at SourceIT
| Model | Key feature |
| MTC40F2046S1RC64BH1 | DDR5 RDIMM 64GB 2Rx4 6400 MT/s CL52 (tray) |
| MTC40F2047S1RC64BB1R | DDR5 RDIMM 128GB 2Rx4 6400 MT/s CL52, 32Gb die |
| MTFDDAK480TGA-1BC1ZABYYR | 5400 PRO 480GB SATA 2.5" 7mm |
| MTFDDAK1T9TGA-1BC1ZABYYR | 5400 PRO 1.92TB SATA 2.5" 7mm |
| MTFDKBA480TFR-1BC15ABYYR | 7450 PRO 480GB NVMe Gen4 M.2 2280, TCG Opal |
| MTFDKBA960TFR-1BC15ABYYR | 7450 PRO 960GB NVMe Gen4 M.2 2280, TCG Opal |
| MTFDLAL3T8THG-1BP1DFCYYR | 7600 PRO 3.84TB NVMe Gen5 U.2 15mm |
| MTFDLAL15T3THG-1BP1DFCYYR (this listing) | 7600 PRO 15.36TB NVMe Gen5 U.2 15mm |
| MTFDLBQ7T6THA-1BK1DABYYR | 9550 PRO 7.68TB NVMe Gen5 E3.S 7.5mm |
Official Micron Videos
Micron Data Center SSDs: When Your Business Demands More (official Micron Technology channel)
How Solid State Drives (SSDs) Are Made — Inside the Manufacturing Process (official Micron Technology channel)
Datasheet & Downloads
| Product brief | Micron 7600 NVMe SSD Product Brief (PDF) |
| Technical specification | Micron 7600 SSD Technical Product Specification (PDF) |
| Product page | Micron 7600 NVMe SSD on micron.com |
Frequently Asked Questions — Micron 7600 PRO 15.36TB
Is this an enterprise SSD?
Yes. The 7600 PRO is a data center NVMe SSD rated at 1 DWPD.
Does it work in a Gen4 server?
Yes, at PCIe Gen4 speeds, in a U.2 NVMe bay.
Is it self-encrypting?
Yes. This version supports TCG Opal.
What warranty do I get?
5 years Micron warranty.
Do I get a GST invoice?
Yes. Supplied by SourceIT in Singapore with a GST invoice.
