MAXHUB XBar W70 Kit Windows Teams Rooms Videobar
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION

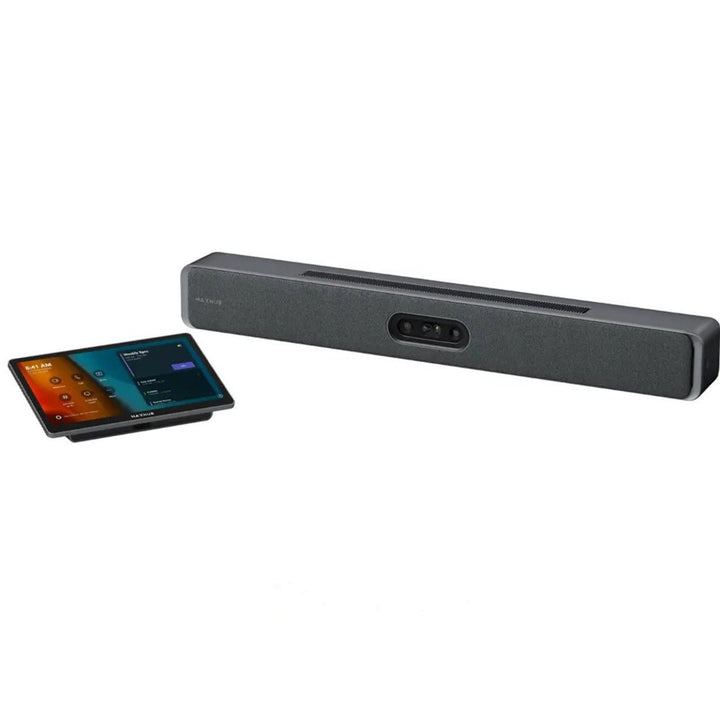

MAXHUB XBar W70 Kit 200MP Quad-Camera Windows Microsoft Teams Rooms Videobar with Intel Core i5 and TCP31T Touch Console (XBar W70 Kit) - 3 Years Local Warranty
Windows Teams Rooms in a Single Videobar
MAXHUB describes the XBar W70 Kit as the industry's first Windows-based Teams Rooms videobar with a 200MP Quad Sight lens. An Intel Core i5-1240P with 16 GB RAM and 256 GB storage runs Windows 11 IoT Enterprise on the videobar itself, and the TCP31T touch console controls the room — no separate room PC required.
200MP Quad Sight Camera with 8x Hybrid Zoom
Wide (130° D / 125° H) and telephoto (52° D / 42° H) cameras with 1/1.55-inch sensors provide 8x hybrid zoom and up to 3840 x 2160 video, with auto framing, speaker tracking, intelligent focus, smart gathering and video fence.
16-Mic Array and Dual 20 W Speakers
A 16-microphone beamforming array picks up voices up to 10 m away and two 20 W speakers deliver clear audio for medium and large rooms.
Built for Room Integration
Three HDMI outputs, an HDMI input, USB-A ports, RJ45 networking, Wi-Fi 6 and Bluetooth 5.2 give integrators the flexibility to connect displays, content sources and peripherals.
Need help choosing? Email sales@sourceit.com.sg with your room size, platform and quantity and we will recommend the right configuration.
MAXHUB XBar W70 Kit Datasheet — Technical Specifications
General
| Product Name | MAXHUB XBar W70 Kit |
| Part Number | XBar W70 Kit |
| Kit Contents | XBar W70 (with standard accessories) x 1, TCP31T Touch Console (with standard accessories) x 1 |
| Series | MAXHUB XBar Series |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Compute
| Processor | Intel Core i5-1240P |
| Memory | 16 GB |
| Storage | 256 GB |
| Operating System | Windows 11 IoT Enterprise SAC |
Camera
| Camera System | 200MP Quad Sight (wide + telephoto) |
| Sensor | 1/1.55 inch |
| Wide Camera FOV | 130° (D), 125° (H), 50° (V) |
| Telephoto Camera FOV | 52° (D), 42° (H), 32° (V) |
| Zoom | 8x hybrid |
| Resolutions | 3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 720, 1024 x 576, 960 x 540, 800 x 600, 640 x 360 |
| AI Features | Auto framing, speaker tracking, intelligent focus, smart gathering, video fence |
Audio
| Microphones | 16-mic array |
| Pick-up Range | 10 m |
| Speakers | 2 x 20 W |
Touch Console (TCP31T)
| Display | 11.6-inch |
| Resolution | 1920 x 1080 |
Ports
| HDMI Out | 3 |
| HDMI In | 1 |
| USB | 1 x USB 3.0 Type-A, 1 x USB 2.0 Type-A |
| Network | RJ45 |
| Power | DC in |
Wireless
| Wi-Fi | Wi-Fi 6, 2x2 MIMO |
| Bluetooth | Bluetooth 5.2 + BLE |
Power & Physical
| Power Adapter | AC 100–240 V input, DC 19 V / 10 A output |
| Bar Dimensions | 840.6 x 117.6 x 104 mm |
| Bar Weight | 5.0 kg |
| Package Dimensions | 985 x 290 x 275 mm |
| Package Weight | 14 kg |
| Operating Temperature | 0–40 °C |
Compatibility & Software Support
Conferencing Platform
Microsoft Teams Rooms on Windows — MAXHUB lists the W70 Kit as MTR certified. It runs Windows 11 IoT Enterprise SAC on the built-in Intel Core i5-1240P.
Content Sharing & Displays
HDMI in for wired content, and up to three HDMI outputs for front-of-room displays.
Control
Meetings are joined and controlled from the included TCP31T 11.6-inch touch console.
Package Contents & XBar Series Ordering Information
In the Box
XBar W70 and TCP31T Touch Console, each with standard accessories, plus power adapter, AC cable (1.5 m), 2 x HDMI cables (3 m), Ethernet cable (3 m) and Ethernet cable (7.5 m), per MAXHUB's XBar W70 Kit datasheet.
MAXHUB XBar Series Models
| Model | Platform | Room size |
| XBar U50 | USB (BYOD) | Small / medium rooms |
| XBar V50 Kit | Android (MDEP) + AP30 panel | Small / medium rooms |
| XBar V70 Kit | Android (MDEP) + AP30 panel | Medium / large rooms |
| XBar W70 Kit (this listing) | Windows (MTRoW) + TCP31T console | Medium / large rooms |
Datasheet & Downloads
| MAXHUB XBar W70 Kit datasheet | XBar W70 Kit Datasheet V1.4 (PDF) |
| XBar series brochure | MAXHUB XBar Series Brochure (PDF) |
| MAXHUB product page | XBar W70 Kit on maxhub.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting XBar W70 Kit.
Frequently Asked Questions — MAXHUB XBar W70 Kit
Is a PC included?
Yes — the Windows compute is part of the videobar: Intel Core i5-1240P, 16 GB RAM, 256 GB storage, Windows 11 IoT Enterprise SAC.
Which Teams Rooms platform does it run?
Microsoft Teams Rooms on Windows. For Teams Rooms on Android, see the XBar V70 Kit.
How many displays can it drive?
The kit provides three HDMI outputs.
How far can the microphones pick up?
Up to 10 m with the 16-microphone array.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
