MAXHUB XBar V70 Kit Android Teams Rooms Videobar
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION

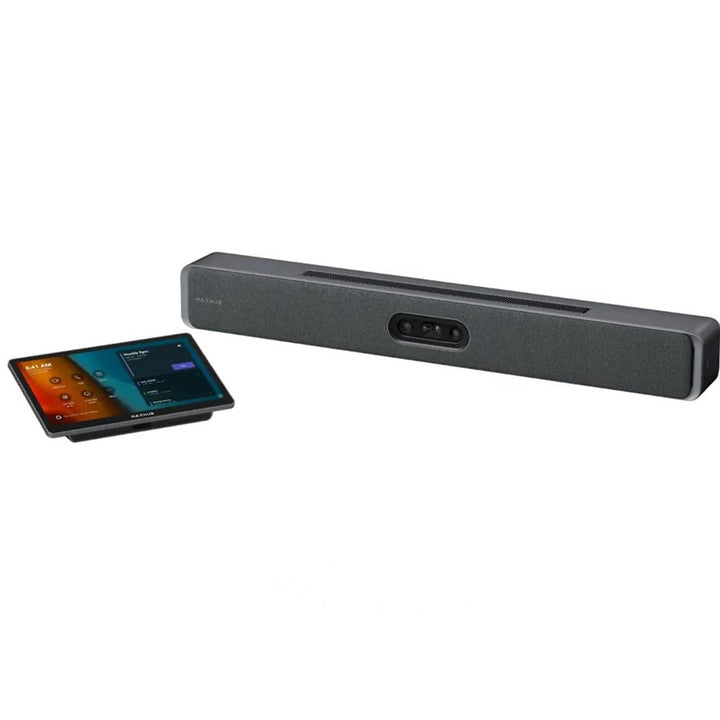

MAXHUB XBar V70 Kit 200MP Quad-Camera Android (MDEP) Microsoft Teams Rooms Videobar with AP30 Touch Panel (XBar V70 Kit) - 3 Years Local Warranty
Teams Rooms Videobar for Medium and Large Rooms
The MAXHUB XBar V70 Kit is a Teams-certified Android videobar on the MDEP platform, supplied with MAXHUB's Panel AP30 touch panel. MAXHUB positions it for medium to large meeting rooms that need a single-device Teams Rooms setup without a room PC.
200MP Quad-Camera System with 8x Hybrid Zoom
Four 50MP cameras with 1/1.55-inch sensors combine wide (130° D / 125° H) and telephoto (52° D / 42° H) views for 8x hybrid zoom and up to 3840 x 2160 video. Auto framing, speaker tracking, intelligent focus, smart gathering and video fence keep every participant well framed.
16-Mic Array with a 10 m Pick-up Range
The 16-microphone beamforming array covers voices up to 10 m away, and two 20 W speakers (80 Hz – 20 kHz) fill larger rooms with clear audio.
Wi-Fi 6, Bluetooth 5.2 and Flexible Connectivity
Wi-Fi 6 (2x2 MIMO), Bluetooth 5.2 + BLE, HDMI in, dual HDMI out, USB-B 3.0 device port and RJ45 networking make the V70 Kit simple to integrate into any room.
Need help choosing? Email sales@sourceit.com.sg with your room size, platform and quantity and we will recommend the right configuration.
MAXHUB XBar V70 Kit Datasheet — Technical Specifications
General
| Product Name | MAXHUB XBar V70 Kit |
| Part Number | XBar V70 Kit |
| Kit Contents | XBar V70 (with accessories) x 1, Panel AP30 (with accessories) x 1 |
| Series | MAXHUB XBar Series |
| Operating System | Android 13 (MDEP) |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Camera
| Cameras | 4 x 50MP (200MP quad-camera system) |
| Sensor | 1/1.55 inch |
| Wide Camera FOV | 130° (D), 125° (H), 50° (V) |
| Telephoto Camera FOV | 52° (D), 42° (H), 32° (V) |
| Zoom | 8x hybrid |
| Resolutions | 3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 720, 1024 x 576, 960 x 540, 800 x 600, 640 x 360 |
| AI Features | Auto framing, speaker tracking, intelligent focus, smart gathering, video fence |
Audio
| Microphones | 16-mic array |
| Pick-up Range | 10 m |
| Speakers | 2 x 20 W |
| Frequency Range | 80 Hz – 20 kHz |
Touch Panel (AP30)
| Display | 11.6-inch |
| Touch | Capacitive |
Ports
| HDMI In | 1 |
| HDMI Out | 2 |
| USB | 1 x USB-A 2.0, 1 x USB-B 3.0 (device) |
| Network | 1 x RJ45 |
Wireless
| Wi-Fi | Wi-Fi 6, 2x2 MIMO, 802.11 a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.2 + BLE |
Power & Physical
| Power Adapter | AC 100–240 V input, DC 19 V / 4.5 A output |
| Package Dimensions | 985 x 290 x 275 mm |
| Gross Weight | 11.7 kg |
| Operating Temperature | 0–40 °C |
Compatibility & Software Support
Conferencing Platform
Microsoft Teams Rooms on Android — MAXHUB lists the V70 Kit as Teams certified on the MDEP Android platform, controlled from the included Panel AP30.
Content Sharing & Displays
HDMI in for wired content sharing and two HDMI outputs for single or dual front-of-room displays.
Security & Management
Runs on Microsoft's MDEP Android platform with a Microsoft-approved SoC, per MAXHUB.
Package Contents & XBar Series Ordering Information
In the Box
XBar V70 and Panel AP30, each with accessories, plus power adapter, AC cable (1.5 m), 2 x HDMI cables (3 m) and an Ethernet cable (3 m), per MAXHUB's XBar V70 Kit datasheet.
MAXHUB XBar Series Models
| Model | Platform | Room size |
| XBar U50 | USB (BYOD) | Small / medium rooms |
| XBar V50 Kit | Android (MDEP) + AP30 panel | Small / medium rooms |
| XBar V70 Kit (this listing) | Android (MDEP) + AP30 panel | Medium / large rooms |
| XBar W70 Kit | Windows (MTRoW) + TCP31T console | Medium / large rooms |
Datasheet & Downloads
| MAXHUB XBar V70 Kit datasheet | XBar V70 Kit Datasheet (PDF) |
| XBar series brochure | MAXHUB XBar Series Brochure (PDF) |
| MAXHUB product page | XBar V70 Kit on maxhub.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting XBar V70 Kit.
Frequently Asked Questions — MAXHUB XBar V70 Kit
Do I need a separate PC?
No. The V70 Kit runs Microsoft Teams Rooms on Android (MDEP) on the bar and is controlled from the included AP30 touch panel.
V70 Kit or W70 Kit?
Both have four 50MP cameras with 8x hybrid zoom, a 16-mic array and 2 x 20 W speakers. The V70 Kit runs Teams Rooms on Android; the W70 Kit runs Teams Rooms on Windows with an Intel Core i5 and the TCP31T console.
How far can the microphones pick up?
Up to 10 m with the 16-microphone array.
Is Wi-Fi built in?
Yes — Wi-Fi 6 (2x2 MIMO) and Bluetooth 5.2 + BLE.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
