MAXHUB UC P15 Full HD PTZ Conference Camera
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
MAXHUB UC P15 Full HD 1080p PTZ Conference Camera with 12x Optical Zoom for Medium to Large Meeting Rooms (UC P15) - 3 Years Local Warranty
Clear Full HD Video for Medium to Large Rooms

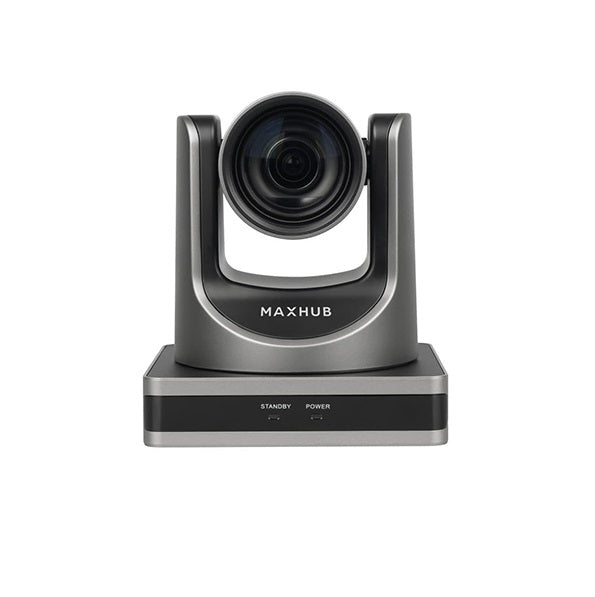

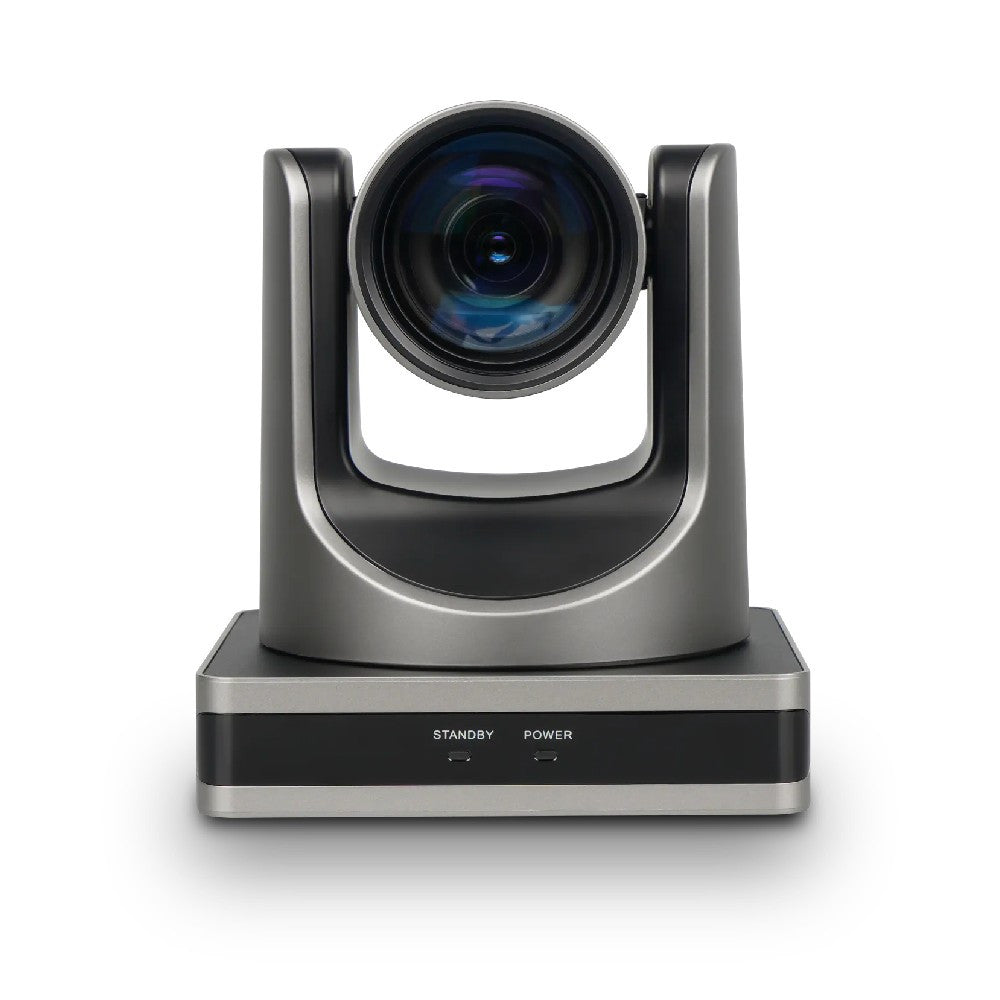

The MAXHUB UC P15 is a Full HD PTZ camera with a 1/2.8" 2.07MP CMOS sensor, delivering up to 1080p60 video for medium to large meeting rooms and training spaces.
12x Optical Zoom and Wide Pan / Tilt
A 12x optical lens (192x total zoom with 16x digital) and a horizontal angle of view from 72.5° down to 6.9° let you frame the whole room or a single speaker. It pans ±170° and tilts -30° to +90°.
Up to 255 Presets
Save up to 255 preset positions with 0.1° preset accuracy, with RS232 and RS485 control ports for integration with room control systems.
USB, HDMI and IP in One Camera

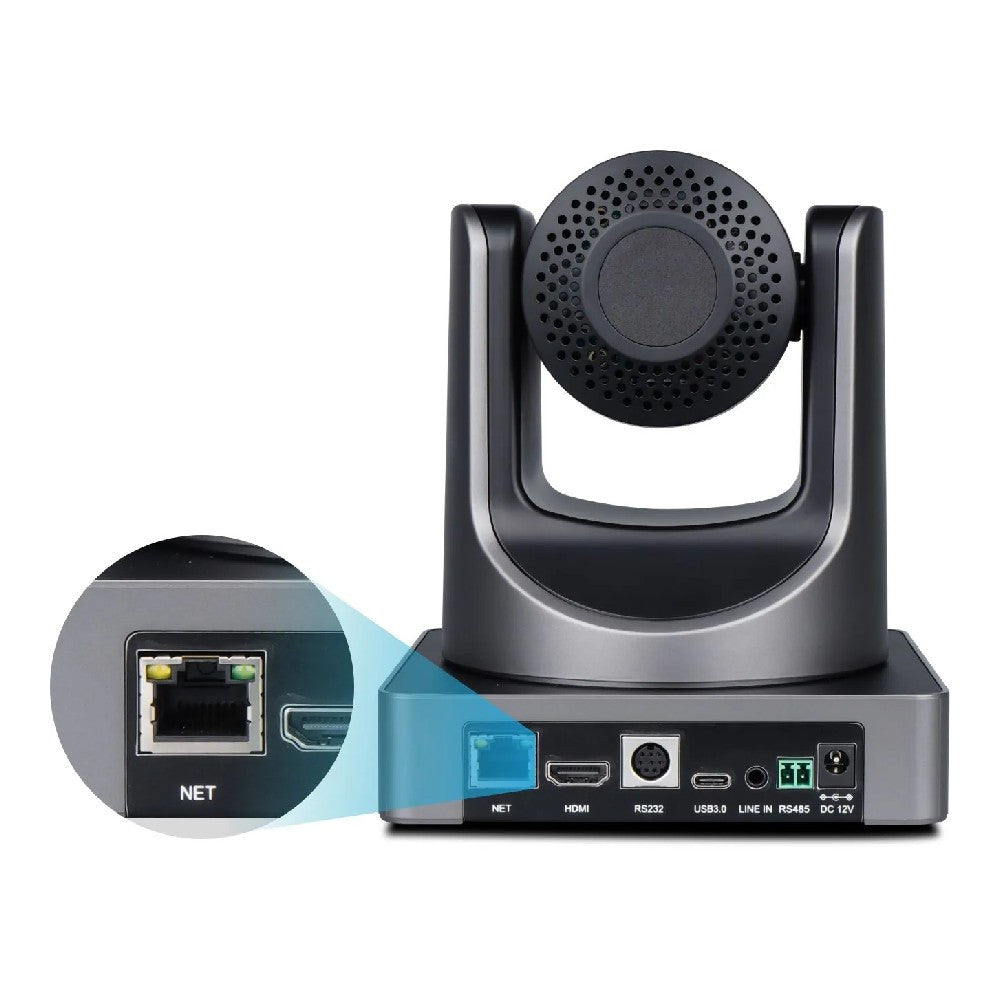

USB 3.1 Type-C, HDMI 1.4b and 10/100 Mbps RJ45 connections, with power from a 12 V DC jack, USB 5 V or PoE (802.3af). Works with Zoom, Microsoft Teams, Google Meet, Cisco Webex and RingCentral.
Need help choosing? Email sales@sourceit.com.sg with your room size, platform and quantity and we will recommend the right configuration.
MAXHUB UC P15 Datasheet — Technical Specifications
General
| Product Name | MAXHUB UC P15 Full HD PTZ Camera |
| Part Number | UC P15 |
| Series | MAXHUB UC Series |
| Local Warranty (Singapore) | Camera 3 years hot swap, accessories 1 year, supplied by SourceIT with a GST invoice |
Camera
| Sensor | Full HD 1/2.8" CMOS, 2.07M pixel |
| Video System | 1080P60, 1080P50, 1080P30, 1080P25, 720P60, 720P50 |
| Zoom | 12x optical, 192x total (16x digital) |
| Horizontal Angle of View | 72.5° – 6.9° |
| Diagonal Angle of View | 85.2° |
| Pan / Tilt | Pan ±170°, tilt -30° (down) to +90° (up) |
| Presets | Up to 255, 0.1° preset accuracy |
Ports
| USB | USB 3.1 Type-C |
| Video | HDMI 1.4b |
| Network | RJ45, 10/100 Mbps Ethernet |
| Control | RS232 (8-pin mini DIN), RS485 (2-core Phoenix) |
Power & Physical
| Power Input | DC 12 V jack / USB DC 5 V / PoE (802.3af) |
| Power Consumption | 12 W (max) |
| Dimensions (L x H x D) | 144 x 144 x 167.9 mm |
| Net Weight | 1.41 kg |
Compatibility & Software Support
Conferencing Platforms
Zoom, Microsoft Teams, Google Meet, Google Hangouts, Cisco Webex and RingCentral, per MAXHUB's brochure.
Control
RS232 (8-pin mini DIN) and RS485 (2-core Phoenix) control ports.
Package Contents & UC Series Ordering Information
In the Box
The UC P15 camera with its standard accessories. MAXHUB's brochure does not list the box contents — email us for the current package list.
MAXHUB UC Series Models
| Model | Type |
| UC BM45 | PoE conference speakerphone (8 mics, daisy-chain up to 6) |
| UC BM35 | Bluetooth / USB-C speakerphone (8 mics, battery) |
| UC P30 | 4K dual-camera PTZ, 12x optical zoom |
| UC P15 (this listing) | Full HD PTZ, 12x optical zoom |
| UC S15 | 4K video bar with wireless BYOD |
| UC S07 | 4K USB video bar |
| UC W31 | 4K USB webcam |
Datasheet & Downloads
| MAXHUB UC P15 brochure | UC P15 Brochure (PDF) |
| MAXHUB product page | UC P15 on maxhub.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting UC P15.
Frequently Asked Questions — MAXHUB UC P15
What resolution does it output?
Up to 1080p at 60 fps (also 1080p50/30/25 and 720p60/50).
How much zoom does it have?
12x optical zoom, 192x total with 16x digital.
Can it run on PoE?
Yes — PoE (802.3af), a 12 V DC jack or USB 5 V.
UC P15 or UC P30?
The UC P15 is a Full HD PTZ camera; the UC P30 adds an 8MP panoramic camera to a 4K PTZ camera for AI speaker and presenter tracking.
What warranty do I get?
3 years hot-swap local warranty in Singapore on the camera (1 year on accessories), supplied by SourceIT with a GST invoice.
