MAXHUB U3 Series U7530 75" 4K Interactive Flat Panel
PRODUCT DESCRIPTION
MAXHUB U3 Series U7530 75" 4K Android 13 Google EDLA Interactive Flat Panel Display (U7530) - Local Warranty
75-inch 4K Google EDLA Classroom Display

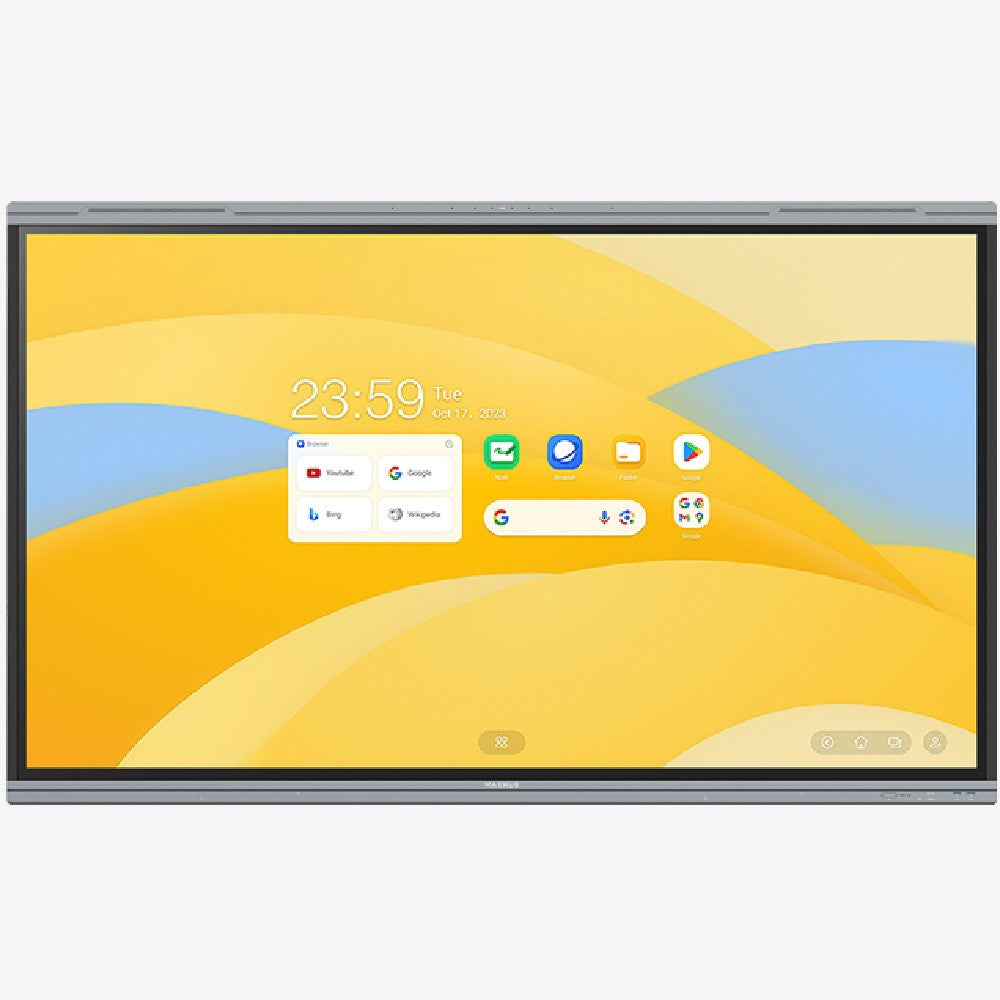

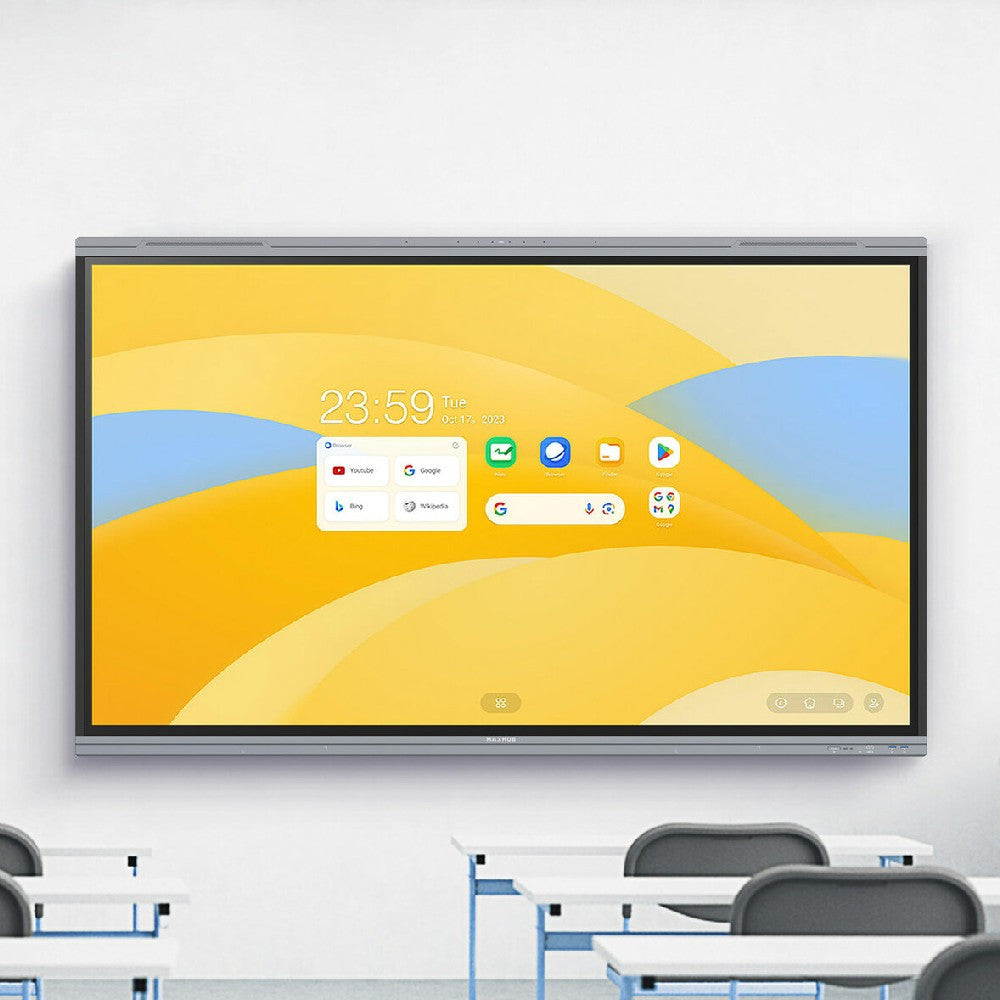

The MAXHUB U3 Series U7530 is a 75" 4K (3840 x 2160) interactive flat panel built for classrooms and training rooms. It runs Android 13 with Google EDLA certification, so teachers get the Google Play Store and Google Education Suite directly on the board, alongside MAXHUB EDU OS for EDLA, with 8GB RAM and 64GB storage on board.
Clear 4K Picture, Easy on the Eyes
The 75" VA panel delivers 500 nits brightness, 1.07 billion colours (10-bit), 72% NTSC colour gamut and Delta E 1.5 colour accuracy, with a DLED backlight rated for 50,000 hours. TÜV Flicker Free and TÜV Low Blue Light certifications help keep long lessons comfortable.
50-Point Infrared Touch for Group Work
Infrared touch with 50 touch points and ±0.5 mm accuracy lets several students write and draw on the board at the same time, making it well suited to group activities, annotation and whiteboarding.
Built-in Audio and Flexible Connectivity
A 2.2-channel speaker system (2 x 8 W + 2 x 18 W) fills the room, and an 8-microphone array picks up voices from 0–10 m for hybrid lessons. A versatile USB Type-C port with up to 100 W charging, plus HDMI and DP inputs, connects laptops and other sources.
Need help choosing? Email sales@sourceit.com.sg with your classroom size, quantity and whether you need a Windows PC module and we will recommend the right configuration.
MAXHUB U7530 Datasheet — Technical Specifications
General
| Product Name | MAXHUB U3 Series U7530 Interactive Flat Panel Display |
| Part Number | U7530 |
| Series | MAXHUB Interactive Flat Panel U3 Series |
| Local Warranty (Singapore) | Local warranty, supplied by SourceIT with a GST invoice |
Display
| Screen Size | 75" |
| Resolution | 3840 x 2160 (4K UHD) |
| Panel Type | VA |
| Backlight | DLED |
| Brightness | 500 nits |
| Colour Depth | 1.07B (10-bit) |
| Colour Gamut | 72% NTSC |
| Colour Accuracy | Delta E 1.5 |
| Response Time | 6.5 ms |
| Backlight Lifespan | 50,000 hours |
| Eye Care | TÜV Flicker Free, TÜV Low Blue Light |
Touch
| Technology | Infrared |
| Touch Points | 50 |
| Accuracy | ±0.5 mm |
Built-in Android System
| Operating System | Android 13.0, Google EDLA certified |
| CPU | A76 x4 + A55 x4 octa-core |
| GPU | Mali-G610 MP4 |
| NPU | 6 TOPS |
| RAM / Storage | 8GB / 64GB |
Audio
| Speakers | 2.2 channel: 2 x 8 W + 2 x 18 W |
| Microphones | 8-microphone array, 0–10 m pick-up |
Ports
| Connectivity | USB Type-C with up to 100 W charging, HDMI and DP inputs |
| Full Port List | Not published per model for the U7530 — ask us for the latest MAXHUB datasheet |
Certifications
| Eye Care | TÜV Flicker Free, TÜV Low Blue Light |
Compatibility & Software Support
Education Software
Android 13 with Google EDLA certification gives direct access to the Google Play Store and Google Education Suite, with MAXHUB EDU OS for EDLA on the board.
Laptop & Device Connection
HDMI and DP inputs plus a versatile USB Type-C port with up to 100 W charging.
Package Contents & U3 Series Ordering Information
In the Box
MAXHUB does not publish a per-model accessory list for the U7530 — ask us to confirm the in-box items before ordering. Mobile stands are sold separately — see the ST33M mobile trolley and EST09 motorised stand.
U3 Series Models
| Model | Size | Display only | + OPS62A i5 | + OPS62A i7 |
| U6530 | 65" | U6530 | U6530 + i5 | U6530 + i7 |
| U7530 | 75" | U7530 (this listing) | U7530 + i5 | U7530 + i7 |
| U8630 | 86" | U8630 | U8630 + i5 | U8630 + i7 |
Datasheet & Downloads
| Series leaflet | U3 Series Education Leaflet (PDF) |
| MAXHUB product page | U3 Series on maxhub.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting U7530.
Frequently Asked Questions — MAXHUB U7530
Do I need a separate PC?
No. The U3 runs Android 13 with Google EDLA certification on its own. If you need Windows on the board, choose the OPS62A i5 or i7 bundle listed in the ordering table.
Does it support Google apps?
Yes. It is Google EDLA certified, with the Google Play Store and Google Education Suite available on the built-in Android 13 system.
How many students can write at once?
The infrared touch screen supports 50 touch points with ±0.5 mm accuracy.
Can it charge my laptop?
Yes. MAXHUB rates the USB Type-C port for up to 100 W charging, so a compatible laptop can be powered while connected.
Is a wall mount or stand included?
MAXHUB has not published the U7530 accessory list; we will confirm it with your quote. Mobile stands are sold separately, and we also offer delivery and installation — ask us for a quote.
What warranty do I get?
Local warranty in Singapore, supplied by SourceIT with a GST invoice. Contact us for the warranty terms that apply to your order.
