MAXHUB Raptor V3 LX135V07C 135" COB All-in-One DvLED Display
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
MAXHUB Raptor Series V3 LX135V07C 135" Full HD Flip-Chip COB All-in-One DvLED Display with Android 13 (LX135V07C) - Local Warranty

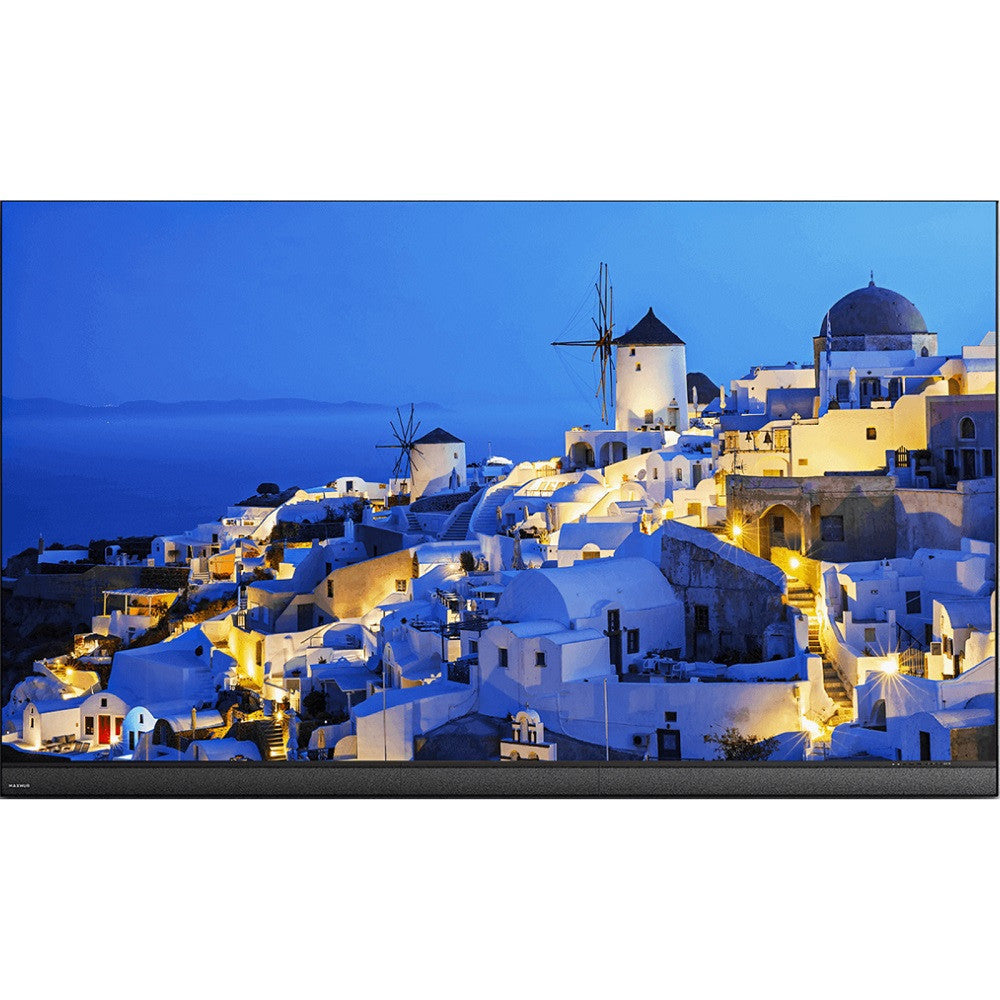

135-inch COB All-in-One DvLED
The MAXHUB Raptor Series V3 LX135V07C is a 135" all-in-one direct-view LED display built with Flip Chip COB technology, which MAXHUB describes as highly resistant to scratches, impact, water, moisture and static electricity. It delivers 1920 x 1080 (Full HD) at a 1.5 mm pixel pitch, 100–600 nits adjustable brightness, a 15,000:1 contrast ratio and a 3,840 Hz refresh rate.
Ultra-Slim, Front-Access Design

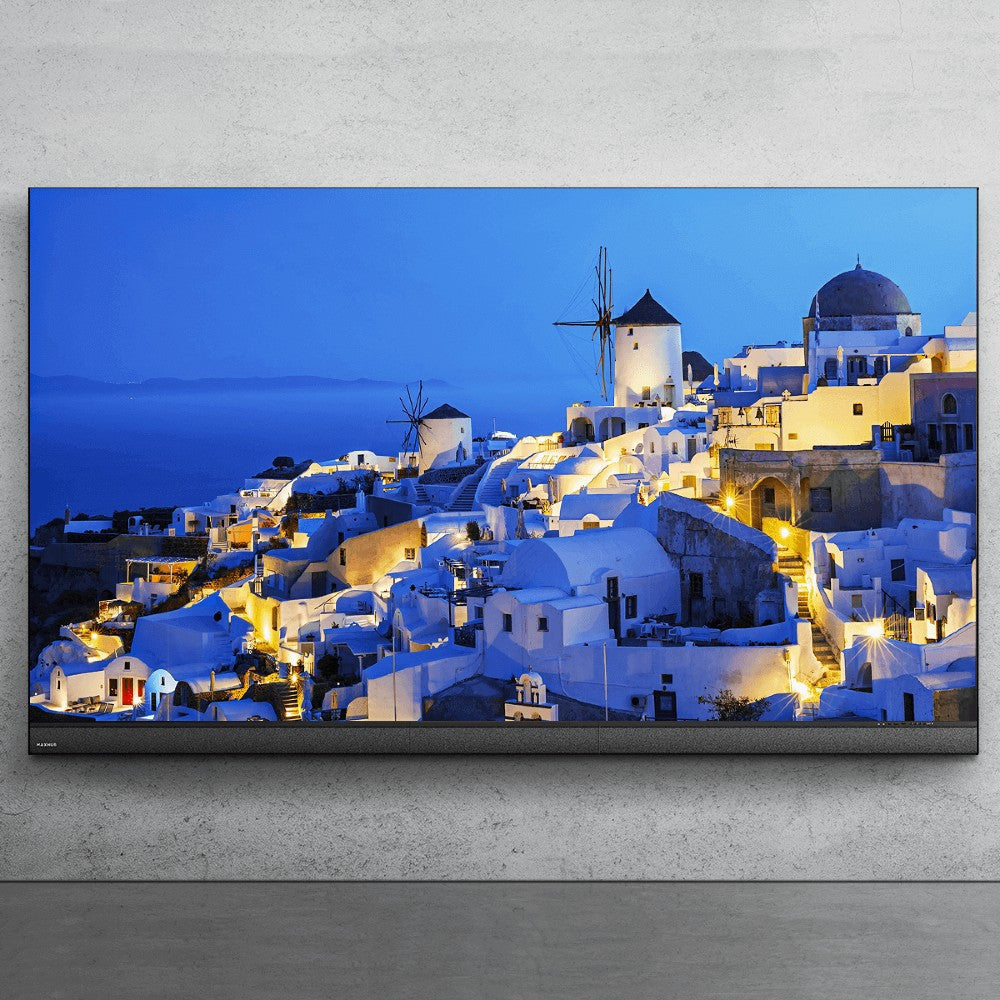

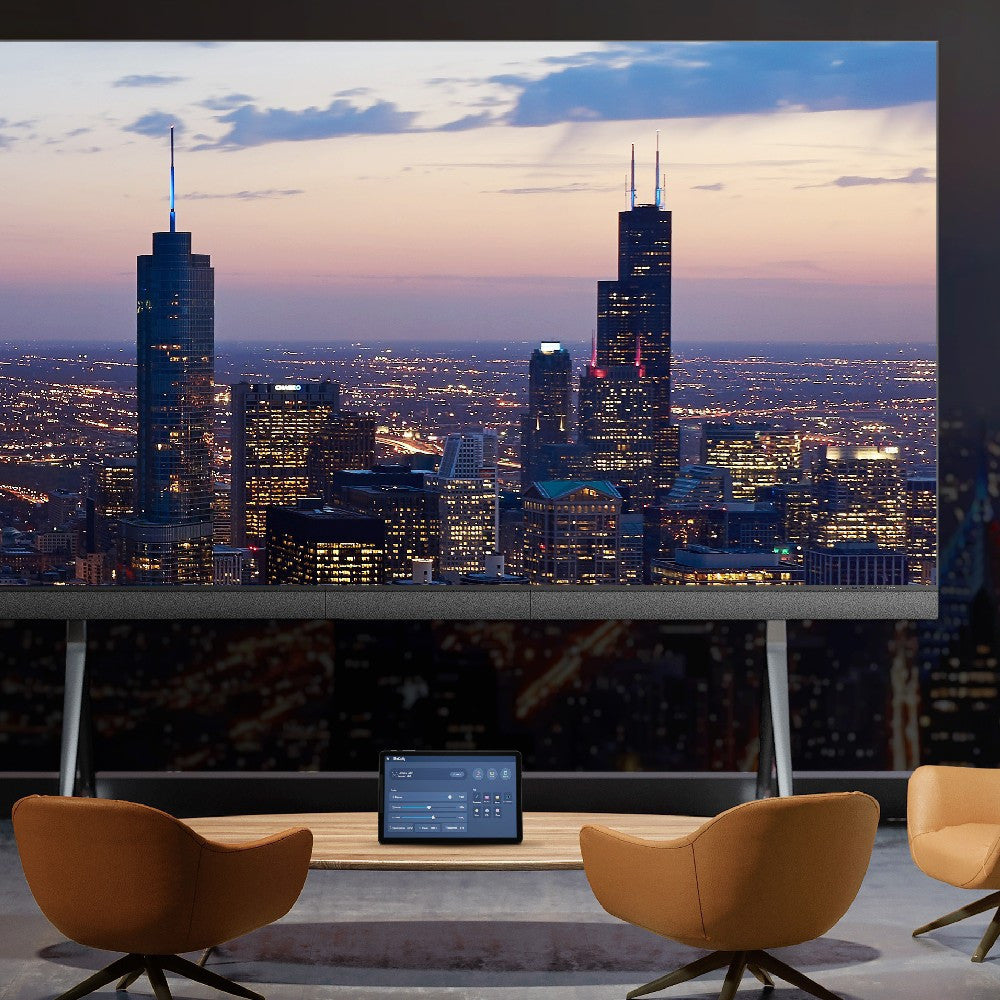

The screen is just 31 mm thick with cabinets of 3.8 kg each, and all maintenance is carried out from the front. MAXHUB recommends a viewing distance of 3.2 m or more, and lists stand or wall-mounting installation.
Android 13 Built In
An octa-core processor (4 x Cortex-A76 + 4 x Cortex-A55, 2.4 GHz) with a 4-core GPU, 6 TOPS NPU, 8GB RAM and 64GB storage runs Android 13 on the display itself, with Wi-Fi 6, Bluetooth 5.3 and wireless screen sharing. MAXHUB offers the optional LMT71A PC module for Windows.
Integrated Sound and Room Connectivity
A 6-chamber, 6-driver side speaker system is built in. Four HDMI inputs (one HDMI 2.0), HDMI out, USB-C, USB 3.0, LAN, PoE and RS232 connect room sources and control systems, and MAXHUB offers an optional radar touch module.
Need help choosing? Email sales@sourceit.com.sg with your room size, viewing distance and quantity and we will recommend the right configuration.
MAXHUB LX135V07C Datasheet — Technical Specifications
General
| Product Name | MAXHUB Raptor Series V3 COB All-in-One DvLED Display |
| Part Number | LX135V07C |
| Series | MAXHUB Raptor Series V3 |
| Local Warranty (Singapore) | Local warranty in Singapore, supplied by SourceIT with a GST invoice |
Display
| Screen Size | 135" |
| Aspect Ratio | 16:9 |
| Resolution | 1920 x 1080 (Full HD) |
| Pixel Pitch | 1.5 mm |
| LED Technology | Flip Chip COB |
| Brightness | 100–600 nits (adjustable) |
| Contrast Ratio | 15,000:1 |
| Refresh Rate | 3,840 Hz |
| Grey Scale | 13+6 bit |
| Colour Temperature | 2,300–9,300 K (adjustable) |
| Viewing Angle | 165° (H) / 165° (V) |
| Display Area | 3000 x 1687.5 mm |
| Recommended Viewing Distance | ≥ 3.2 m |
| Lifespan | 100,000 hours |
System
| Operating System | Android 13.0 |
| CPU | 4 x Cortex-A76 + 4 x Cortex-A55, 2.4 GHz |
| GPU / NPU | 4-core GPU / 6 TOPS NPU |
| RAM | 8GB |
| Storage | 64GB |
| Media Formats | MPEG-1, MPEG-2, MPEG-4, H.263, H.264, H.265, VC-1, VP9, VP8, MVC, AV1; JPG, JPEG, BMP, PNG, GIF |
Ports
| HDMI In | 4 (2 internal, 2 external): 1 x HDMI 2.0, 3 x HDMI 1.4 |
| HDMI Out | 1 (external) |
| USB | 2 x USB 3.0 (external), 1 x USB 2.0 (internal), 1 x USB out (external) |
| USB Type-C | 1 (external) |
| Audio | 2 x 3.5 mm out (1 internal, 1 external), 1 x 3.5 mm in (external) |
| Network | 2 x LAN (internal), 1 x PoE (internal) |
| Control | RS232 over RJ45 (internal) |
Audio & Wireless
| Speakers | Side speaker, 6-chamber, 6-driver system |
| Wi-Fi | Wi-Fi 6, 2.4/5 GHz dual-band, AP and STA modes |
| Bluetooth | 5.3 |
| Wireless Sharing | Supported |
Power & Physical
| Operating Voltage | 100–240 V AC, 50/60 Hz |
| Power Consumption | 0.418 kW average, 1.252 kW max, ≤ 0.5 W standby |
| Overall Dimensions (W x H) | 3030.8 x 1812.9 mm |
| Screen Thickness | 31 mm |
| Cabinet Weight | 3.8 kg per cabinet |
| Net Weight | 110 kg (wall-mounting bar and stand not included) |
| Installation | Stand or wall-mounting |
| Maintenance | Front access |
| Operating Environment | -10–40 °C, 10–80% RH (non-condensing) |
Certifications
| Environmental | Meets China and EU RoHS directive requirements |
Compatibility & Software Support
Operating System & Content
Android 13 is built in, with support for mainstream video and image formats. MAXHUB offers the optional LMT71A built-in PC module for Windows. External sources connect over HDMI and USB-C.
Sharing & Connectivity
Wireless screen sharing, Wi-Fi 6 (AP and STA modes) and Bluetooth 5.3 are built in.
Control & Touch
RS232 (RJ45) and LAN for room control; MAXHUB lists an optional radar touch module.
Package Contents & MAXHUB Raptor Series V3 Ordering Information
In the Box
Per MAXHUB's LX135V07C datasheet: remote control, front maintenance tool, tool kit and wall-mounting bar. Optional: radar touch module, LMT71A PC module and ST90 / ST92 stand.
MAXHUB Raptor Series V3 Models
| Model | Size | Pixel pitch / resolution |
| LX120V07 | 120" | 1.3 mm SMD, 1920 x 1080 |
| LX135V07C (this listing) | 135" | 1.5 mm COB, 1920 x 1080 |
| LX138V07 | 138" | 1.5 mm SMD, 1920 x 1080 |
| LX150V07 | 150" | 1.7 mm SMD, 1920 x 1080 |
| LX165V07 | 165" | 1.9 mm SMD, 1920 x 1080 |
| LX180V07 | 180" | 2.0 mm SMD, 1920 x 1080 |
| LX220V07 | 220" | 2.5 mm SMD, 1920 x 1080 |
| LX220V18 | 220" | 1.2 mm SMD, 3840 x 2160 |
Raptor V3 accessories: LMT71A PC module and ST90 / ST92 LED floor stands — ask us for details.
Datasheet & Downloads
| MAXHUB LX135V07C datasheet | Raptor Series V3 COB LX135V07C Datasheet V1.0 (PDF) |
| Series datasheet | Raptor Series V3 Datasheet V1.4 (PDF) |
| MAXHUB product page | Raptor Series V3 on maxhub.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting LX135V07C.
Frequently Asked Questions — MAXHUB LX135V07C
What resolution and pixel pitch is it?
1920 x 1080 (Full HD) at a 1.5 mm pixel pitch on a 135" 16:9 screen.
What is the advantage of COB?
MAXHUB states that its Flip Chip COB technology is highly resistant to scratches, impact, water, moisture and static electricity, and quotes a 15,000:1 contrast ratio for this model.
Do I need a separate LED controller or PC?
No separate controller is needed — it is an all-in-one display with Android 13 built in. MAXHUB offers the optional LMT71A PC module if you need Windows.
How is it installed and serviced?
MAXHUB lists stand or wall-mounting installation, with front-access maintenance. We can quote site survey, delivery and installation.
What warranty do I get?
Local warranty in Singapore, supplied by SourceIT with a GST invoice. Email us for the warranty terms that apply to your configuration.
