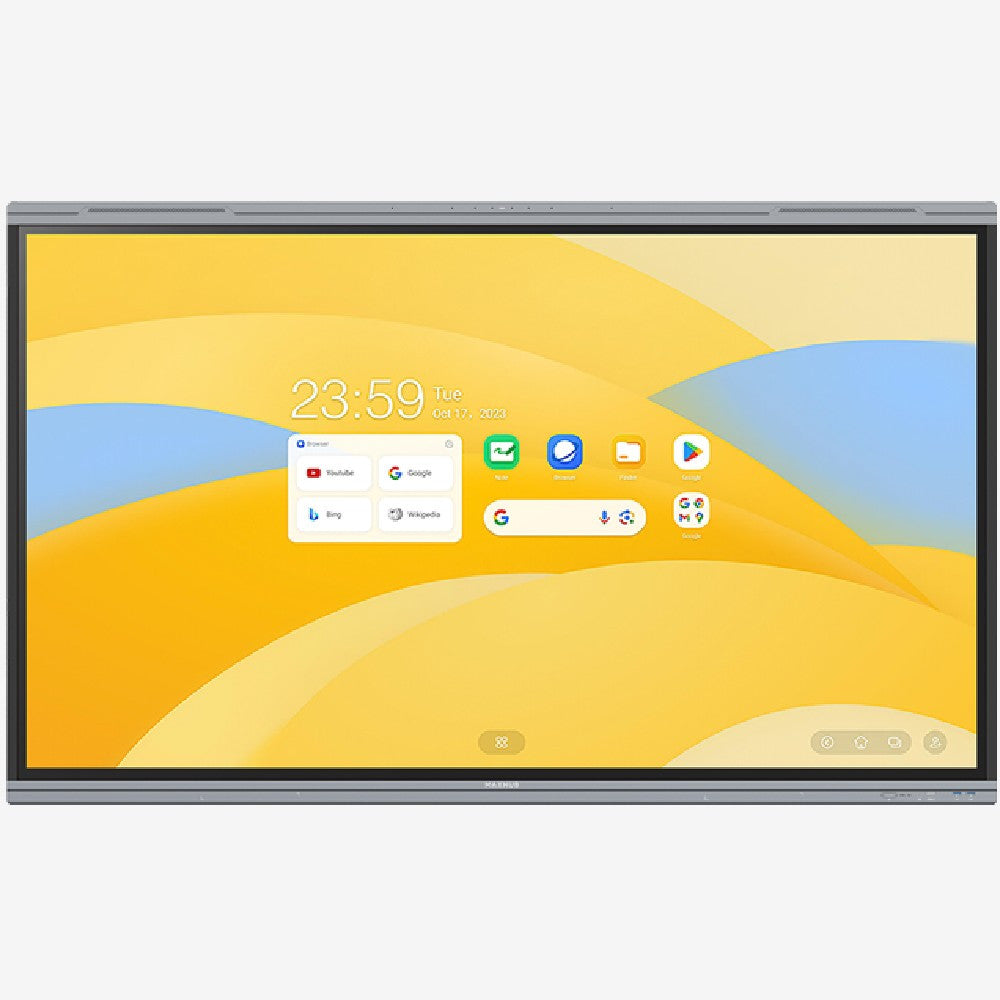

MAXHUB U3 Series U6530 65" 4K Interactive Flat Panel + OPS62A i5 PC
PRODUCT DESCRIPTION
MAXHUB U3 Series U6530 65" 4K Android 13 EDLA Interactive Flat Panel Display with OPS62A Intel Core i5 PC Module (U6530 + OPS62A-i5) - Local Warranty
65-inch 4K Google EDLA Classroom Display
The MAXHUB U3 Series U6530 is a 65" 4K (3840 x 2160) interactive flat panel built for classrooms and training rooms. It runs Android 13 with Google EDLA certification, so teachers get the Google Play Store and Google Education Suite directly on the board, alongside MAXHUB EDU OS for EDLA, with 8GB RAM and 64GB storage on board. This bundle adds the MAXHUB OPS62A-i5 pluggable PC module (Intel Core i5, 8GB RAM, 256GB SSD, Windows 10 Enterprise) for running Windows teaching and conferencing software on the same screen.
Clear 4K Picture, Easy on the Eyes
The 65" VA panel delivers 450 nits brightness, 1.07 billion colours (10-bit), 72% NTSC colour gamut and Delta E 1.5 colour accuracy, with a DLED backlight rated for 50,000 hours. TÜV Flicker Free and TÜV Low Blue Light certifications help keep long lessons comfortable.
50-Point Infrared Touch for Group Work
Infrared touch with 50 touch points and ±0.5 mm accuracy lets several students write and draw on the board at the same time, making it well suited to group activities, annotation and whiteboarding.
Built-in Audio and Flexible Connectivity
A 2.2-channel speaker system (2 x 8 W + 2 x 18 W) fills the room, and an 8-microphone array picks up voices from 0–10 m for hybrid lessons. A versatile USB Type-C port with up to 100 W charging, plus HDMI and DP inputs, connects laptops and other sources.
Need help choosing? Email sales@sourceit.com.sg with your classroom size, quantity and whether you need a Windows PC module and we will recommend the right configuration.
MAXHUB U6530 + OPS62A-i5 Datasheet — Technical Specifications
General
| Product Name | MAXHUB U3 Series U6530 Interactive Flat Panel Display with OPS62A-i5 PC Module |
| Part Number | U6530 + OPS62A-i5 (U6530 display + OPS62A-i5 PC module) |
| Series | MAXHUB Interactive Flat Panel U3 Series |
| Local Warranty (Singapore) | Local warranty, supplied by SourceIT with a GST invoice; MAXHUB's OPS62A-i5 datasheet states a 3-year warranty for the PC module |
Display
| Screen Size | 65" |
| Resolution | 3840 x 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Panel Type | VA |
| Backlight | DLED |
| Brightness | 450 nits (500 nits peak) |
| Contrast Ratio | 5,000:1 (typ.), 50,000:1 (dynamic) |
| Refresh Rate | 60 Hz |
| Colour Depth | 1.07B (10-bit) |
| Colour Gamut | 72% NTSC |
| Colour Accuracy | Delta E ≤ 1.5 |
| Viewing Angle | 178° (H/V) |
| Response Time | 6.5 ms |
| Glass | 3 mm 9H tempered glass, zero parallax, non-glare |
| Backlight Lifespan | ≥ 50,000 hours |
Touch
| Technology | Infrared |
| Touch Points | 50 |
| Accuracy | ±0.5 mm |
| Response Time | ≤ 2.5 ms |
| Writing Height | ≤ 1 mm |
| Minimum Recognition | 1.5 mm |
| OS Support | Windows 11/10/8/7, Android, Linux, Mac OS X, Chrome |
Built-in Android System
| Operating System | Android 13.0, Google EDLA certified |
| CPU | A76 x4 + A55 x4 octa-core (8 nm) |
| GPU | Mali-G610 MP4 |
| NPU | 6 TOPS |
| RAM / Storage | 8GB / 64GB |
Audio
| Speakers | 2.2 channel: 2 x 8 W + 2 x 18 W output (2 x 12 W + 2 x 25 W max) |
| Microphones | 8-microphone array, 0–10 m pick-up |
Wireless
| Wi-Fi | Wi-Fi 6, 802.11 a/b/g/n/ac/ax, 2.4 / 5 GHz |
| Bluetooth | 5.2 |
Ports
| Inputs | 4 x HDMI in, 1 x DP in, 2 x USB Type-C, 4 x USB 3.0, 1 x USB 2.0, 1 x audio in, 1 x RS232, 1 x RJ45 in |
| Outputs | 1 x HDMI out, 1 x USB Type-C, 2 x touch out, 1 x audio out, 1 x SPDIF, 1 x RJ45 out |
| USB-C Power Delivery | Front up to 100 W, rear up to 15 W |
| Module Slot | 1 (OPS) |
OPS62A-i5 PC Module (included)
| Bundle Configuration | Intel Core i5, 8GB RAM, 256GB SSD, Windows 10 Enterprise |
| Processor | 11th Gen Intel Core i5 |
| Graphics | Intel UHD Graphics |
| Operating System | Windows 10 IoT (64-bit) per MAXHUB datasheet |
| Security | TPM 2.0 |
| PC Ports | 1 x HDMI out, 4 x USB 3.0, 1 x USB Type-C, 1 x line out, 1 x mic in, 1 x RJ45 |
| Power | 12–19 V DC, ≤ 65 W max, ≤ 1.5 W standby |
| Dimensions / Weight | 202 x 133.5 x 30 mm / 0.75 kg |
Power & Physical
| Power Supply | 100–240 V~, 50/60 Hz, 4.0 A |
| Power Consumption | 195 W typical, ≤ 0.5 W standby (display) |
| Dimensions (L x H x D) | 1628 x 1005 x 208 mm |
| Thickness with Wall Mount | 116 mm (WIB9060G) |
| Net / Gross Weight | 38.67 kg / 48.25 kg |
| VESA | 600 x 400 mm |
| Operating Temperature | 0–40 °C |
| Operating Humidity | 10–90% RH |
| Dust Resistance | IP5X |
Certifications
| Eye Care | TÜV Flicker Free, TÜV Low Blue Light |
| Anti-bacterial | TÜV / SGS / SIAA anti-bacterial certifications |
Compatibility & Software Support
Education Software
Android 13 with Google EDLA certification gives direct access to the Google Play Store and Google Education Suite, with MAXHUB EDU OS for EDLA on the board.
Windows PC Module
The included OPS62A-i5 module runs Windows 10, so Windows classroom software and conferencing apps such as Microsoft Teams and Zoom can run on the display without a separate computer.
Laptop & Device Connection
HDMI and DP inputs plus USB Type-C with up to 100 W power delivery; USB touch out lets a connected computer be controlled from the screen. Touch works with Windows 11/10/8/7, Android, Linux, Mac OS X and Chrome.
Package Contents & U3 Series Ordering Information
In the Box
Power cord 3 m, HDMI cable 3 m, USB touch cable (Type A-B) 3 m, 2 remote controls and 1 stylus, per MAXHUB's U6530 datasheet. The OPS62A-i5 PC module is supplied with this bundle. Mobile stands are sold separately — see the ST33M mobile trolley and EST09 motorised stand.
U3 Series Models
| Model | Size | Display only | + OPS62A i5 | + OPS62A i7 |
| U6530 | 65" | U6530 | U6530 + i5 (this listing) | U6530 + i7 |
| U7530 | 75" | U7530 | U7530 + i5 | U7530 + i7 |
| U8630 | 86" | U8630 | U8630 + i5 | U8630 + i7 |
Datasheet & Downloads
| MAXHUB U6530 datasheet | U6530 Datasheet (PDF) |
| Series leaflet | U3 Series Education Leaflet (PDF) |
| MAXHUB OPS62A-i5 datasheet | OPS62A-i5 Datasheet (PDF) |
| MAXHUB product page | U3 Series on maxhub.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting U6530 + OPS62A-i5.
Frequently Asked Questions — MAXHUB U6530 + OPS62A-i5
Is a PC included?
Yes. This bundle includes the MAXHUB OPS62A-i5 PC module: Intel Core i5, 8GB RAM, 256GB SSD and Windows 10 Enterprise, which slots into the display's module slot.
Does it support Google apps?
Yes. It is Google EDLA certified, with the Google Play Store and Google Education Suite available on the built-in Android 13 system.
How many students can write at once?
The infrared touch screen supports 50 touch points with ±0.5 mm accuracy.
Can it charge my laptop?
Yes. MAXHUB rates the USB Type-C port for up to 100 W charging, so a compatible laptop can be powered while connected.
Is a wall mount or stand included?
MAXHUB's datasheet lists a power cord, HDMI cable, USB touch cable, two remotes and a stylus in the box. Mobile stands are sold separately, and we also offer delivery and installation — ask us for a quote.
What warranty do I get?
Local warranty in Singapore, supplied by SourceIT with a GST invoice. MAXHUB's datasheet states a 3-year warranty for the OPS62A-i5 PC module. Contact us for the warranty terms that apply to your order.
