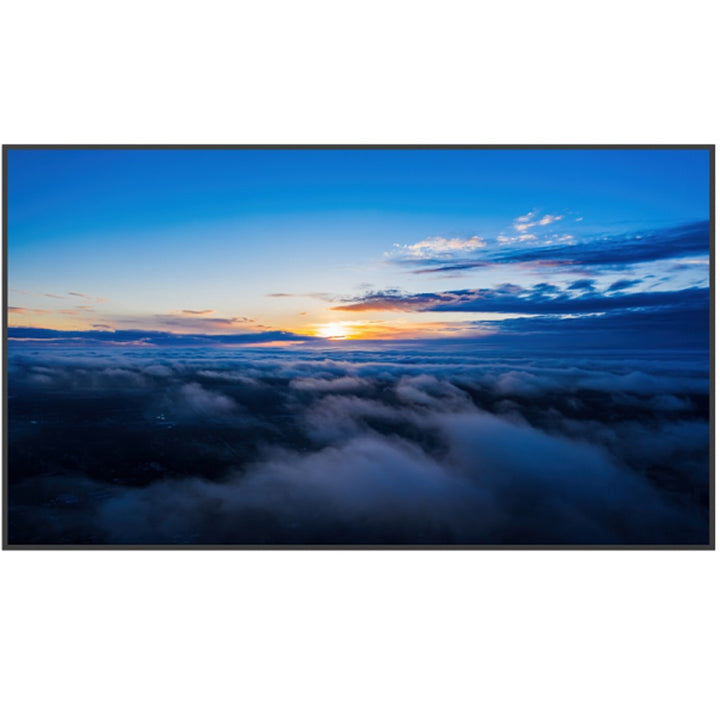

MAXHUB CMB Series ND43CMB 43" 4K Commercial Display
PRODUCT DESCRIPTION
MAXHUB CMB Series ND43CMB 43" 4K UHD 500-nit Commercial Display with Signage OS (Android 14) (ND43CMB) - 3 Years Local Warranty
43" 4K Display Built for 24/7 Operation
The MAXHUB CMB series is a 4K UHD (3840 x 2160) commercial display for meeting rooms, reception areas, retail and digital signage. The 43" ND43CMB uses an ADS panel rated at 500 nits with a 1,200:1 typical contrast ratio and 178° viewing angles, and is designed for 24/7 operation in landscape or portrait orientation.
Professional-grade, Calibrated Colour
MAXHUB specifies 98% sRGB coverage and 1.07 billion colours (10-bit) for the CMB series, with factory calibration and support for sRGB, Adobe RGB, DCI-P3 and Display P3 gamuts. A 25% haze anti-glare surface keeps text and images readable under bright office and retail lighting.
Built-in MAXHUB Signage OS V2
MAXHUB Signage OS V2 (powered by Android 14) runs on a quad-core A73 1.8 GHz processor with 4GB RAM and 32GB storage, so content can play without an external media player. Picture-in-Picture and Picture-by-Picture modes show two sources at once, and MAXHUB Pivot handles remote device control and content scheduling.
Meeting-room Ready: USB-C, Wireless Sharing and MTR Companion
Three HDMI inputs and a USB Type-C port handle wired laptop connection. MAXHUB Share supports BYOD casting alongside Miracast, AirPlay and Chromecast, and MAXHUB positions the CMB as a Microsoft Teams Rooms companion display that wakes and sleeps in sync with the MTR system. MAXHUB lists the series as NDI certified and certified by Crestron, Extron and Q-SYS.
Need help choosing? Email sales@sourceit.com.sg with your room size, platform and quantity and we will recommend the right configuration.
MAXHUB ND43CMB Datasheet — Technical Specifications
General
| Product Name | MAXHUB CMB Series 4K Commercial Display |
| Part Number | ND43CMB |
| Series | MAXHUB CMB Series |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Display
| Screen Size | 43" |
| Resolution | 3840 x 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Panel Type | ADS |
| Brightness | 500 nits |
| Contrast Ratio | 1,200:1 |
| Viewing Angle | 178° (H) / 178° (V) |
| Refresh Rate | 60 Hz |
| Colour Gamut | 98% sRGB |
| Display Colour | 1.07 billion (10-bit) |
| Haze | 25% |
| Bezel Width | 9.9 mm |
| Operation | 24/7, landscape or portrait |
System
| Operating System | MAXHUB Signage OS V2 (Android 14.0) |
| CPU | Quad-core A73, 1.8 GHz |
| RAM | 4GB |
| Storage | 32GB |
Ports
| HDMI In | 3 |
| HDMI Out | 1 |
| USB Type-C | 1 |
| USB | USB 2.0 and 1 x USB 3.0 |
| Audio | 1 x audio in, 1 x audio out, 1 x SPDIF |
| Control | 1 x RS232 |
| Network | RJ45 in + RJ45 out |
Audio & Wireless
| Speakers | 2.0 channel, 2 x 12 W output (2 x 16 W maximum) |
| Wi-Fi | Wi-Fi 6 module SI07B, 802.11a/b/g/n/ac/ax, 2.4/5 GHz |
| Bluetooth | 5.2 |
Power & Physical
| Dimensions (W x H x D) | 964.6 x 552.5 x 62 mm |
| Net Weight | 9.40 kg |
| VESA | 200 x 200 mm |
Figures are from the ND43CMB column of MAXHUB's CMB series specification table on maxhub.com; MAXHUB has not published a separate ND43CMB datasheet. Contact us for any figure not listed here.
Compatibility & Software Support
Operating System & Content
MAXHUB Signage OS V2 (Android 14) with built-in playback, Picture-in-Picture and Picture-by-Picture. Content can also be played from a connected PC or media player over HDMI or USB-C.
Screen Sharing & BYOD
MAXHUB Share wireless casting (up to 1080p per MAXHUB) plus Miracast, AirPlay and Chromecast; USB Type-C; three HDMI inputs for wired sources.
Management & Integration
MAXHUB Pivot for device control and content scheduling; RS232 and RJ45 control. MAXHUB lists the CMB series as NDI certified (NDI HX and High Bandwidth decoding) and certified by Crestron, Extron and Q-SYS, and as a Microsoft Teams Rooms companion display that wakes and sleeps with the MTR system.
Package Contents & MAXHUB CMB Series Ordering Information
In the Box
MAXHUB has not published the 43" in-box accessory list — email us and we will confirm the packing list before you order.
MAXHUB CMB Series Models
| Model | Size | Panel |
| ND43CMB (this listing) | 43" | ADS, 500 nits |
| ND50CMB | 50" | VA, 500 nits |
| ND55CMB | 55" | ADS, 500 nits |
| ND65CMB | 65" | ADS, 500 nits |
| ND75CMB | 75" | ADS, 500 nits |
| ND86CMB | 86" | ADS, 500 nits |
| ND98CMB | 98" | ADS, 500 nits |
Also available: the MAXHUB CMA series (ND43CMA–ND98CMA) and the 800-nit CMA-T series (ND65CMA-T, ND75CMA-T) — ask us for a comparison.
Datasheet & Downloads
| Series brochure | CMB Series Brochure (PDF) |
| MAXHUB product page | CMB Series on maxhub.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting ND43CMB.
Frequently Asked Questions — MAXHUB ND43CMB
Can it run around the clock?
Yes. MAXHUB rates the CMB series for 24/7 operation, in landscape or portrait orientation.
Do I need a separate media player?
Not necessarily. MAXHUB Signage OS V2 (Android 14) is built in, with MAXHUB Pivot for remote content scheduling. You can still connect a PC or player through HDMI or USB-C.
Is it a touch screen?
MAXHUB's CMB specifications do not list a touch panel. For touch collaboration, see the MAXHUB XBoard V7 interactive displays.
Can I use it with Microsoft Teams Rooms?
MAXHUB positions the CMB series as a Microsoft Teams Rooms companion display that wakes and sleeps in sync with the MTR system. Tell us your MTR setup and we will confirm the configuration.
Is a wall mount included?
MAXHUB has not published the in-box list for this size — contact us to confirm before ordering. We also offer delivery and installation.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
