MAXHUB UW Series UW105NA 105" 5K Ultra-Wide Commercial Display
PRODUCT DESCRIPTION
MAXHUB UW Series UW105NA 105" 5K Ultra-Wide 21:9 Commercial Display with Android 13 (UW105NA) - 3 Years Local Warranty
105" Ultra-Wide 21:9 Canvas in 5K
The MAXHUB UW105NA is a 105" ultra-wide commercial display with a 21:9 aspect ratio and 5120 x 2160 (5K) resolution — MAXHUB quotes 33% more visual canvas than comparable models. Its VA panel is rated at 400 nits with a 4,000:1 contrast ratio and 178° viewing angles, and is designed for 16/7 operation in landscape orientation for hybrid meeting rooms, boardrooms and command centres.

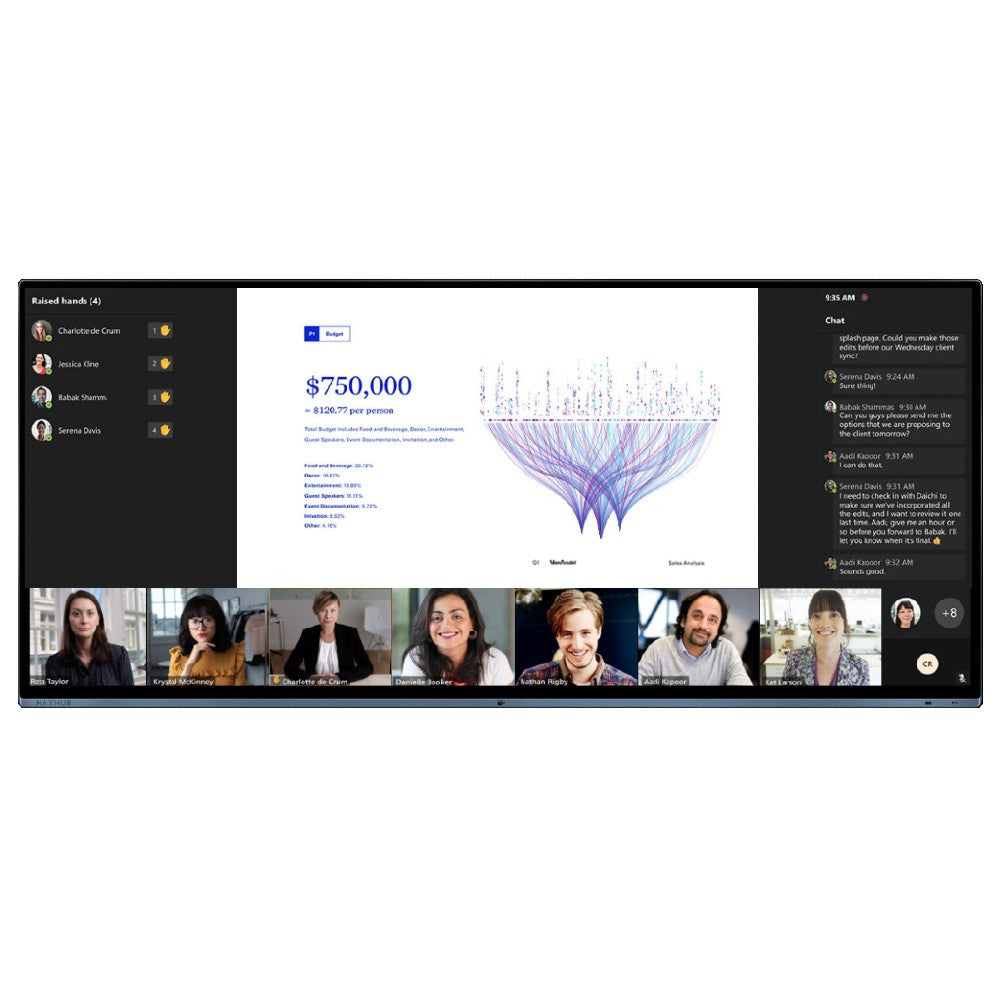

Built for Hybrid Meetings
MAXHUB lists the UW105NA as Microsoft Teams Rooms compatible and Crestron Connected certified, for one-touch power and input switching and remote updates via XiO Cloud, with compatibility for Crestron, Q-SYS and Extron control systems. MAXHUB Share supports up to 9 devices sharing their screens at once, and motion and light sensors help the display operate intelligently.
Android 13 Built In, OPS Ready
An octa-core processor (4 x A76 + 4 x A55) with Mali-G610 MP4 graphics, 8GB RAM and 64GB storage runs Android 13 with a 5K UI. An OPS slot accepts a MAXHUB OPS62A or OPS72A PC module for switching between Android and Windows.
One-Cable USB-C and 5K Inputs
USB Type-C with 100 W power delivery connects and charges a laptop with one cable. HDMI 2.1 and DisplayPort inputs accept 5120 x 2160@60Hz, alongside three HDMI 2.0 inputs, four USB 3.0 ports and a 2 x 16 W + 15 W speaker system.
Need help choosing? Email sales@sourceit.com.sg with your room size, platform and quantity and we will recommend the right configuration.
MAXHUB UW105NA Datasheet — Technical Specifications
General
| Product Name | MAXHUB UW Series Ultra-Wide Commercial Display |
| Part Number | UW105NA |
| Series | MAXHUB UW Series |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Display
| Screen Size | 105" (266.7 cm) |
| Resolution | 5120 x 2160 (5K) |
| Aspect Ratio | 21:9 |
| Panel Type | VA |
| Backlight | Direct lit |
| Brightness | 400 nits |
| Contrast Ratio | 4,000:1 |
| Viewing Angle | 178° (H) / 178° (V) |
| Refresh Rate | 60 Hz |
| Response Time | 6.5 ms |
| Haze | 25% (anti-glare) |
| Lifespan | ≥ 50,000 hours |
| Operation | 16/7, landscape |
System
| Operating System | Android 13.0 (5K UI) |
| CPU | 4 x A76 + 4 x A55 |
| GPU | Mali-G610 MP4 |
| RAM | 8GB |
| Storage | 64GB |
| Expansion | OPS slot (OPS62A / OPS72A optional) |
| Sensors | Motion and light sensors |
Ports
| HDMI In | 3 x HDMI 2.0 (max 3840 x 2160@60Hz), 1 x HDMI 2.1 (max 5120 x 2160@60Hz) |
| DisplayPort In | 1 (max 5120 x 2160@60Hz) |
| USB Type-C | 1 (PD 100 W) |
| USB | 4 x USB Type-A 3.0, 1 x USB Type-A 2.0 |
| HDMI Out | 1 x HDMI 2.0 |
| Audio | 1 x SPDIF (optical), 1 x 3.5 mm audio out |
| Network | RJ45 in + RJ45 out |
| Control | RS232, IR receiver |
Audio & Wireless
| Speakers | 2 x 16 W + 15 W |
| Wi-Fi | Wi-Fi 6, 802.11a/b/g/n/ac/ax, 2.4/5 GHz, removable Wi-Fi module |
Power & Physical
| Power Supply | 100–240 V~, 50/60 Hz |
| Power Consumption | 550 W typical, 665 W max |
| Dimensions (W x H x D) | 2511 x 1124 x 97 mm |
| Net Weight | 89.4 kg |
| Shipping Dimensions | 2668 x 1305 x 280 mm |
| VESA | 1000 x 400 mm |
| Handles | Yes |
| Operating Environment | 0–40 °C, 10–90% RH |
| Storage Environment | -20–60 °C, 10–90% RH |
Certifications
| Safety | IEC 62368-1 |
| EMC | Class B |
| Energy | Energy Star, ErP |
| Control Integration | Crestron Connected certified |
Compatibility & Software Support
Conferencing
MAXHUB lists the UW105NA as Microsoft Teams Rooms compatible for immersive hybrid meetings. Tell us your MTR setup and we will confirm the configuration.
Screen Sharing & BYOD
MAXHUB Share wireless casting with up to 9 devices sharing at once; USB-C with 100 W power delivery for single-cable laptop connection; HDMI 2.1 and DisplayPort for native 5K sources.
Management & Control
Crestron Connected certified (one-touch power and input switching, remote updates via XiO Cloud) and compatible with Crestron, Q-SYS and Extron control systems; RS232, IR and RJ45 control. Android 13 is built in, with an OPS slot for a MAXHUB OPS62A / OPS72A Windows module.
Package Contents & MAXHUB UW Series Ordering Information
In the Box
Per MAXHUB's UW105NA datasheet: power cord, Wi-Fi module, 2 m HDMI cable, remote control, wall mount and 1.8 m USB-C cable. Optional: OPS62A / OPS72A PC module.
MAXHUB UW Series Models
| Model | Size | Panel |
| UW92NA | 92" 21:9, 5120 x 2160 | VA, 500 nits |
| UW105NA (this listing) | 105" 21:9, 5120 x 2160 | VA, 400 nits |
Also available: the 16:9 MAXHUB CMA series (ND43CMA–ND98CMA), CMA-T series (ND65CMA-T, ND75CMA-T) and CMB series (ND43CMB–ND98CMB) commercial displays — ask us for a comparison.
Datasheet & Downloads
| MAXHUB UW105NA datasheet | UW105NA Commercial Display Datasheet (PDF) |
| Series leaflet | UW Series Leaflet (PDF) |
| MAXHUB product page | UW Series 105" on maxhub.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting UW105NA.
Frequently Asked Questions — MAXHUB UW105NA
What is the resolution and aspect ratio?
5120 x 2160 (5K) at 21:9 — MAXHUB quotes 33% more visual canvas than comparable models.
Does it work with Microsoft Teams Rooms?
MAXHUB lists the UW105NA as Microsoft Teams Rooms compatible. Tell us your room system and we will confirm the setup.
Can I connect a laptop with one cable?
Yes — USB Type-C carries video and delivers up to 100 W of charging power.
Can it run all day?
MAXHUB rates the UW105NA for 16/7 operation in landscape orientation.
Is it a touch screen?
MAXHUB's UW105NA specifications do not list a touch panel. For touch collaboration, see the MAXHUB XBoard V7 interactive displays.
Is a wall mount included?
Yes — MAXHUB lists a wall mount in the box, together with the Wi-Fi module, HDMI and USB-C cables and remote control. The 89.4 kg display needs a suitable wall; we can quote delivery and installation.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
