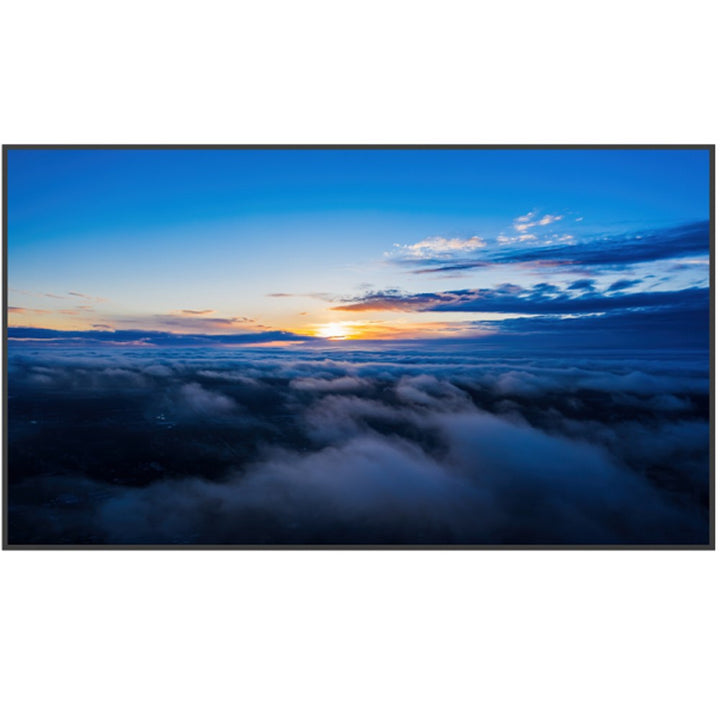

MAXHUB CMB Series ND86CMB 86" 4K Commercial Display
PRODUCT DESCRIPTION
MAXHUB CMB Series ND86CMB 86" 4K UHD 500-nit Commercial Display with Signage OS (Android 14) (ND86CMB) - 3 Years Local Warranty
86" 4K Display Built for 24/7 Operation
The MAXHUB CMB series is a 4K UHD (3840 x 2160) commercial display for meeting rooms, reception areas, retail and digital signage. The 86" ND86CMB uses an ADS panel rated at 500 nits with a 1,200:1 typical contrast ratio and 178° viewing angles, and is designed for 24/7 operation in landscape or portrait orientation.
Professional-grade, Calibrated Colour
MAXHUB specifies 98% sRGB coverage and 1.07 billion colours (10-bit) for the CMB series, with factory calibration and support for sRGB, Adobe RGB, DCI-P3 and Display P3 gamuts. A 25% haze anti-glare surface keeps text and images readable under bright office and retail lighting.
Built-in MAXHUB Signage OS V2
MAXHUB Signage OS V2 (powered by Android 14) runs on a quad-core A73 1.8 GHz processor with 4GB RAM and 32GB storage, so content can play without an external media player. Picture-in-Picture and Picture-by-Picture modes show two sources at once, and MAXHUB Pivot handles remote device control and content scheduling.
Meeting-room Ready: USB-C, Wireless Sharing and MTR Companion
Three HDMI 2.0 inputs and a USB Type-C port with video, audio, 65 W PD charging and LAN sharing make laptop connection one cable. MAXHUB Share supports BYOD casting alongside Miracast, AirPlay and Chromecast, and MAXHUB positions the CMB as a Microsoft Teams Rooms companion display that wakes and sleeps in sync with the MTR system. MAXHUB lists the series as NDI certified and certified by Crestron, Extron and Q-SYS.
Need help choosing? Email sales@sourceit.com.sg with your room size, platform and quantity and we will recommend the right configuration.
MAXHUB ND86CMB Datasheet — Technical Specifications
General
| Product Name | MAXHUB CMB Series 4K Commercial Display |
| Part Number | ND86CMB |
| Series | MAXHUB CMB Series |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Display
| Screen Size | 86" |
| Resolution | 3840 x 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Panel Type | ADS |
| Backlight | DLED |
| Brightness | 500 nits |
| Contrast Ratio | 1,200:1 (typical), 1,000,000:1 (dynamic) |
| Viewing Angle | 178° (H) / 178° (V) |
| Refresh Rate | 60 Hz |
| Colour Gamut | 98% sRGB |
| Display Colour | 1.07 billion (10-bit) |
| Response Time | 8 ms |
| Haze | 25% |
| Bezel Width | 15.9 mm (even) |
| Lifespan | > 50,000 hours (to 50% brightness) |
| Operation | 24/7, landscape or portrait |
System
| Operating System | MAXHUB Signage OS V2 (Android 14.0) |
| CPU | Quad-core A73, 1.8 GHz |
| GPU | G57 MC1 |
| APU | 1.5 TOPS |
| RAM | 4GB |
| Storage | 32GB |
Ports
| HDMI In | 3 x HDMI 2.0 (up to 4K@60Hz, CEC, ARC on HDMI 1) |
| HDMI Out | 1 (up to 4K@60Hz) |
| USB Type-C | 1 (video and audio, 65 W PD charging, LAN network sharing) |
| USB | 2 x USB 2.0 (rear: peripherals; side: wireless dongle pairing, USB clone), 1 x USB 3.0 |
| Audio | 1 x 3.5 mm in, 1 x 3.5 mm out, 1 x SPDIF (PCM) |
| Control | RS232 (DB-9) |
| Network | RJ45 in + RJ45 out (10/100/1000 Mbps) |
Audio & Wireless
| Speakers | 2.0 channel, 2 x 12 W output (2 x 16 W maximum) |
| Wi-Fi | Wi-Fi 6 module SI07B, 802.11a/b/g/n/ac/ax, 2.4/5 GHz (module slot, module included) |
| Bluetooth | 5.2 |
Power & Physical
| Power Supply | 100–240 V~, 50/60 Hz |
| Power Consumption | 148 W typical, 247 W max, 122 W energy saving, ≤ 0.5 W standby |
| Dimensions (W x H x D) | 1930.8 x 1101.7 x 68 mm |
| Thickness with Wall Mount | 101 mm with WIB6560A wall mount |
| Net Weight | 40.80 kg |
| Gross Weight | 56.95 kg |
| Shipping Dimensions | 2110 x 1247 x 225 mm |
| VESA | 600 x 400 mm |
| Operating Environment | 0–40 °C, 10–90% RH |
| Storage Environment | -20–60 °C, 10–90% RH |
Certifications
| Energy | Energy Star |
| Ingress Protection | IP5X |
Compatibility & Software Support
Operating System & Content
MAXHUB Signage OS V2 (Android 14) with built-in playback, Picture-in-Picture and Picture-by-Picture. Content can also be played from a connected PC or media player over HDMI or USB-C.
Screen Sharing & BYOD
MAXHUB Share wireless casting (up to 1080p per MAXHUB) plus Miracast, AirPlay and Chromecast; USB Type-C with 65 W PD charging and LAN sharing; three HDMI inputs for wired sources.
Management & Integration
MAXHUB Pivot for device control and content scheduling; RS232 and RJ45 control. MAXHUB lists the CMB series as NDI certified (NDI HX and High Bandwidth decoding) and certified by Crestron, Extron and Q-SYS, and as a Microsoft Teams Rooms companion display that wakes and sleeps with the MTR system.
Package Contents & MAXHUB CMB Series Ordering Information
In the Box
Per MAXHUB's ND86CMB datasheet: 3 m power cord, 3 m HDMI cable, remote control, 2 display brackets, wall mount bracket and Wi-Fi module.
MAXHUB CMB Series Models
| Model | Size | Panel |
| ND43CMB | 43" | ADS, 500 nits |
| ND50CMB | 50" | VA, 500 nits |
| ND55CMB | 55" | ADS, 500 nits |
| ND65CMB | 65" | ADS, 500 nits |
| ND75CMB | 75" | ADS, 500 nits |
| ND86CMB (this listing) | 86" | ADS, 500 nits |
| ND98CMB | 98" | ADS, 500 nits |
Also available: the MAXHUB CMA series (ND43CMA–ND98CMA) and the 800-nit CMA-T series (ND65CMA-T, ND75CMA-T) — ask us for a comparison.
Datasheet & Downloads
| MAXHUB ND86CMB datasheet | ND86CMB Digital Signage Datasheet V1.2 (PDF) |
| Series brochure | CMB Series Brochure (PDF) |
| MAXHUB product page | CMB Series on maxhub.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting ND86CMB.
Frequently Asked Questions — MAXHUB ND86CMB
Can it run around the clock?
Yes. MAXHUB rates the CMB series for 24/7 operation, in landscape or portrait orientation.
Do I need a separate media player?
Not necessarily. MAXHUB Signage OS V2 (Android 14) is built in, with MAXHUB Pivot for remote content scheduling. You can still connect a PC or player through HDMI or USB-C.
Is it a touch screen?
MAXHUB's CMB specifications do not list a touch panel. For touch collaboration, see the MAXHUB XBoard V7 interactive displays.
Can I use it with Microsoft Teams Rooms?
MAXHUB positions the CMB series as a Microsoft Teams Rooms companion display that wakes and sleeps in sync with the MTR system. Tell us your MTR setup and we will confirm the configuration.
Is a wall mount included?
Yes — MAXHUB's datasheet lists a wall mount bracket and two display brackets in the box.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
