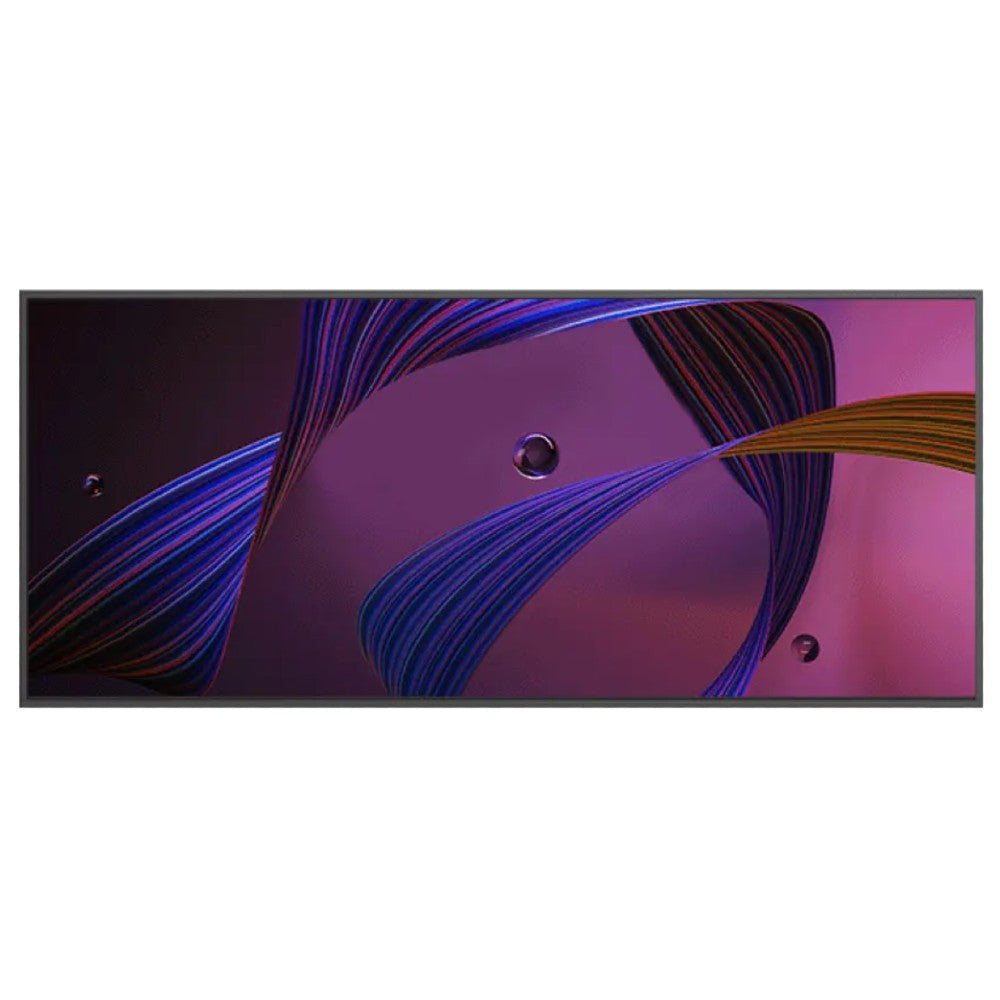

MAXHUB UW Series UW92NA 92" 5K Ultra-Wide Commercial Display
PRODUCT DESCRIPTION
MAXHUB UW Series UW92NA 92" 5K Ultra-Wide 21:9 Commercial Display with Android 13 (UW92NA) - 3 Years Local Warranty
92" Ultra-Wide 21:9 Canvas in 5K
The MAXHUB UW92NA is a 92" ultra-wide commercial display with a 21:9 aspect ratio and 5120 x 2160 (5K) resolution. Its VA panel is rated at 500 nits typical (600 nits maximum) with a 5,000:1 typical contrast ratio and 178° viewing angles, so wide spreadsheets, dashboards and side-by-side meeting layouts fit on a single screen. It runs in landscape or portrait orientation.
Built-in Android 13 with 8GB RAM
An octa-core processor (4 x A76 + 4 x A55) with Mali-G610 MP4 graphics, 8GB RAM and 64GB storage runs Android 13 on the display itself, so content can play without an external media player. An OPS slot accepts a MAXHUB OPS PC module (OPS72A listed by MAXHUB as an option) when a Windows PC is needed inside the screen.
5K Inputs, USB-C and Room Control
Four HDMI inputs (three up to 4K@60Hz, one up to 5K@60Hz) and a DisplayPort input (5K@60Hz) carry native ultra-wide sources, and a USB Type-C port supports up to 20 V / 5 A power delivery. RS232 and dual gigabit RJ45 (in / out) handle control and networking, with Wi-Fi 6 and Bluetooth 5.2 for wireless connectivity.
2.1 Sound for Meeting and Presentation Spaces
A 2.1-channel speaker system (2 x 20 W + 20 W) is built in. MAXHUB supplies the UW92NA with a 3 m power cord, 3 m HDMI cable, remote control, wall mount and Wi-Fi module, and lists ST41B and ST32C mobile stands as options.
Need help choosing? Email sales@sourceit.com.sg with your room size, platform and quantity and we will recommend the right configuration.
MAXHUB UW92NA Datasheet — Technical Specifications
General
| Product Name | MAXHUB UW Series Ultra-Wide Commercial Display |
| Part Number | UW92NA |
| Series | MAXHUB UW Series |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Display
| Screen Size | 92" |
| Resolution | 5120 x 2160 (5K) |
| Aspect Ratio | 21:9 |
| Panel Type | VA |
| Backlight | DLED |
| Brightness | 500 nits (typical), 600 nits (maximum) |
| Contrast Ratio | 5,000:1 (typical), 1,000,000:1 (dynamic) |
| Viewing Angle | 178° (H) / 178° (V) |
| Refresh Rate | 60 Hz |
| Colour Gamut | 72% NTSC |
| Display Colour | 1.07 billion |
| Response Time | 6.5 ms |
| Haze | 25% |
| Active Area | 2141.952 (H) x 903.636 (V) mm |
| Pixel Pitch | 0.13945 (H) x 0.41835 (V) mm |
| Lifespan | > 50,000 hours (to 50% brightness) |
| Orientation | Landscape / portrait |
System
| Operating System | Android 13.0 |
| CPU | 4 x A76 + 4 x A55 |
| GPU | Mali-G610 MP4 |
| RAM | 8GB |
| Storage | 64GB |
| Expansion | 1 x OPS slot, 1 x Wi-Fi module slot |
Ports
| HDMI In | 4 (3 x up to 4K@60Hz, HDCP 2.3, CEC; 1 x up to 5K@60Hz) |
| DisplayPort In | 1 (5K@60Hz, HDCP 1.4 & 2.3) |
| USB Type-C | 1 (up to PD 20 V 5 A) |
| HDMI Out | 1 (up to 4K@60Hz) |
| USB | 4 x USB 3.0, 1 x USB 2.0 |
| Touch USB | 3 x USB 2.0 touch |
| Audio | 1 x 3.5 mm in, 1 x 3.5 mm out, 1 x SPDIF (PCM) |
| Network | RJ45 in + RJ45 out (10/100/1000 Mbps) |
| Control | RS232 (9600 baud) |
Audio & Wireless
| Speakers | 2.1 channel, 2 x 20 W + 20 W |
| Wi-Fi | Wi-Fi 6, 802.11a/b/g/n/ac/ax, 2.4/5 GHz |
| Bluetooth | 5.2 |
Power & Physical
| Power Supply | 100–240 V~, 50/60 Hz, 8.0 A |
| Power Consumption | 320 W typical, 530 W max, ≤ 0.5 W standby |
| Dimensions (W x H x D) | 2182 x 944 x 85 mm |
| Thickness with Wall Mount | 110.2 mm |
| Net Weight | 43.40 kg |
| Gross Weight | 62.60 kg |
| Shipping Dimensions | 2360 x 1072 x 225 mm |
| VESA | 800 x 600 mm (M8 x 25 mm screws) |
| Operating Environment | 0–40 °C, 10–90% RH, below 5,000 m |
| Storage Environment | -20–60 °C, 10–90% RH |
Certifications
| Ingress Protection | IP5X |
| Energy | Energy Star |
Compatibility & Software Support
Operating System & Content
Android 13 is built in, so the UW92NA can play content without a separate player. Add a MAXHUB OPS PC module through the OPS slot for Windows applications, or connect an external PC or media player over HDMI, DisplayPort or USB-C.
Ultra-Wide Sources
One HDMI input and the DisplayPort input accept 5K@60Hz, so a PC can drive the full 5120 x 2160 canvas natively; the other three HDMI inputs accept up to 4K@60Hz.
Control & Network
RS232 (9600 baud) and RJ45 in / out for control and network integration; Wi-Fi 6 and Bluetooth 5.2 for wireless connectivity.
Package Contents & MAXHUB UW Series Ordering Information
In the Box
Per MAXHUB's UW92NA datasheet: 3 m power cord, remote control, 3 m HDMI cable, WIB9080A wall mount and SI07B Wi-Fi module. Optional: OPS72A PC module, ST41B and ST32C mobile stands.
MAXHUB UW Series Models
| Model | Size | Panel |
| UW92NA (this listing) | 92" 21:9, 5120 x 2160 | VA, 500 nits |
| UW105NA | 105" 21:9, 5120 x 2160 | VA, 400 nits |
Also available: the 16:9 MAXHUB CMA series (ND43CMA–ND98CMA), CMA-T series (ND65CMA-T, ND75CMA-T) and CMB series (ND43CMB–ND98CMB) commercial displays — ask us for a comparison.
Datasheet & Downloads
| MAXHUB UW92NA datasheet | UW92NA Commercial Display Datasheet (PDF) |
| Series leaflet | UW Series Leaflet (PDF) |
| MAXHUB product page | UW Series on maxhub.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting UW92NA.
Frequently Asked Questions — MAXHUB UW92NA
What is the resolution and aspect ratio?
5120 x 2160 (5K) at 21:9 — an ultra-wide canvas for dashboards, wide spreadsheets and side-by-side content.
Do I need a separate media player?
Not necessarily. Android 13 is built in (8GB RAM, 64GB storage). You can also add a MAXHUB OPS PC module or connect a PC over HDMI, DisplayPort or USB-C.
Can a PC show the full 5K picture?
Yes — one HDMI input and the DisplayPort input accept 5K@60Hz.
Is it a touch screen?
MAXHUB's UW92NA datasheet does not list a touch panel. For touch collaboration, see the MAXHUB XBoard V7 interactive displays, including the 92" V925T.
Is a wall mount included?
Yes — MAXHUB's datasheet lists the WIB9080A wall mount in the box, along with the Wi-Fi module, remote control, power cord and HDMI cable.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
