Logitech Swytch Connector Y Cable
PRODUCT DESCRIPTION
Logitech Swytch Connector Y Cable (952-000032) - 2 Years Local Warranty

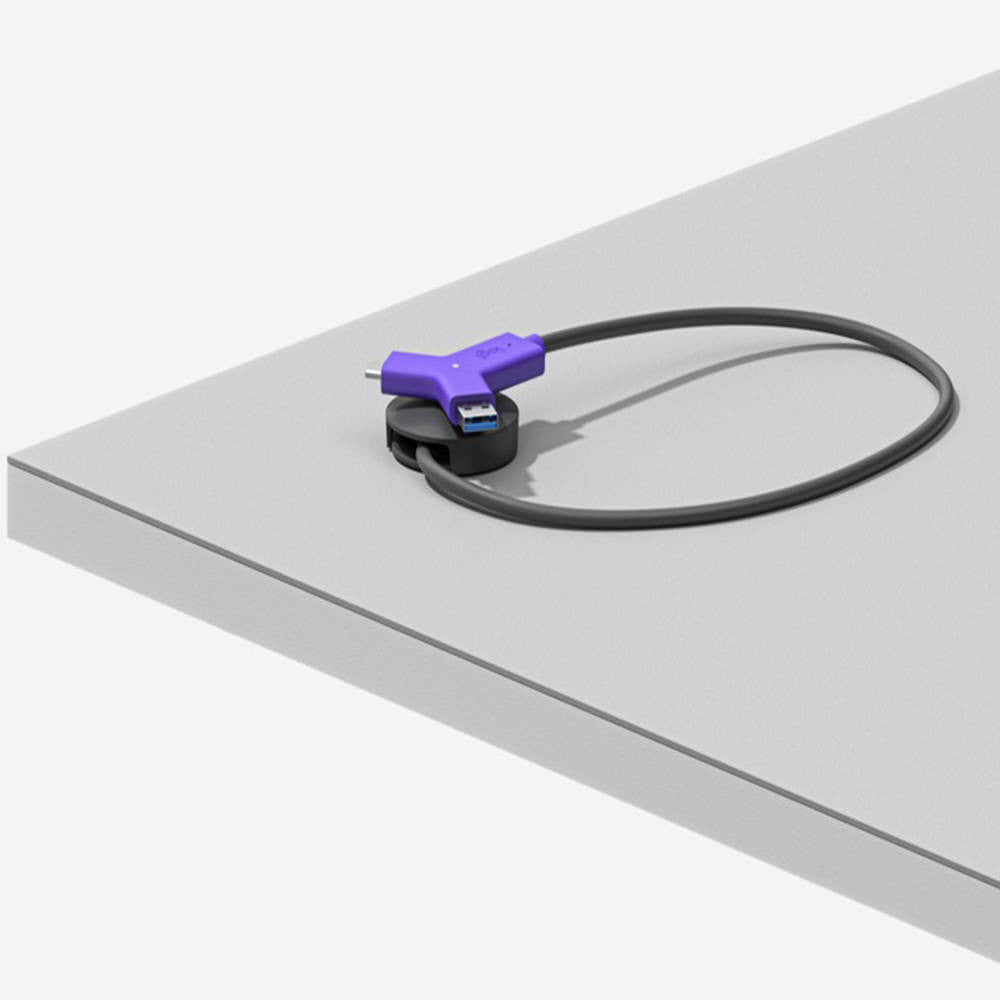

Logitech Swytch Connector — The Laptop-Side Y Cable for Logitech Swytch
The Logitech Swytch Connector (952-000032) is the laptop-side cable of the Logitech Swytch Laptop Link Kit. It is the one cable a presenter plugs into, connecting their laptop to the room's display and USB conference camera through Swytch so they can run any video meeting or webinar from the room.
USB-A and USB-C Ends for Almost Any Laptop

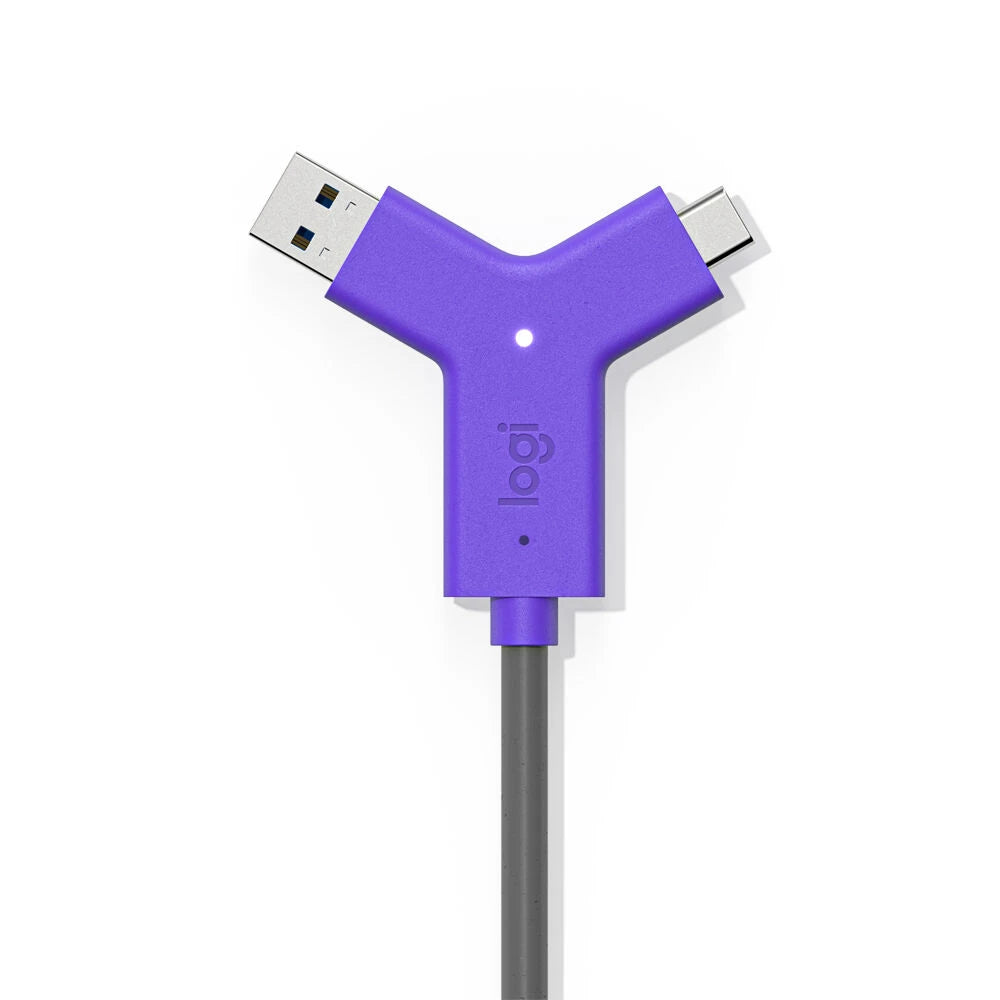

The Y-shaped connector carries both a USB 3.0 Type-A and a USB 3.0 Type-C plug on a 1.5 m integrated cable, so it works with laptops that have either port. On compatible USB-C laptops, Swytch delivers up to 60 W of USB Power Delivery charging over the same cable.
Logitech Swytch Connector Datasheet — Technical Specifications
General
| Part Number | 952-000032 |
| Product series | Logitech Swytch laptop link for meeting rooms |
| Product type | Swytch Connector (laptop Y cable) |
| Compatibility | Logitech Swytch (connects to the Swytch Extender) |
| Warranty | 2 Years Local Warranty (Singapore) |
Connectivity
| Laptop connectors | USB 3.0 Type-A and USB 3.0 Type-C |
| Cable length | 1.5 m integrated USB cable |
| Laptop charging | Up to 60 W USB Power Delivery via USB-C (compatible laptops) |
Compatibility & Laptop Requirements
Laptops need a USB 3.0 port (Type-A or Type-C); USB-C charging requires USB Power Delivery support. Swytch uses DisplayLink technology, supported on Windows 10, macOS 10.15 or later and ChromeOS 75 or later.
Swytch works with Microsoft Teams Rooms, Zoom Rooms and other room solutions that use a USB conference camera and an HDMI display, including Logitech Rally, Rally Plus, Rally Bar, Rally Bar Mini, MeetUp and GROUP.
Package Contents & Swytch Ordering Information
Supplied: Swytch Connector. The complete system — Hub, Extender, Connector, power supplies and cables — is the Logitech Swytch Laptop Link Kit.
Logitech Swytch range at SourceIT:
| Model | Part Number |
| Logitech Swytch Laptop Link Kit | 952-000010 |
| Logitech Swytch Hub | 952-000033 |
| Logitech Swytch Hub Power Adapter | 952-000023 |
| Logitech Swytch Extender | 952-000034 |
| Logitech Swytch Extender Power Kit | 952-000030 |
| Logitech Swytch Connector Y Cable (this listing) | 952-000032 |
| Logitech Swytch 5m USB Active Copper Cable | 952-000031 |
| Logitech Strong USB Cable 10m | 939-001799 |
| Logitech Strong USB Cable 25m | 939-001802 |
Datasheet & Downloads
Frequently Asked Questions — Logitech Swytch Connector
Is this the complete Swytch system?
No. This is the laptop-side Swytch Connector, for replacing or adding a cable to an existing Swytch installation. For a new room, order the Logitech Swytch Laptop Link Kit.
Will it work with a USB-A only laptop?
Yes. The connector has both USB 3.0 Type-A and Type-C plugs. USB-C charging is only available on laptops with a USB-C port that supports USB Power Delivery.
How much power can it deliver to my laptop?
Swytch delivers up to 60 W via USB-C to compatible laptops.
Do laptops need drivers?
Swytch uses DisplayLink technology, supported on Windows 10, macOS 10.15 or later and ChromeOS 75 or later.
Does it come with a local warranty?
Yes. Every Logitech Swytch Connector sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
