Logitech Swytch Laptop Link Kit For Meeting Rooms
PRODUCT DESCRIPTION
Logitech Swytch Laptop Link Kit For Meeting Rooms (952-000010) - 2 Years Local Warranty
Logitech Swytch β One-Cable BYOD Laptop Link for Meeting Rooms
Logitech Swytch (952-000010) is an auto-sensing USB 3.0 and HDMI 2.0 switching solution that lets anyone run a meeting from their own laptop while using the room's camera, microphones, speakers and display. One connector on the table is all a visitor needs. For Singapore offices that host clients, auditors and partners on their own conferencing platforms, Swytch removes the awkward five minutes at the start of every external meeting.
4K Video, 60 W Charging and Any Meeting Platform
Swytch supports up to 4K at 60 fps to the room display and up to 4K at 30 fps from the conference camera, and delivers up to 60 W of power to compatible laptops that charge over USB Type-C. Because it presents the room AV as a standard USB camera and audio device using DisplayLink Plug and Display, it works with any video meeting or webinar application the guest chooses β not only the platform the room is licensed for.
Works With or Without a Room PC
Logitech supports Swytch both in rooms with a dedicated room computer β where it auto-switches the AV between the room system and the laptop β and in bring-your-own-meeting rooms that have only a conference camera and an HDMI display. It works with Logitech Rally and Rally Plus, Rally Bar, Rally Bar Mini, MeetUp and GROUP, plus other USB conference cameras, on Windows 10 and 11, macOS 10.15 or later and ChromeOS 75 or later.
Designed for a Tidy Install and Central Management
The three-piece system separates the Hub at the AV end from the Extender under the table and the Connector on the tabletop, with a magnetic dock keeping the connector in place. The Extender mounts through a 25 mm grommet hole or below the table with the included hardware, and the Hub is compatible with the Logitech PC Mount. Runs can be extended to 25 m using Logitech Strong USB cables, and the whole estate is monitored and updated through Logitech Sync.
Logitech Swytch Datasheet β Technical Specifications
General
| Product | Logitech Swytch β Laptop Link for Meeting Rooms |
| Part Number | 952-000010 |
| Model Number | V-U0056 |
| Component Type | AV switch β auto-sensing USB 3.0 and HDMI 2.0 switching solution |
| System Components | Swytch Hub, Swytch Extender and Swytch Connector |
| Technology | DisplayLink Plug and Display |
| Device Management | Remote monitoring and management via Logitech Sync |
| Room PC | Optional β Swytch works in rooms with a dedicated room computer and in BYOM rooms with only a conference camera and display |
| Warranty | 2 Years Local Warranty (Singapore) |
Video & Audio
| Maximum Display Resolution | 4K at 60 fps |
| Maximum Camera Resolution | 4K at 30 fps |
| Meeting Room Displays Supported | 1 |
| Laptop Audio | Supported for local and online sharing |

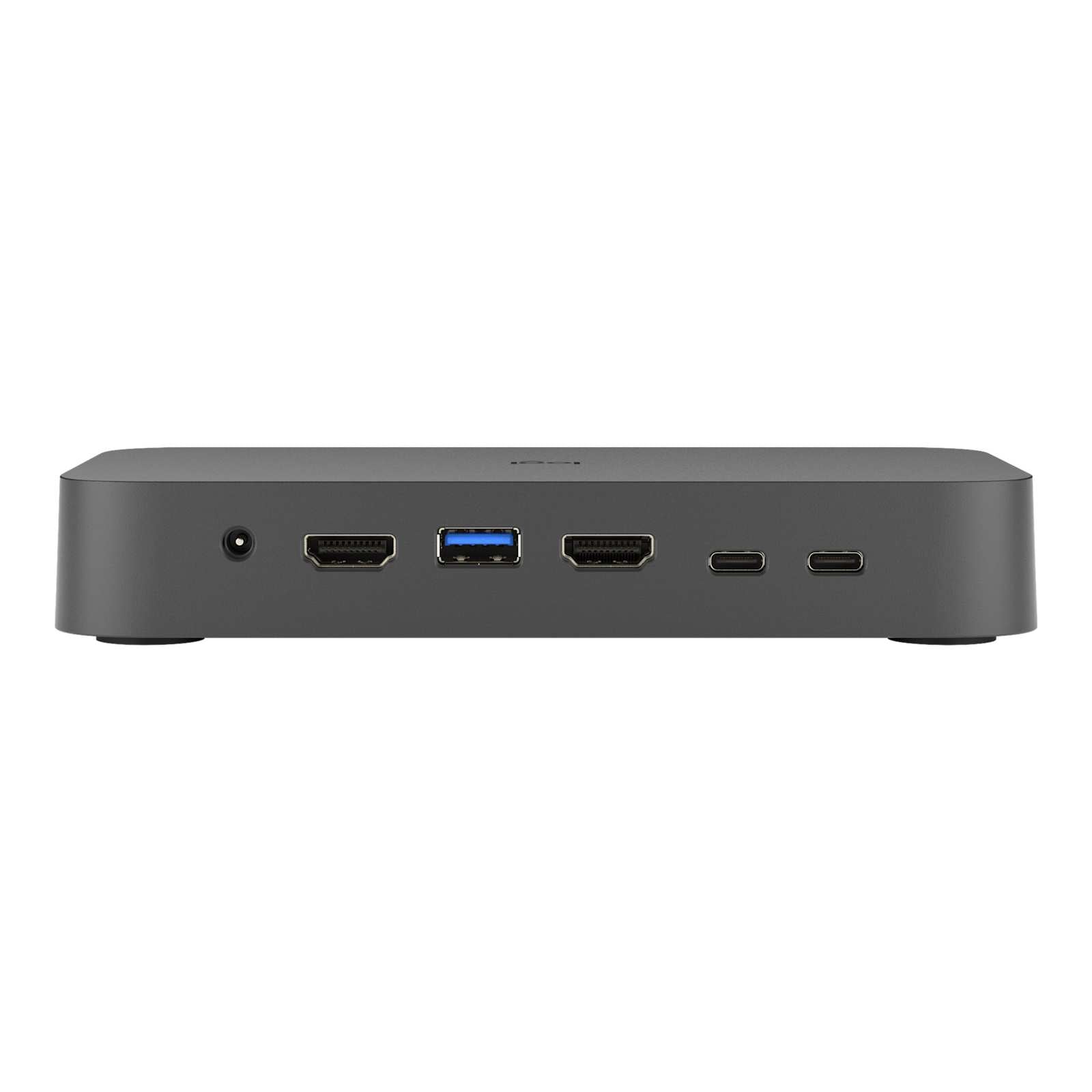

Connectivity β Swytch Hub
| Power | 1 x power input |
| HDMI to Display | HDMI 2.0 |
| HDMI to Meeting Room Computer | HDMI 2.0 |
| USB to Conference Camera | USB 3.0 Type-A |
| USB to Meeting Room Computer | USB 3.0 Type-C |
| USB to Swytch Extender | USB 3.0 Type-C |
Connectivity β Swytch Extender and Connector
| Extender Power | 1 x power input |
| Extender to Hub | USB 3.0 Type-A |
| Extender to Connector | USB 3.0 Type-C and USB 3.0 Micro-B |
| Swytch Connector (laptop end) | USB 3.0, for laptops with Type-A or Type-C ports |
| Laptop Port Requirement | USB 3.0 or higher |
| Power Delivery to Laptop | Up to 60 W for compatible laptops that charge over USB Type-C |
| Connector Dock | Magnetic dock included |
Cabling & Distance
| Included β Hub to Extender | 5 m (16.4 ft) USB 3.0 cable |
| Included β additional USB | 2.2 m (7.2 ft) USB 3.0 cable |
| Included β HDMI | 2.0 m (6.5 ft) HDMI 2.0 cable |
| Included β Connector tether | 1.5 m (4.9 ft) USB cable |
| Extension option | Logitech Strong USB Cable 10 m (939-001799) or 25 m (939-001802) between Hub and Extender |
| Maximum Extension Distance | 25 m using the Logitech Strong USB Cable 25 m |
| Not Supported | The 40 m Strong USB cable, and third-party cables or extenders |
Design & Power
| Swytch Hub Dimensions (H x W x D) | 27.4 x 164 x 90 mm (1.08 x 6.46 x 3.54 in) |
| Swytch Extender Dimensions (H x W x D) | 27.4 x 120 x 120 mm (1.08 x 4.72 x 4.72 in) |
| Hub Power Supply | 100β240 V |
| Extender Power Supply | 100β240 V (separate supply) |
| Hub Mounting | Compatible with the Logitech PC Mount (not included) |

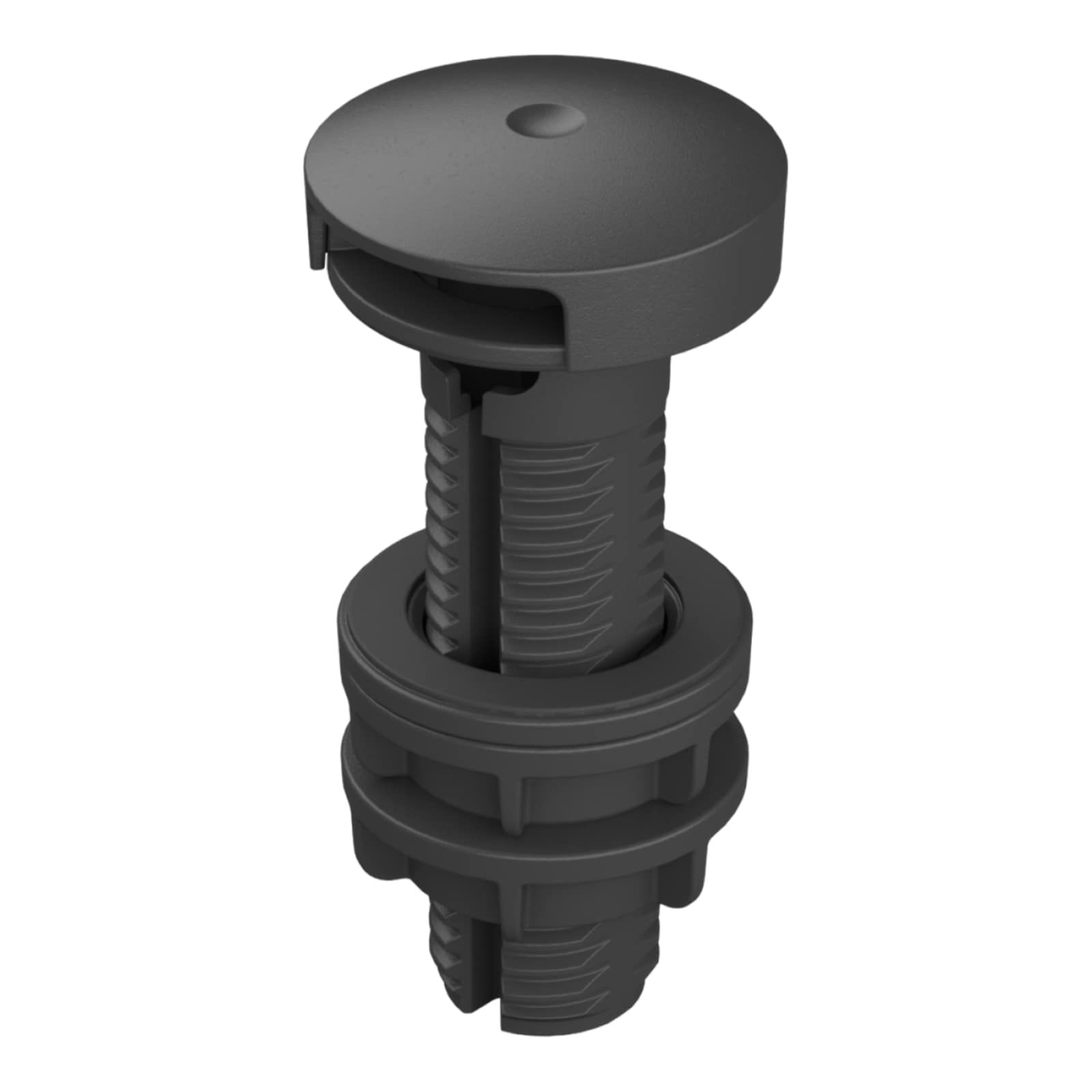

| Extender Mounting | Through a 25 mm (1 in) grommet hole, or below the table using the included hardware |
| Serial Number Location | Underneath the Swytch Hub |
Compatibility & Software Support
Room solutions. Logitech lists Microsoft Teams Rooms, Zoom Rooms and Google Meet Rooms, plus other room solutions that use USB-connected conference cameras and an HDMI-connected display.
Conference cameras. Logitech states Swytch works with Rally and Rally Plus, Rally Bar, Rally Bar Mini, MeetUp, GROUP, and other conference cameras that connect over USB. The room also needs a display with an HDMI input and a USB conference camera with speakerphone capability.
Laptop operating systems. Windows 10, Windows 11, macOS 10.15 and later, and ChromeOS 75 or later. Swytch requires the DisplayLink Plug and Display drivers on the laptop.
Management. Swytch supports remote monitoring and management through Logitech Sync alongside the rest of the room estate.
Note on certifications. Logitech does not publish a platform certification list for Swytch on the Swytch datasheet, spec hub or product page, so we describe supported platforms rather than claiming certification.
Package Contents & Swytch Ordering Information

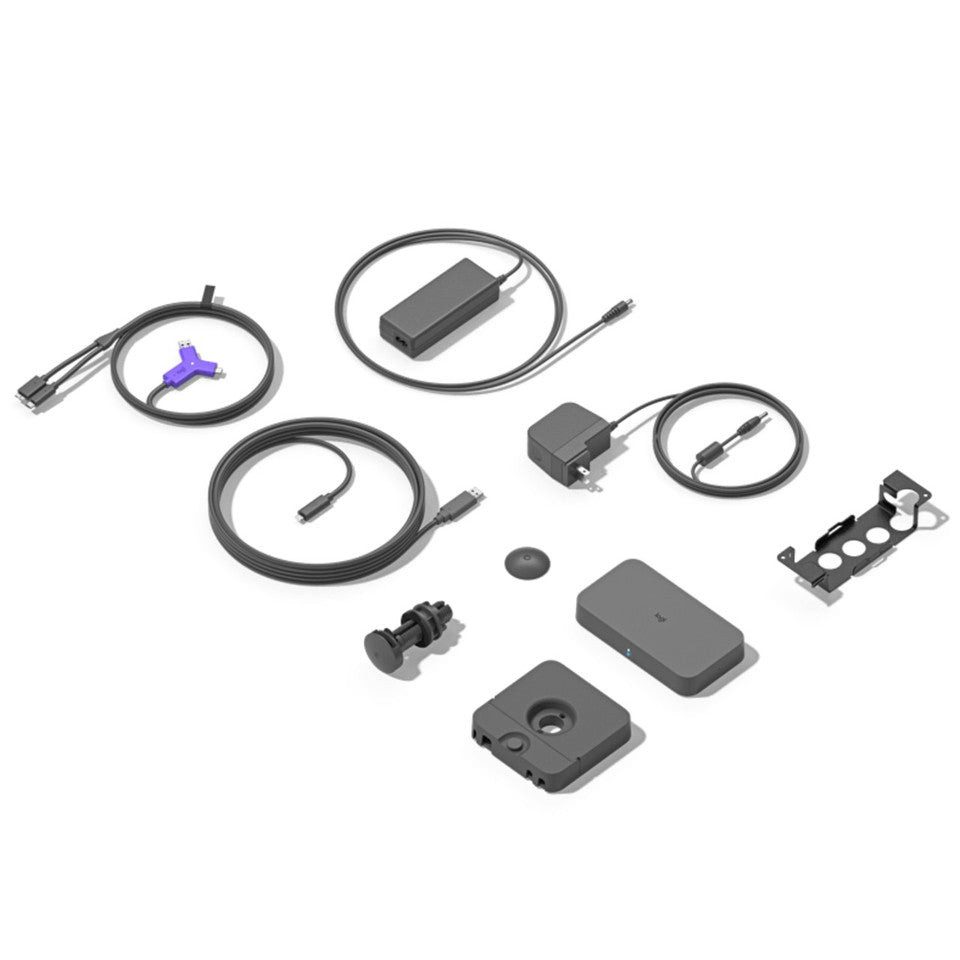

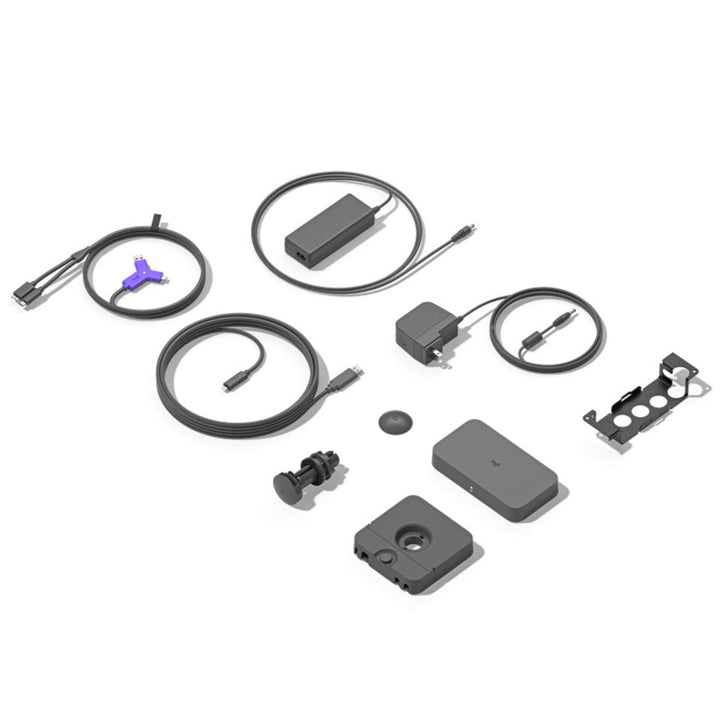

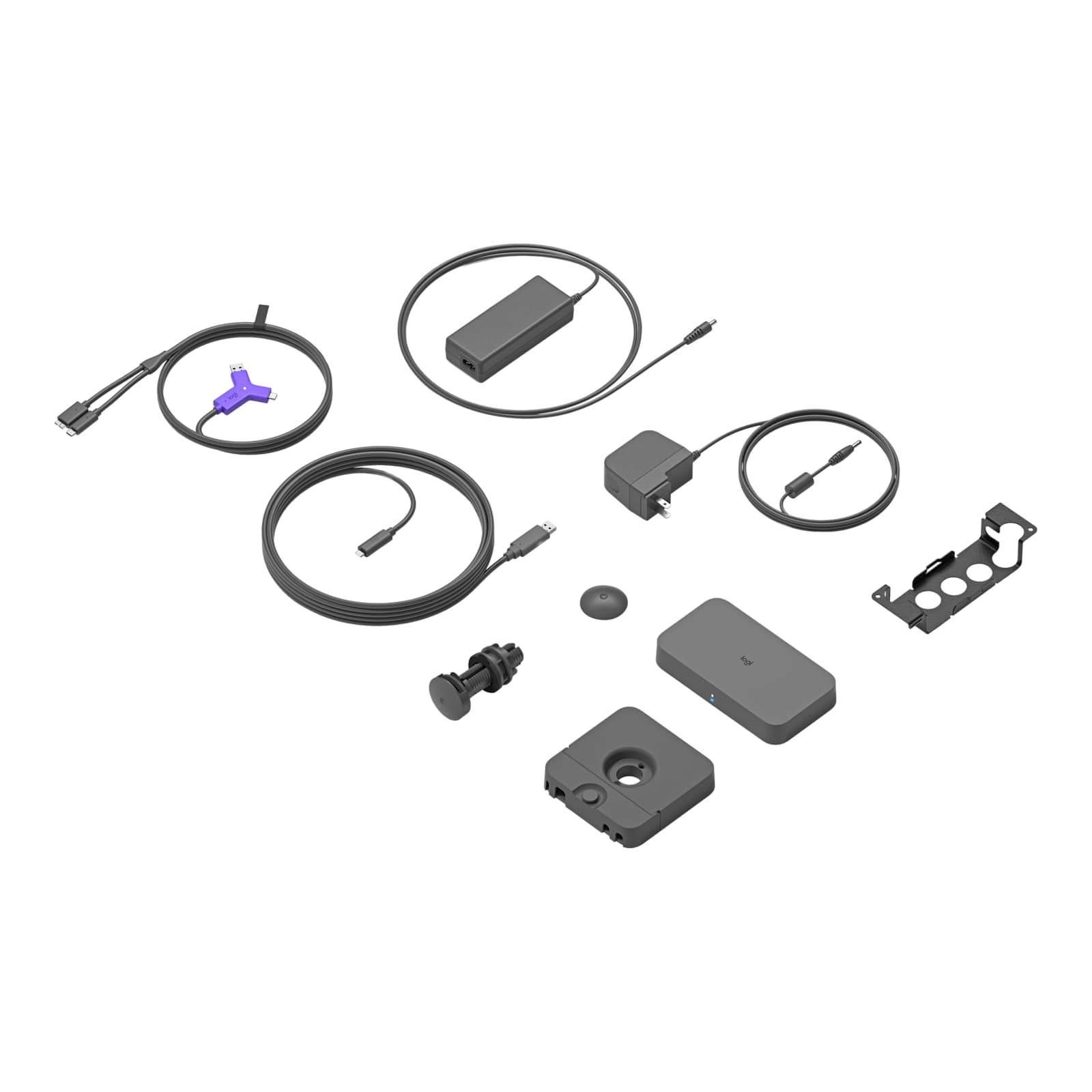

In the box
- Swytch Hub
- Swytch Extender
- Swytch Connector with 1.5 m (4.9 ft) USB cable
- 100β240 V Swytch Hub power supply
- 100β240 V Swytch Extender power supply
- 5 m (16.4 ft) USB 3.0 cable
- 2.2 m (7.2 ft) USB 3.0 cable
- 2.0 m (6.5 ft) HDMI 2.0 cable
- Mounting accessories and documentation
Swytch ordering information
| Logitech Swytch | 952-000010 (this listing) |
| Logitech Strong USB Cable 10 m | 939-001799 β Strong USB Cable 10 m |
| Logitech Strong USB Cable 25 m | 939-001802 β Strong USB Cable 25 m |
| Swytch Y Cable | 952-000032 β Swytch Y Cable (distribution part number; not listed on Logitech's own Swytch pages) |
Regional note: the Logitech Swytch datasheet lists six regional SKUs for the same hardware β 952-000009 (Americas), 952-000010 (EU / UK / South East Asia / Hong Kong), 952-000011 (Australia / New Zealand / India), 952-000012 (China), 952-000013 (Japan) and 952-000014 (Taiwan / Korea). 952-000010 is the SKU indicated for Singapore. Logitech's global part numbers guide labels 952-000010 more broadly as EMEA; the product datasheet is the more specific source.
Datasheet & Downloads
Frequently Asked Questions β Logitech Swytch
What problem does Swytch solve?
It gives guests and staff a single cable on the table that connects their own laptop to the room's camera, microphones, speakers and display. They run the meeting in whatever application they like β Webex, GoTo, a client's own platform, a webinar tool β while still using the room AV instead of the laptop's built-in webcam.
Do I need a room PC for Swytch to work?
No. Logitech states Swytch works both in rooms with a dedicated room computer and in BYOM rooms equipped only with a conference camera and a display. In a room that does have a Teams Rooms or Zoom Rooms PC, Swytch auto-senses and switches the AV between the room system and the connected laptop.
What resolution and charging does it deliver to the laptop?
Up to 4K at 60 fps to the meeting room display and up to 4K at 30 fps from the camera, with one room display supported. Swytch provides up to 60 W of power delivery to compatible laptops that charge over USB Type-C, so a long meeting does not drain the battery.
Which laptops and operating systems are supported?
Laptops with a USB 3.0 or higher Type-A or Type-C port, running Windows 10, Windows 11, macOS 10.15 or later, or ChromeOS 75 or later. The DisplayLink Plug and Display drivers are required on the laptop.
How far can the table connector be from the Hub?
The box includes a 5 m USB 3.0 cable between Hub and Extender plus a 1.5 m tether on the Connector. To go further, Logitech supports its own Strong USB Cable 10 m (939-001799) or 25 m (939-001802) between Hub and Extender β 25 m is the maximum. Logitech explicitly does not support the 40 m Strong cable or any third-party cable or extender.
Which cameras does it work with?
Logitech lists Rally and Rally Plus, Rally Bar, Rally Bar Mini, MeetUp and GROUP, along with other conference cameras that connect over USB. The room display must have an HDMI input.
Does the Logitech Swytch come with local warranty in Singapore?
Yes. Every Logitech Swytch sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
