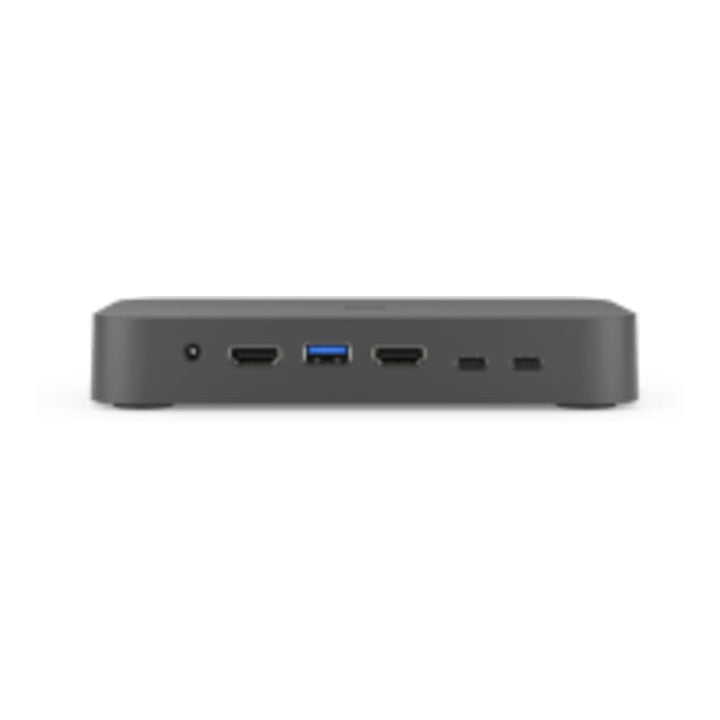

Logitech Swytch Hub
PRODUCT DESCRIPTION
Logitech Swytch Hub (952-000033) - 2 Years Local Warranty
Logitech Swytch Hub — The Room-Side Heart of Logitech Swytch
The Logitech Swytch Hub (952-000033) is the room-side hub of the Logitech Swytch Laptop Link Kit. It sits with the room display and USB conference camera and switches them to whichever laptop is connected through Swytch, so presenters can join any video meeting or webinar using the room's camera, speakerphone and screen.
Auto-Sensing USB 3.0 and HDMI 2.0 with DisplayLink
The Hub is an auto-sensing USB 3.0 and HDMI 2.0 hub with DisplayLink Plug-and-Display technology, carrying video to the display at up to 4K/60 fps and from the conference camera at up to 4K/30 fps over a single USB link from the laptop. Rooms can be monitored and managed remotely through Logitech Sync.
Logitech Swytch Hub Datasheet — Technical Specifications
General
| Part Number | 952-000033 |
| Product series | Logitech Swytch laptop link for meeting rooms |
| Product type | Swytch Hub (room-side unit) |
| Compatibility | Logitech Swytch (with Swytch Extender and Swytch Connector) |
| Warranty | 2 Years Local Warranty (Singapore) |
Ports
| Power | Power input |
| HDMI 2.0 | To display; to meeting room computer |
| USB 3.0 Type-A | To conference camera |
| USB 3.0 Type-C | To meeting room computer; to Swytch Extender |
Performance
| Display output | Up to 4K / 60 fps |
| Camera | Up to 4K / 30 fps |
| Device management | Logitech Sync remote monitoring and management |
Dimensions
| Height | 27.4 mm |
| Width | 164 mm |
| Depth | 90 mm |
Package Contents & Swytch Ordering Information
Supplied: Swytch Hub. The complete system — Hub, Extender, Connector, power supplies and cables — is the Logitech Swytch Laptop Link Kit.
Logitech Swytch range at SourceIT:
| Model | Part Number |
| Logitech Swytch Laptop Link Kit | 952-000010 |
| Logitech Swytch Hub (this listing) | 952-000033 |
| Logitech Swytch Hub Power Adapter | 952-000023 |
| Logitech Swytch Extender | 952-000034 |
| Logitech Swytch Extender Power Kit | 952-000030 |
| Logitech Swytch Connector Y Cable | 952-000032 |
| Logitech Swytch 5m USB Active Copper Cable | 952-000031 |
| Logitech Strong USB Cable 10m | 939-001799 |
| Logitech Strong USB Cable 25m | 939-001802 |
Datasheet & Downloads
Frequently Asked Questions — Logitech Swytch Hub
Is this the complete Swytch system?
No. This is a replacement Swytch Hub for an existing Swytch installation. For a new room, order the Logitech Swytch Laptop Link Kit, which includes the Hub, Extender, Connector, both power supplies and the cables.
Does the Hub include a power adapter?
The Hub power adapter is also available separately as the Logitech Swytch Hub Power Adapter (952-000023) if it needs replacing.
Which cameras and room systems does Swytch work with?
Swytch works with displays that have an HDMI input and USB conference cameras with speakerphone capability, including Logitech Rally, Rally Plus, Rally Bar, Rally Bar Mini, MeetUp and GROUP, in Microsoft Teams Rooms, Zoom Rooms and other room solutions.
Does it come with a local warranty?
Yes. Every Logitech Swytch Hub sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
