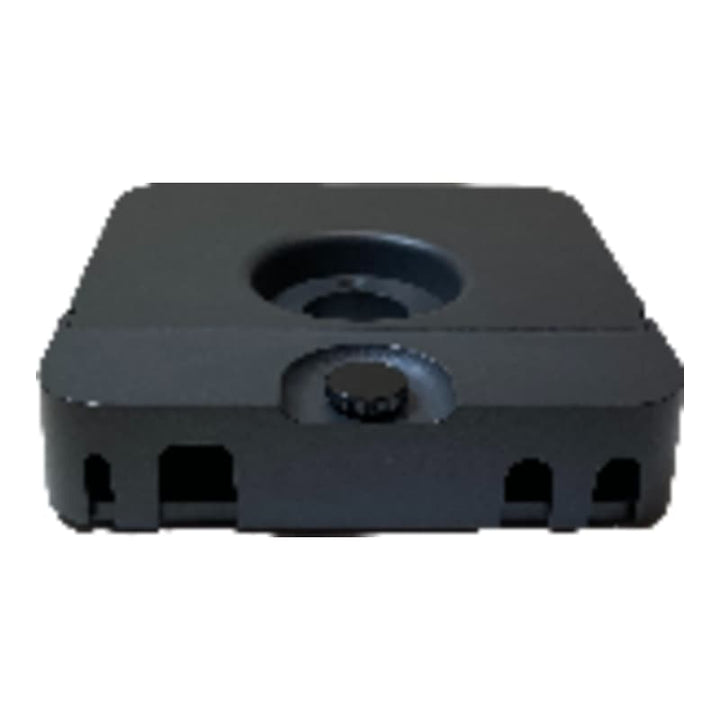

Logitech Swytch Extender
PRODUCT DESCRIPTION
Logitech Swytch Extender (952-000034) - 2 Years Local Warranty
Logitech Swytch Extender — The Table-Side Connection Point for Laptops
The Logitech Swytch Extender (952-000034) is the table-side unit of the Logitech Swytch Laptop Link Kit. It sits at the meeting table, holds the Swytch Connector that presenters plug their laptop into, and links back to the Swytch Hub at the display and camera.
Grommet or Table Mounting
At 120 x 120 x 27.4 mm the Extender fits neatly at the table, and it can be installed through a 25 mm (1 in) grommet hole or attached to the table with the mounting hardware supplied in the Swytch kit.
Logitech Swytch Extender Datasheet — Technical Specifications
General
| Part Number | 952-000034 |
| Product series | Logitech Swytch laptop link for meeting rooms |
| Product type | Swytch Extender (table-side unit) |
| Compatibility | Logitech Swytch (with Swytch Hub and Swytch Connector) |
| Warranty | 2 Years Local Warranty (Singapore) |
Ports
| Power | Power input |
| USB 3.0 Type-A | To Swytch Hub |
| USB 3.0 Type-C | To Swytch Connector |
| USB 3.0 Micro-B | To Swytch Connector |
Dimensions & Mounting
| Height | 27.4 mm |
| Width | 120 mm |
| Depth | 120 mm |
| Mounting | 25 mm (1 in) grommet hole or table attachment |
Package Contents & Swytch Ordering Information
Supplied: Swytch Extender. The complete system — Hub, Extender, Connector, power supplies and cables — is the Logitech Swytch Laptop Link Kit.
Logitech Swytch range at SourceIT:
| Model | Part Number |
| Logitech Swytch Laptop Link Kit | 952-000010 |
| Logitech Swytch Hub | 952-000033 |
| Logitech Swytch Hub Power Adapter | 952-000023 |
| Logitech Swytch Extender (this listing) | 952-000034 |
| Logitech Swytch Extender Power Kit | 952-000030 |
| Logitech Swytch Connector Y Cable | 952-000032 |
| Logitech Swytch 5m USB Active Copper Cable | 952-000031 |
| Logitech Strong USB Cable 10m | 939-001799 |
| Logitech Strong USB Cable 25m | 939-001802 |
Datasheet & Downloads
Frequently Asked Questions — Logitech Swytch Extender
Is this the complete Swytch system?
No. This is a replacement Swytch Extender for an existing Swytch installation. For a new room, order the Logitech Swytch Laptop Link Kit, which includes the Hub, Extender, Connector, both power supplies and the cables.
Is a power supply needed?
Yes, the Extender has its own power input. If the power supply also needs replacing, order the Logitech Swytch Extender Power Kit (952-000030).
Can the Extender be placed far from the Hub?
Logitech lists the Logitech Strong USB Cable 10m and Logitech Strong USB Cable 25m as compatible Swytch cabling for longer runs.
Does it come with a local warranty?
Yes. Every Logitech Swytch Extender sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
