Logitech Reach Adjustable Content Camera with Clamp Mount
PRODUCT DESCRIPTION
Logitech Reach Adjustable Content Camera with Clamp Mount (960-001673) - 2 Years Local Warranty
Space-Saving Overhead Content Camera for Desks, Demo Benches and Classrooms

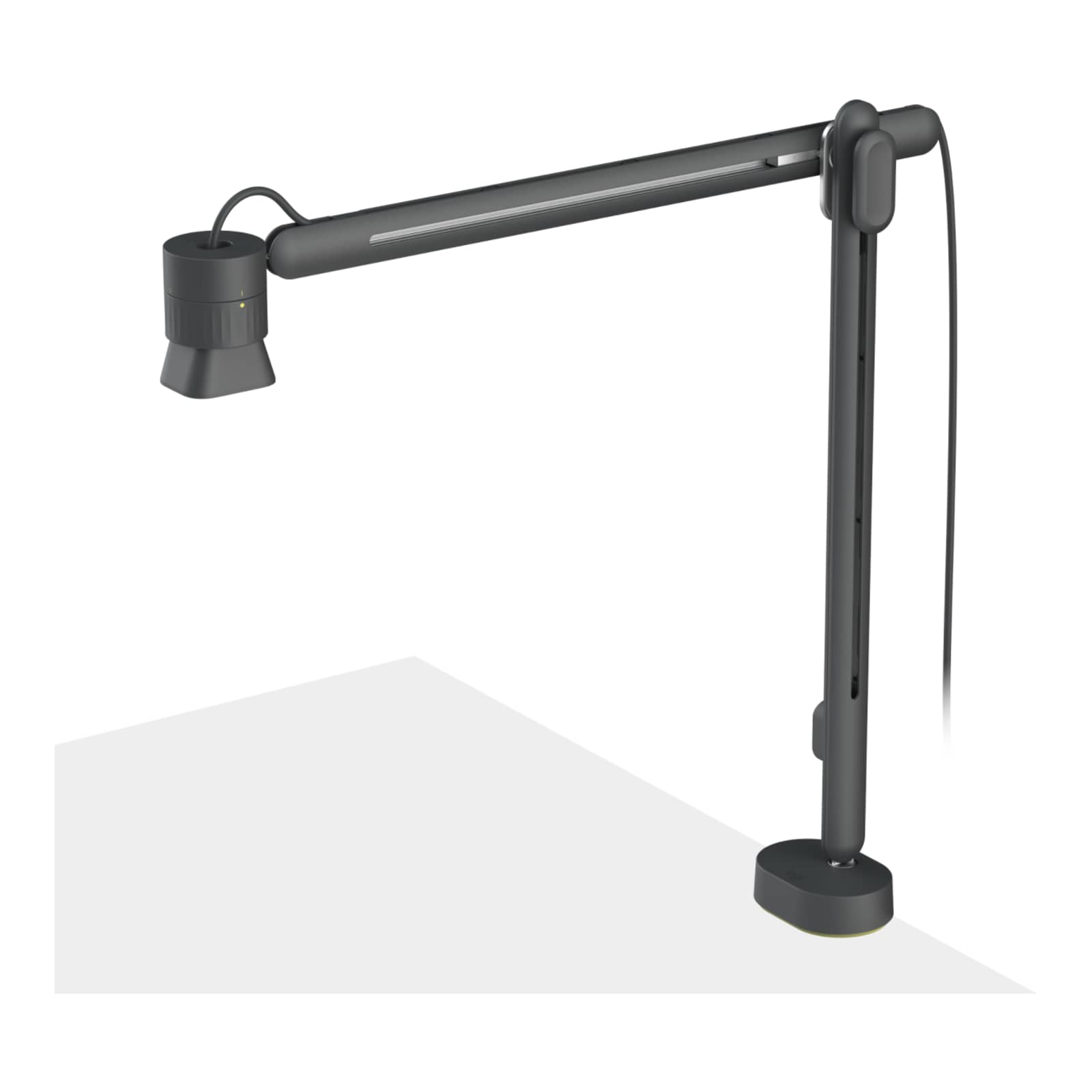

Logitech Reach is an adjustable overhead camera on an articulating arm, built for showing physical things — product samples, printed documents, circuit boards, lab work, sketches — to people on the other end of a video call. This part number ships with the clamp mount, which grips the edge of a desk and takes up only a 10 cm footprint, leaving the working surface clear. At 1.5 kg complete it is also the version to pick if the camera moves between rooms.
1080p60 StreamCam Optics with 4.3x Lossless Zoom
Reach is powered by Logitech StreamCam, so image quality is a genuine step above a document camera: 1080p at 60 fps in MJPEG through a Full HD glass lens at f/2.0 with a 3.7 mm focal length and a 78° diagonal field of view. Autofocus and intelligent exposure keep small detail sharp, and 4.3x lossless zoom takes you from a 30 x 55 cm view of the whole desk down to a 7 x 13 cm close-up of a single component. Dual omnidirectional microphones with a noise reduction filter are built in.

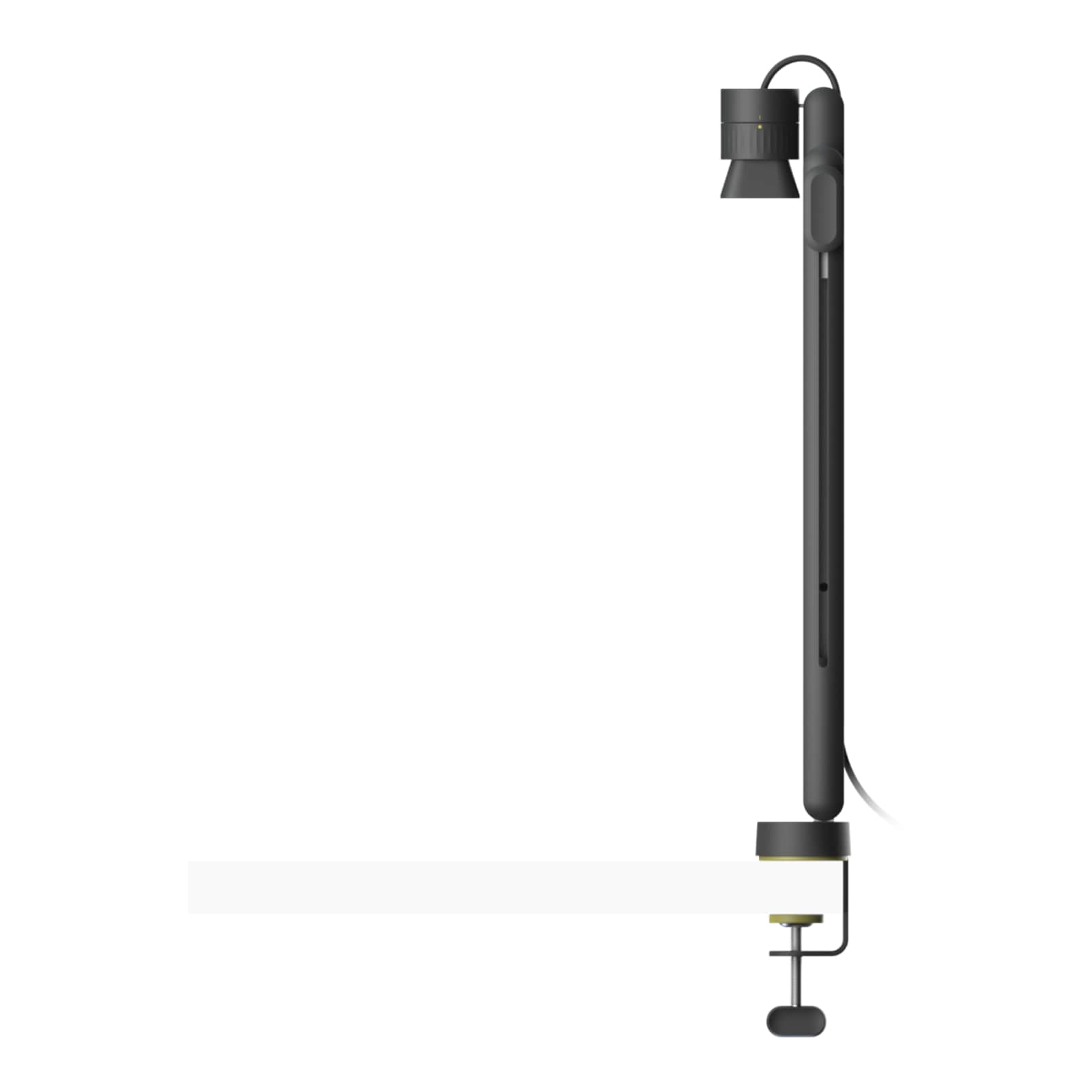

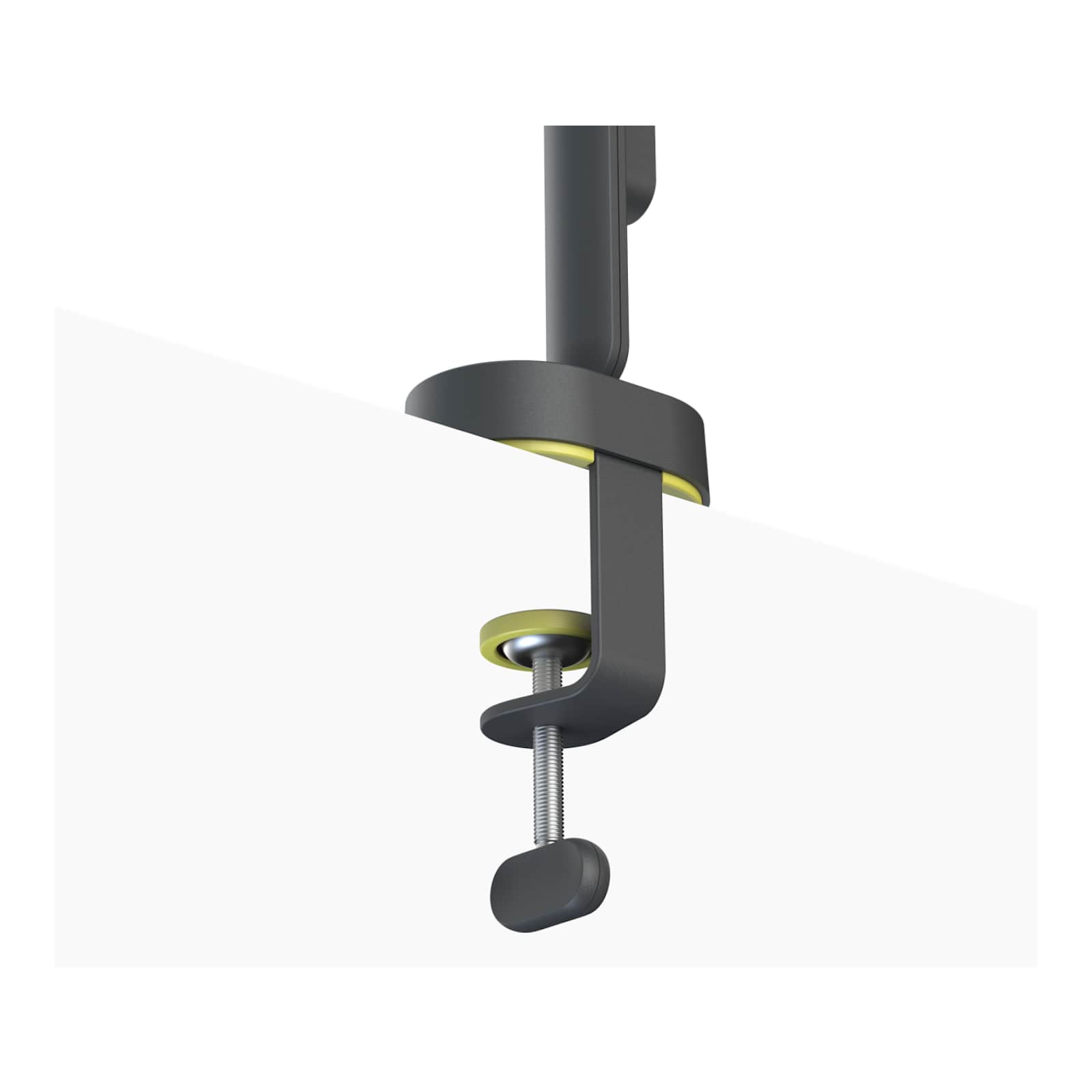

Clamp Mount Fits Desks up to 5.6 cm Thick
The clamp accepts a maximum edge thickness of 5.6 cm (2.2 in) and Logitech recommends 5.4 cm (2.13 in) of clearance beneath the table for clamping. Non-marring grip layers on both clamping surfaces protect the desk finish. Worth checking your desks before you order — thick worktops, glass tables and desks with a deep front rail may need the free-standing base mount version instead.
Manual Adjustment, USB-C Plug-and-Play, No Software to Install
Every movement is manual and mechanical — one-handed sliders give 32.3 cm of horizontal travel and 31 cm of vertical travel, with 360° panning, plus 360° rotation and 180° tilt at the camera head. There are no motors and nothing to configure. It connects over a single USB-C cable as a standard UVC camera, so Windows, macOS, ChromeOS and iPad all see it immediately, and it can be selected as the camera in Microsoft Teams, Zoom or Google Meet with no drivers to deploy.
Logitech Reach Datasheet — Technical Specifications
General
| Product | Logitech Reach adjustable content camera with clamp mount |
| Purpose | Overhead capture of objects, samples, models, artifacts and documents |
| Model number | VU0054 |
| Part number | 960-001673 (EAN 097855196552) |
| Clamp mount accessory part number | 952-000192, if purchased separately |
| Warranty | 2 Years Local Warranty (Singapore) |
Camera
| Camera platform | Powered by Logitech StreamCam |
| Maximum video resolution | 1080p at 60 fps in MJPEG |
| Lens | Premium Full HD glass lens, f/2.0, 3.7 mm focal length |
| Field of view | 78° diagonal (DFOV). Logitech does not publish HFOV or VFOV figures. |
| Zoom | 4.3x lossless zoom. Logitech does not state an optical zoom for Reach. |
| Focus | Autofocus with intelligent exposure |
| Audio | Dual omnidirectional microphones with noise reduction filter |
| Pan / tilt | Manual and mechanical. There are no motors, no presets and no remote PTZ control. |
Reach & Articulation
| Horizontal travel | 32.3 cm (12.73 in) of one-handed lateral travel, plus 360° panning rotation |
| Vertical travel | 31 cm (12.22 in) via a multipoint push-button adjustment |
| Camera head movement | 360° rotation on the camera ring, 180° tilt and 360° rotation on the ball joint |
| View area at maximum zoom out | 30 x 55 cm (12 x 21.5 in) of desktop surface |
| View area at maximum zoom in | 7 x 13 cm (2.75 x 5 in) of desktop surface |

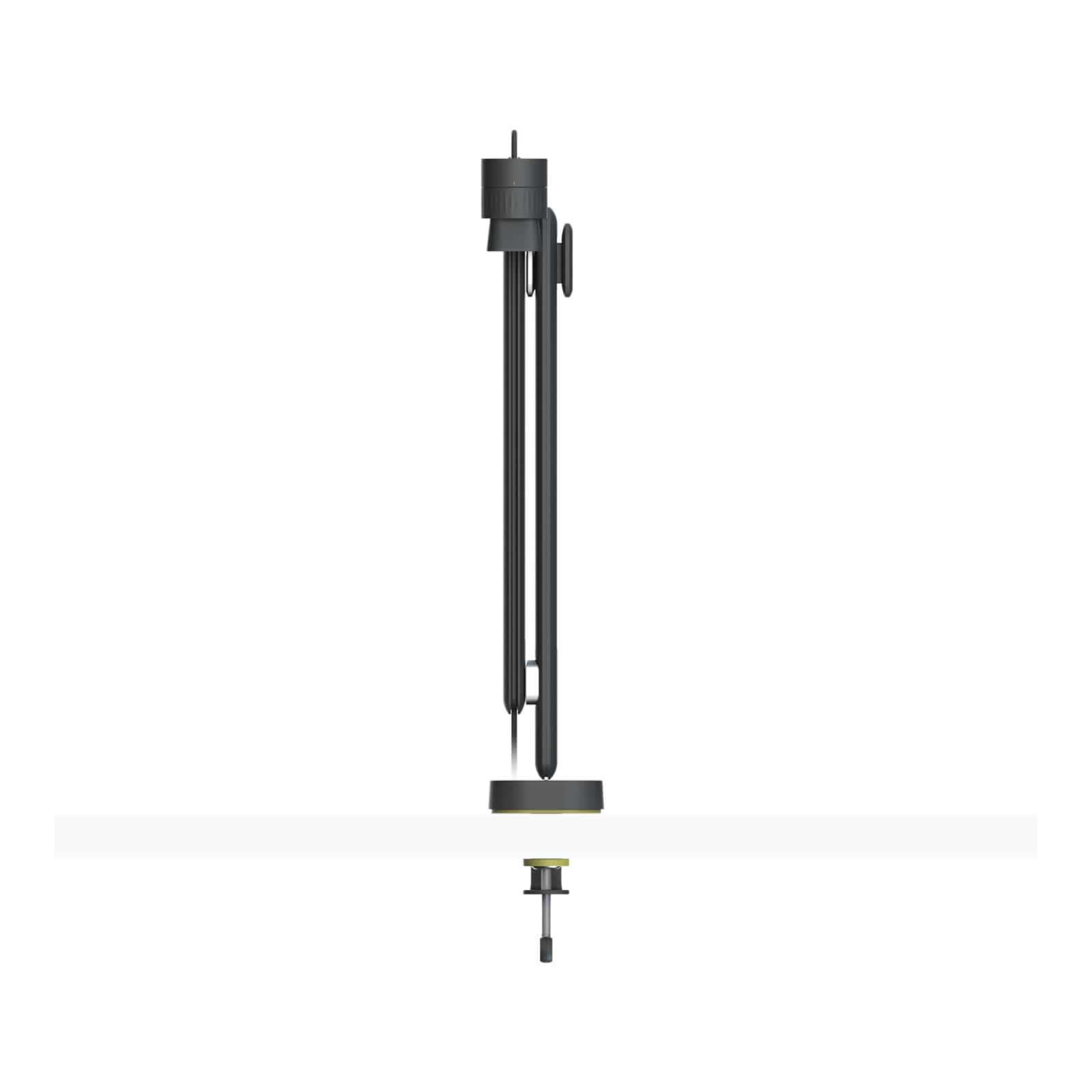

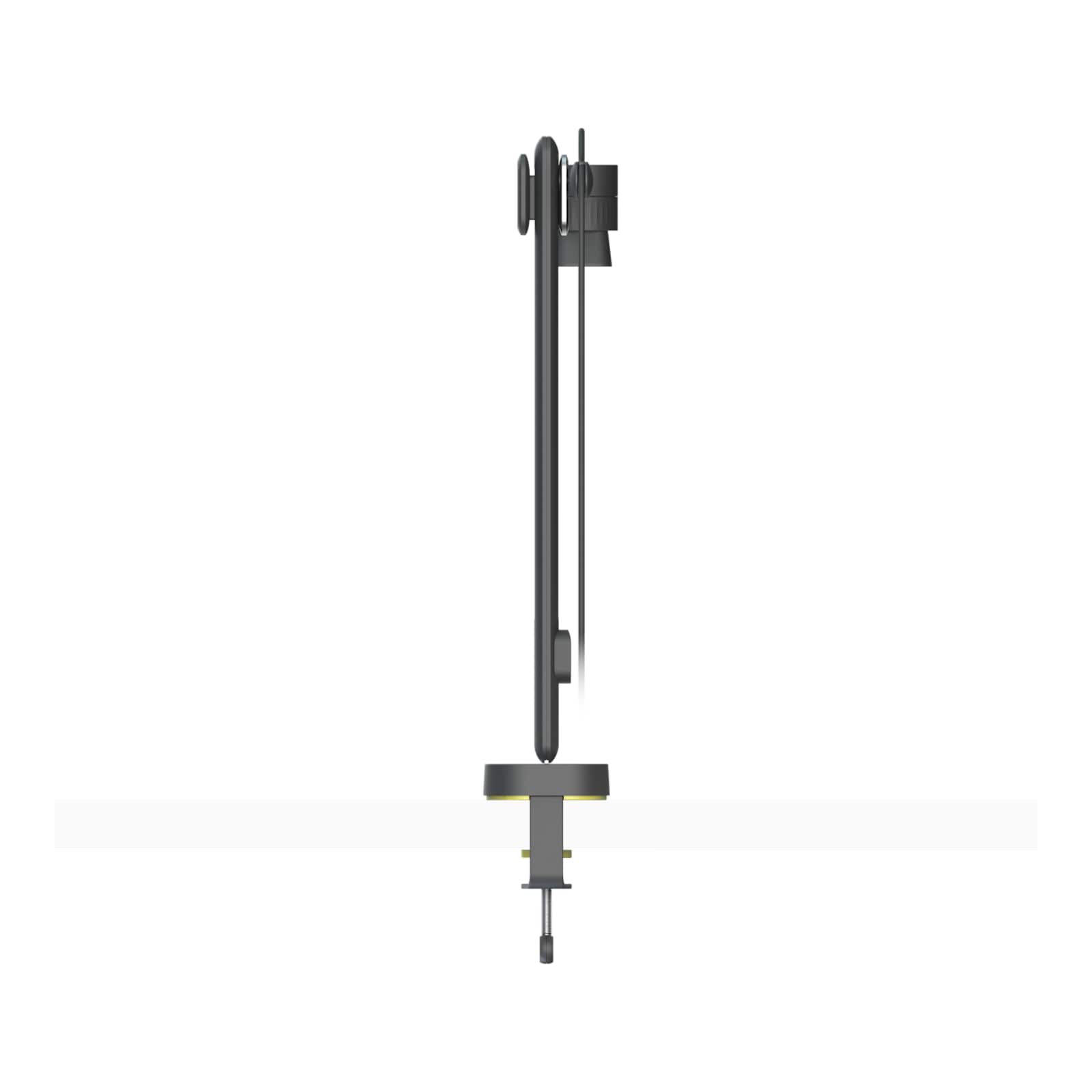

| Modes | Desktop mode with the arm extended over the surface, and a stowed compact mode for presenter view or storage |
Connectivity
| Connection | USB-C, plug-and-play UVC. No proprietary software to install. |
| Cable length | Approximately 0.9 m (3 ft) of usable USB-C cable |
| Extension | Logitech notes that extension cables can be used for additional range but may affect maximum video quality. A Reach USB-C extension cable is sold separately. |
Design & Power
| Dimensions, compact mode | 59 x 10 x 10 cm (23.2 x 3.94 x 3.94 in) |
| Dimensions, desktop mode | 53 x 55 x 10 cm (20.87 x 21.65 x 3.94 in) |
| Weight, complete with clamp mount | 1.5 kg (3.3 lb) |
| Maximum desk edge thickness | 5.6 cm (2.2 in) |
| Recommended under-table clearance | 5.4 cm (2.13 in) |
| Clamp mount alone | 123 mm (H) x 70 mm (W) x 100 mm (D), 468 g |
| Grip | Non-marring grip layer on both clamping surfaces |
| Power | USB connected. Logitech does not publish a power figure or list a separate power adapter. |
Compatibility & Software Support
Logitech Reach is a standard USB (UVC) camera. It needs no drivers and no proprietary software, which is what makes it straightforward to deploy across a mixed fleet.
| Host devices | Most computers, including iPads and Chromebooks, that support USB cameras |
| Windows | Works as a USB camera; Windows Camera app supported |
| macOS | Works as a USB camera; QuickTime supported |
| ChromeOS | Works as a USB camera; Google Camera app supported |
| Microsoft Teams, Zoom, Google Meet | Logitech confirms Reach can be selected as the camera source in all three. Note this is compatibility, not certification — Logitech publishes no platform certification for Reach. |
| Zoom second-camera share | Zoom’s second-camera feature lets you share Reach alongside your personal webcam simultaneously |
| Streaming software | Streamlabs and similar UVC-compatible applications |
| Logitech Sync / CollabOS | Not applicable. Reach is not a CollabOS device and does not appear in Logitech’s CollabOS or RoomMate certification matrices. |
We want to be straight about one thing: Logitech does not document Reach as a content camera for Rally Bar, Rally Bar Mini, Rally Bar Huddle or RoomMate appliance rooms. If you need an appliance-mode content or whiteboard camera, the Logitech Scribe is the product Logitech certifies for that role.
Package Contents & Reach Series Ordering Information
In the box
Logitech does not publish a formal in-the-box list for Reach, so rather than invent one we will tell you what is confirmed: this part number supplies the Reach camera and articulating arm together with the clamp mount, its USB-C cable and documentation. If your tender or purchase order needs a line-by-line packing list, ask SourceIT and we will obtain it from the distributor in writing.
Reach series ordering information
| Reach Adjustable Content Camera with Base Mount — 960-001670 | View listing |
| Reach Adjustable Content Camera with Clamp Mount — 960-001673 (this listing) | View listing |
| Reach Base Mount, accessory only — 952-000191 | View listing |
| Reach Clamp Mount, accessory only — 952-000192 | View listing |
Swapping between mounts
Logitech sells both bases as standalone accessories precisely so one camera can move between setups — a desk with a clamp today, a free-standing base tomorrow. If you expect to move the camera between rooms, buying the second mount separately is cheaper than buying a second camera.
Regional part numbers
Logitech’s Reach datasheet labels 960-001670 and 960-001673 as the Americas and Asia-Pacific part numbers (excluding Japan), which are the correct part numbers for Singapore. Logitech does not publish separate EMEA part numbers for Reach in any datasheet we can retrieve.
Datasheet & Downloads
Frequently Asked Questions — Logitech Reach
Will the clamp fit my desk?
It fits a desk edge up to 5.6 cm (2.2 in) thick, and Logitech recommends 5.4 cm (2.13 in) of clearance under the table so the clamp can close. Measure the edge before ordering. If your desks are thicker, glass, or have a deep front rail, order the base mount version (960-001670) instead — it is free-standing and needs no clamping.
What is the difference between the clamp mount and the base mount version?
The camera and arm are identical; only the mounting foot differs. The clamp mount (this listing, 960-001673) has a 10 cm footprint and weighs 1.5 kg complete. The base mount version is a weighted free-standing base with a 19 cm square footprint and a total weight of 4.05 kg. Choose the clamp to keep the desk clear and to move the camera between rooms easily.
What is Reach actually for?
Showing physical content on a video call: product demonstrations, printed documents, samples, models, lab and workshop tasks, hands-on teaching. It is a content camera, not a room camera and not a participant camera. To frame the people in a meeting room, look at MeetUp 2 or Rally Bar Huddle instead.
Is it certified for Microsoft Teams, Zoom or Google Meet?
No, and we would rather say so than imply otherwise. Logitech publishes no platform certification for Reach. What Logitech does confirm is that Reach can be selected as the camera source in Microsoft Teams, Zoom and Google Meet, and that Zoom’s second-camera feature lets you share Reach and your webcam simultaneously. It behaves as a standard USB camera everywhere.
Can I use Reach as a content camera with a Rally Bar or RoomMate appliance room?
Logitech does not document that, so we cannot promise it. Reach is positioned as a USB peripheral for a PC, Mac, Chromebook or iPad. For an appliance-mode content or whiteboard camera on a CollabOS room system, the product Logitech certifies for that role is Logitech Scribe.
Does it have optical zoom or motorised pan and tilt?
Neither. Logitech describes the zoom as 4.3x lossless, never optical, and all arm and head movement is manual and mechanical — no motors, no presets, no remote. You reposition it with one hand while you are talking.
Can I buy the other mount separately and swap between them?
Yes, and that is Logitech’s stated intent. The Reach Clamp Mount (952-000192) and Reach Base Mount (952-000191) are both sold on their own, so one camera can move between a clamped desk and a free-standing setup.
Does the Logitech Reach come with a Singapore warranty?
Yes. Every Logitech Reach sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
