Logitech Rally Mic Pod CAT Coupler Graphite

Logitech Rally Mic Pod CAT Coupler Graphite (952-000181) - Local Warranty

Professional Audio Extension Accessory for Logitech Rally Systems

Logitech Rally Mic Pod CAT Coupler is a dedicated audio extension accessory designed for Logitech Rally conferencing systems. It enables flexible microphone deployment by extending connections between Rally Mic Pods using CAT cabling, helping organizations optimize audio coverage in larger meeting spaces.

Designed for Logitech Rally Conference Room Deployments

Built specifically for Logitech Rally systems, the CAT Coupler allows users to connect Rally Mic Pods over extended distances while maintaining reliable audio signal quality. It supports more flexible room layouts and cleaner cable management in professional AV installations.

Extended Audio Coverage for Larger Meeting Rooms

The coupler helps improve microphone placement flexibility in medium and large conference rooms. By enabling longer cable runs through CAT infrastructure, organizations can position microphones strategically to ensure clearer voice pickup across the meeting environment.

Enterprise-Grade Design for Professional Installations

Finished in graphite to match Logitech Rally aesthetics, the accessory is designed for professional meeting room installations. Its compact and durable construction supports reliable long-term operation in corporate conferencing environments.

Technical Specifications

General
Model: Rally Mic Pod CAT Coupler
Part Number: 952-000181
Product Type: Mic Pod CAT Coupler / Extension Adapter
Colour: Graphite
Deployment: Meeting rooms, conference rooms, enterprise AV environments
Usage Mode: Extend Rally Mic Pod cable distance using CAT cabling

Compatibility
Compatible Devices:
• Logitech Rally Bar
• Logitech Rally Bar Mini
• Logitech Rally
• Logitech Rally Plus
• Logitech Rally Mic Pod
• Logitech Rally Mic Pod Hub

Cable Extension Specifications
Supported Cable Type: CAT6 SFTP / SSTP
Maximum CAT Cable Length: Up to 20 meters (65.6 ft)
Connection Method: Extends Rally Mic Pod connection via standard CAT cable
Function: Allows flexible long-distance microphone deployment in meeting rooms

Connectivity
Connector Type: Proprietary Rally Mic Pod interface to CAT coupler

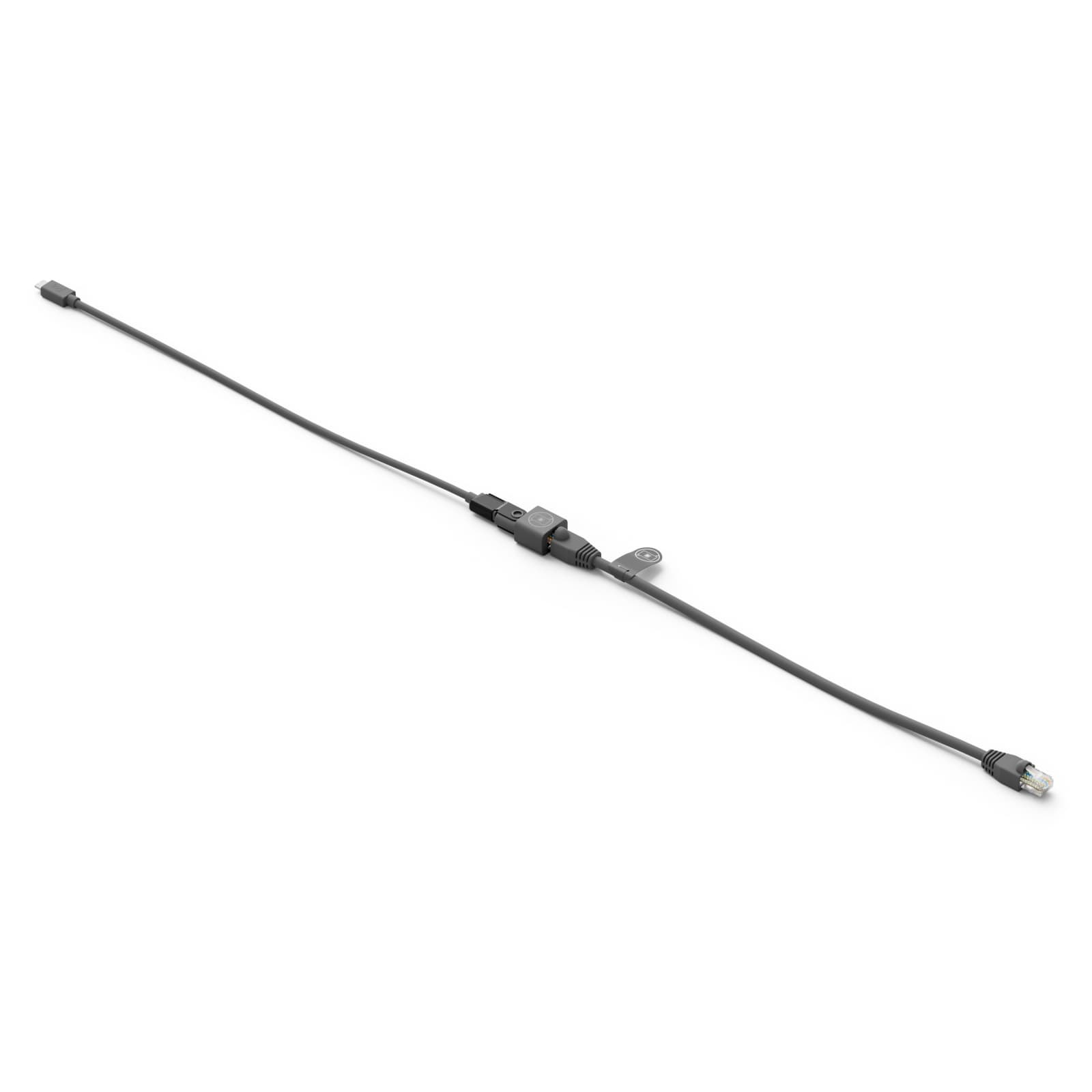

Configuration: Pair of couplers connected through CAT cable
Usage: Works with or without Rally Mic Pod Hub
Installation Type: Plug-and-play extension solution

Performance & Features
Supports extended microphone placement for larger rooms
Enables cleaner structured cabling deployment
Flexible room installation and table routing
Supports Rally Mic Pods and Mic Pod Hubs
Designed for enterprise conferencing environments
Reliable audio signal transmission over long distances

Installation & Deployment
Deployment Type: Under-table, ceiling, or long-table microphone extension
Room Flexibility: Supports custom cable lengths using CAT6 cabling
Conference Support: Suitable for medium and large meeting room deployment
Structured Cabling Support: Integrates with professional AV infrastructure

Security & Reliability
Cable Locking: Integrated locking connection design
Signal Stability: Designed for stable conferencing audio transmission
Enterprise Deployment: Suitable for permanent AV installations

Physical Specifications

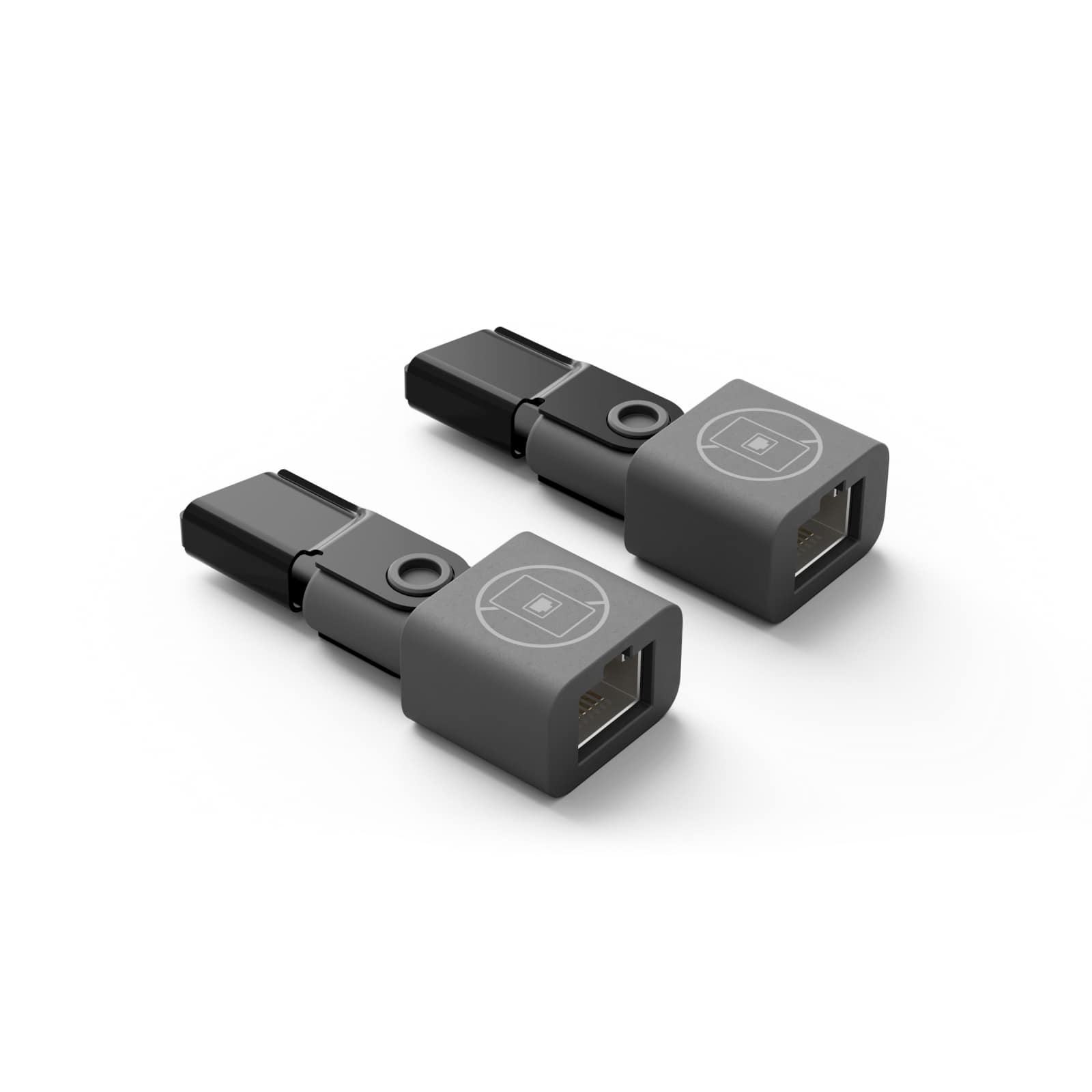

Dimensions (per coupler):
• Height: 15 mm
• Width: 22 mm
• Depth: 58 mm

Attached Cable Length: 215 mm
Colour Finish: Graphite

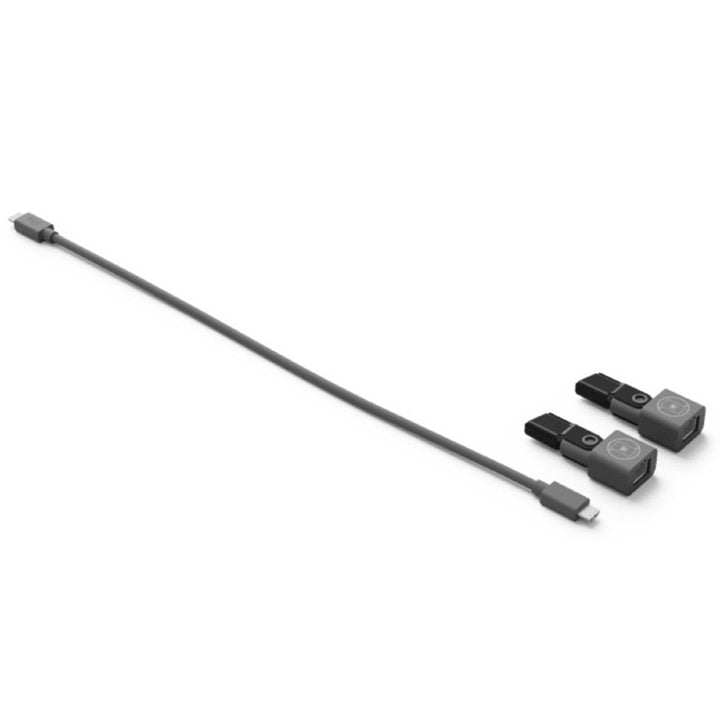

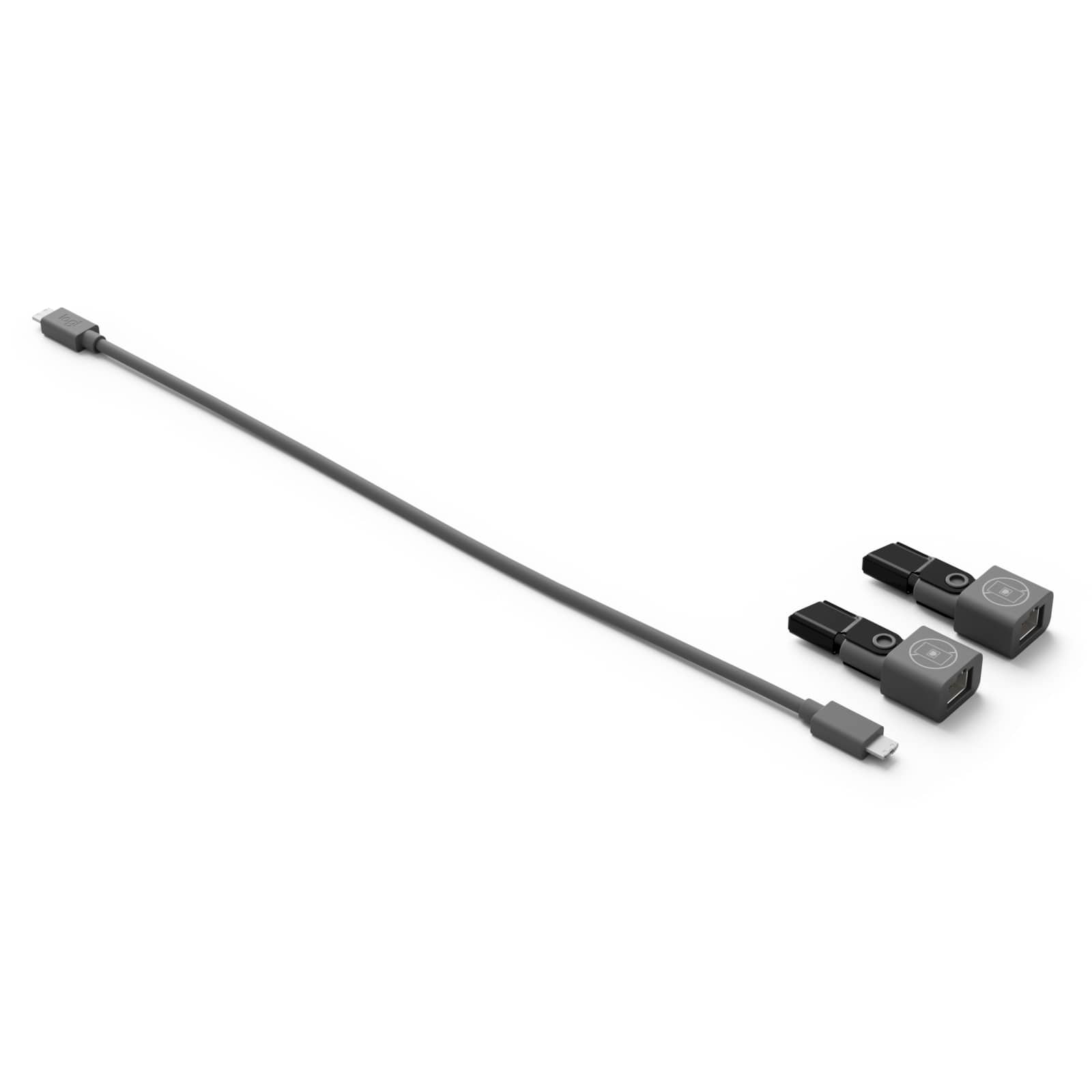

Package Contents
2 × CAT Couplers
Patch Cable
User documentation

Key Features
Extends Rally Mic Pod cable distance
Supports CAT6 SFTP/SSTP cabling
Up to 20m cable extension support
Compatible with Rally Bar and Rally systems
Plug-and-play installation
Flexible AV room deployment
Designed for enterprise conferencing environments

Typical Use Cases
Large meeting room deployment
Boardroom AV integration
Extended conference table microphone setup
Ceiling-mounted microphone installations
Structured enterprise AV cabling environments
Hybrid
