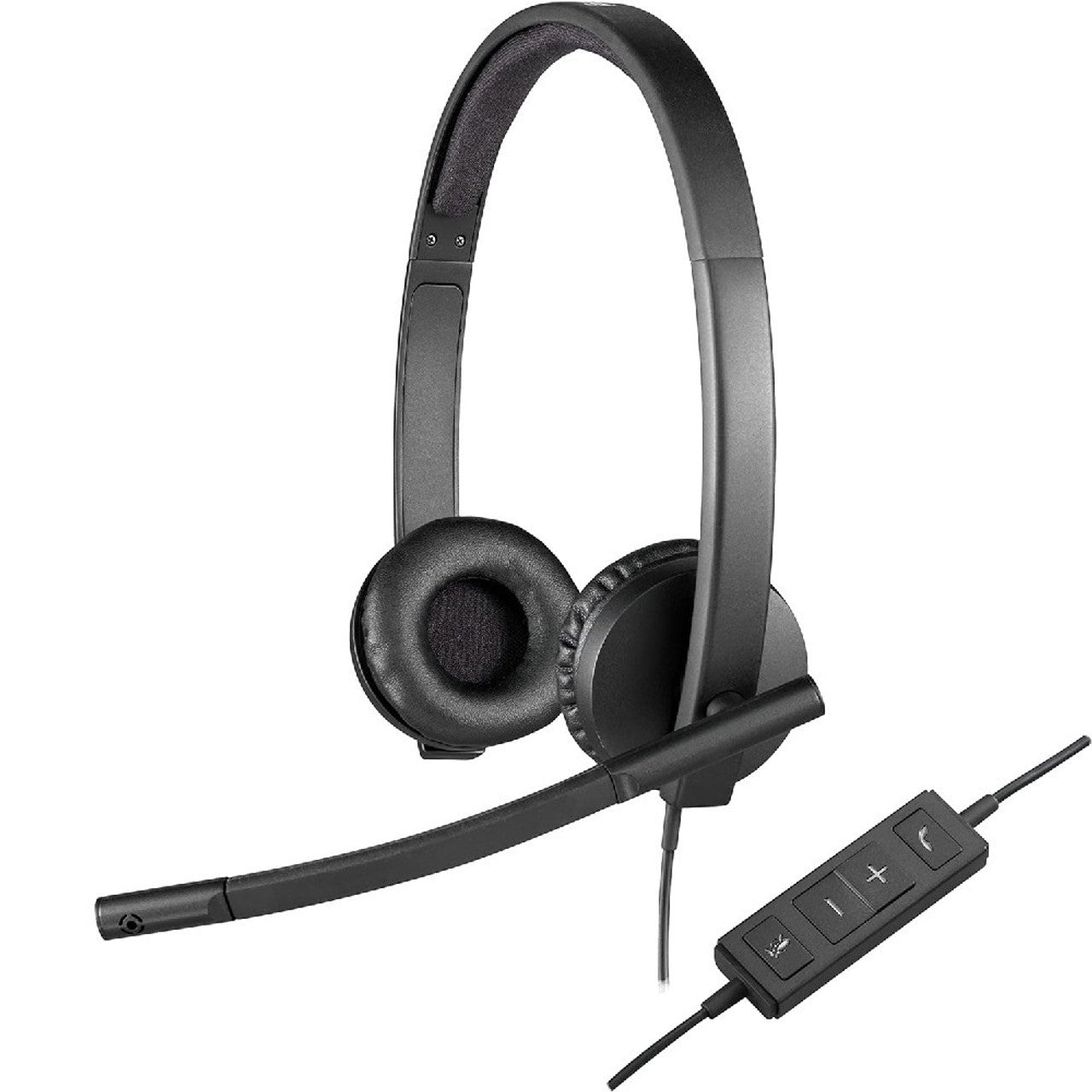

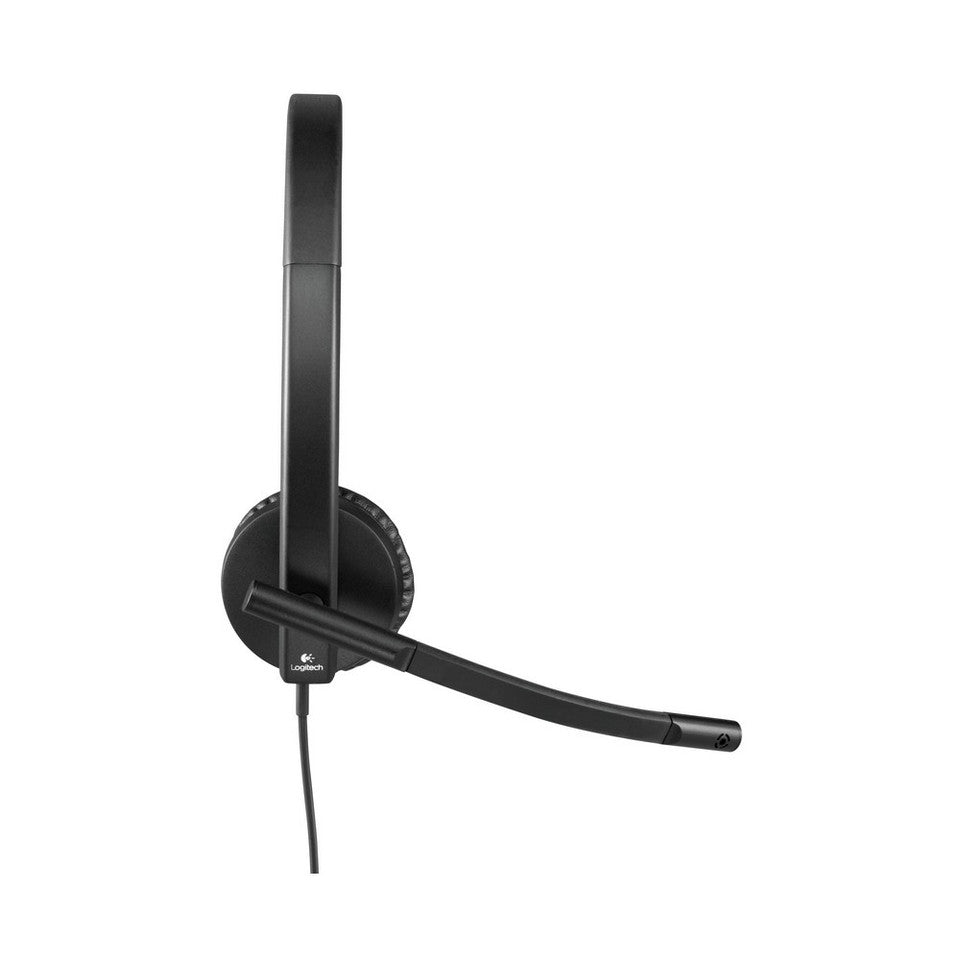

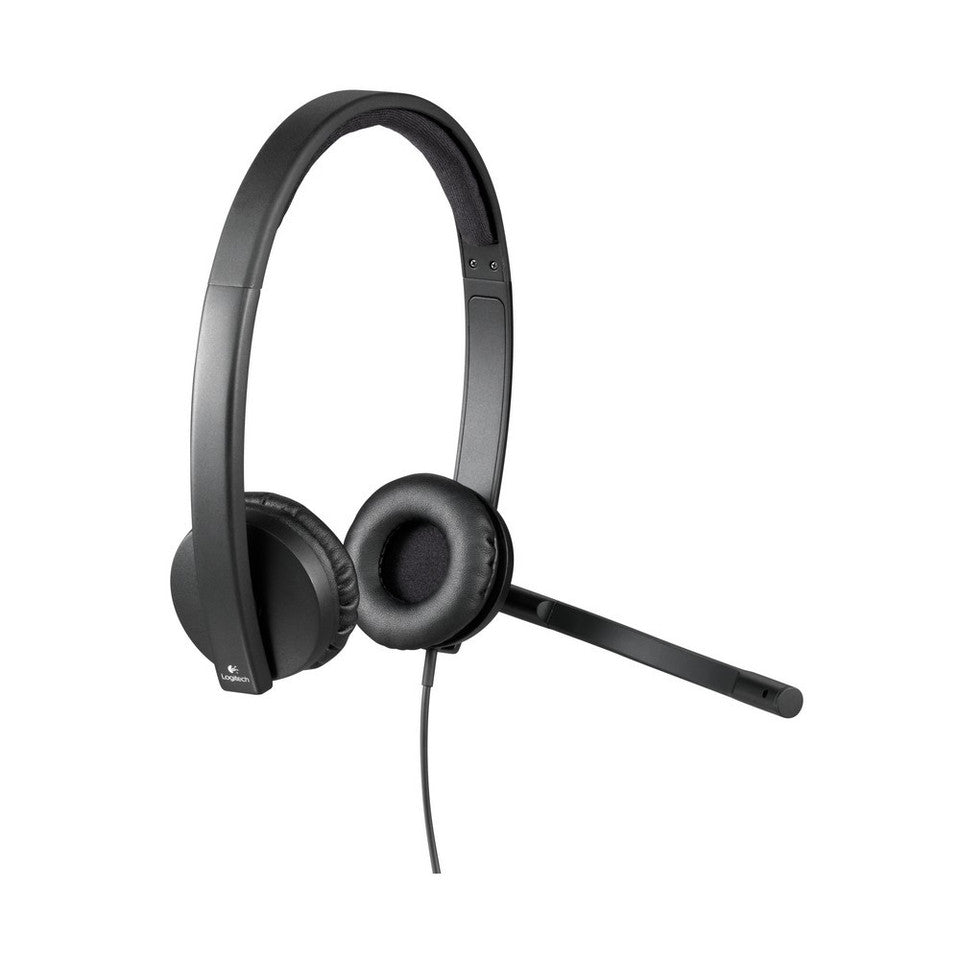

Logitech H570e Stereo USB Headset Teams
PRODUCT DESCRIPTION
Logitech H570e Stereo USB Headset Teams (981-001432) - 2 Years Local Warranty
Logitech H570e Stereo USB-A Headset, Certified for Microsoft Teams
The Logitech H570e Stereo Teams version (981-001432) is the Asia Pacific USB-A part number for Logitech's Microsoft Teams certified business headset. A dedicated Teams button on the in-line controller raises Teams directly, joins meetings and shows notifications, so users are not clicking through windows to answer a call. This is the SKU to specify when a Singapore tender or a corporate standard calls for a Teams-certified wired headset.
Two Noise-Cancelling Microphones for Clear Speech
The Teams variant of the H570e uses two noise-cancelling microphones — one unidirectional and one omnidirectional — working together on a long flexible boom to isolate your voice from the room. Microphone response runs 100 Hz to 8 kHz, the band that carries speech intelligibility, and the boom rotates up when you are only listening.
30 mm Driver, 98 dB Max SPL and Low Distortion
A 30 mm driver delivers a 20 Hz to 20 kHz music-mode frequency response at 96 dB ±3 dB sensitivity into a 32 ohm impedance, with a maximum SPL of 98 dB and total harmonic distortion below 3% from 50 Hz to 20 kHz. The headset is EN 50332-2 compliant with acoustic protection against sounds above 100 dBA.

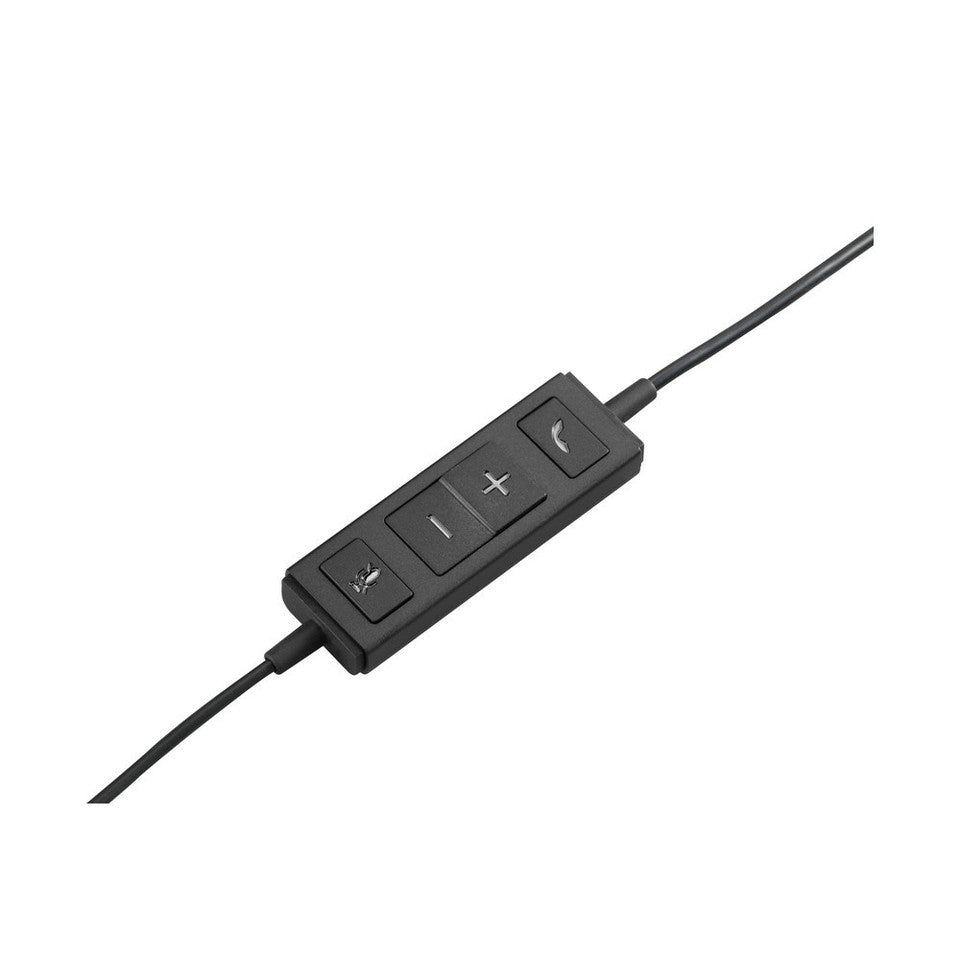

Teams Button, Call Controls and Three-Colour LED Status
The in-line controller handles answer, end and reject, volume up and down, mute on and off, and Teams activities. LED indicators show red for mute, purple for Teams and white for call activity, so status is readable at a glance from across a desk.
Manageable Through Logitech Sync
Because this is a Teams variant, the H570e is supported in Logitech Sync, letting IT teams inventory deployed headsets and push firmware updates centrally instead of visiting each desk. That matters when you are rolling out hundreds of units across multiple Singapore sites.
Logitech H570e Datasheet — Technical Specifications
General
| Model | Logitech USB Headset Stereo H570e (Microsoft Teams version) |
| Logitech Model Number | A-00192 |
| Part Number | 981-001432 (Asia Pacific, Stereo USB-A) |
| Product Type | Wired USB stereo (dual-ear) business headset |
| Certification | Certified for Microsoft Teams |
| Warranty | 2 Years Local Warranty (Singapore) |
Audio
| Driver Size | 30 mm |
| Headphone Frequency Response | 20 Hz – 20 kHz (music mode) |
| Headphone Sensitivity | 96 dB ±3 dB |
| Input Impedance | 32 ohm |
| Maximum SPL | 98 dB |
| Total Harmonic Distortion (Speaker) | Less than 3% (from 50 Hz – 20 kHz) |
| Microphone Configuration | 2 noise-cancelling microphones — 1 unidirectional and 1 omnidirectional |
| Microphone Frequency Response | 100 Hz – 8 kHz |
| Microphone Noise Cancelling | Yes |
| Microphone Boom | Long flexible boom |
| Hearing Protection | Protection against sounds above 100 dBA; EN 50332-2 compliant |
Connectivity
| Connector | USB-A |
| USB Type | USB 2.0 |
| Cable Length | 1.9 m (6.23 ft) |
| In-Line Controls | Answer / end / reject calls, volume up and down, mute on and off, Microsoft Teams button |
| Indicator Lights | Red (mute), purple (Teams), white (call) |
| Device Management | Logitech Sync supported |
| Power | Bus powered over USB — no external power required |
Design & Power
| Dimensions (H × W × D) | 171 mm × 157 mm × 50 mm |
| Weight | 113 g |
| Wearing Style | On-ear, dual-ear (stereo), adjustable headband |
| Colour | Black |
Compatibility & Software Support
The Logitech H570e is a USB Audio Class device recognised by the operating system without driver installation.
Operating System and Platform Support
| Windows | Supported over standard USB audio |
| macOS | Supported over standard USB audio |
| ChromeOS | Supported over standard USB audio |
| Linux | Supported over standard USB audio |
| USB Type | USB 2.0 |
Platform Certifications
This variant is Certified for Microsoft Teams and carries a dedicated Teams button on the in-line controller, with a purple LED for Teams activity. Logitech does not publish a separate Zoom or Google Meet device certification for the H570e, so while the headset works normally as the audio device in Zoom, Google Meet, Webex and other softphone applications, it should be quoted as Teams certified and compatible with the rest.
Logitech Sync Device Management
The Microsoft Teams variants of the H570e are supported in Logitech Sync, allowing IT teams to inventory deployed headsets and push firmware updates centrally rather than device by device.
Software
No drivers are required for day-to-day use. The H570e is not configured through Logi Options+ or Logi Tune; call control, volume and mute are handled on the in-line controller.
Package Contents & H570e Series Ordering Information
In the Box
- Logitech H570e Stereo Headset
- User documentation
Logitech H570e Series Ordering Information
| Variant | Part Number | Notes |
| H570e Stereo, USB-A (UC version) | 981-000574 | Dual-ear, no Teams button |
| H570e Stereo, USB-A (Teams version) (this listing) | 981-001432 | Dual-ear, Certified for Microsoft Teams |
| H570e Stereo, USB-C (Teams version) | 981-001557 | Dual-ear, Certified for Microsoft Teams |
| H570e Mono, USB-C (Teams version) | 981-001583 | Single-ear, Certified for Microsoft Teams |
| H570e Replacement Ear Pad Covers | 952-000064 | Spare leatherette ear pads |
Logitech's global H570e Teams datasheet quotes Americas part numbers 981-001424, 981-001425, 981-001428 and 981-001429 and EMEA part numbers 981-001426, 981-001427, 981-001430 and 981-001431. The Asia Pacific stereo USB-A part number is 981-001432. Singapore stock may carry a different part number to the one printed on a global datasheet — the part numbers listed in the table above are the SKUs SourceIT supplies locally.
Wider Logitech H-Series Range at SourceIT
| Model | Part Number | Notes |
| H111 Stereo Headset | 981-000588 | 3.5 mm single jack, 73.2 g |
| H151 Stereo Headset | 981-000587 | 3.5 mm single jack, in-line controls |
| H340 USB Headset | 981-000477 | USB-A, no in-line controls |
| H540 USB Headset | 981-000482 | USB-A, on-earcup controls (clearance — while stocks last) |
| H390 USB Headset | 981-000485 | USB-A, in-line controls, leatherette pads |
| H570e Stereo Business Headset | 981-000574 | USB-A, dual noise-cancelling mics |
| H650e Business Headset | 981-000545 | USB-A, 32 mm driver with Dynamic EQ |
Datasheet & Downloads
- Logitech H570e Datasheet (UC version, official PDF)
- Logitech H570e Datasheet (Microsoft Teams version, official PDF)
- Logitech Headset Portfolio Comparison (official PDF)
- Logitech H570e Spec Hub (hub.sync.logitech.com)
- Logitech H570e Product Page
- Logitech H570e Stereo Specifications, Microsoft Teams variant (Logitech Spec Hub)
Frequently Asked Questions — Logitech H570e
What does the Microsoft Teams button actually do?
The dedicated Teams button on the in-line controller brings Microsoft Teams to the front, joins meetings and surfaces notifications without you switching windows. The purple LED lights for Teams activity, so you can see a raised hand or a missed notification without looking at the screen. It requires the Teams desktop client to be running on the connected computer.
What is the difference between the Teams version and the UC version of the H570e?
The Teams version (this listing) is Certified for Microsoft Teams, adds the dedicated Teams button and the purple Teams LED, uses two noise-cancelling microphones and is manageable through Logitech Sync. The UC version (981-000574) is certified for Works With Chromebook and listed as Cisco audio compatible, has no Teams button and uses a bi-directional ECM microphone. Both are 30 mm driver, 1.9 m cable, on-ear stereo headsets.
Does the H570e Teams version work with Zoom and Google Meet?
Yes, as a standard USB audio device it works normally as the microphone and speaker in Zoom, Google Meet, Webex and other softphone applications, and the volume, mute and call controls behave as expected. Logitech publishes a Microsoft Teams certification for this headset but does not publish a separate Zoom or Google Meet device certification, so we quote it as Teams certified and compatible with the rest.
Why does the Logitech datasheet show a different part number to 981-001432?
Logitech's global H570e Teams datasheet quotes Americas part numbers (981-001424, 981-001425, 981-001428, 981-001429) and EMEA part numbers (981-001426, 981-001427, 981-001430, 981-001431). 981-001432 is the Asia Pacific stereo USB-A part number and is the correct SKU for Singapore. The hardware is the same headset.
Should I order stereo or mono, and USB-A or USB-C?
Stereo suits knowledge workers and anyone who needs to concentrate; mono suits reception, trading and contact-centre staff who need to hear the room. This listing is stereo with a USB-A plug. For native USB-C, order the H570e Stereo USB-C (981-001557) or the H570e Mono USB-C (981-001583).
Do I need a licence, a room PC or a compute appliance?
No. The H570e is a wired USB headset for an existing computer. Logitech Sync device management is included at no extra licence cost for headset inventory and firmware updates.
Are replacement ear pads available?
Yes — SourceIT stocks Logitech H570e Replacement Earpad Covers (952-000064), which lets you refresh headsets between users rather than replacing the whole unit.
Does this headset come with a Singapore warranty?
Yes. Every H570e sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
